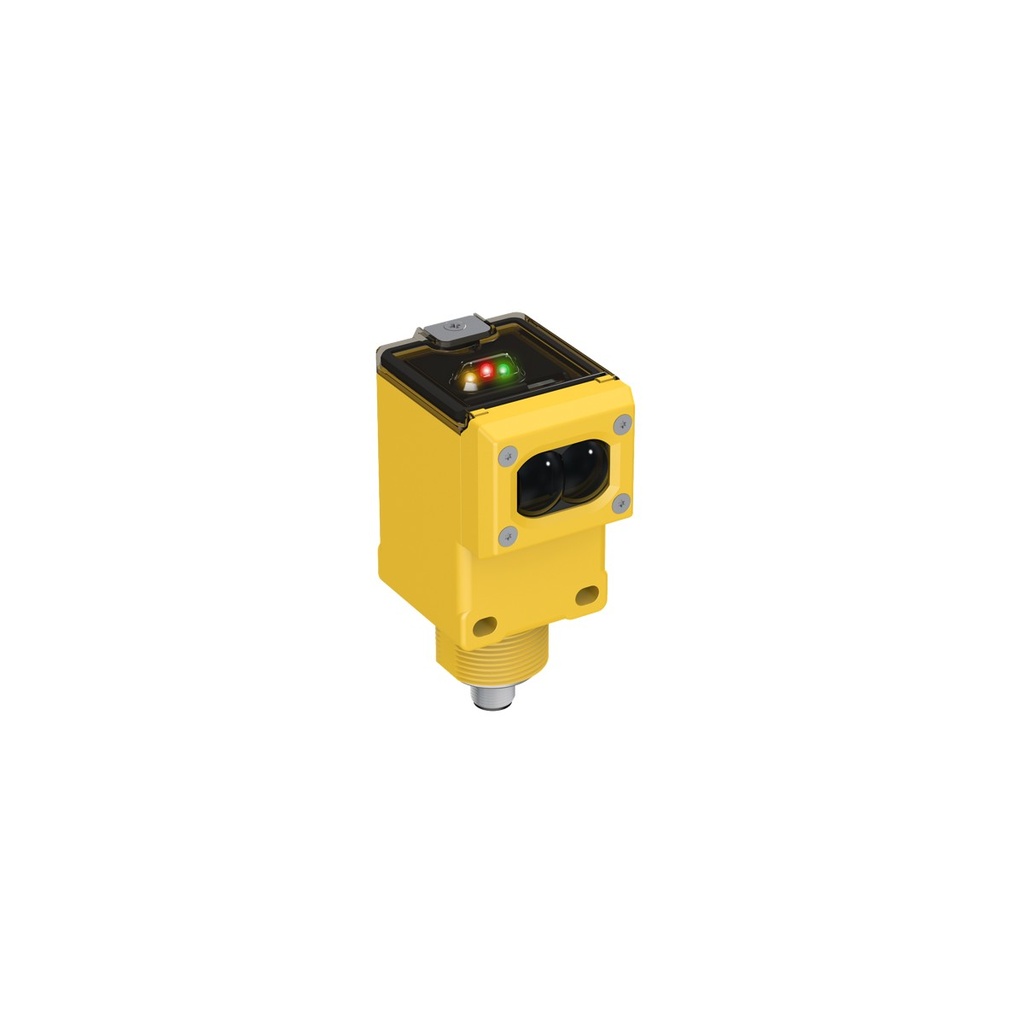

Photo sensor Q45BB6DLQ5, diffuse 1.8 m, infrared, PNP+NPN, 10-30VDC, M12 4-pin

Q45BB6DLQ5 is a Banner Q45 series long-range diffuse photo sensor with an infrared beam, in a rugged rectangular housing. It detects objects by the light they reflect back, up to 1.8 m from the sensor.

• Sensing range: 1.8 m, adjustable
• Output: bipolar, 1 PNP and 1 NPN, Light or Dark Operate by switch
• Response: 2 ms; repeatability 500 µs
• Supply: 10-30 V DC
• Housing: rugged rectangular, thermoplastic, acrylic lens, 30 mm threaded mounting hub
• Environment: IP67, NEMA 4X, -40...+70 °C
• Connection: integral M12 male connector, 4-pin

Sensitivity is set with a multi-turn control. CE approved.
