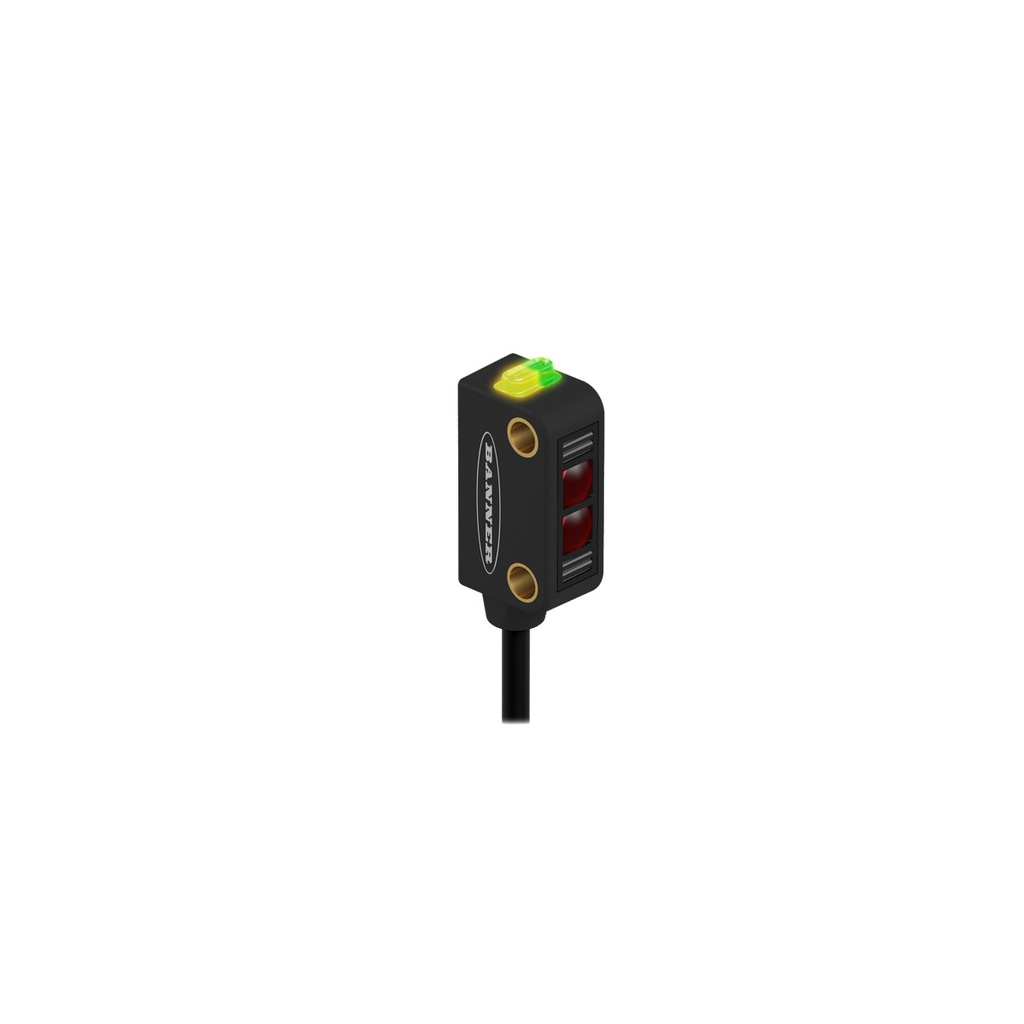

Photo sensor Q12AB6FF30, fixed field 30 mm, PNP+NPN LO, 10-30VDC, 2 m cable

Q12AB6FF30 is a Banner Q12 series miniature fixed-field photo sensor with a 30 mm cutoff and a small visible red spot focused at 16 mm. It detects objects closer than the cutoff and ignores the background beyond it.

• Sensing range: 30 mm cutoff, fixed
• Output: bipolar, 1 PNP and 1 NPN, Light Operate
• Response: 0.85 ms ON/OFF; repeatability 175 µs
• Supply: 10-30 V DC
• Housing: miniature rectangular, thermoplastic, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable

The small housing fits where there is no room for an 18 mm sensor; there is no sensitivity adjustment. UL, CE and UKCA approved.
