WKC4.4T-2/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

B81121-0/PG9 is a TURCK field-wireable M12 female connector, straight, 12-pin, A-coded, for 6...8 mm cable.

• Connector: M12, female, straight, A-coded, 12-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 30 V
• Connection: conductors up to 0.25 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

RKC4.4T-2/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-5/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-10/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.5T-2/TEL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.5T-5/TEL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.5T-2/TEL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.5T-5/TEL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RSC4.4T-2/TEL is a TURCK connection cable with a straight M12 male connector (A-coded, 4-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. Approval: cULus.

RSC4.4T-5/TEL is a TURCK connection cable with a straight M12 male connector (A-coded, 4-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. Approval: cULus.

PKG3M-5/TEL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4M-2/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKW3M-5/TEL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PSG4M-2/TEL is a TURCK sensor and actuator cable with a straight M8 male connector (4-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 4-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², PVC core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The black PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free.

Approval: cULus.

RKC8T-5/TXL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC8T-5/TXL is a TURCK connection cable with an angled M12 female connector (8-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-5/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.4T-2/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.4T-10/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.5T-2/TXL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.5T-5/TXL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.5T-10/TXL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-5/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.4T-P7X2-2/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-P7X2-5/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. A two-colour LED is built into the connector.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Indication: two-colour LED (PNP), visible all round – green shows supply, yellow shows switching state
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 VDC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

WKC4.4T-P7X2-5/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-15/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

BS5133-0 is a TURCK field-wireable M8 male connector, straight, 3-pin, for 3.5...5 mm cable with screw-clamp terminals.

• Connector: M8, male, straight, 3-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, PA 66 contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

B5231-0 is a TURCK field-wireable M8 female connector, angled, 3-pin, for 3.5...5 mm cable with solder contacts.

• Connector: M8, female, angled, 3-pin, gold-plated bronze (CuSn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V
• Connection: solder contacts, conductors up to 0.25 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, neoprene seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

HAS5141-0 is a TURCK field-wireable M8 male connector, straight, 4-pin, for 2.5...5.1 mm cable with IDC terminals.

• Connector: M8, male, straight, 4-pin, gold-plated CuZn contacts
• Ratings: 4 A, 32 V, contact resistance ≤5 mΩ
• Connection: IDC terminals, conductors up to 0.34 mm², cable diameter 2.5...5.1 mm
• Housing: black PA body and contact carrier, brass (CuZn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -5...+50°C fixed

HA5141-0 is a TURCK field-wireable M8 female connector, straight, 4-pin, for 2.5...5.1 mm cable with IDC terminals.

• Connector: M8, female, straight, 4-pin, gold-plated CuZn contacts
• Ratings: 4 A, 32 V, contact resistance ≤5 mΩ
• Connection: IDC terminals, conductors up to 0.34 mm², cable diameter 2.5...5.1 mm
• Housing: black PA body and contact carrier, nickel-plated brass (CuZn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -5...+50°C fixed

B5241-0 is a TURCK field-wireable M8 female connector, angled, 4-pin, for 3.5...5 mm cable with solder contacts.

• Connector: M8, female, angled, 4-pin, gold-plated bronze (CuSn) contacts, more than 100 mating cycles
• Ratings: 4 A, 30 V
• Connection: solder contacts, conductors up to 0.25 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, neoprene seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

B5143-0 is a TURCK field-wireable M8 female connector, straight, 4-pin, for 3.5...5 mm cable with screw-clamp terminals.

• Connector: M8, female, straight, 4-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 30 V
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, nickel-plated die-cast zinc (GD-Zn) coupling nut, neoprene seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

PSGS4M-RJ45S-4414-1M is a TURCK Industrial Ethernet cable with a straight M8 male connector on one end and a straight RJ45 male plug on the other (4-pin). The 4-wire CAT 5e cable is built to ISO/IEC 11801, EN 50173 and EIA/TIA 568-A for 100 Mbit/s Ethernet.

• Connectors: M8 male, straight / RJ45 male, straight; 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PUR, green, Ø 4.8 mm, 4 x 0.15 mm² (AWG 26), core colours WHOG, WHBU, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 3 A, 42 V; CAT 5e, impedance 100 Ω, capacitance 51 pF/m
• Housing: black TPU, nickel-plated zinc die-cast (GD-Zn) coupling nut
• Environment: M8 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed, -25...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±30°/m

The green PUR jacket is UV and oil resistant (IEC 60811-2-1), flame retardant (IEC 60332-1-2), resistant to weld spatter and free from halogen, silicone, PVC and LABS; RoHS compliant. Approval: cULus.

RKC4.4T-10/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

YB2-FSM5-2FKM5.4-P7X3 is a TURCK Y-splitter without cable with one M12 male connector (5-pin) and two M12 female connectors (4-pin). The translucent male connector body carries three LEDs: green for supply and two yellow for the switching state.

• Connectors: M12 male, 5-pin / 2 x M12 female, 4-pin, straight, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, translucent TPU male connector, nickel-plated brass coupling nuts
• Environment: IP67 (only when screwed in); -30...+80°C

RoHS compliant.

RKSV8T-5/TEL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 6.4 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

WKC4.4T-20/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

FW-M12ST5D-G-SB-ME-SH-8 is a TURCK field-wireable M12 male connector, straight, 4-pin, D-coded, for 5...8 mm cable with screw-clamp terminals. It is made for Ethernet; the cable shield is contacted to the metal housing by an iris spring.

• Connector: M12, male, straight, D-coded, 4-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 250 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.75 mm², cable diameter 5...8 mm
• Housing: nickel-plated die-cast zinc (GD-Zn) body and coupling nut, black PA contact carrier
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: UL.

WKS4.5T-10/TXL is a TURCK shielded connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKW4M-5/TXL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKS4.5T-10/TXL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

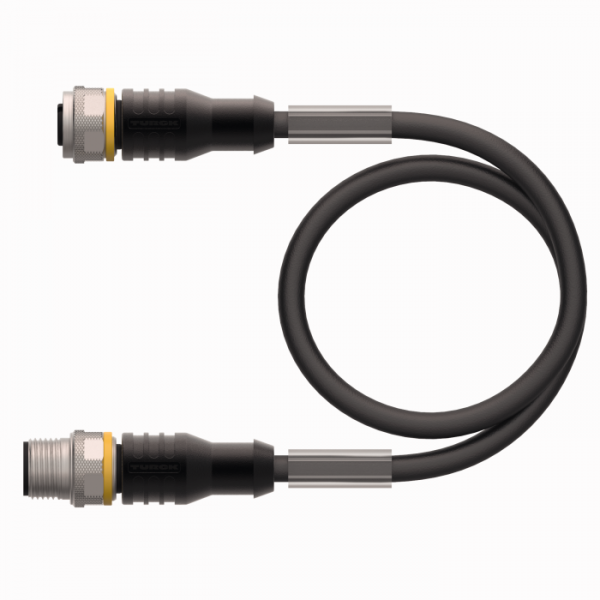

RKC4.5T-5-RSC4.5T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (5-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKS8T-15/TXL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

WKC4.4T-15/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC5T-P7X3-5/TXL is a TURCK connection cable with an angled M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The connector has three built-in LED indicators: green shows the supply, two yellow ones the state of the PNP signals.

• Connector: M12 x 1, female, angled, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC8T-10/TEL is a TURCK connection cable with an angled M12 female connector (8-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 5.7 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKS8T-10/TXL is a TURCK shielded connection cable with an angled M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

WKS8T-5/TXL is a TURCK shielded connection cable with an angled M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, angled, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

VC-AC21-0.220-K is a TURCK field-wireable design A valve connector, 2+PE, with screw-clamp terminals for 6...8 mm cable and without protective circuitry.

• Connector: valve connector design A, 2+PE, metal contacts, more than 50 plug cycles
• Ratings: 10 A, 250 V
• Connection: screw-clamp terminals, conductors up to 1 mm² (3 x 1 mm²), cable diameter 6...8 mm, M20 x 1.5 screw-in thread, M3 x 33.5 central screw
• Housing: black PA6 GF30 body and contact carrier, NBR seal
• Environment: IP65 (mounted); -25...+80°C fixed

Supplied with the central screw, pressure screw, seal, sealing ring and pressure ring.

PKW3M-2/TEL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.4T-5/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

B5133-0 is a TURCK field-wireable M8 female connector, straight, 3-pin, for 3.5...5 mm cable with screw-clamp terminals.

• Connector: M8, female, straight, 3-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, nickel-plated die-cast zinc (GD-Zn) coupling nut, neoprene seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

RKSV8T-10/TEL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 6.4 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

RKC4.441T-10/TEB is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable has a blue PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, blue, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC5T-P7X3.1-15/TXL is a TURCK connection cable with an angled M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The connector has three built-in LED indicators: green shows the supply, yellow and red the state of the PNP signals.

• Connector: M12 x 1, female, angled, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-10/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

BS5241-0 is a TURCK field-wireable M8 male connector, angled, 4-pin, for 3.5...5 mm cable with solder contacts.

• Connector: M8, male, angled, 4-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 30 V, contact resistance ≤3 mΩ
• Connection: solder contacts, conductors up to 0.25 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, PA 66 contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.
