PKG4M-5/TXG is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, grey, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-0.5-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKSV4.4T-15/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PKG4M-15/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC5701-5M is a TURCK shielded CAN bus cable (DeviceNet, CANopen) with a straight M12 female connector (5-pin, A-coded) on one end and open cores on the other. The cable carries a separate power pair and a data pair with 120 Ω impedance.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, anthracite, Ø 6.7 mm, shielded; power pair AWG 22 (RD, BK), data pair AWG 24 (WH, BU)
• Electrical: 4 A, 60 V, impedance 120 Ω (1 MHz), capacitance 37 pF/m, loop resistance 82 Ω/km
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+80°C fixed, -25...+60°C mobile

The cable is rated for drag chains (at least 5 million bending cycles, up to 3 m/s, bending radius ≥10 x Ø). It is oil resistant per VDE 0472-803, flame retardant per VDE 0472-804/B, UV resistant and free from halogen and LABS.

Approval: UL.

BK14-0 is a TURCK field-wireable M16 x 0.75 female connector, straight, 14-pin, for 6...8 mm cable.

• Connector: M16 x 0.75, female, straight, 14-pin, gold-plated bronze (CuSn) contacts, more than 500 mating cycles
• Ratings: 3 A, 60 V
• Connection: conductors up to 0.25 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, PBT (UL 94 V0) contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut
• Environment: -40...+95°C fixed

RKS8T-5/TXL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

WKC4.4T-P7X2-25/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

VT2-FKM4.4-FSM4.4-FSM4.4 is a TURCK T-splitter without cable with two M12 male connectors (4-pin) and one M12 female connector (4-pin), all A-coded.

• Connectors: 2 x M12 male, 4-pin / M12 female, 4-pin, straight, A-coded, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 48 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68 (only when screwed in); -30...+90°C

RoHS compliant.

PSG4M-0.2-PSG4M/TXN is a TURCK bridge cable with a straight M8 male connector (4-pin) on each end, used to link TBEN-S modules to each other.

• Connectors: M8 male, straight / M8 male, straight; 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.2 m, PUR, green, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nuts; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant and free from halogen, silicone, PVC and LABS. CE, UKCA and RoHS compliant.

TN-UHF-CBL-HF240-RPTNC-1-SMA is a TURCK coaxial cable for connecting a passive UHF RFID antenna, with an RP-TNC connector on one end and an SMA connector on the other.

• Connectors: RP-TNC / SMA
• Cable: 1 m
• Attenuation: 0.25 dB

MQDC2S-1715 is a Banner single-ended cordset with a straight 17-pin M12 female connector and flying leads. The cable shield is tied to the coupling nut.

• Connector: M12x1, female, straight, A-coded, 17 pins; nickel-plated brass coupling nut, black PUR overmold
• Cable: 4.57 m, black PVC, Ø 7.0 mm, 17 x 26 AWG, shielded
• Ratings: 2 A, 60 V AC / 75 V DC
• Environment: IP67, -40...+70 °C

CE marked.

LQMAEC-301SS is a Banner double-ended lighting cordset with a straight 3-pin Molex female connector at one end and a straight 4-pin Molex female connector at the other. It is rated for 230 V AC.

• Connectors: Molex, female, straight, 3 pins / Molex, female, straight, 4 pins; black PVC overmold
• Cable: 0.3 m, black PVC, Ø 6.8 mm, 3 x 18 AWG
• Ratings: 9 A, 230 V AC
• Environment: IP50, -40...+70 °C

UL listed (ELBZ), CE and UKCA marked.

CAM12.A5-11235915 is a Baumer M12 male-to-female cable with an unshielded PUR jacket rated for drag chains and for robot use with torsion up to ±180°/m.

• Connectors: M12 male and M12 female, straight, A-coded, 5-pin, nickel-plated zinc knurled nut
• Cable: PUR, black, Ø 4.5 mm, 5 × 0.34 mm² (AWG 22), unshielded, 1 m
• Rating: max. 4 A per contact, max. 125 V AC/DC (UL: 30 V AC/DC)
• Flexing: approx. 10 million C-track bending cycles, min. bending radius 10 × Ø when moving
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

The cable is halogen-free and silicone-free, flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2, and oil-resistant to DIN EN 60811-404.

CAM12.A4-11230429 is a Baumer adapter cable from an M12 male to an M8 female connector, both A-coded and 4-pin, for connecting an M8 sensor to an M12 port. The unshielded PUR jacket is rated for drag chains and torsion up to ±180°/m.

• Connectors: M12 male (AF13, 0.6 Nm) and M8 female (AF9, 0.4 Nm), straight, A-coded, 4-pin
• Cable: PUR, black, Ø 4.5 mm, 4 × 0.25 mm² (AWG 24), unshielded, 1 m
• Rating: max. 4 A per contact, max. 50 V AC / 60 V DC
• Flexing: approx. 10 million C-track bending cycles, min. bending radius 10 × Ø when moving
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

Wire colours BN, WH, BU, BK on pins 1-4 at both ends. The cable is halogen-free and flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2.

RKC4.4T-0.3-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-0.2-PSG4M/TXL is a TURCK M8 connection cable with a black PUR jacket rated for drag chains.

• Connectors: M8 x 1 female and M8 x 1 male, both straight, 4-pin each, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Cable: 0.2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 V AC/60 V DC
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

FW-ERKPM0414-PS-S-0810 is a TURCK field-wireable M12 Power female connector with S-coding (3+PE) for power connections up to 12 A and 630 V. The cores are terminated in screw terminals.

• Connector: M12 x 1 female, straight, S-coded, 3+PE, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 12 A, 630 V
• Connection: screw terminals, cores up to 1.5 mm² (AWG 16) with ferrule or up to 2.5 mm² (AWG 14) without; cable outer diameter 8...10 mm
• Housing: black plastic, nickel-plated GD-Zn coupling nut, FPM/FKM seal
• Environment: IP67 (assembled and screwed in); -40...+85°C

Approval: cULus recognized.

WKC4.4T-P7X2-10/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-2-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC12T-5/TEL is a TURCK connection cable with a straight M12 female connector (12-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5.9 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-7.5/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 7.5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.4T-7/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 7 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PSG4M-2/TXL is a TURCK sensor and actuator cable with a straight M8 male connector (4-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 4-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The black PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

PSGS4M-RJ45S-4414-0.2M is a TURCK Industrial Ethernet cable with a straight M8 male connector on one end and a straight RJ45 male plug on the other (4-pin). The 4-wire CAT 5e cable is built to ISO/IEC 11801, EN 50173 and EIA/TIA 568-A for 100 Mbit/s Ethernet.

• Connectors: M8 male, straight / RJ45 male, straight; 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.2 m, PUR, green, Ø 4.8 mm, 4 x 0.15 mm² (AWG 26), core colours WHOG, WHBU, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 3 A, 42 V; CAT 5e, impedance 100 Ω, capacitance 51 pF/m
• Housing: black TPU, nickel-plated zinc die-cast (GD-Zn) coupling nut
• Environment: M8 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed, -25...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±30°/m

The green PUR jacket is UV and oil resistant (IEC 60811-2-1), flame retardant (IEC 60332-1-2), resistant to weld spatter and free from halogen, silicone, PVC and LABS; RoHS compliant. Approval: cULus.

RKM52-2M is a TURCK power supply cable with a straight 7/8" female connector (4 pins + PE) on one end and open cores on the other. The 1.5 mm² cores and 10 A rating let one cable feed power to several devices.

• Connector: 7/8"-16 UN, female, straight, 4 pins + PE, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, grey, Ø 8.5 mm, 5 x 1.5 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 10 A, 300 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut
• Environment: IP67 (only when screwed in); -25...+80°C fixed, mobile and in a drag chain

The cable is rated for drag chains (at least 5 million bending cycles, up to 5 m/s², bending radius ≥10 x Ø). It is oil resistant, flame retardant and halogen free.

CE, UKCA and UL approved.

RKH4.4-10/TFG is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, TPE-O, light grey (RAL 7035), Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -40...+105°C fixed, -25...+105°C mobile, -25...+60°C in a drag chain

The TPE-O jacket is rated for drag chains: at least 4 million bending cycles, up to 3 m/s and 5 m/s², torsion ±180°/m. It resists chemicals, microbes and weathering, is hydrolysis resistant per DIN EN 60068-2-78, stays flexible at low temperatures and is free from halogen, silicone and PVC.

RoHS and REACH compliant, approvals: FDA, Ecolab, GOST.

RKC4.4T-1/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

VT2-FKM5-FSM5-FSM5 is a TURCK T-splitter without cable with two M12 male connectors (5-pin) and one M12 female connector (5-pin), all A-coded.

• Connectors: 2 x M12 male, 5-pin / M12 female, 5-pin, straight, A-coded, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 48 V, contact resistance ≤5 mΩ, insulation resistance ≥10⁸ Ω
• Housing: black TPU, nickel-plated brass coupling nuts
• Environment: IP65, IP67, IP68 (only when screwed in); -30...+90°C

RoHS compliant.

RKH4.4-5/TFG is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, TPE-O, light grey (RAL 7035), Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -40...+105°C fixed, -25...+105°C mobile, -25...+60°C in a drag chain

The TPE-O jacket is rated for drag chains: at least 4 million bending cycles, up to 3 m/s and 5 m/s², torsion ±180°/m. It resists chemicals, microbes and weathering, is hydrolysis resistant per DIN EN 60068-2-78, stays flexible at low temperatures and is free from halogen, silicone and PVC.

RoHS and REACH compliant, approvals: FDA, Ecolab, GOST.

WKH4.4-5/TFE is a TURCK hygienic connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other, for sensors and actuators in food and beverage plants.

• Connector: M12 female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, grey RAL 7040, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

Designed for food and beverage areas: the grey PVC jacket (RAL 7040) resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and 60332-2-2. RoHS and REACH compliant. Approvals: GOST, Ecolab.

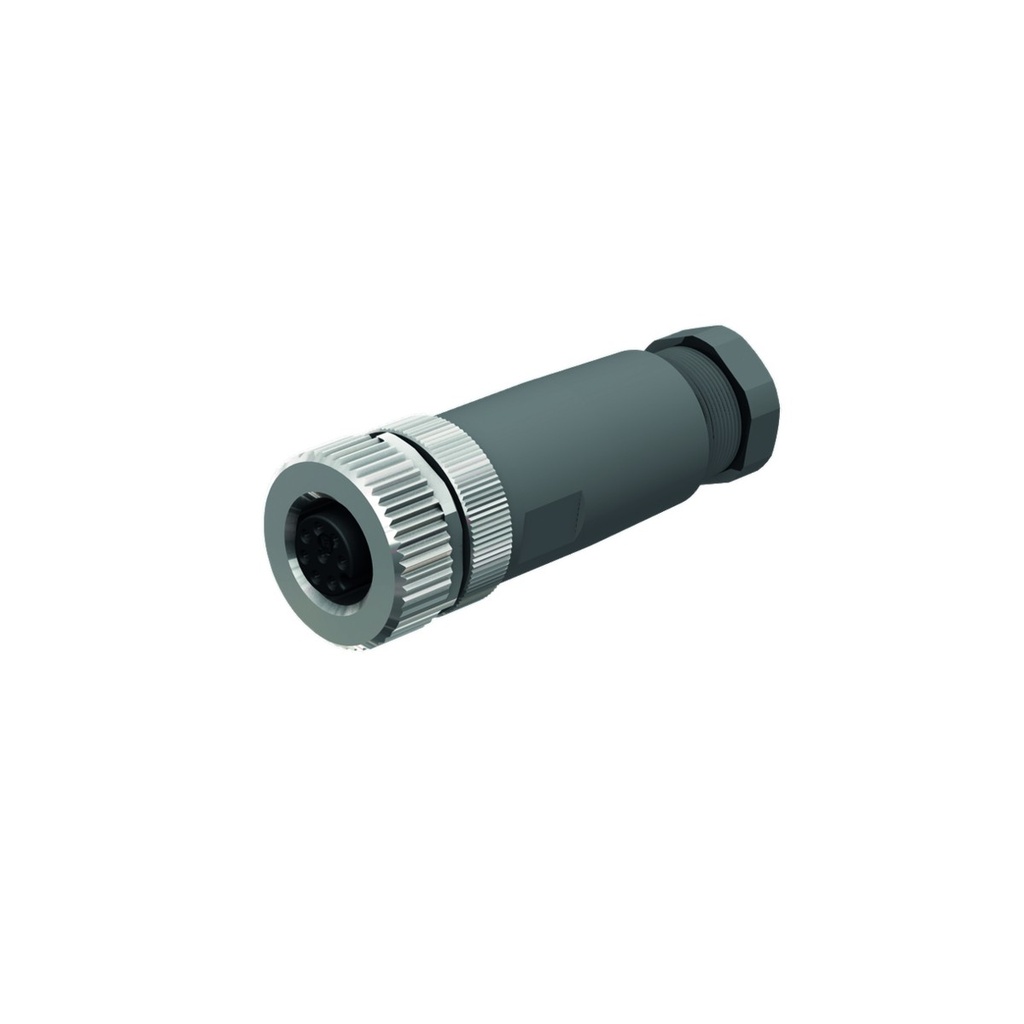

B8181-0 is a TURCK field-wireable M12 female connector, straight, 8-pin, A-coded, for 6...8 mm cable with screw-clamp terminals.

• Connector: M12, female, straight, A-coded, 8-pin, gold-plated CuZn contacts, more than 50 mating cycles
• Ratings: 2 A, 60 V
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

BS8181-0 is a TURCK field-wireable M12 male connector, straight, 8-pin, A-coded, for 6...8 mm cable with screw-clamp terminals.

• Connector: M12, male, straight, A-coded, 8-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 60 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body and contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

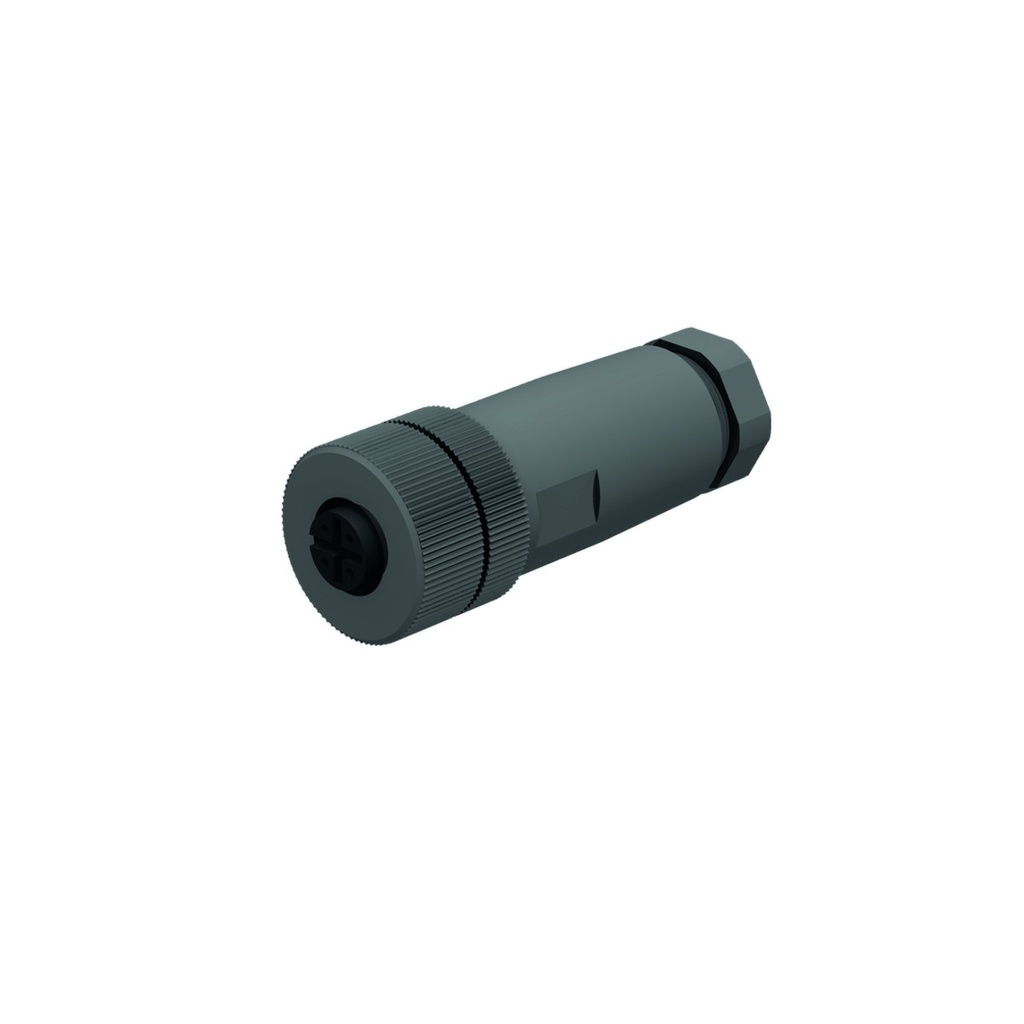

B8151-0 is a TURCK field-wireable M12 female connector, straight, 5-pin, A-coded, for 4...6 mm cable with screw-clamp terminals.

• Connector: M12, female, straight, A-coded, 5-pin, CuZn contacts with Optalloy coating, more than 50 mating cycles
• Ratings: 4 A, 60 V
• Connection: screw-clamp terminals, conductors up to 0.75 mm², cable diameter 4...6 mm, PG7 screw-in thread
• Housing: black PA body and plastic (PA) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

WKC4.4T-10/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RSSD-RKSD-4416-5M is a TURCK shielded Industrial Ethernet/PROFINET cable (CAT5e) with a straight M12 male connector on one end and a straight M12 female connector on the other (4-pin, D-coded). The cable is PNO (PROFINET) compliant.

• Connectors: M12 x 1 male / female, straight, D-coded, 4-pin, gold-plated CuZn contacts
• Cable: 5 m, PUR, green, Ø 6.5 mm, 4 x 0.32 mm² (AWG 22), core colours WH, YE, BU, OG
• Shield: overlapping aluminium foil and tinned copper wire
• Electrical: 3 A, 48 V, impedance 100 Ω (1 MHz), capacitance 50 pF/m
• Housing: TPU, nickel-plated GD-Zn coupling nuts, FPM/FKM seal; tightening torque 0.4...0.6 Nm
• Environment: IP67 (only when screwed in); -50...+70°C fixed, -20...+60°C mobile

The cable is rated for drag chains (at least 3 million bending cycles, bending radius ≥15 x Ø, up to 100,000 torsion cycles). It is oil resistant per IEC 60811-2-1 and UL13, halogen free per IEC 60754, flame retardant per IEC 60332-1-2 and UL2556 VW1, and PVC free.

UL Listed, RoHS compliant.

WKC4.4T-20/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.5T-15/TEL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.5T-15/TXL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC12T-5/TXL is a TURCK connection cable with a straight M12 female connector (12-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.4 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKW3M-P7X2-5/TXL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other. A two-colour LED is built into the connector. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Indication: two-colour LED (PNP) – green shows supply, yellow shows switching state
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 30 VDC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.
