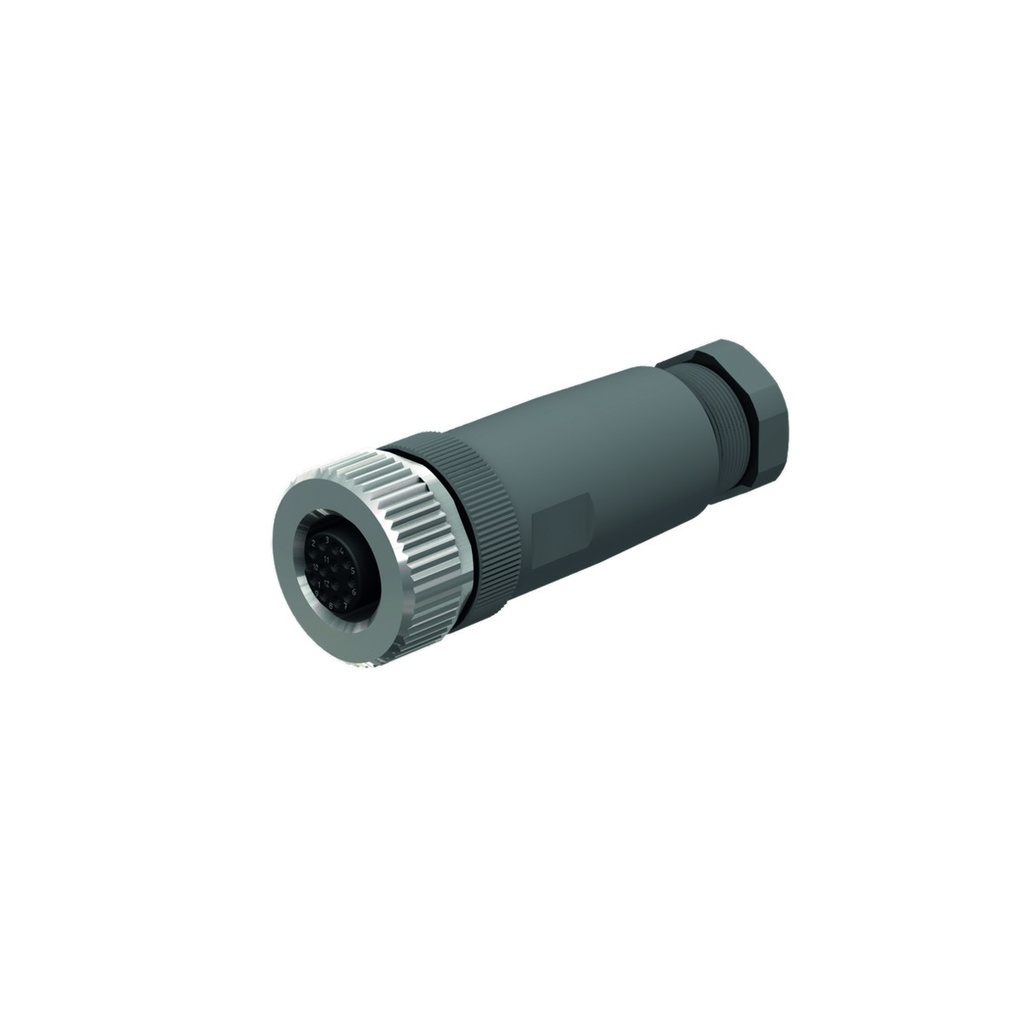

Connector B81121-0/PG9, M12 female straight, 12-pin A-coded, 6...8mm cable, IP67

B81121-0/PG9 is a TURCK field-wireable M12 female connector, straight, 12-pin, A-coded, for 6...8 mm cable.

• Connector: M12, female, straight, A-coded, 12-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 30 V
• Connection: conductors up to 0.25 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.
