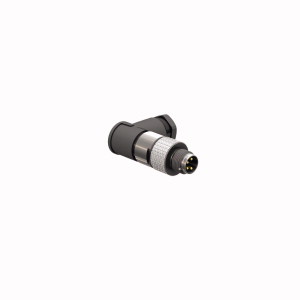

Connector BS5241-0, M8 male angled, 4-pin, solder, 3.5...5mm cable, IP67

BS5241-0 is a TURCK field-wireable M8 male connector, angled, 4-pin, for 3.5...5 mm cable with solder contacts.

• Connector: M8, male, angled, 4-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 30 V, contact resistance ≤3 mΩ
• Connection: solder contacts, conductors up to 0.25 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, PA 66 contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.
