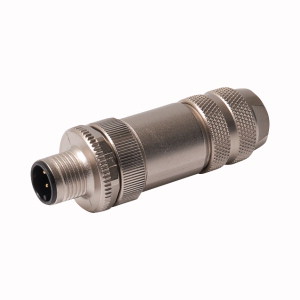

Connector FW-M12ST5D-G-SB-ME-SH-8, M12 male straight, 4-pin D-coded, Ethernet, shielded, screw terminal, 5...8mm cable, IP67

FW-M12ST5D-G-SB-ME-SH-8 is a TURCK field-wireable M12 male connector, straight, 4-pin, D-coded, for 5...8 mm cable with screw-clamp terminals. It is made for Ethernet; the cable shield is contacted to the metal housing by an iris spring.

• Connector: M12, male, straight, D-coded, 4-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 250 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.75 mm², cable diameter 5...8 mm
• Housing: nickel-plated die-cast zinc (GD-Zn) body and coupling nut, black PA contact carrier
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: UL.
