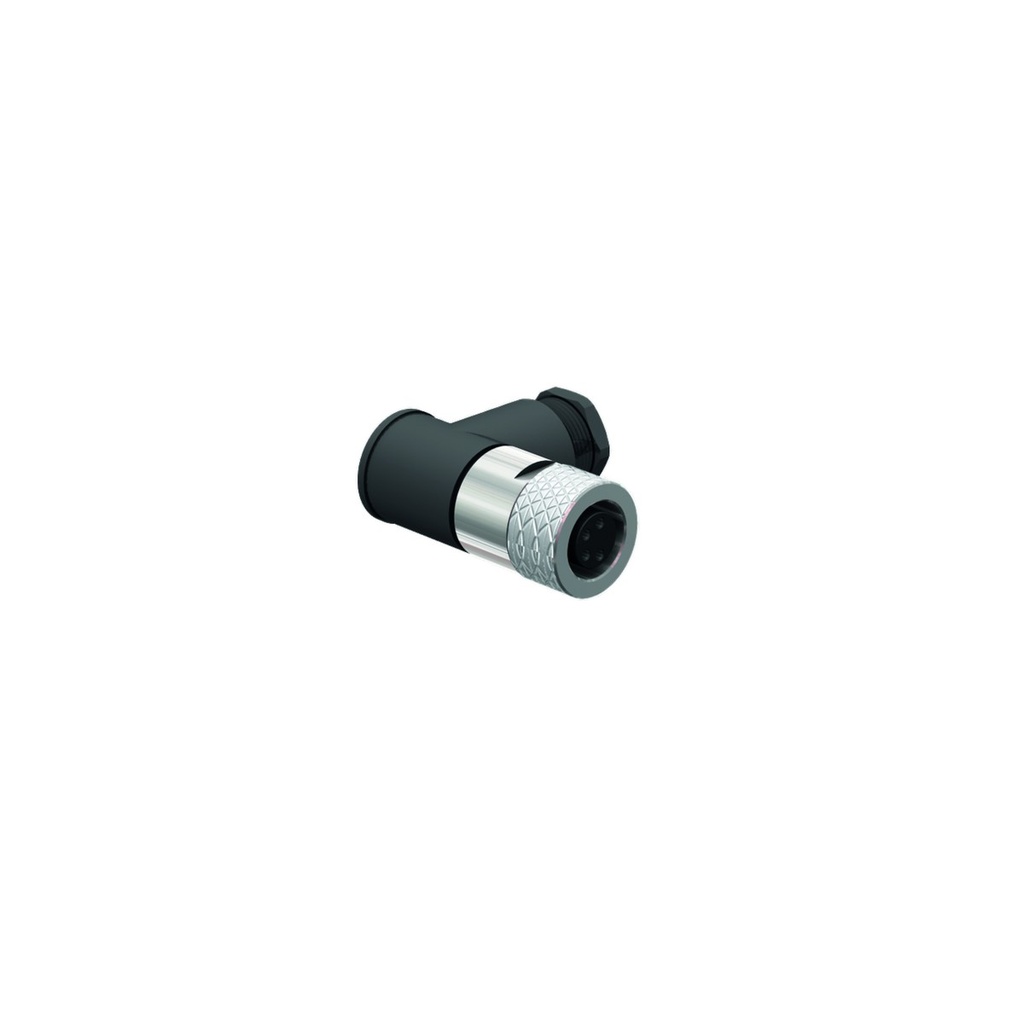

Connector B5231-0, M8 female angled, 3-pin, solder, 3.5...5mm cable, IP67

B5231-0 is a TURCK field-wireable M8 female connector, angled, 3-pin, for 3.5...5 mm cable with solder contacts.

• Connector: M8, female, angled, 3-pin, gold-plated bronze (CuSn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V
• Connection: solder contacts, conductors up to 0.25 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, neoprene seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.
