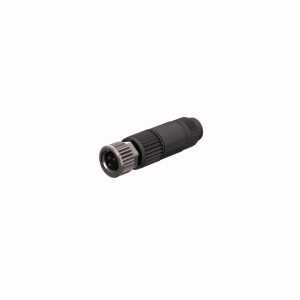

Connector HA5141-0, M8 female straight, 4-pin, IDC, 2.5...5.1mm cable, IP67

HA5141-0 is a TURCK field-wireable M8 female connector, straight, 4-pin, for 2.5...5.1 mm cable with IDC terminals.

• Connector: M8, female, straight, 4-pin, gold-plated CuZn contacts
• Ratings: 4 A, 32 V, contact resistance ≤5 mΩ
• Connection: IDC terminals, conductors up to 0.34 mm², cable diameter 2.5...5.1 mm
• Housing: black PA body and contact carrier, nickel-plated brass (CuZn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -5...+50°C fixed
