R38LARR is an Ascon Tecnologic R38 series temperature controller in a 78 x 35 mm case with a single four-digit LED display. Its input is factory-set to 2-wire Pt100, autoranging (-50.0...+850 °C), and the process is held with ON/OFF single or double action, neutral zone or PID control with autotuning, sampled once per second.

• Input: 2-wire Pt100, autoranging (-50.0...+850 °C), accuracy +/-0.5% of span +/-1 digit at 25 °C
• Outputs: OUT1 relay SPDT 8 A-AC1 (3 A-AC3/250 Vac); OUT2 relay SPDT 8 A-AC1
• Auxiliary supply: 12 Vdc / 20 mA max. for a transmitter
• Supply: 24 Vac/Vdc +/-10%, 6 VA
• Case: 78 x 35 mm, flush panel mounting in a 71 x 29 mm cut-out, depth 64 mm, IP65 front with gasket
• Connection: fixed screw terminal block 2 x 1 mm²
• Version: mechanical keys, no internal buzzer

A compact regulator for machine builders: heating and cooling on ovens, dryers, water baths and packaging machines, where a 71 x 29 mm cut-out is available and the operator only needs a setpoint and a reading. The second relay is normally used as an alarm or as the cooling stage in double action.

Complies with EMC directive 2004/108/CE (EN 61326-1) and low voltage directive 2006/95/CE (EN 61010-1). Operating temperature 0...+50 °C, humidity 20...85 RH% without condensation.

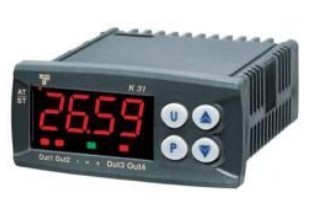

K31HCRRR is an Ascon Tecnologic K31 panel controller in a 78 x 35 mm case for thermocouple, Pt100 and mV input. It is the controller version, without timer and programmer: control is ON/OFF, neutral zone or PID with single or double action, with self-tuning and two autotuning algorithms, and up to four setpoints can be stored.

• Input: thermocouple J, K, S, R, T and infrared J/K, 3-wire Pt100, 0/10...50 mV, 0/12...60 mV; accuracy ±0.5% fs + 1 digit
• Outputs: OUT1 and OUT2 relay SPDT 8 A-AC1 (3 A-AC3/250 Vac); OUT3 relay SPST-NO 5 A-AC1; 2 digital inputs for volt-free contacts
• Communication: TTL ModBus
• Supply: 100...240 Vac, approx. 6 VA; auxiliary output 12 Vdc/20 mA
• Case: 78 x 35 mm, depth 64 mm, panel cut-out 71 x 29 mm; 4-digit red display, 12 mm, with 3-LED bargraph
• Environment: IP65 front with gasket, 0...50 °C, 20...85% RH without condensation

Two changeover relays handle heating and cooling, and the third normally open relay is free for an alarm.

Complies with EMC directive 2004/108/EC (EN 61326-1) and low voltage directive 2006/95/EC (EN 61010-1).

K31HCRRO is an Ascon Tecnologic K31 panel controller in a 78 x 35 mm case for thermocouple, Pt100 and mV input. It is the controller version, without timer and programmer: control is ON/OFF, neutral zone or PID with single or double action, with self-tuning and two autotuning algorithms, and up to four setpoints can be stored.

• Input: thermocouple J, K, S, R, T and infrared J/K, 3-wire Pt100, 0/10...50 mV, 0/12...60 mV; accuracy ±0.5% fs + 1 digit
• Outputs: OUT1 and OUT2 relay SPDT 8 A-AC1 (3 A-AC3/250 Vac); OUT3 12 V ±20%, 20 mA for SSR drive; 2 digital inputs for volt-free contacts
• Communication: TTL ModBus
• Supply: 100...240 Vac, approx. 6 VA; auxiliary output 12 Vdc/20 mA
• Case: 78 x 35 mm, depth 64 mm, panel cut-out 71 x 29 mm; 4-digit red display, 12 mm, with 3-LED bargraph
• Environment: IP65 front with gasket, 0...50 °C, 20...85% RH without condensation

The SSR drive on OUT3 drives heaters through a solid-state relay, so the PID cycle time can be set short without wearing contacts; the two changeover relays remain for cooling or alarms.

Complies with EMC directive 2004/108/EC (EN 61326-1) and low voltage directive 2006/95/EC (EN 61010-1).

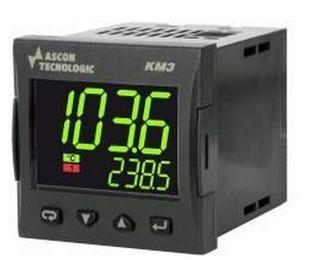

KM3HCIROD is an Ascon Tecnologic KM3 panel controller in a 48 x 48 mm (1/16 DIN) case, in the controller version without the optional timer. The main display changes colour between red, green and amber, and control runs as PID single or double action, ON/OFF or ON/OFF with neutral zone, with autotuning, self-tuning and overshoot control.

• Input: thermocouple J, K, S, R, T and infrared J/K, 3-wire Pt100, 2-wire Pt1000, 0/12...60 mV, 0/4...20 mA, 0/1...5 V, 0/2...10 V, plus 1 digital input; accuracy ±0.5% span ±1 digit
• Outputs: OUT1 galvanically isolated 0/4...20 mA or 0/2...10 V (control or retransmission); OUT2 relay SPST-NO 2 A/240 Vac; OUT3 SSR drive, 10.5 V min. at 15 mA
• Terminal 4 programmable: SSR drive, 12 Vdc/20 mA transmitter supply or 2nd digital input
• Functions: 4 setpoints, 3 alarms, working-hours counters, wattmeter; TTL Modbus RTU, 1200...38400 baud
• Supply: 100...240 Vac/Vdc, 7 VA max.
• Case: 48 x 48 mm, panel cut-out 45 x 45 mm, 16 fixed screw terminals 2.5 mm²; IP65 front with gasket, 0...50 °C

The isolated analogue output drives a thyristor power unit or a modulating valve with a continuous signal, or retransmits the measured value or setpoint to a PLC or recorder.

Conforms to EN 61010-1 and EN 61326.

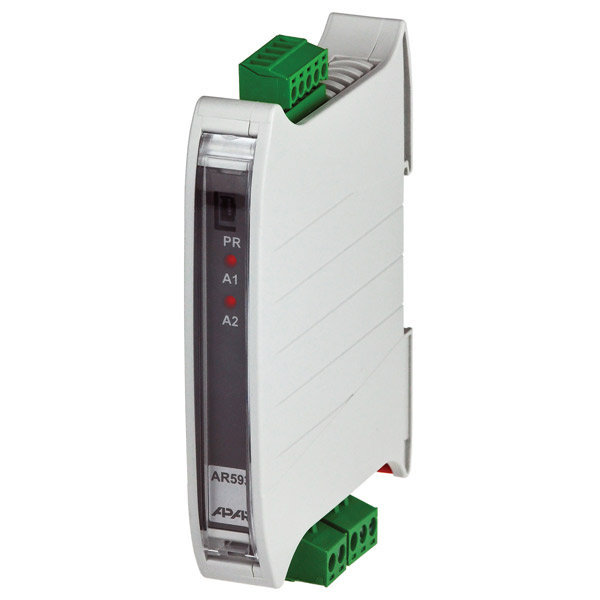

AR593 is an APAR programmable transmitter and signal isolator for 35 mm DIN rail. It converts an RTD, thermocouple, mA, V, mV or resistance input into a current and a voltage output at the same time, with 1.5 kV isolation between input, output and supply.

• Input: Pt100/Pt500/Pt1000/Ni100 2- or 3-wire, thermocouple J/K/S/B/R/T/E/N, 0/4-20 mA, 0-10 V, 0-60 mV, 0-2500 Ω
• Outputs: 0/4-20 mA active (load ≤ 500 Ω) and 0/2-10 V, also inverted
• Accuracy: 0.1 % of range, thermocouples additionally <2 °C
• Supply: 24 VAC/DC (18-50 VDC, 13-35 VAC), <850 mW
• Response time: 360 ms, adjustable 0.24...1.6 s
• Housing: 35 mm DIN rail, IP20, 0...65 °C

Factory setting is Pt100, 0...500 °C, 4-20 mA and 0-10 V; another input or range is set with an APAR programmer, or by APAR when specified with the order (e.g. AR593 / J / 0..20 mA / 100..600 °C). The current output is active and cannot be used in a loop-powered 2-wire circuit. A red LED shows range exceedance, sensor fault or alarm.

AR956 is an APAR USB programmer for configuring APAR devices from a PC with ARsoft-CFG. It also powers AR59x, AR58x and AR55x transmitters from the USB port, so a transmitter can be set up on the bench without a separate 24 V supply.

• Connection: USB-A to the PC, mini-USB to the device, goldpin adapter included for devices without mini-USB
• Cable: 1.8 m
• Software: ARsoft-CFG, drivers for Windows, Linux and macOS
• Functions: live measured value, reading and editing parameters, input type and alarm setup
• Environment: 0...65 °C, 0...90 %RH without condensation

PT250R-2004-I2-DA91/X is a TURCK PT-2000 series relative pressure transmitter with a fully welded metal measuring cell and a 4...20 mA current output in 2-wire technology. It has no display: the measured value goes straight to the analogue input of a PLC or controller.

• Accuracy: ±0.3 % FS typical, max. 0.5 % FS (linearity, hysteresis, repeatability); temperature coefficient ±0.2 % FS/10 K; long-term stability 0.25 % FS per IEC EN 60770-1; reference conditions 15...25°C, 24 VDC
• Measuring range: 0...250 bar relative (0...25 MPa); overpressure ≤ 750 bar, burst pressure ≥ 1500 bar; resolution ±0.1 % FS
• Output: analogue 4...20 mA, 2-wire, load ≤ (UB - 7)/20 kΩ; response time < 2 ms, typ. 1 ms
• Supply: 7...33 VDC, consumption ≤ 23 mA; protected against short circuit, wire break and reverse polarity
• Housing: stainless steel 1.4404 (AISI 316L) and polyarylamide 50 % GF (UL 94 V-0), stainless steel 1.4435 (AISI 316L) cell; G 1/4" male thread, back sealing per DIN EN ISO 1179-2 with FPM profile seal; wrench size 24, nut torque max. 20 Nm
• Environment: IP65, ambient -30...+85°C, medium -40...+135°C
• Connection: connector per DIN EN 175301-803, form A

A pressure peak orifice is built into the process connection. One FKM profile seal is included in the delivery.

Approval: cULus (UL E302799). Shock 100 g (11 ms) per IEC 68-2-27, vibration 20 g (15...2000 Hz) per IEC 68-2-6. MTTF 1189 years per SN 29500 (40°C).

The BL20-E-GW-EN is a TURCK BL20-E series multiprotocol gateway that connects a BL20 I/O station to a Modbus TCP, EtherNet/IP or PROFINET network. Electronics and connection technology are combined in one housing, and the gateway works as the station's head module.

• Communication: Modbus TCP, EtherNet/IP (QuickConnect), PROFINET (Fast Start-Up), integrated 10/100 Mbps switch, 2x RJ45
• Power: 24 VDC (18...30 VDC), module bus current ≤200 mA, field supply current up to 8 A, system supply current up to 0.4 A
• Connection: push-in terminals for power
• Indication: LEDs for supply, group and bus error status
• Housing: DIN-rail mounting, includes 2 end brackets and 1 end plate
• Environment: IP20, 0...+55°C

The gateway forms the head of a BL20 station in a control cabinet, collecting distributed I/O signals and passing them to a PLC over an Ethernet network. The station additionally requires matching BL20-E series I/O modules, ordered separately, since the gateway itself does not process I/O signals.

Complies with cULus requirements.

PKW4M-5/TXL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKS4.5T-10/TXL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKC4.5T-5-RSC4.5T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (5-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKS8T-15/TXL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.
