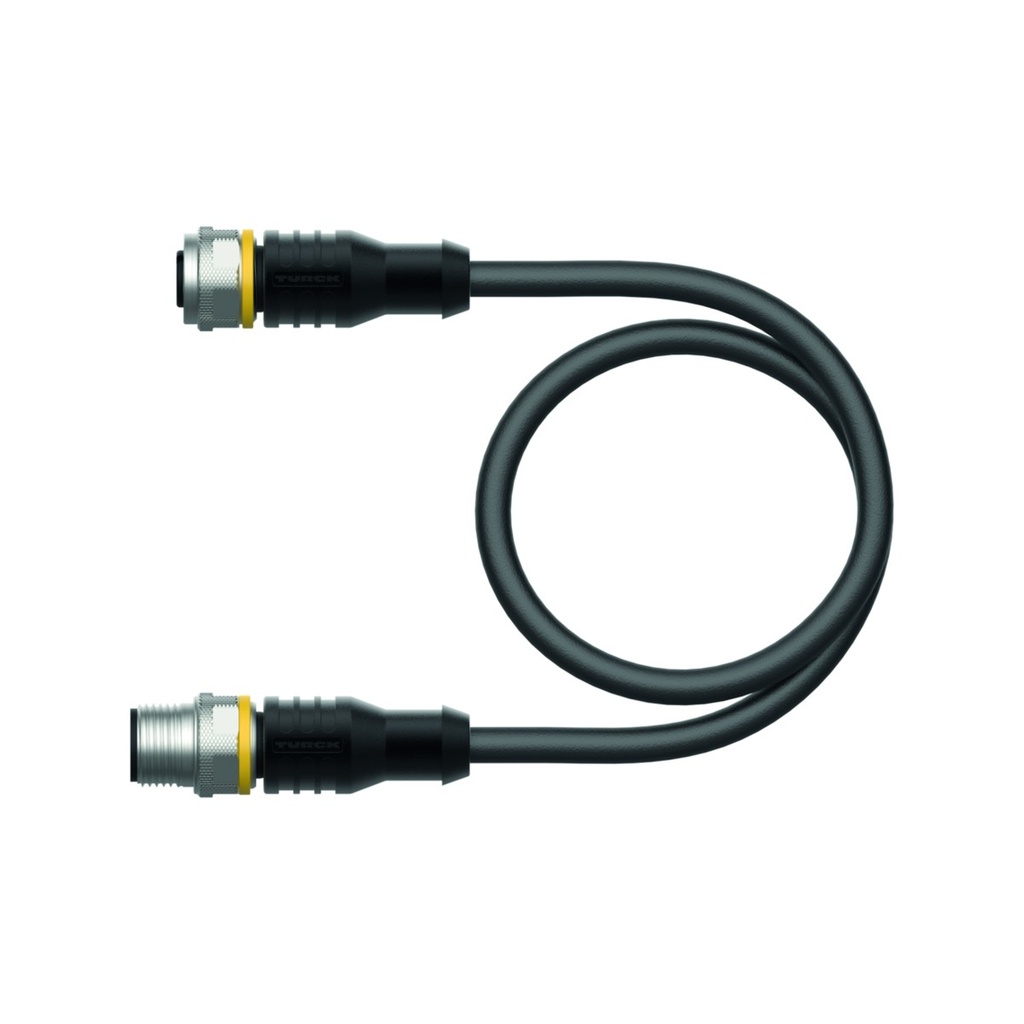

Connection cable RKC4.5T-5-RSC4.5T/TEL, M12, female/male, straight, 5-pin, 5m PVC

RKC4.5T-5-RSC4.5T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (5-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.
