Measurement range: -15°C to 70°C and 0 to 100% RH; Accuracy: up to 0.4°C in the 0°C to +70°C range, and 0.5°C in the -35°C to 0°C; Accuracy up to 3% in the range of 0 to 90% and up to 4% in the range above 90%; IP30 protection

Measurement range: -15°C to 70°C and 0 to 100% RH; Accuracy: up to 0.4°C in the 0°C to +70°C range, and 0.5°C in the -35°C to 0°C; Accuracy up to 3% in the range of 0 to 90% and up to 4% in the range above 90%; IP30 protection

EN380.IL-SMA6.5C1H1.00250.H is a Baumer EN380 series incremental encoder with optical sensing, a synchro flange and a solid shaft. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 250 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, synchro flange, stainless steel shaft ø6 x 12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder mounts on a motor or gearbox shaft end through a flexible coupling, and the synchro flange fits it into a tight installation without a separate mounting plate. Permissible speed is 8000 rpm.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-SMA5.5C1T1.01024.H is a Baumer EN380 series incremental encoder with optical sensing, a synchro flange and a solid shaft. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 1024 pulses per revolution
• Output: TTL/RS422, channels A, B and reference R with inverted signals, up to 300 kHz
• Supply: 5 VDC ±5 %, 60 mA without load
• Housing: aluminium, synchro flange, stainless steel shaft ø5 x 12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder mounts on a motor or gearbox shaft end through a flexible coupling, and the synchro flange fits it into a tight installation without a separate mounting plate. Permissible speed is 8000 rpm.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-SMA5.5C1T1.00500.H is a Baumer EN380 series incremental encoder with optical sensing, a synchro flange and a solid shaft. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 500 pulses per revolution
• Output: TTL/RS422, channels A, B and reference R with inverted signals, up to 300 kHz
• Supply: 5 VDC ±5 %, 60 mA without load
• Housing: aluminium, synchro flange, stainless steel shaft ø5 x 12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder mounts on a motor or gearbox shaft end through a flexible coupling, and the synchro flange fits it into a tight installation without a separate mounting plate. Permissible speed is 8000 rpm.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-SMA5.5C1T1.00360.H is a Baumer EN380 series incremental encoder with optical sensing, a synchro flange and a solid shaft. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 360 pulses per revolution
• Output: TTL/RS422, channels A, B and reference R with inverted signals, up to 300 kHz
• Supply: 5 VDC ±5 %, 60 mA without load
• Housing: aluminium, synchro flange, stainless steel shaft ø5 x 12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder mounts on a motor or gearbox shaft end through a flexible coupling, and the synchro flange fits it into a tight installation without a separate mounting plate. Permissible speed is 8000 rpm.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-SMA5.5C1H1.00500.H is a Baumer EN380 series incremental encoder with optical sensing, a synchro flange and a solid shaft. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 500 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, synchro flange, stainless steel shaft ø5 x 12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder mounts on a motor or gearbox shaft end through a flexible coupling, and the synchro flange fits it into a tight installation without a separate mounting plate. Permissible speed is 8000 rpm.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-SMA5.5C1H1.00360.H is a Baumer EN380 series incremental encoder with optical sensing, a synchro flange and a solid shaft. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 360 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, synchro flange, stainless steel shaft ø5 x 12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder mounts on a motor or gearbox shaft end through a flexible coupling, and the synchro flange fits it into a tight installation without a separate mounting plate. Permissible speed is 8000 rpm.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-SMA5.5C1H1.00100.H is a Baumer EN380 series incremental encoder with optical sensing, a synchro flange and a solid shaft. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 100 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, synchro flange, stainless steel shaft ø5 x 12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder mounts on a motor or gearbox shaft end through a flexible coupling, and the synchro flange fits it into a tight installation without a separate mounting plate. Permissible speed is 8000 rpm.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-BH12.5C1H1.01000.H is a Baumer EN380 series incremental encoder with optical sensing, a blind hollow shaft and a torque pin. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 1000 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, blind hollow shaft ø12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder slides onto a motor or gearbox shaft end and the torque pin holds the housing against rotation, so neither a coupling nor a separate bracket is needed. Permissible speed is 6000 rpm up to +75 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-BG12.5C2T1.02000.H is a Baumer EN380 series incremental encoder with optical sensing, a blind hollow shaft and a torque pin. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 2000 pulses per revolution
• Output: TTL/RS422, channels A, B and reference R with inverted signals, up to 300 kHz
• Supply: 5 VDC ±5 %, 60 mA without load
• Housing: aluminium, blind hollow shaft ø12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 2 m radial cable, 8 x 0.14 mm², open cable end

The encoder slides onto a motor or gearbox shaft end and the torque pin holds the housing against rotation, so neither a coupling nor a separate bracket is needed. Permissible speed is 6000 rpm up to +75 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-BF12.5C1T1.01000.H is a Baumer EN380 series incremental encoder with optical sensing, a blind hollow shaft and a stator coupling. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 1000 pulses per revolution
• Output: TTL/RS422, channels A, B and reference R with inverted signals, up to 300 kHz
• Supply: 5 VDC ±5 %, 60 mA without load
• Housing: aluminium, blind hollow shaft ø12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder slides onto a motor or gearbox shaft end and the stator coupling holds the housing against rotation, so neither a coupling nor a separate bracket is needed. Permissible speed is 6000 rpm up to +75 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-BF12.5C1T1.00250.H is a Baumer EN380 series incremental encoder with optical sensing, a blind hollow shaft and a stator coupling. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 250 pulses per revolution
• Output: TTL/RS422, channels A, B and reference R with inverted signals, up to 300 kHz
• Supply: 5 VDC ±5 %, 60 mA without load
• Housing: aluminium, blind hollow shaft ø12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder slides onto a motor or gearbox shaft end and the stator coupling holds the housing against rotation, so neither a coupling nor a separate bracket is needed. Permissible speed is 6000 rpm up to +75 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-BF12.5C1H1.00500.H is a Baumer EN380 series incremental encoder with optical sensing, a blind hollow shaft and a stator coupling. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 500 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, blind hollow shaft ø12 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The encoder slides onto a motor or gearbox shaft end and the stator coupling holds the housing against rotation, so neither a coupling nor a separate bracket is needed. Permissible speed is 6000 rpm up to +75 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-TG06.5C1H1.02048.H is a Baumer EN380 series incremental encoder with optical sensing, a through hollow shaft and a torque pin. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 2048 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, through hollow shaft ø6 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The shaft passes right through the encoder, so it also fits where the shaft continues on both sides, and the torque pin holds the housing against rotation. Permissible speed is 6000 rpm up to +60 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-TG06.5C1H1.00360.H is a Baumer EN380 series incremental encoder with optical sensing, a through hollow shaft and a torque pin. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 360 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, through hollow shaft ø6 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The shaft passes right through the encoder, so it also fits where the shaft continues on both sides, and the torque pin holds the housing against rotation. Permissible speed is 6000 rpm up to +60 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-TF06.5C1H1.02048.H is a Baumer EN380 series incremental encoder with optical sensing, a through hollow shaft and a stator coupling. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 2048 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, through hollow shaft ø6 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The shaft passes right through the encoder, so it also fits where the shaft continues on both sides, and the stator coupling holds the housing against rotation. Permissible speed is 6000 rpm up to +60 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

EN380.IL-TF06.5C1H1.01024.H is a Baumer EN380 series incremental encoder with optical sensing, a through hollow shaft and a stator coupling. Every channel also carries an inverted signal, so the encoder can be wired to a differential input and use a longer cable in electrically noisy surroundings.

• Resolution: 1024 pulses per revolution
• Output: HTL/push-pull, channels A, B and reference R with inverted signals, up to 160 kHz
• Supply: 8...30 VDC, 30 mA (24 VDC) without load
• Housing: aluminium, through hollow shaft ø6 mm
• Environment: IP 65, -25...+85 °C, vibration 10 g (10-2000 Hz), shock 100 g (2 ms)
• Connection: 1 m radial cable, 8 x 0.14 mm², open cable end

The shaft passes right through the encoder, so it also fits where the shaft continues on both sides, and the stator coupling holds the housing against rotation. Permissible speed is 6000 rpm up to +60 °C.

EMC compliance to EN 61000-6-2 and EN 61000-6-4. UL-Listing E217823.

The Banner SD50 Wireless Communication Kit enables fast, clear messaging across industrial facilities without complex wiring. This starter kit includes one DXMR90 controller, one R70SR radio, and one SD50 display. Additional SD50 displays can be added to expand the system to multiple locations.

DXMR90-X1E Industrial Controller - Network hub supporting EtherNet/IP, Modbus TCP, Modbus RTU, PROFINET, and MQTT/Sparkplug B protocols. IP67/IP68 rated with dual M12 Ethernet ports. 12-30V DC power supply.

R70SR2MQ Serial Data Radio - 2.4 GHz multihop wireless radio with 65mW output. RS-485 interface, internal antenna, IP65 rated. Supports point-to-point, point-to-multipoint, star, and tree topologies.

SD50P300WSR2QP Wireless Status Display - 300mm white LED display (8×96 pixels) with RGB indicators. Configure wirelessly via Pro Editor software without coding. IP65 polycarbonate housing. 12-30V DC.

Configuration Options:

• Discrete models: Configure via Pro Editor - define text, colors, animations without coding or PLC programming
• IO-Link models: Integrate with IO-Link networks for remote diagnostics and standardized connectivity
• Wireless models: Configure through Modbus registers, update messages as conditions change

Expandable System: Add multiple SD50 displays to communicate across different zones, production lines, or departments using the same controller and radio infrastructure.

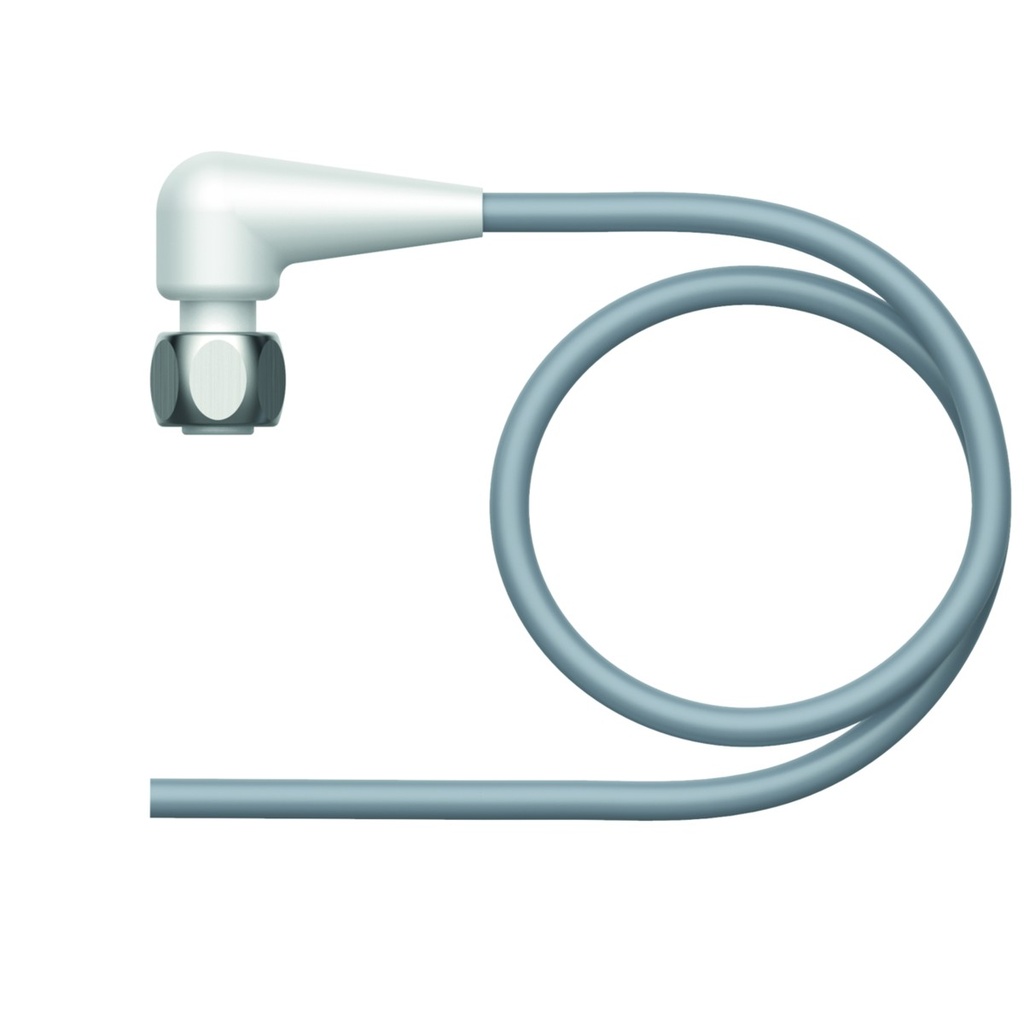

WKH4.4-25/TFE is a TURCK hygienic connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other, for sensors and actuators in food and beverage plants.

• Connector: M12 female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PVC, grey RAL 7040, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

Designed for food and beverage areas: the grey PVC jacket (RAL 7040) resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and 60332-2-2. RoHS and REACH compliant. Approvals: GOST, Ecolab.

WKH4.4-30/TFE is a TURCK hygienic connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other, for sensors and actuators in food and beverage plants.

• Connector: M12 female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PVC, grey RAL 7040, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

Designed for food and beverage areas: the grey PVC jacket (RAL 7040) resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and 60332-2-2. RoHS and REACH compliant. Approvals: GOST, Ecolab.

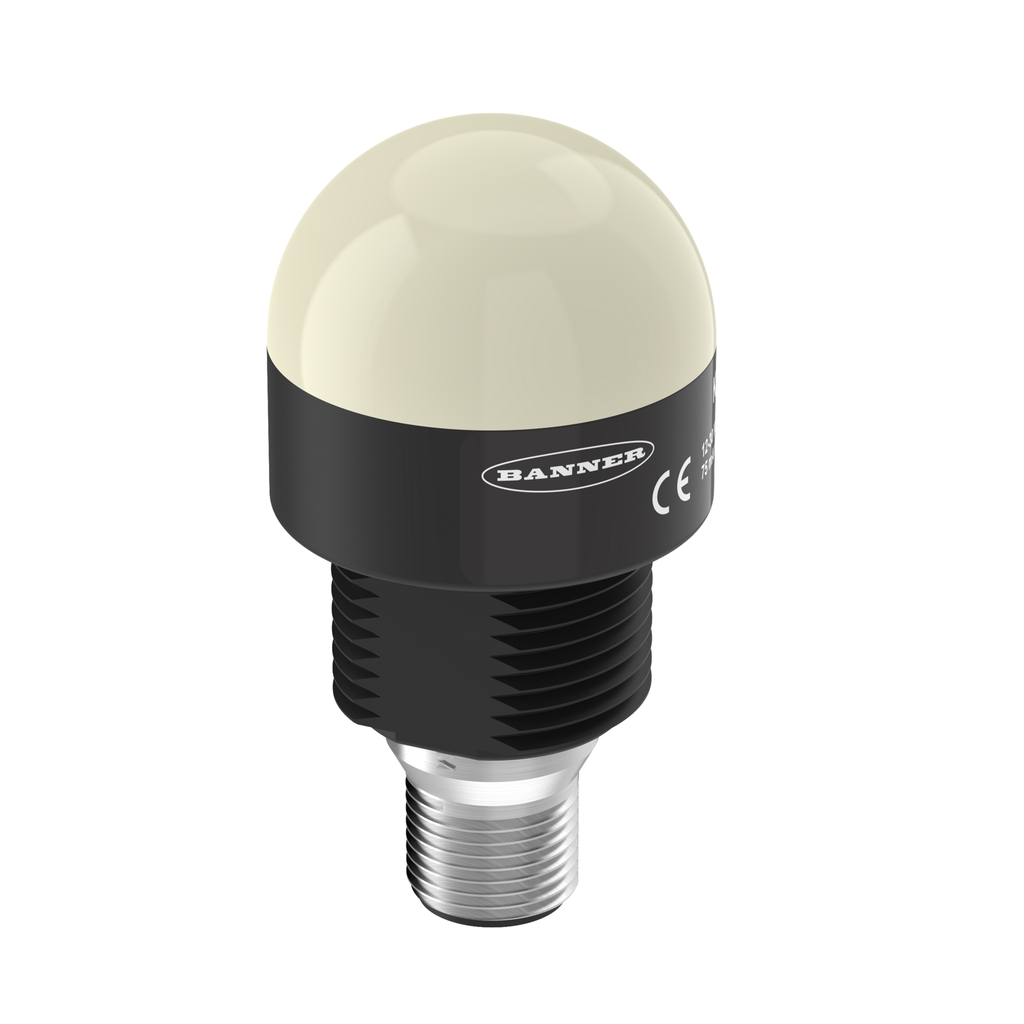

K30LGXXPQ is a single-colour green LED indicator from the Banner EZ-LIGHT K30L series. It is driven directly from the discrete PNP output of a 3-wire or 4-wire sensor or from a PLC output, without a relay and without an amplifier.

• Indication: single colour - green, the whole dome emits light
• Input: PNP, on and off response time up to 1 ms
• Supply: 10...30 V DC, up to 25 mA
• Housing: polycarbonate base with M22x1.5 thread, translucent polycarbonate dome, Ø30 mm, height 58 mm, fully encapsulated electronics
• Environment: IP67 and IP69K per DIN 40050-9, -40...+50 °C
• Connection: integral M12 male connector, 4-pin

The indicator mounts in a 22 mm hole and shows machine or process status at the workplace - at a conveyor, a packaging machine station or a control desk. The QD version needs a separately ordered M12 cordset, as one is not included.

CE compliant, K30L models are cULus Listed.

WKC4.5T-0.5-RSC4.5T/TEL is a TURCK extension cable with an angled M12 female connector on one end and a straight M12 male connector on the other (5-pin).

• Connectors: M12 x 1 female, angled / M12 x 1 male, straight; A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 0.5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.4T-0.5-RSC4.4T/TEL is a TURCK extension cable with an angled M12 female connector on one end and a straight M12 male connector on the other (4-pin).

• Connectors: M12 x 1 female, angled / M12 x 1 male, straight; A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC5T-P7X3.2-10/TXL is a TURCK connection cable with an angled M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The connector has three built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4, white the PNP signal on pin 2.

• Connector: M12 x 1, female, angled, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

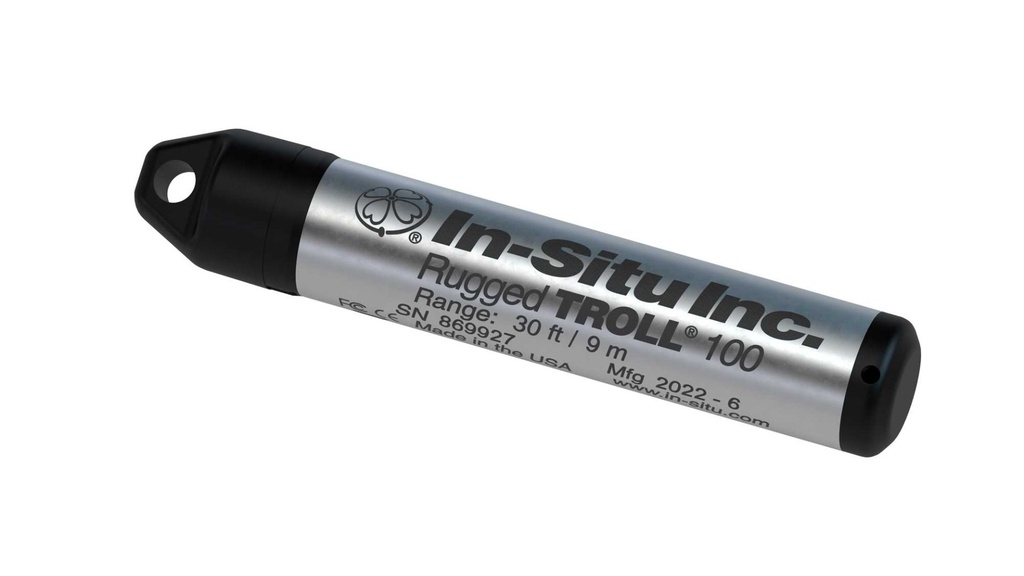

Temperature ranges Operational: 0 to 50° C (32-122° F) Storage: -40 to 80° C (-40 to 176° F) Calibrated: 0 to 50° C (32 to 122° F) Diameter 2.62 cm (1.03 in.) Length 14.43 cm (5.68 in.) Weight 137 g (0.30 lb) Materials Titanium, Acetal, FKM Fluoroelastomer, Ceramic Output options Rugged TROLL 100: USB or RS232 via docking station Battery type & life 3.6 V lithium; 10 years or 2M readings Memory 2.0 MB Data records 120,000 (data record = date/time plus 2 parameters logged (no wrapping) from device within the factory-calibrated temperature range) Accuracy (FS) ±0.1% Resolution ±0.01% FS or better Units of measure Pressure: psi, kPa, bar, mbar, mmHg, inHg Level: in, ft, mm, cm, m Temperature Sensor Accuracy ±0.3° C Resolution 0.01° C or better Units of measure Celsius or Fahrenheit

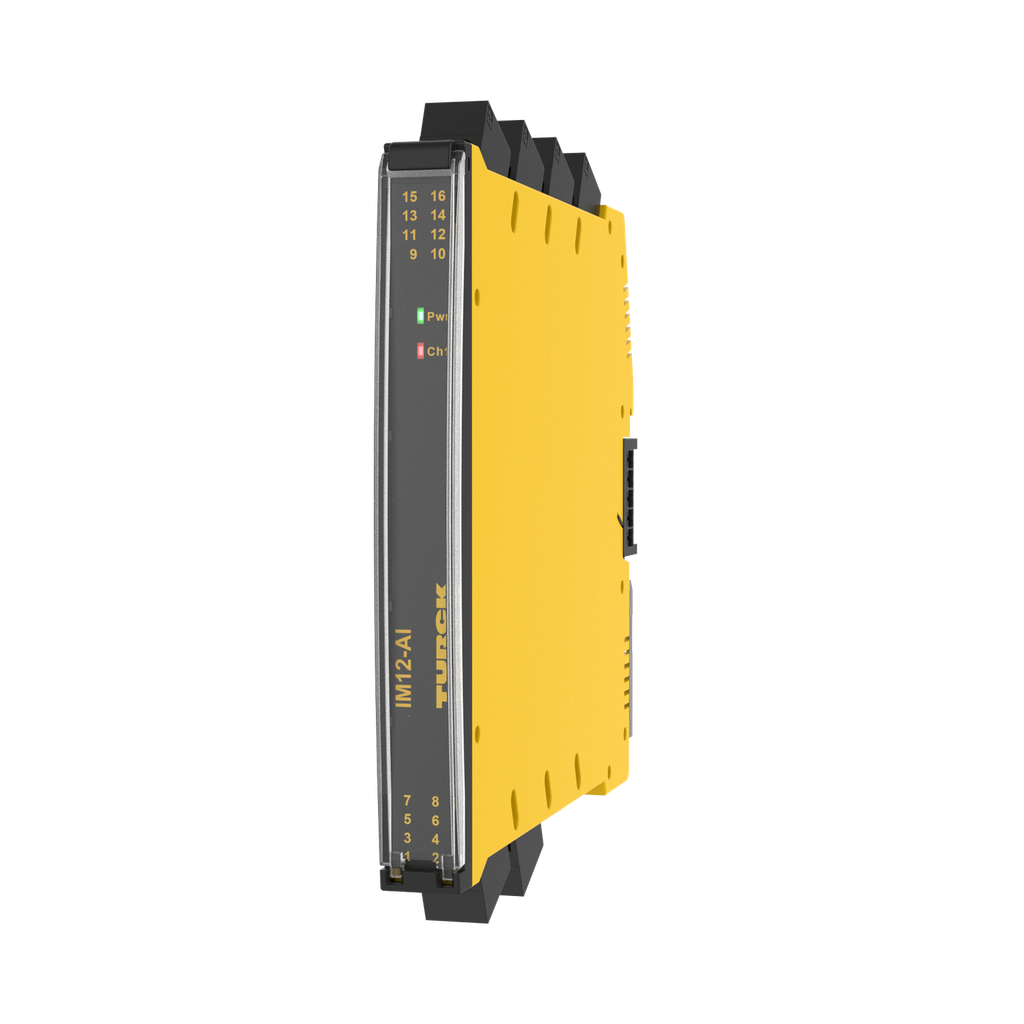

IM12-AI01-1I-2IU-HPR/24VDC/CC is a 1-channel TURCK isolating transducer for HART 2-wire transmitters. The 4...20 mA input is passed 1:1 to two isolated outputs (splitter), and HART communication runs bidirectionally through output O1.

• Channels: 1 input, 4...20 mA, transmitter supply 17 V / 20 mA
• Outputs: 2 x 4...20 mA (source or sink) or 1...5 V; HART on O1 only
• Accuracy: ≤0.05 % of full scale
• Supply: 10...30 V DC via terminals or Power bridge, ≤3.8 W
• Housing: polycarbonate/ABS, 120 x 12.5 x 128 mm, DIN rail (NS35), removable spring-type terminals
• Environment: IP20, -25...+70 °C

Used where one transmitter signal from a hazardous area is needed by two systems, for example a control system and a separate safety system. Wire break (< 3.5 mA) and short circuit (> 22 mA) are passed to the outputs as < 3.5 mA or < 0.875 V. The Power bridge also carries a collective fault signal; its connector is included.

Approvals: ATEX, cULus; for use in ATEX Zone 2. SIL 2.

WKC4.4T-2-RSC4.4T/TXL is a TURCK extension cable with an angled M12 female connector on one end and a straight M12 male connector on the other (4-pin).

• Connectors: M12 x 1 female, angled / M12 x 1 male, straight; A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

SOKTL150R4 is a foldable stand for Banner TL50 tower lights. It locks upright or folds down to 90°: loosen the control screw three turns, fold, then tighten the screw again.

• Material: black polycarbonate
• Base: Ø90 mm, 4 mounting holes Ø5.5 mm
• Tower light connection: M30 × 1.5 thread
• Included: mounting hardware

Once folded, the cable can be fixed in the groove on the unit with a cable tie.

The isPro USBv4 is the successor of isPro USBx12. It is compatible with the isPro USBx12. This interface is optionally available with an isFF/PA MAU media access converter, with which it can be connected to a PROFIBUS DP and PROFIBUS PA network.
