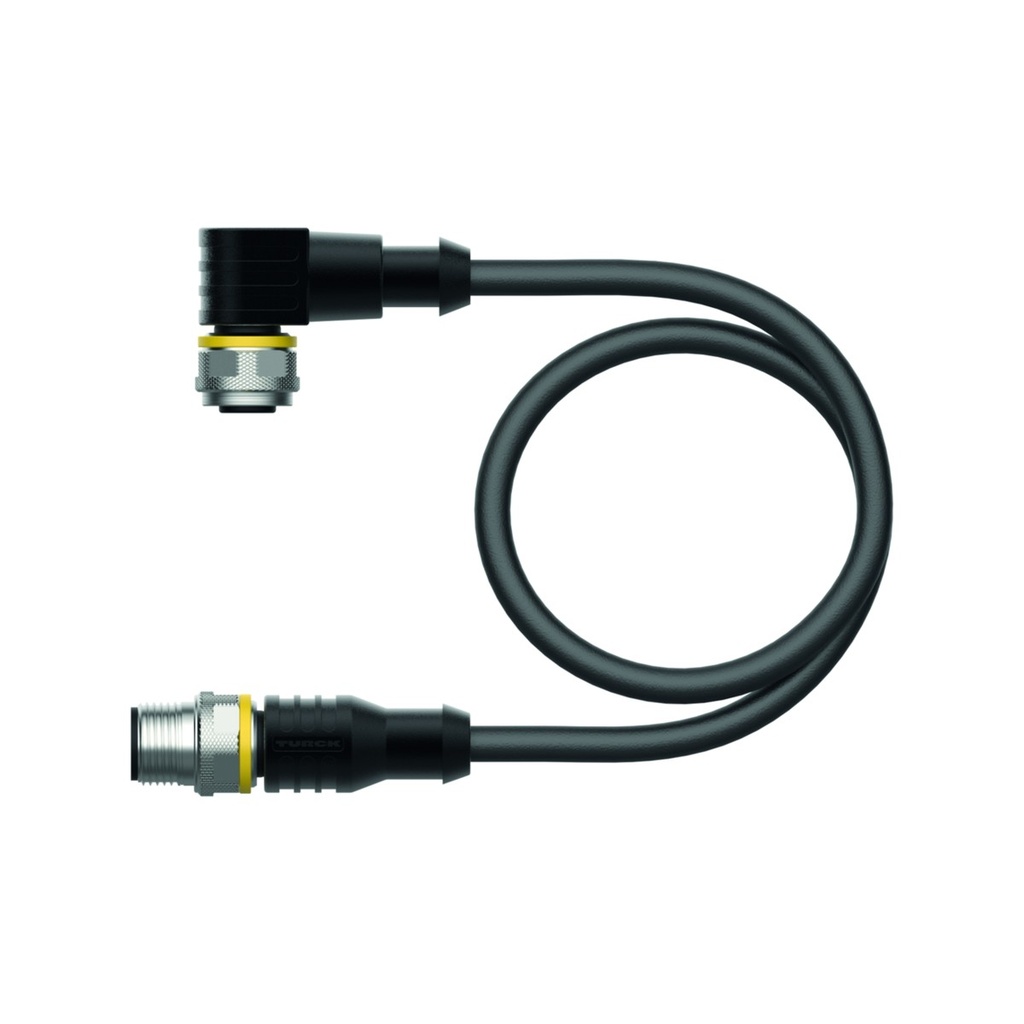

Connection cable WKC4.4T-0.5-RSC4.4T/TEL, M12, female angled/male straight, 4-pin, 0.5m PVC

WKC4.4T-0.5-RSC4.4T/TEL is a TURCK extension cable with an angled M12 female connector on one end and a straight M12 male connector on the other (4-pin).

• Connectors: M12 x 1 female, angled / M12 x 1 male, straight; A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.
