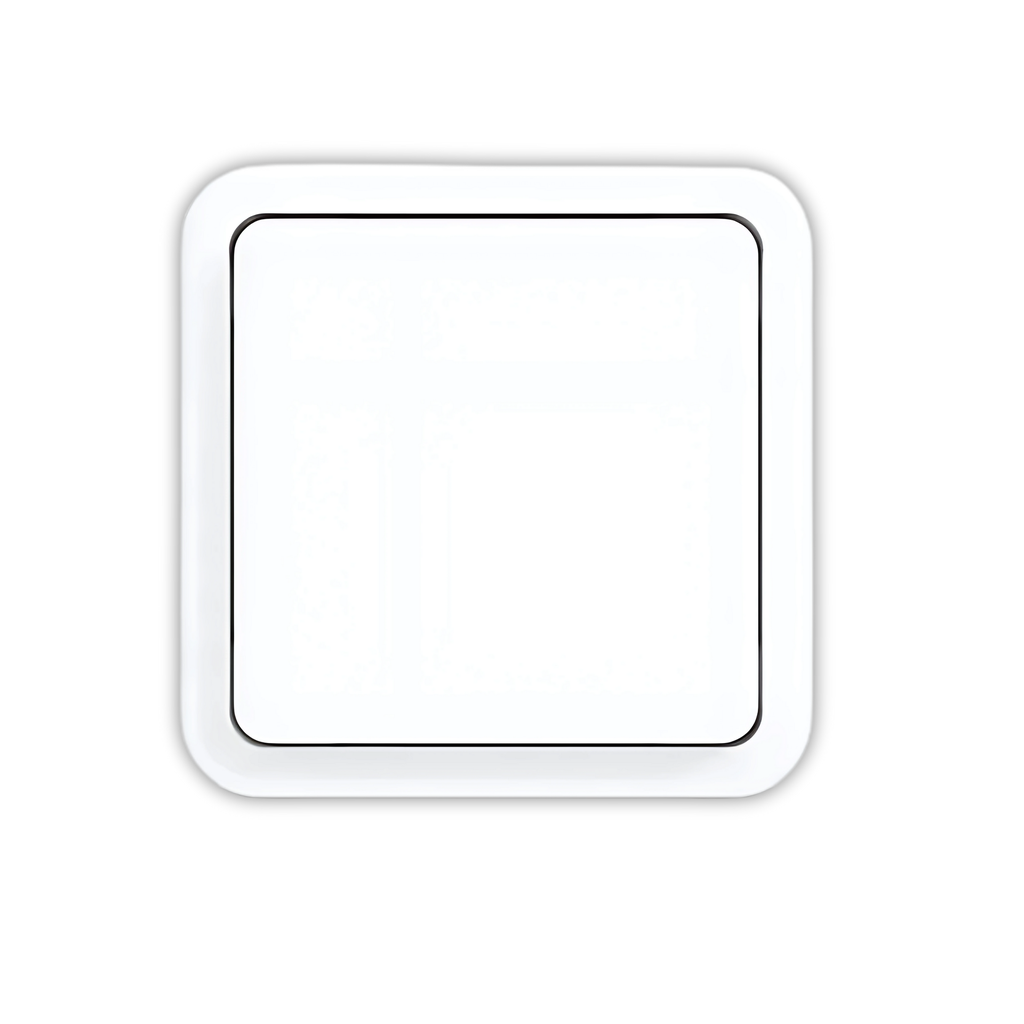

Sensor Output: Touch

Detection Time: Instant

Battery Type: Lithium

Battery Life: Up to 15 Years

Humidity Range: 0 to 100%RH (non condensing)

Humidity Accuracy: ±2% (0 to 90%RH)

Battery Type: Lithium  (BR1632)


Battery Life: Up to 15 Years

Replaceable: Yes

Technology: RTD (PT100 / PT1000)

Connection: 2-, 3-, 4-Wire

Battery Type: 2x AA
Battery Life: Up to 15 Years

Replaceable: Yes

TX110-00VPST is a 10.1" touch display from the TURCK TX100 series with TX VisuPro runtime, a plastic housing and a resistive touchscreen behind a plastic front film. It works as an operator panel only and has no built-in PLC.

• Display: 10.1" TFT, 1024 x 600 (WVGA), 16:9, 64K colours, 200 cd/m², resistive, dimmable
• Communication: 1 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 1 x USB host
• Software: TX VisuPro runtime; ARM Cortex A8, 1 GHz, 512 MB RAM, 4 GB Flash
• Supply: 24 VDC (10...32 VDC), max. 0.38 A
• Housing: plastic, front 282 x 197 x 35 mm, cut-out 271 x 186 mm, mounting depth 29+6 mm
• Environment: IP66 front, IP20 rear, NEMA 2/4X; 0...+50 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the TX100 mounting kit, available as an accessory. There are no expansion slots.

Approvals: Haz. Loc. Class I, Division 2, Groups A, B, C and D.

BMSWS8151-8.5 is a field-wireable M12 male connector for PROFIBUS-DP. It is assembled on site onto a cut length of bus cable, so a damaged connector or an awkward cable run can be repaired without replacing a whole cordset. The cable screen is picked up by an iris spring and carried through to the metal housing.

• Connector: M12 × 1 male, straight, B-coded, 5-pin, gold-plated CuZn contacts
• Bus: PROFIBUS-DP up to 12 Mbit/s, overall shield connected via iris spring
• Rating: 4 A, 125 V, contact resistance ≤ 3 mΩ, over 100 mating cycles
• Termination: screw/clamp connection for 0.37...0.75 mm² cores, cable diameter 6...8.5 mm
• Housing: nickel-plated die-cast zinc with M18 × 1 screw-in thread, 62 mm long
• IP67 when screwed together, −25 °C to +85 °C, cULus recognized

It is used to terminate PROFIBUS-DP segments at drives, remote I/O and field devices, and for repairs in cabinets and on machines where a pre-moulded cordset cannot be routed. No crimping tool is needed — the cores are clamped and the gland is tightened by hand.

19051+DS humidity temperature probe, for DZK & eStat20(D) cable probe, exchangeable operating temperature probe : -40 ... 125°C probe, dimensions: Ø 12 x 78 mm filter: ZE05 filter with sintered PTFE, Ø 12 cable (probe): 2 m plug-in connection, protection IP 65 (plugged-in)

WKC4.4T-40/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

SMBAMS18RA is a right-angle bracket from the Banner SMBAMS series for barrel sensors with an 18 mm thread.

• Sensor hole: Ø19.0 mm, for 18 mm threaded sensors
• Material: 12-ga (2.6 mm) cold-rolled steel
• Adjustment: articulation slots, rotation beyond 90°
• Included: mounting hardware

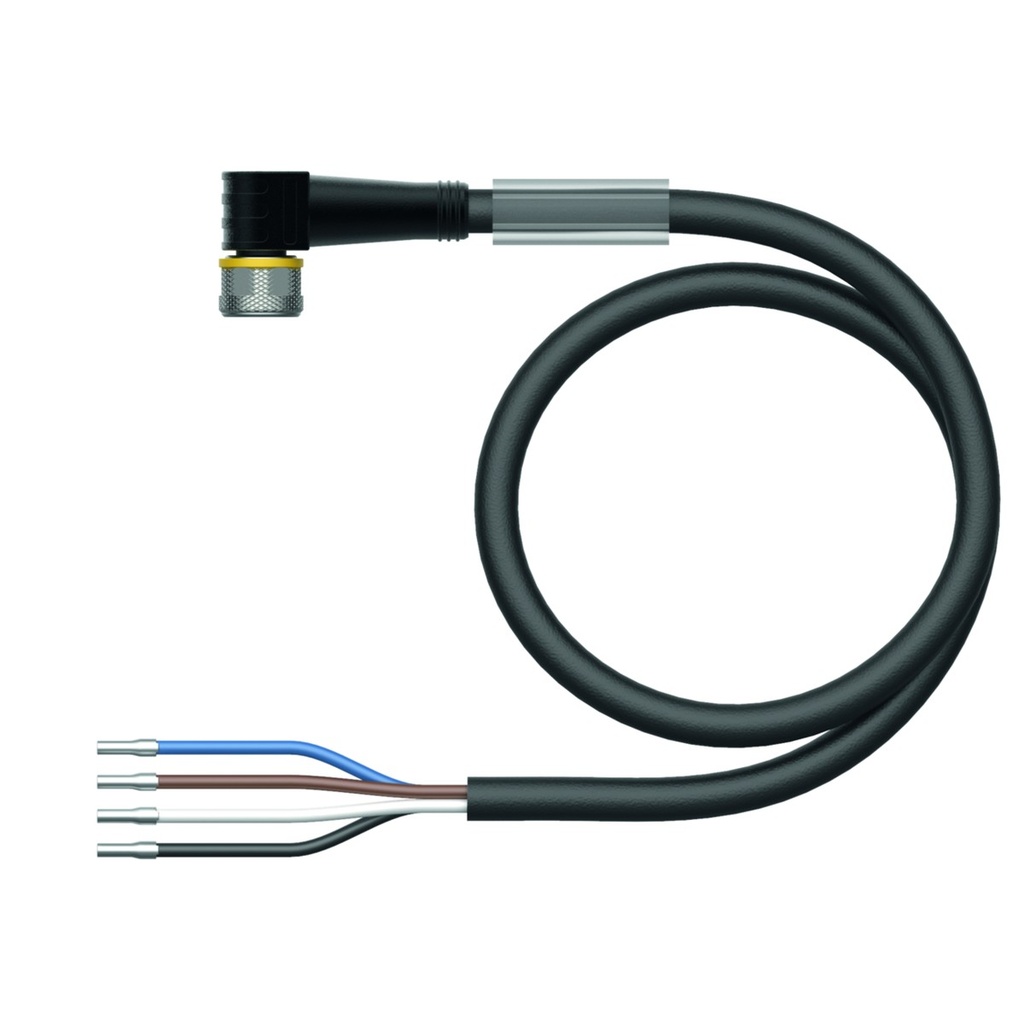

PKW4M-2/TXL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC8T-15/TXL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-30/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

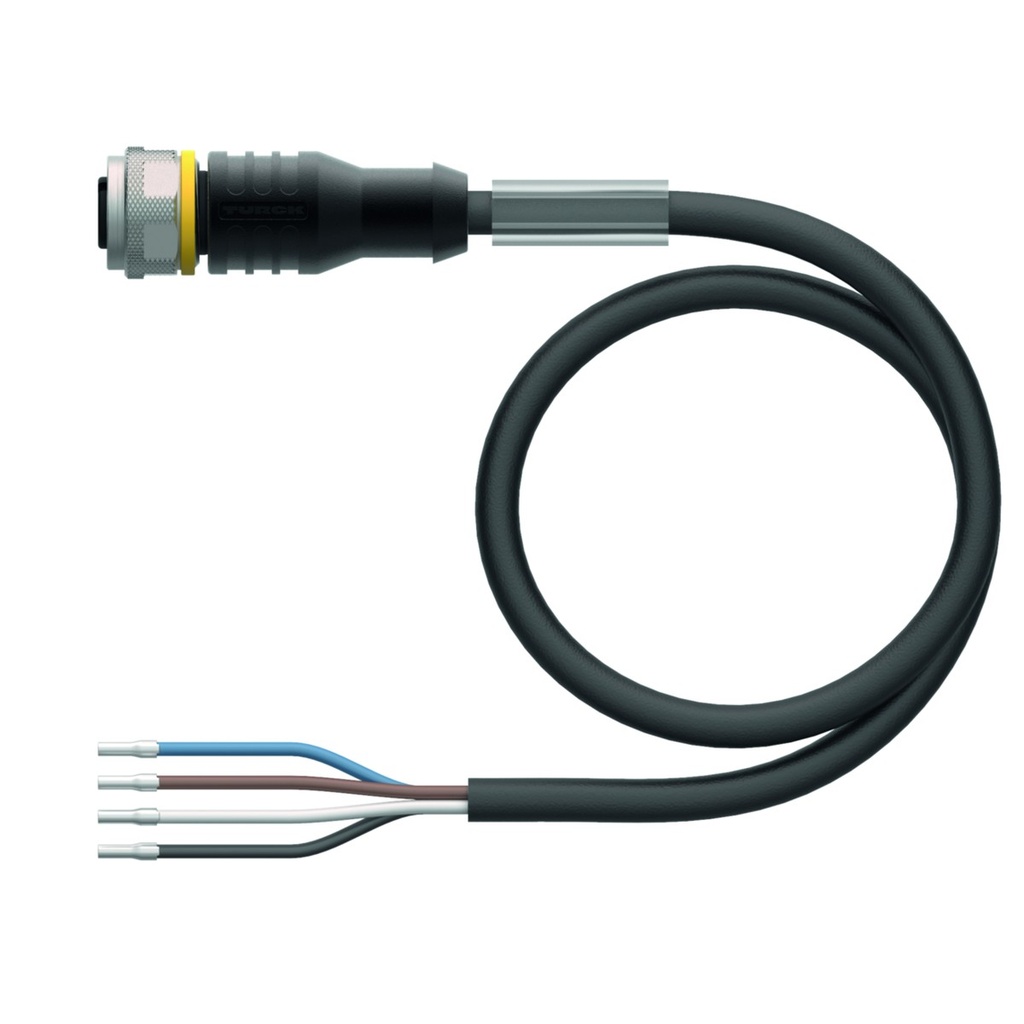

RKC4.4T-25/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

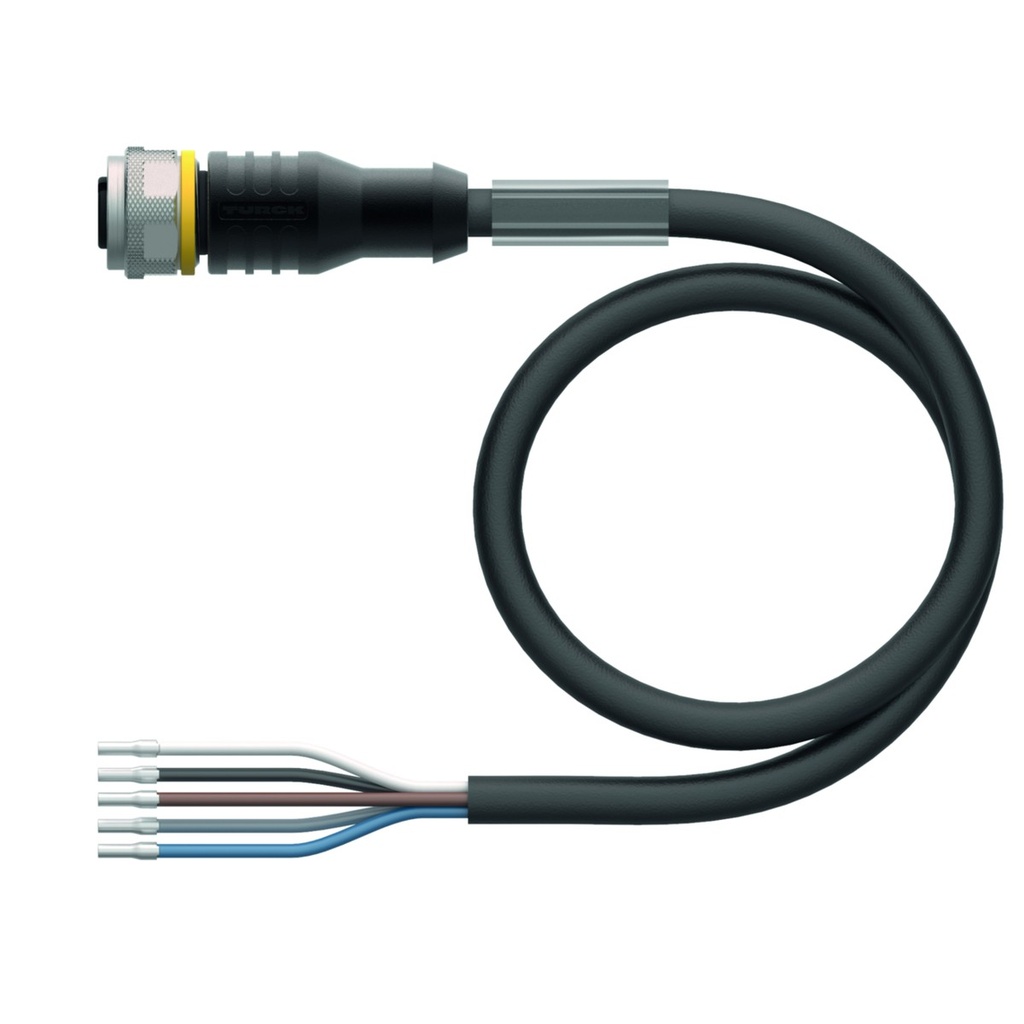

RKC4.5T-20/TEL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

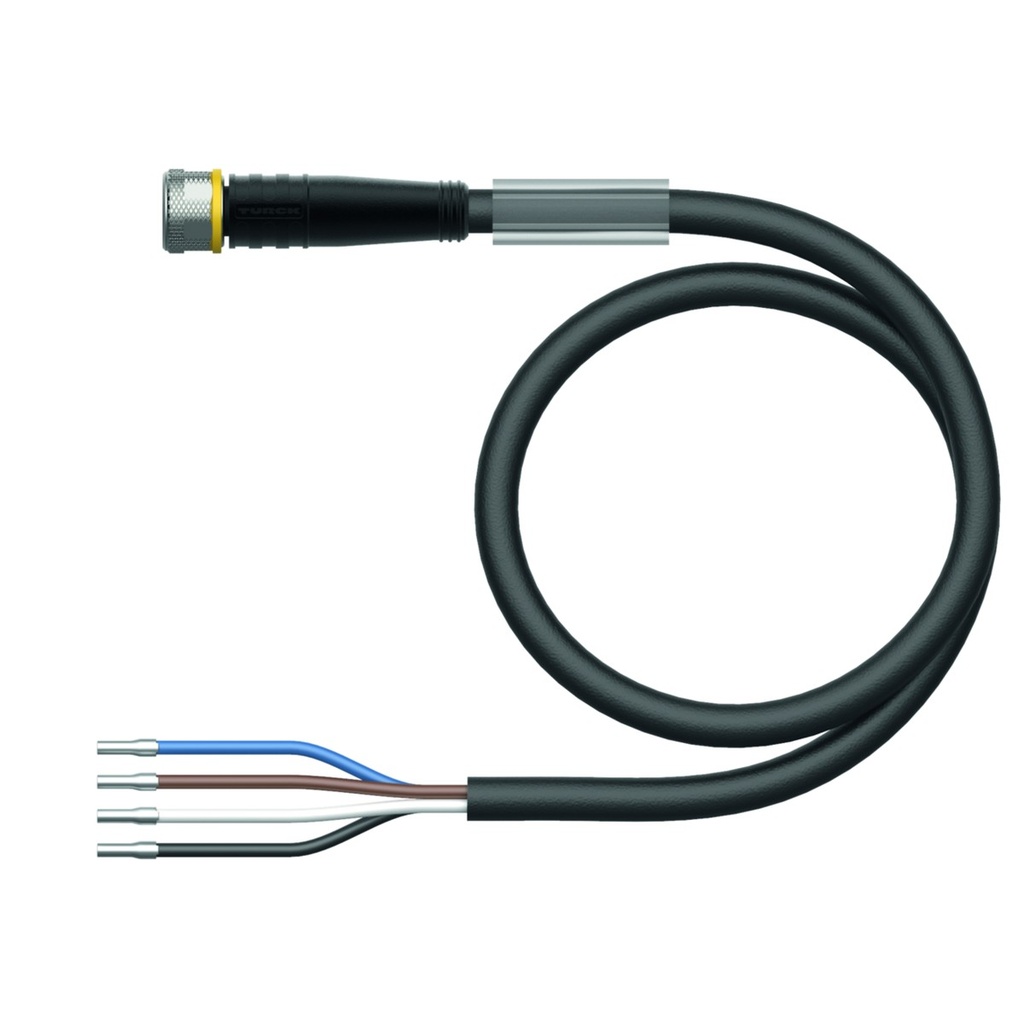

PKG4M-30/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4M-25/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 25 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4M-20/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 20 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

I41-Y2-02048-BCU-08-PT-RM005 Push Pull, +10V÷ +30V 2048PPR AB, /AB; Shaft 8mm; IP65; 25°C +85°C; Radial connector; 0,5m cable + M12 8 pin inline plug Piegāde: 6-7 nedēļas

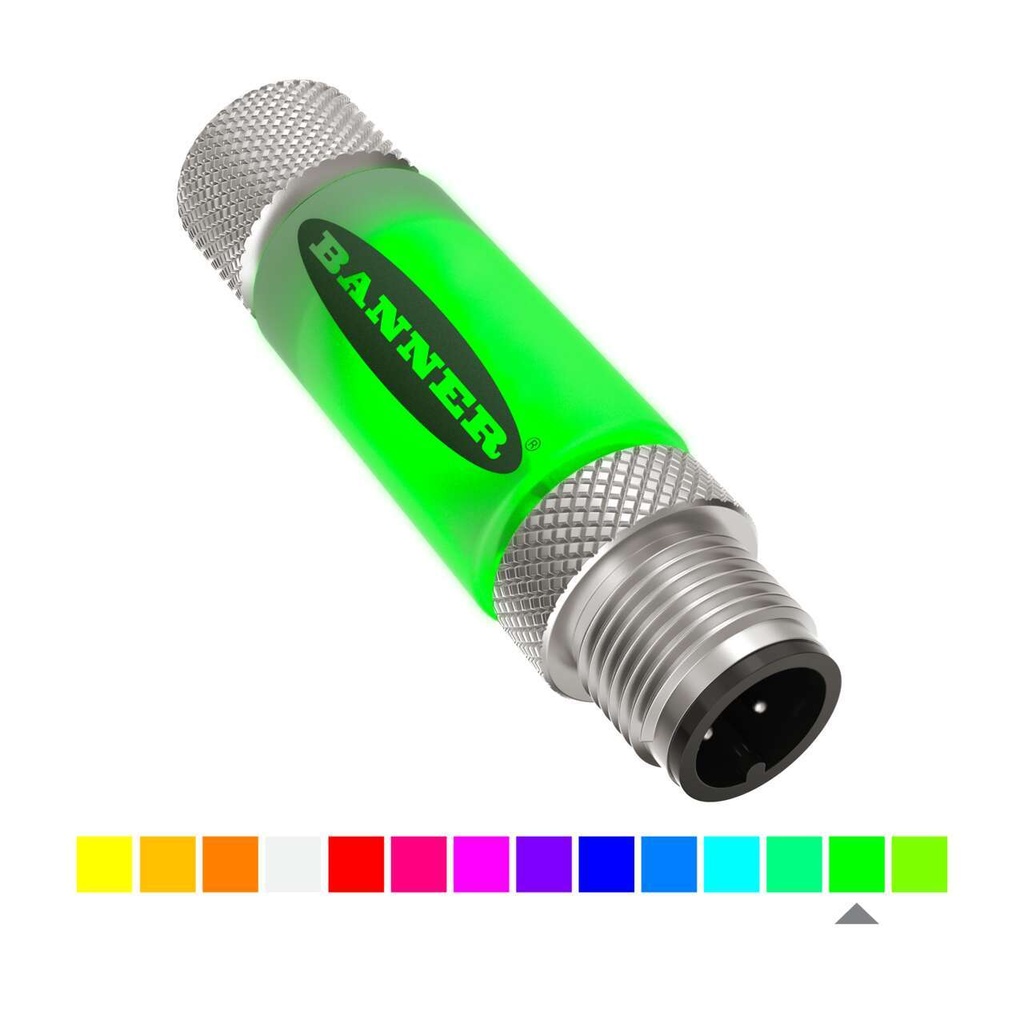

S15LPRGB7Q is a Banner S15L Pro series RGB status indicator with four discrete inputs that screws into an M12 cable run. Three inputs select seven colors in combination, and the fourth input (gray wire) switches on 1 Hz flashing.

• Colors: 7 by default (red, yellow, green, cyan, blue, magenta, white), 14 selectable in total
• Inputs: 4, PNP/NPN, 12...30 V DC, response time up to 250 ms
• Configuration: Banner Pro Editor - colors, intensity, flash pattern, animations
• Supply: 12...30 V DC, up to 60 mA at 12 V DC, typically 35 mA at 24 V DC
• Housing: Ø15 × 58 mm, nickel-plated brass coupling, diffuse white PVC
• Environment: IP65, IP67, IP68, -40...+45 °C
• Connection: integral 5-pin M12 male and female

The indicator is driven directly by PLC or sensor outputs and shows machine status where a separate stack light would not fit. Without any setup it works from the factory color table. Changing the settings in Pro Editor requires a Banner Pro Converter cable, ordered separately.

Meets CE and UKCA requirements, enclosure rating UL Type 1. Vibration and shock resistance tested to IEC 60068-2-6 and IEC 60068-2-27.

S15LPSQ is a Banner S15L Pro series RGB status indicator controlled over a Modbus RTU network that screws into a cable run with 4-pin M12 connectors. Color, intensity, flash pattern and speed are set by writing Modbus registers, so no separate wire is needed per color.

• Colors: 14 selectable, with flash, two-color flash and color sweep
• Communication: Modbus RTU, RS-485 (pins 2 and 4)
• Supply: 12...30 V DC, up to 60 mA at 12 V DC, typically 35 mA at 24 V DC
• Housing: Ø15 × 58 mm, nickel-plated brass coupling, diffuse white PVC
• Environment: IP65, IP67, IP68, -40...+45 °C
• Connection: integral 4-pin M12 male and female

The indicator is used on machines where the PLC already communicates over Modbus RTU, and it connects anywhere on the RS-485 line. It needs a Modbus RTU master, such as a PLC, to operate. Normal-mode settings are not stored in the indicator, so the controller must write them again after a power loss.

Meets CE and UKCA requirements, enclosure rating UL Type 1. Vibration and shock resistance tested to IEC 60068-2-6 and IEC 60068-2-27.

RKS4.4T-10-RSS4.4T/TXL is a TURCK shielded M12 connection cable with a straight female connector on one end and a straight male connector on the other (4-pin, A-coded). The cable shield is connected to the coupling nuts.

• Connectors: M12 x 1 female / male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

(255 198) Adapter plate kit for RFV

Cloud IoT Platform

NOVUS Cloud is an IoT platform solution for monitoring devices for process data online visualization. Ready-to-use with NOVUS smart IoT devices, it is the perfect choice for customers with low IT infrastructure or with requirements of unified data from multiple devices at multiple locations.

NOVUS Cloud can receive information of any kind from the IoT devices, store them in the cloud database and present the data in nice and elegant dashboards.

Operation or management staff can get online awareness about the process deviations through E-mail or SMS notifications, besides the online dashboard alarms. Hosted on cloud server, NOVUS Cloud is accessible worldwide on the internet from any computer or mobile device.

PKG3M-3/TXL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
