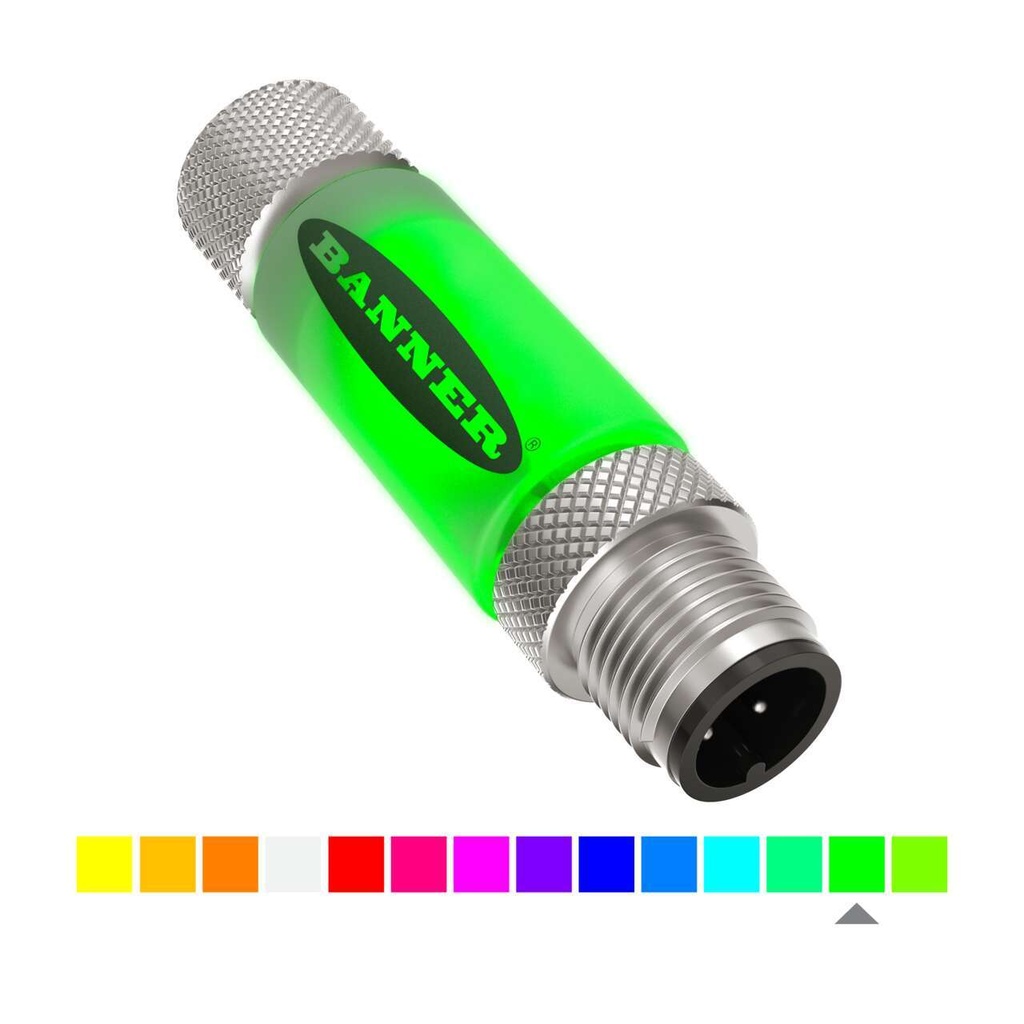

RGB LED indicator S15LPSQ, Modbus RS-485, M12 4-pin

S15LPSQ is a Banner S15L Pro series RGB status indicator controlled over a Modbus RTU network that screws into a cable run with 4-pin M12 connectors. Color, intensity, flash pattern and speed are set by writing Modbus registers, so no separate wire is needed per color.

• Colors: 14 selectable, with flash, two-color flash and color sweep
• Communication: Modbus RTU, RS-485 (pins 2 and 4)
• Supply: 12...30 V DC, up to 60 mA at 12 V DC, typically 35 mA at 24 V DC
• Housing: Ø15 × 58 mm, nickel-plated brass coupling, diffuse white PVC
• Environment: IP65, IP67, IP68, -40...+45 °C
• Connection: integral 4-pin M12 male and female

The indicator is used on machines where the PLC already communicates over Modbus RTU, and it connects anywhere on the RS-485 line. It needs a Modbus RTU master, such as a PLC, to operate. Normal-mode settings are not stored in the indicator, so the controller must write them again after a power loss.

Meets CE and UKCA requirements, enclosure rating UL Type 1. Vibration and shock resistance tested to IEC 60068-2-6 and IEC 60068-2-27.
