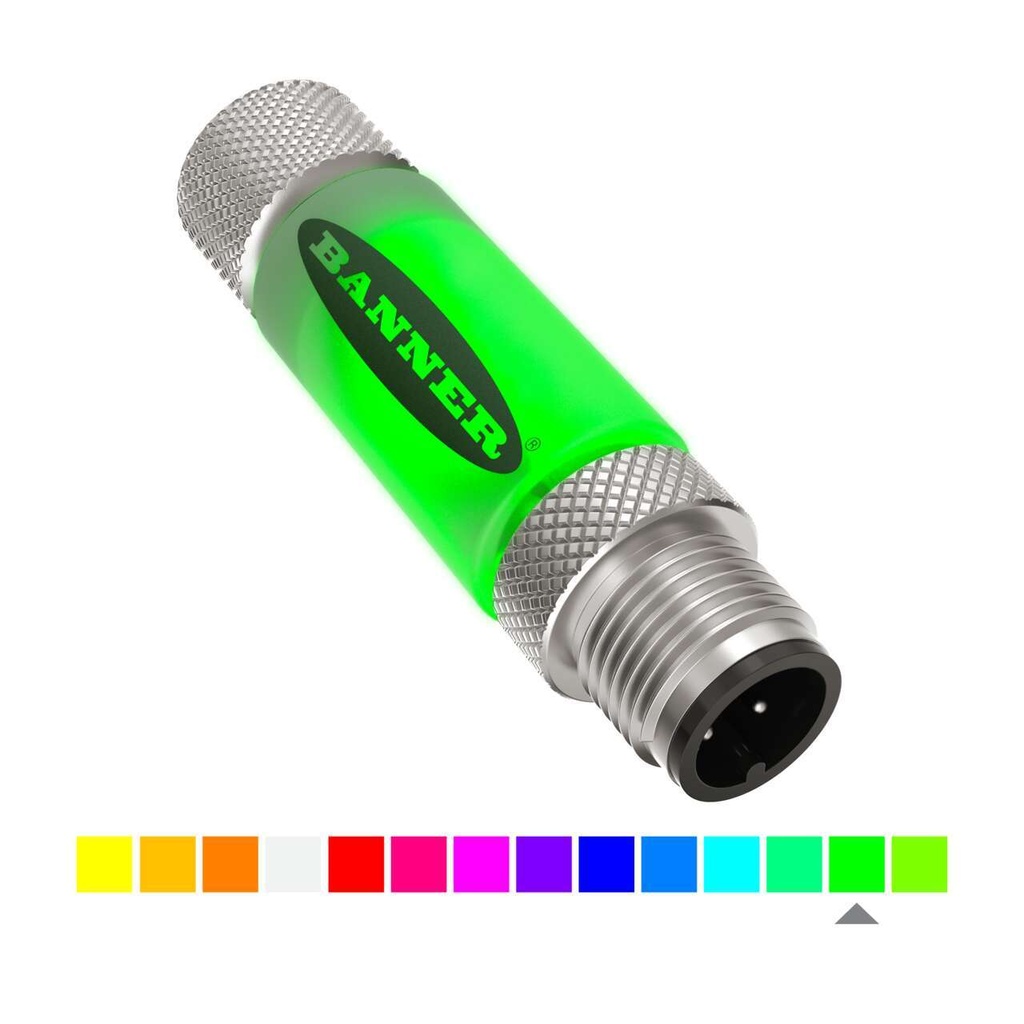

RGB LED indicator S15LPRGB7Q, PNP/NPN, M12 5-pin

S15LPRGB7Q is a Banner S15L Pro series RGB status indicator with four discrete inputs that screws into an M12 cable run. Three inputs select seven colors in combination, and the fourth input (gray wire) switches on 1 Hz flashing.

• Colors: 7 by default (red, yellow, green, cyan, blue, magenta, white), 14 selectable in total
• Inputs: 4, PNP/NPN, 12...30 V DC, response time up to 250 ms
• Configuration: Banner Pro Editor - colors, intensity, flash pattern, animations
• Supply: 12...30 V DC, up to 60 mA at 12 V DC, typically 35 mA at 24 V DC
• Housing: Ø15 × 58 mm, nickel-plated brass coupling, diffuse white PVC
• Environment: IP65, IP67, IP68, -40...+45 °C
• Connection: integral 5-pin M12 male and female

The indicator is driven directly by PLC or sensor outputs and shows machine status where a separate stack light would not fit. Without any setup it works from the factory color table. Changing the settings in Pro Editor requires a Banner Pro Converter cable, ordered separately.

Meets CE and UKCA requirements, enclosure rating UL Type 1. Vibration and shock resistance tested to IEC 60068-2-6 and IEC 60068-2-27.
