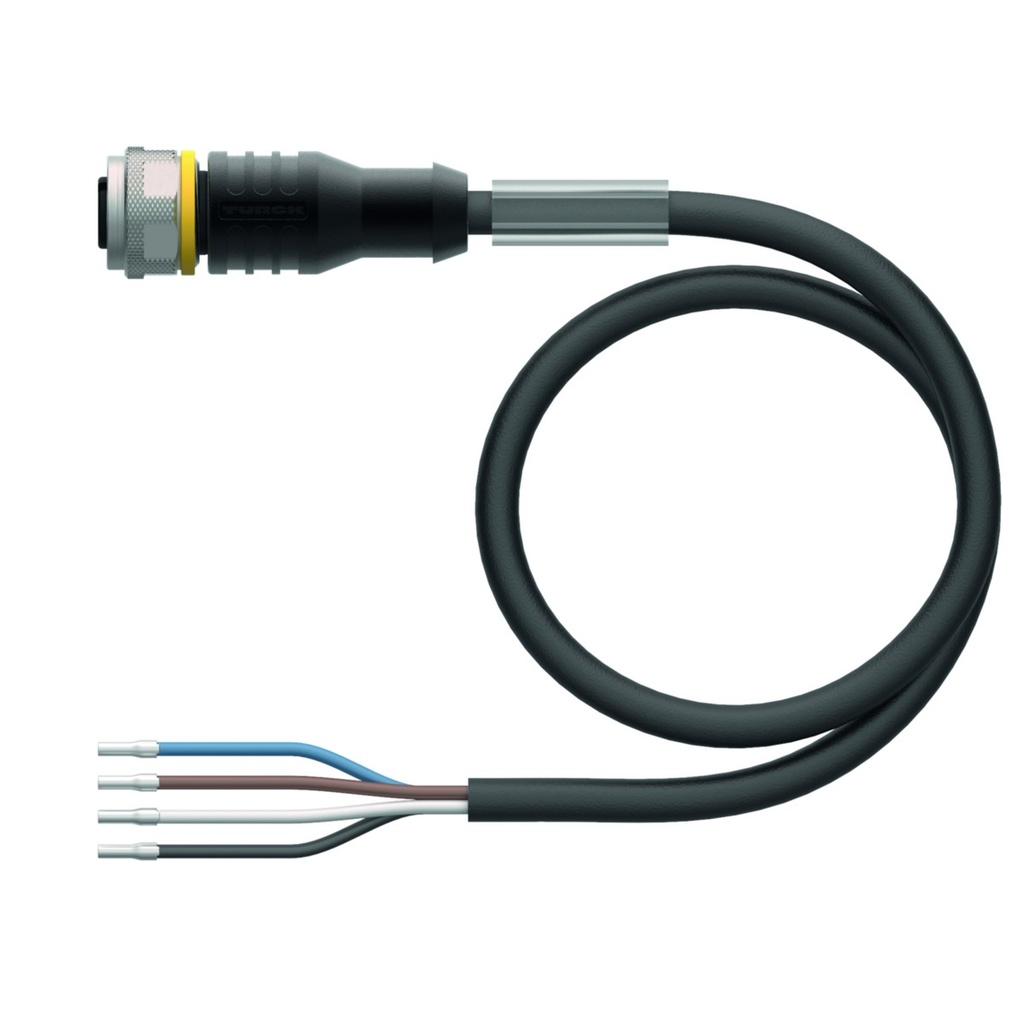

RKC5.501T-30/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 30 m, PUR, black, shielded, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKS4.4T-40/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 40 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKS4.4T-50/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 50 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

VBRS4.4-2RKC4T-2/2/TXL is a TURCK Y-splitter with a straight M12 male connector (4-pin) and two straight M12 female connectors (3-pin) on 2 m PUR cable branches. Pin 4 of the male connector is wired to pin 4 of the first branch (BK1), pin 2 to pin 4 of the second branch (BK2), and the supply (pin 1 +, pin 3 -) is shared by both branches.

• Connectors: M12 x 1 male, 4-pin / 2 x M12 x 1 female, 3-pin, all straight, gold-plated brass (CuZn) contacts
• Cable: 2 x 2 m, PUR, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

Two sensors switching on pin 4 therefore share one two-channel M12 port.

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.

VBRS4.4-2WKC4.324T-5/5/TXL is a TURCK Y-splitter with a straight M12 male connector and two angled M12 female connectors on 5 m PUR cable branches. Pin 4 of the male connector is wired to pins 2 and 4 of the first branch, pin 2 to pins 2 and 4 of the second branch, and the supply (pin 1 +, pin 3 -) is shared by both branches.

• Connectors: M12 x 1 male, straight / 2 x M12 x 1 female, angled; all 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 x 5 m, PUR, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; tightening torque 0.8...1 Nm
• Environment: IP67 (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

Two sensors therefore share one two-channel M12 port. The PUR jacket resists chemicals, UV radiation, oils and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

RoHS compliant.

950551020 Pastiprinātājs šķiedru optikai S7-5-E-N

[M23F12PIN-5.0-1032081] Konektora kabelis enkoderiem UTD-IPH00-XXXXX-L10S-PRL M23, 5m ekranēts, 10x0,34mm²

Pos.10 - Type: [A] NG 8100 Pos.20 - Certificate: [0] CE / UKCA / TR-CU Pos.30 - Process temperature / insulator: [F] -40°C..+150°C (-40°F..302°F) FKM Single line of defense, PEEK Pos.40 - Electronic module: [A] 2-wire 4..20 mA, HART (9.6..35 V DC) Pos.50 - Process connection: [0A] Thread ¾" NPT PN40 taper, ANSI/ ASME B1.20.1 Pos.80 - Version of Probe L: [E] Rod ø8 mm (0.31") Pos.90 - Display and adjustment module: [A] with display and adjustment module, with inspection window in lid Pos.100 - Rigid part L1: [0] without (rod version) Pos.130 - Cable entry: [D] 1x M20x1.5 screwed cable gland PA (ø5-9 mm [0.20-0.35"]) 1x blind plug Pos.140 - Language manual: [2] EN - English Pos.160 - Housing: [A] aluminium single chamber Pos.190 - Dimensions centering weight (diameter / height): [0] without

PFM43-2211.A1421.0 is a Baumer electromagnetic insertion flow meter for pipes from DN 80 to DN 500. It is inserted into the pipe through a G 1 A threaded connection, so a large line does not need a full-bore flow meter. It passes flow velocity on as a pulse or frequency signal, and it is configured with Baumer BCP software.

• Measuring range: flow velocity 0.4...10 m/s, pipes DN 80...DN 500
• Accuracy: ±2 % at ≥ 0.5 m/s, repeatability ±0.5 %
• Output: 2 x pulse/frequency/alarm; analogue 0...20 mA or 4...20 mA output - optional
• Supply: 10...30 V DC, ≤ 1 W
• Housing: AISI 316, L=176 mm; G 1 A connection in AISI 304, Hastelloy C electrodes, PEEK and PTFE seals
• Environment: IP67; process -10...100 °C, up to 100 bar; ambient -10...60 °C
• Connection: M12-A, 5-pin, stainless steel

The medium must have a conductivity above 20 µS/cm, so the meter is not suitable for demineralised water or oils. After power-up it is operational within 30 s, but calibration needs a warm-up of up to 15 min.

PFM43-2211.A2421.0 is a Baumer electromagnetic insertion flow meter for pipes from DN 80 to DN 1000. It is inserted into the pipe through a G 1 A threaded connection, so a large line does not need a full-bore flow meter. It passes flow velocity on as a pulse or frequency signal, and it is configured with Baumer BCP software.

• Measuring range: flow velocity 0.4...10 m/s, pipes DN 80...DN 1000
• Accuracy: ±2 % at ≥ 0.5 m/s, repeatability ±0.5 %
• Output: 2 x pulse/frequency/alarm; analogue 0...20 mA or 4...20 mA output - optional
• Supply: 10...30 V DC, ≤ 1 W
• Housing: AISI 316, L=244 mm; G 1 A connection in AISI 304, Hastelloy C electrodes, PEEK and PTFE seals
• Environment: IP67; process -10...100 °C, up to 100 bar; ambient -10...60 °C
• Connection: M12-A, 5-pin, stainless steel

The medium must have a conductivity above 20 µS/cm, so the meter is not suitable for demineralised water or oils. After power-up it is operational within 30 s, but calibration needs a warm-up of up to 15 min.

PFM43-2211.A3421.0 is a Baumer electromagnetic insertion flow meter for pipes from DN 80 to DN 2000. It is inserted into the pipe through a G 1 A threaded connection, so a large line does not need a full-bore flow meter. It passes flow velocity on as a pulse or frequency signal, and it is configured with Baumer BCP software.

• Measuring range: flow velocity 0.4...10 m/s, pipes DN 80...DN 2000
• Accuracy: ±2 % at ≥ 0.5 m/s, repeatability ±0.5 %
• Output: 2 x pulse/frequency/alarm; analogue 0...20 mA or 4...20 mA output - optional
• Supply: 10...30 V DC, ≤ 1 W
• Housing: AISI 316, L=462 mm; G 1 A connection in AISI 304, Hastelloy C electrodes, PEEK and PTFE seals
• Environment: IP67; process -10...100 °C, up to 100 bar; ambient -10...60 °C
• Connection: M12-A, 5-pin, stainless steel

The medium must have a conductivity above 20 µS/cm, so the meter is not suitable for demineralised water or oils. After power-up it is operational within 30 s, but calibration needs a warm-up of up to 15 min.

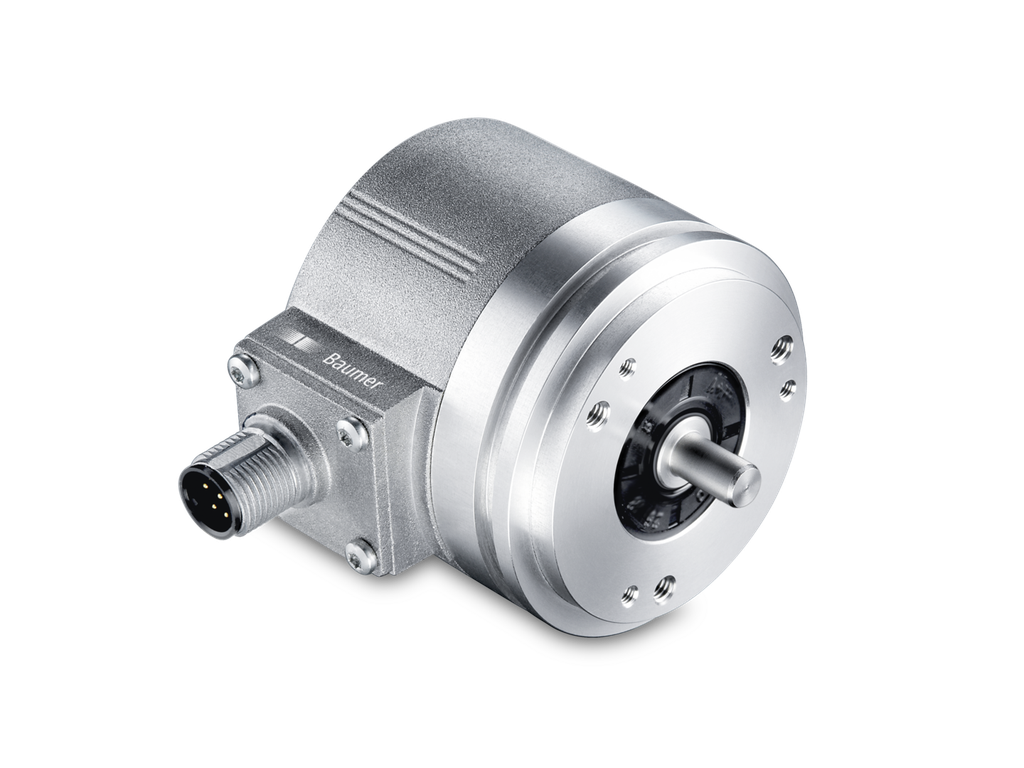

EIL580-SY06.5EQ.01000.A is a Baumer optoPulse incremental encoder with optical sensing, 1000 pulses per revolution and synchro flange mounting. The HTL output level follows the supply (Vout = Vin), so on a 24 V system the signal is at 24 V and goes straight to a PLC high-speed counter input.

• Resolution: 1000 pulses per revolution, zero pulse
• Output: HTL/push-pull, 6 channels (A+, B+, R+, A-, B-, R-), up to 160 kHz
• Supply: 4.75-30 V DC, no-load consumption ≤70 mA
• Housing: Ø58 mm, synchro flange with Ø50 mm centring collar, Ø6 x 10 mm shaft with flat
• Environment: IP65, -40...+85 °C, up to 12000 rpm

The synchro flange lets the encoder be held with clamps and rotated around its shaft before tightening. The shaft needs a flexible coupling.

UL 508 / CSA 22.2 approved. EMC to EN 61000-6-2 and EN 61000-6-3; vibration (30 g, 10-2000 Hz) and shock (300 g, 6 ms) resistance to EN 60068-2-6 and EN 60068-2-27.

WKC4.4T-15/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

Pressure switch with intuitive switch point setting PK6522 PK-100-SFG14-HCPKG/US/ /W

Pressure switch with intuitive switch point setting PK6520 PK-400-SFG14-HCPKG/US/ /W

RKS4.5T-5/TXL is a TURCK shielded connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.7 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

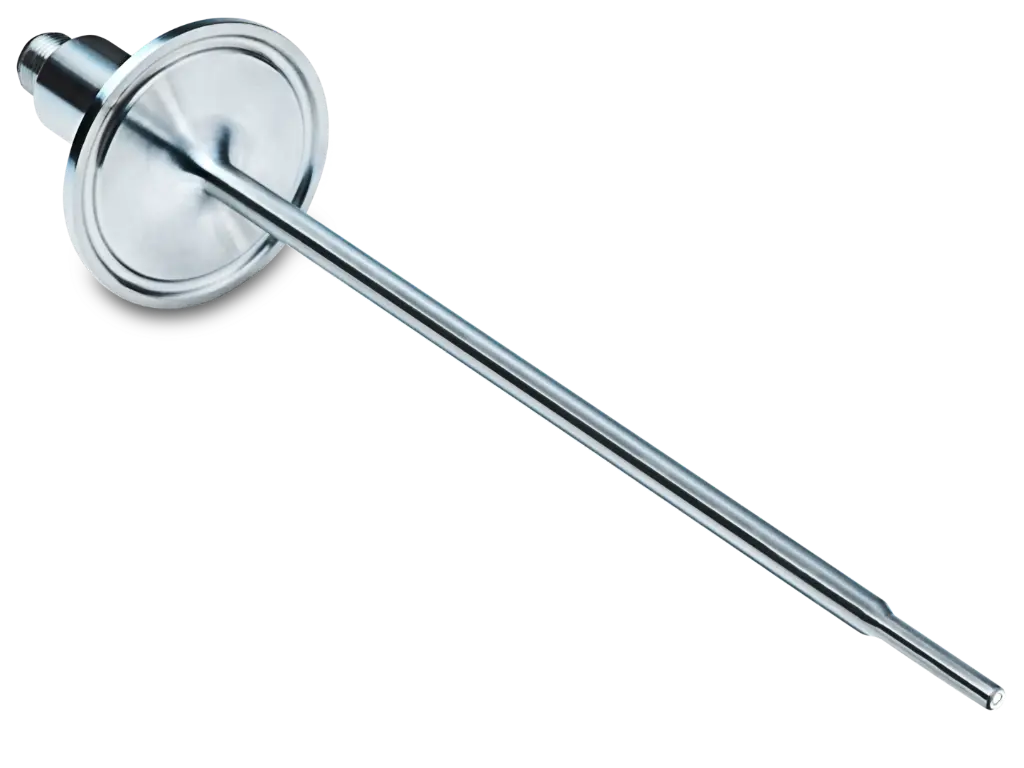

Temperatūras sensors TE2-1.4.7020.0080.0 Art: 11180504 G 1/2 A hygienic (A03) L=80mm D=6mm

RKC4.4T-1.5-RSC4.4T/TEL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The cable has a black PVC jacket.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1.5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

Konektors ar kabeli MSUD valve plug A-18mm with cable PUR 3x0.75 bk UL/CSA+drag ch. 2m Art: 7000-18021-6360200

Konektors ar kabeli MSUD valve plug A-18mm with cable PUR 3x0.75 bk UL/CSA+drag ch. 5m Art: 7000-18021-6360500

U500.DA5.2-UAMJ.72F is a Baumer U500 series ultrasonic distance sensor with a 20...1500 mm measuring range, a 0...10 V analog output and an IO-Link interface. It has two IO-Link channels (dual channel) and a multiplex version, so several sensors can run side by side without mutual interference.

• Accuracy: repeatability 0.5 mm; resolution < 0.3 mm; temperature drift < 2 % of object distance (> 50 mm); power-up drift compensated after 15 min
• Measuring range: 20...1500 mm, start and end point adjustable; response time < 70 ms; sonic frequency 200 kHz
• Outputs: analog 0...10 V / 10...0 V, up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 12 ms, port type Class A, 48-bit process data (distance, 2 switching channels, quality, alarm, counter)
• Supply: 12...30 V DC, average consumption 35 mA; short-circuit and reverse-polarity protected
• Housing: rectangular, ASA/PMMA plastic, PEEK-coated sensor face, 18 x 45 x 32 mm
• Environment: IP67, operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Suited to level measurement in tanks and distance measurement up to 1.5 m, where object colour, transparency or dust disturbs an optical measurement. The range is set by qTeach, Line-Teach or over IO-Link, which also configures filtering, the output characteristic, the sonic beam width and the function of pin 5.

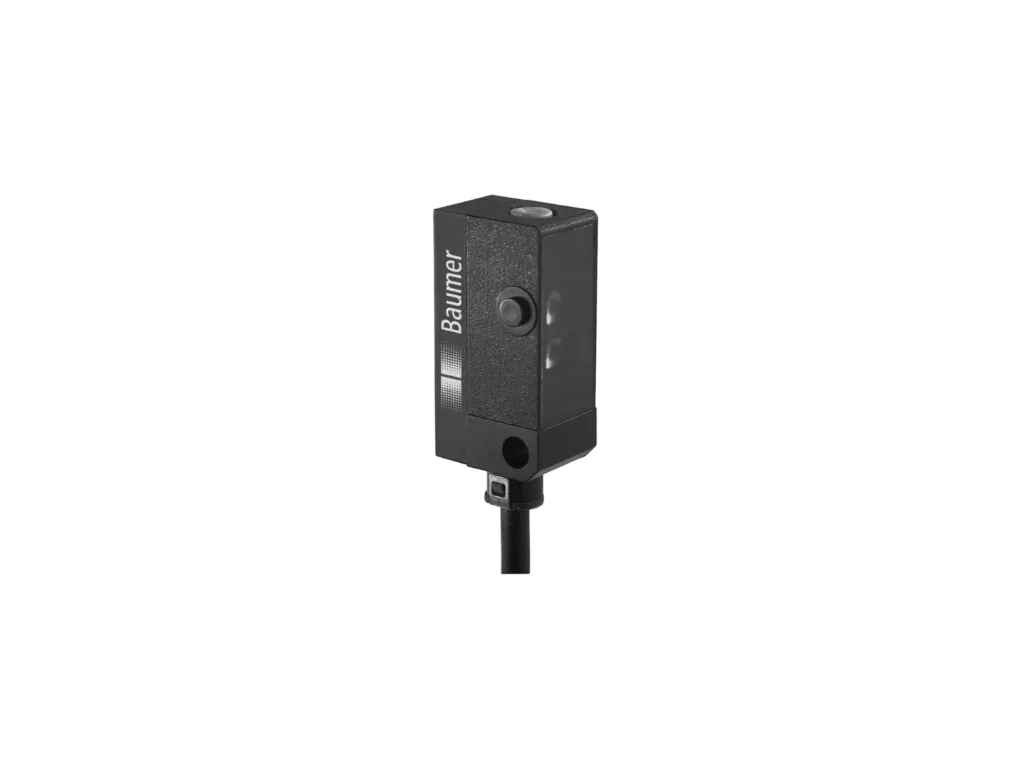

FHDK 10P5101 is a Baumer miniature photo sensor with background suppression. It compares where the reflected beam lands on its internal detector, so an object is detected regardless of its colour or surface reflectivity while everything beyond the set distance is ignored. A 35...45 mm focus zone with a 4 mm beam diameter allows small objects to be detected.

• Switching distance: 20...120 mm, adjustable by a 5-turn mechanical potentiometer
• Output: PNP, Light/Dark Operate, < 100 mA
• Supply: 10...30 V DC, typical consumption 20 mA
• Housing: rectangular, 10.4 x 27 x 14 mm, plastic (ASA), PMMA optics
• Environment: IP 65, -25...+65 °C
• Connection: cable 2 m, 4-wire

The sensor suits presence and position control in packaging, assembly and sorting machines where the background sits close to the object and dark or glossy surfaces give a standard diffuse sensor a false reading. A flashing light indicator shows insufficient signal margin or a soiled lens, so alignment and maintenance need no instruments. Reciprocal influence is suppressed, so several sensors can be mounted side by side.
