TX-CAN is a plug-in module for TURCK TX700 HMI/PLC devices that works as a CANopen manager (master) in CODESYS. It supports CAN 2.0A and 2.0B and is galvanically isolated.

• Interface: CANopen manager/master, CAN 2.0A/2.0B, 10 kbps...1 Mbps
• Connector: 1 x 9-pin SUB-D, male; external bus termination
• Configuration: transmission rate and addresses 1...127 set in CODESYS
• Supply: from the HMI
• Housing: metal, 41.2 x 90.3 x 23.8 mm
• Environment: IP20, -20...+60 °C, 5...85 % RH non-condensing

Fits the expansion slots of TX700 HMI/PLC devices and the TX700S gateway; powered from the HMI, no separate supply. The bus terminating resistor is not built in and has to be fitted externally.

Approvals: CE, cULus, Class I Div. 2, DNV-GL.

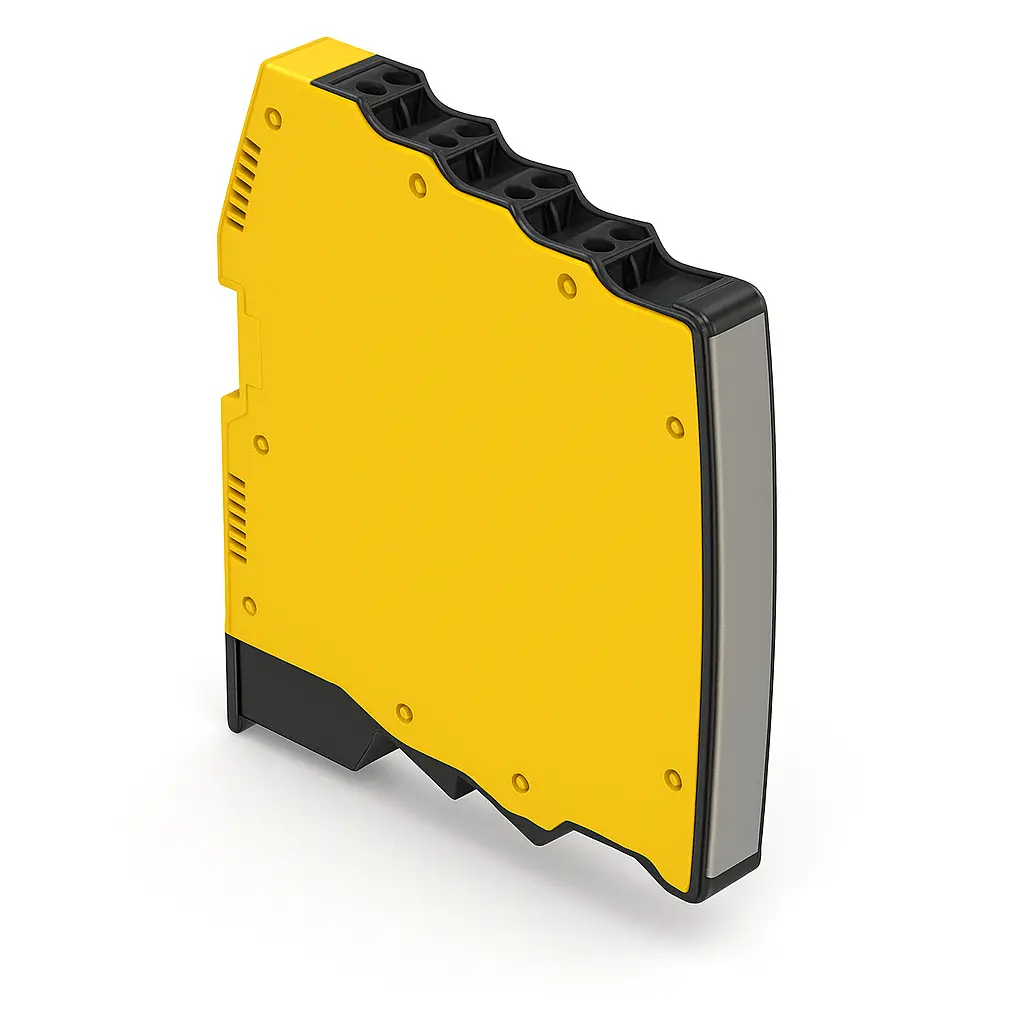

IM12-FI01-2SF-2I-C0/24VDC is a 2-channel TURCK frequency transducer and pulse counter that transfers frequency signals up to 20 kHz with galvanic isolation and converts them to 0/4...20 mA. It is parameterised from a PC via FDT and IODD.

• Channels: 2 frequency inputs for NAMUR sensors (EN 60947-5-6) or contacts, 0.0006...1,200,000 rpm
• Outputs: 2 x 0/4...20 mA, source or sink (15...28 V), load ≤0.8 kΩ
• Configuration: PC via FDT and IODD; inputs assignable as E1, E2, E1-E2 or E2-E1
• Supply: 10...30 V DC, ≤3 W
• Housing: polycarbonate/ABS, 120 x 12.5 x 117 mm, DIN rail (NS35), removable screw terminals
• Environment: IP20, -25...+70 °C

Used for speed monitoring of shafts and conveyors where the pulse sensor sits in a hazardous area. Wire break and short circuit on the input are monitored; the fault current can be set to < 3.5 mA or > 21.5 mA. A PC connection is needed for parameterisation.

Approvals: ATEX, cULus; for use in ATEX Zone 2. SIL 2.

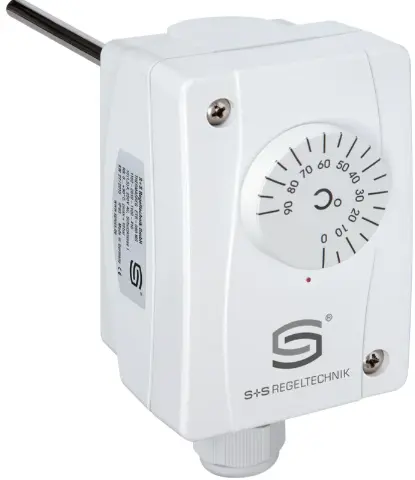

• Temperature controller (external setting)
• 0 ... +120 °C
• Tmin ± 5K; Tmax ± 3K
• Switching capacity (contact load): 24...250 V AC +10%, 10 A, cos ϕ = 1.0 24...250 V AC +10%, 1.5 A, cos ϕ = 0.6 at 24 V at least 150 mA
• Switching difference: 5K
• Installation length: 100 mm
• Stainless steel
• IP65

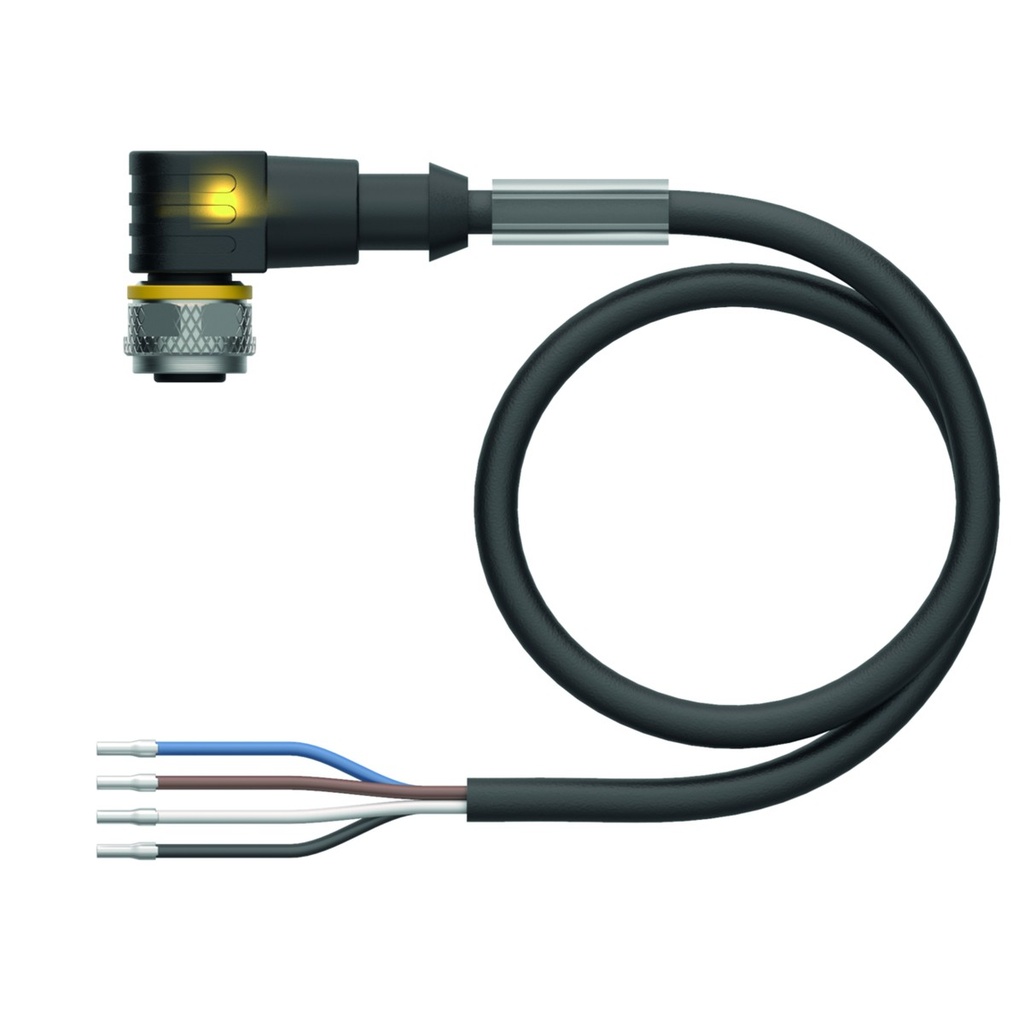

WKC4.4T-P7X2-15/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKH4.5-15/TFG is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, TPE-O, light grey (RAL 7035), Ø 5 mm, 5 x 0.34 mm², core colours BN, BU, BK, WH, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -40...+105°C fixed, -25...+105°C mobile, -25...+60°C in a drag chain

The TPE-O jacket is rated for drag chains: at least 4 million bending cycles, up to 3 m/s and 5 m/s², torsion ±180°/m. It resists chemicals, microbes and weathering, is hydrolysis resistant per DIN EN 60068-2-78, stays flexible at low temperatures and is free from halogen, silicone and PVC.

RoHS and REACH compliant, approvals: FDA, Ecolab, GOST.

O500H.SP-GW1J.PVCK is a Baumer O500 series SmartReflect light barrier in a hygienic 1.4404 (V4A) stainless steel housing. Instead of a reflector the sensor uses the background - the machine surface behind the object - and treats every interruption of the beam between itself and the taught background at 60...600 mm as an object, so no reflector and no receiver has to be mounted on the opposite side.

• Background position Sde: 60...600 mm, set by teach-in and over IO-Link
• Output: push-pull, light / dark operate, 100 mA
• Communication: IO-Link V1.1, filter functions, qTeach lock
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: stainless steel 1.4404 (V4A), PMMA optics, 20.2 x 47.7 x 36.4 mm
• Environment: IP 68/69K and proTect+, -25...+60 °C
• Connection: 2 m cable, 4 cores

The sensor suits presence checks in food and beverage production, where the machine is washed with hot pressurised water and where there is no room for a reflector or a receiver opposite the sensor. The background position is set by magnetic teach or over IO-Link, so there are no adjusters on the housing.

The housing carries Ecolab approval and the hygienic design follows the EHEDG guidelines.

RKC4.4T-15/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

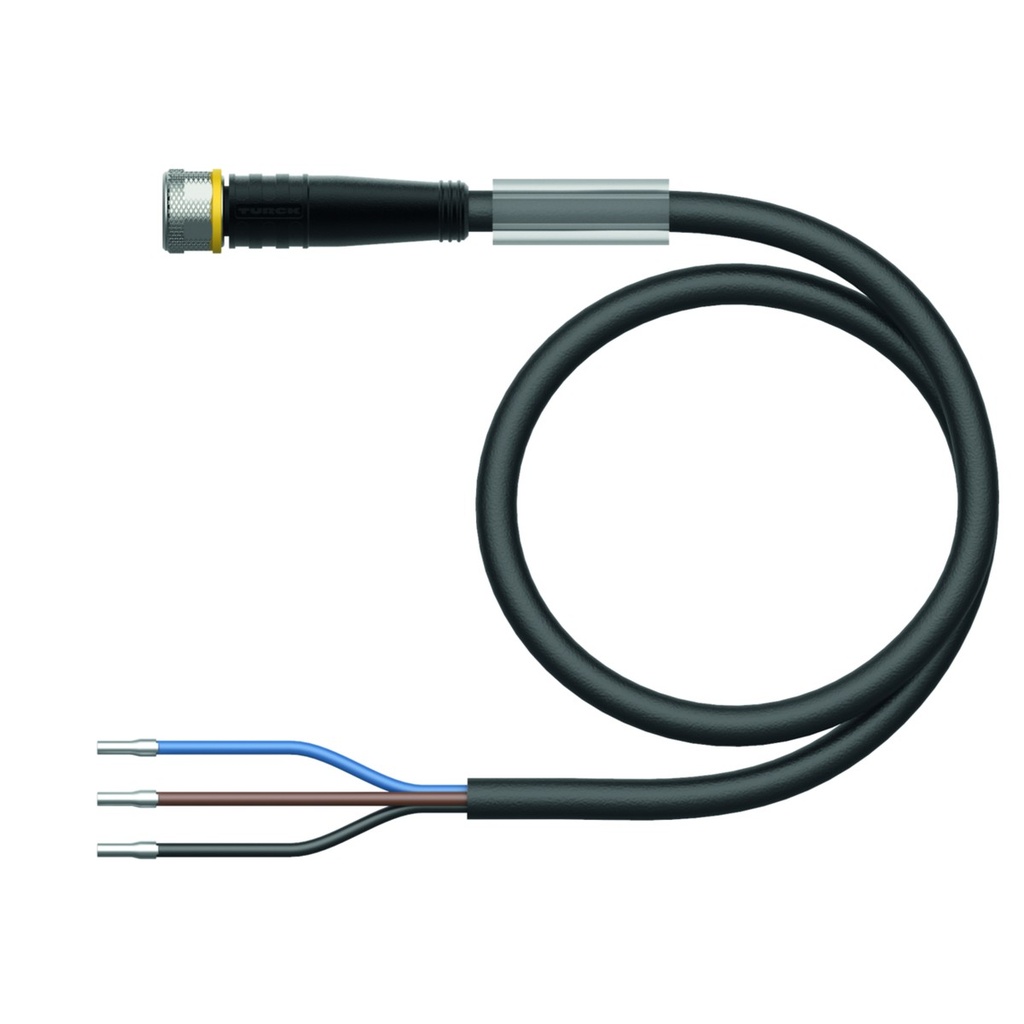

PKG3M-7.5/TXL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 7.5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

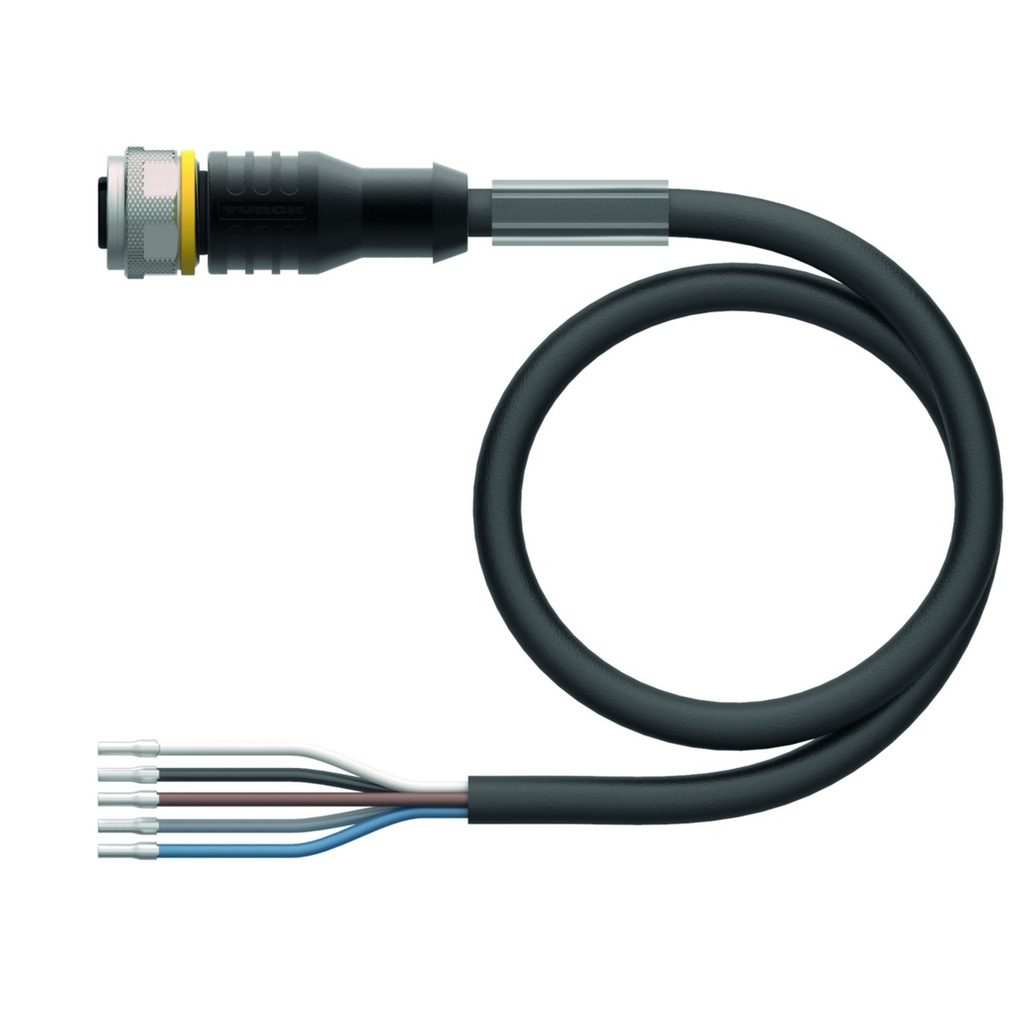

RKC4.5T-5/TXL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-10-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-1-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 1 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

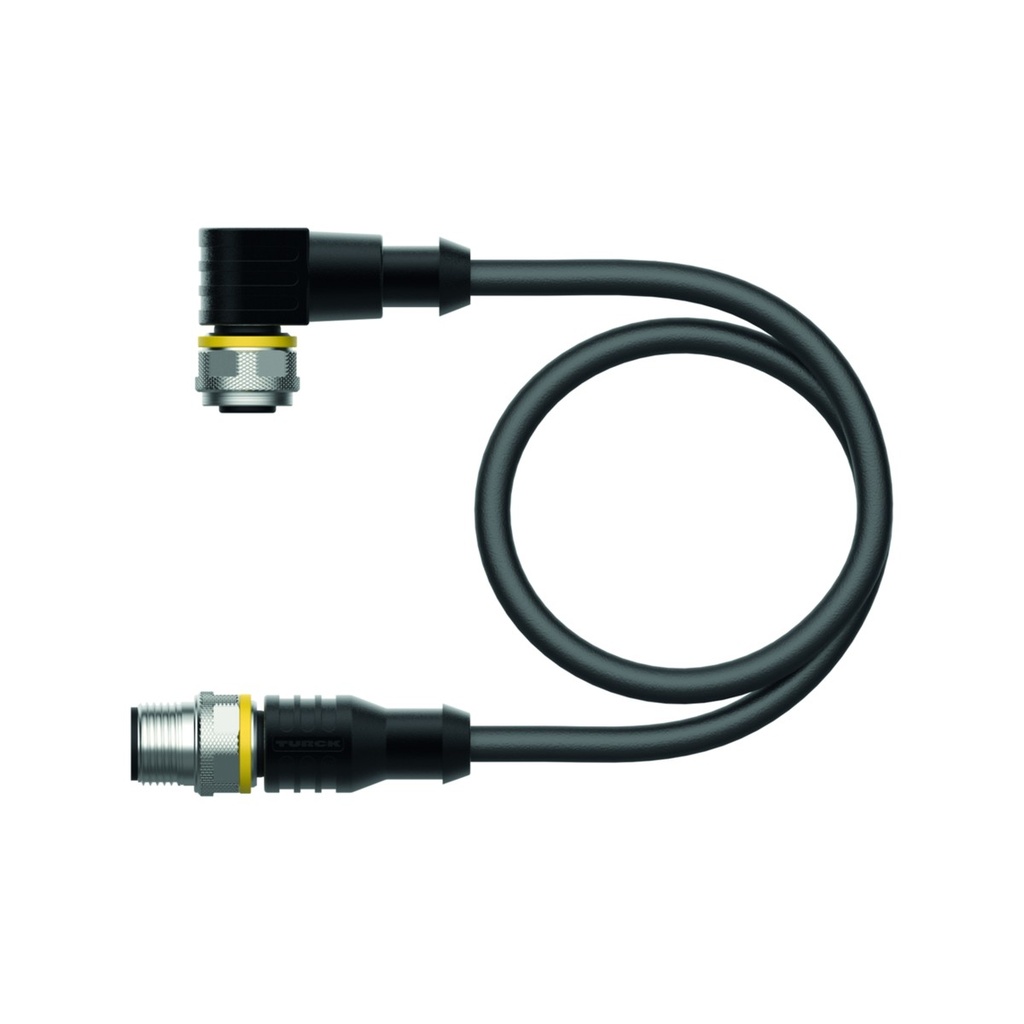

WKC4.4T-5-RSC4.4T/TXL is a TURCK extension cable with an angled M12 female connector on one end and a straight M12 male connector on the other (4-pin).

• Connectors: M12 x 1 female, angled / M12 x 1 male, straight; A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKS4.4T-7/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 7 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

RKC4.4T-4/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 4 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

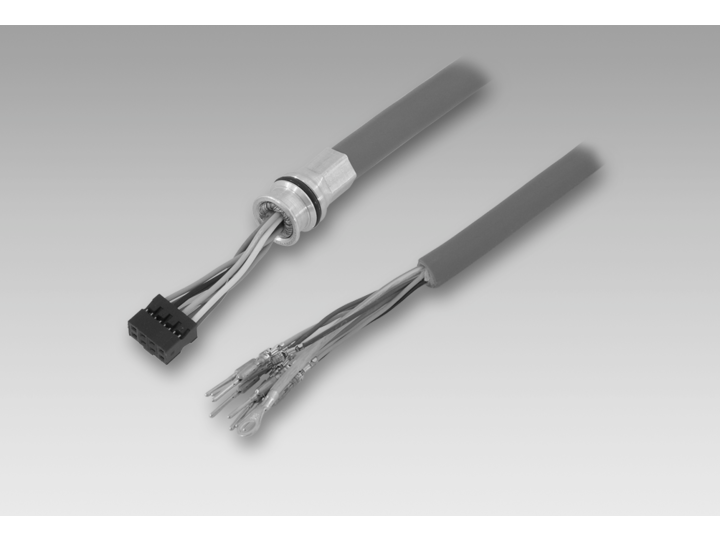

Baumer 11071189 is a 0.2 m shielded lead with an 8-pin K21BG8 coupling with socket contacts on one end and wires fitted with 61.171.80 crimp contacts on the other, rated up to +120 °C.

• Connector: K21BG8 coupling, 8-pin, socket contacts
• Wire ends: 61.171.80 crimp contacts
• Cable: 8 × 0.14 mm² stranded, shielded, Ø approx. 6.8 mm, 0.2 m
• Wire colours, pins 1-8: RD, BU, GN, BN, GY, BK, PK, WH
• Temperature: -30...+120 °C

The crimped wire ends are inserted into the mating connector housing by the customer. The datasheet lists it for the ITD21H00 HT high-temperature encoder.

RKC4.5T-10/TXL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
