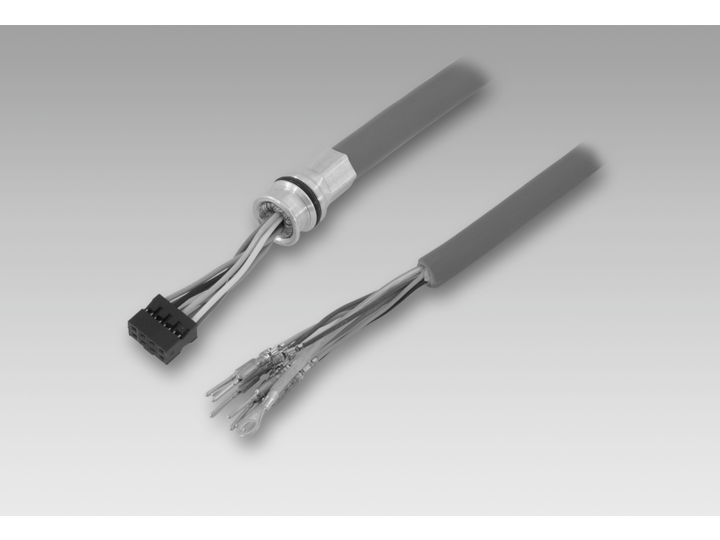

Connection cable K21BG8/C 50-SL, 8-pin, crimp contacts, 0.2m, shielded, max +120°C

Baumer 11071189 is a 0.2 m shielded lead with an 8-pin K21BG8 coupling with socket contacts on one end and wires fitted with 61.171.80 crimp contacts on the other, rated up to +120 °C.

• Connector: K21BG8 coupling, 8-pin, socket contacts
• Wire ends: 61.171.80 crimp contacts
• Cable: 8 × 0.14 mm² stranded, shielded, Ø approx. 6.8 mm, 0.2 m
• Wire colours, pins 1-8: RD, BU, GN, BN, GY, BK, PK, WH
• Temperature: -30...+120 °C

The crimped wire ends are inserted into the mating connector housing by the customer. The datasheet lists it for the ITD21H00 HT high-temperature encoder.
