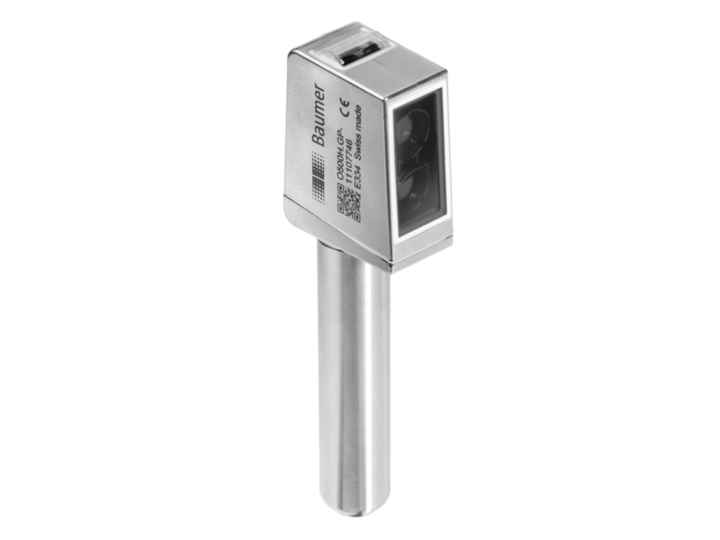

Photo sensor O500H.SP-GW1J.PVCK, SmartReflect, 60...600 mm, push-pull, IO-Link, stainless steel, IP69K

O500H.SP-GW1J.PVCK is a Baumer O500 series SmartReflect light barrier in a hygienic 1.4404 (V4A) stainless steel housing. Instead of a reflector the sensor uses the background - the machine surface behind the object - and treats every interruption of the beam between itself and the taught background at 60...600 mm as an object, so no reflector and no receiver has to be mounted on the opposite side.

• Background position Sde: 60...600 mm, set by teach-in and over IO-Link
• Output: push-pull, light / dark operate, 100 mA
• Communication: IO-Link V1.1, filter functions, qTeach lock
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: stainless steel 1.4404 (V4A), PMMA optics, 20.2 x 47.7 x 36.4 mm
• Environment: IP 68/69K and proTect+, -25...+60 °C
• Connection: 2 m cable, 4 cores

The sensor suits presence checks in food and beverage production, where the machine is washed with hot pressurised water and where there is no room for a reflector or a receiver opposite the sensor. The background position is set by magnetic teach or over IO-Link, so there are no adjusters on the housing.

The housing carries Ecolab approval and the hygienic design follows the EHEDG guidelines.
