16 Configurable Digital PNP Channels

• • FLC/ARGEE programmable
  • EtherNet/IP™ Slave
  • Modbus TCP Slave
  • PROFINET Slave
  • Integrated Ethernet Switch
  • 10 Mbps / 100 Mbps supported
  • 2 x RJ45 Sockets for Fieldbus Connection
  • DIN rail mount housing
  • 3 I/O power supply groups each galvanically separated
  • 16 configurable PNP channels, DI or DO
  • 24 VDC
  • Up to 1 A outputs
  • Protection class IP20

Ambient temperature, relative humidity, atmospheric pressure t-line Web sensor. Remote alarm.

Web Sensor with built-in temperature, relative humidity and atmospheric pressure sensors. One of the best barometers. Weather sensor for environment monitoring.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

• PROFINET controller/device
• EtherNet/IP scanner/device
• EtherCAT master
• Modbus TCP master/slave
• Modbus RTU master/slave
• CANopen manager/device
• SAE J1939 manager
• Serial interfaces RS232/RS485
• Ethernet 2 × M12, 4-pin, D-coded
• Switched or dual MAC mode
• 10 Mbps/100 Mbps

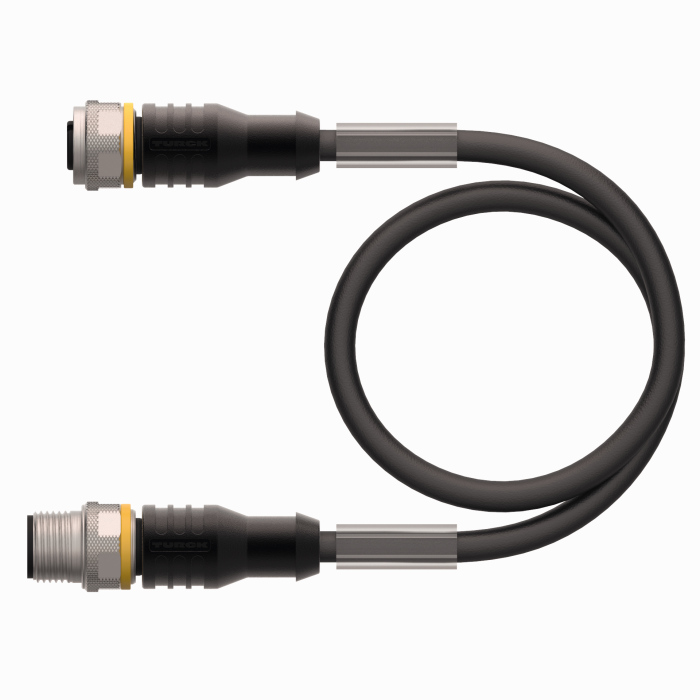

RKC4.4T-2-RSC4.4T/TXL is a TURCK extension cable with a straight M12 female connector on one end and a straight M12 male connector on the other (4-pin). The PUR jacket is rated for moving installation, including drag chains.

• Connectors: M12 x 1 female and M12 x 1 male, both straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

SP250GRPQ is a Banner EZ-LIGHT SP series two-signal traffic light with green and red indicators that stay readable in daylight. The narrow field of view and the included sun shield suit lane and entrance signalling.

• Colors: green 528 nm, 57 lm; red 625 nm, 20 lm
• Inputs: PNP, response time max. 10 ms
• Supply: 15...30 V DC, max. 120 mA per color
• Housing: polycarbonate, fully encapsulated, 192.8 x 87.6 x 109.6 mm
• Environment: IP65 (electronics IP67), -40...+50 °C
• Connection: integral 4-pin M12 male connector

CE compliant.

T30UIPAQ is a Banner T30U series ultrasonic sensor with a 4-20 mA analog output and a PNP discrete output. Both can be taught together or separately, and the analog slope is set by the order in which the limits are taught.

• Accuracy: analog linearity ±0.5 % of full scale; resolution and repeatability ±0.25 % of distance; 10 x 10 cm aluminium target, 25 °C
• Measuring range: 150 mm...1 m, 228 kHz; minimum window 10 mm
• Outputs: analog 4-20 mA; discrete PNP, 100 mA; response 48 ms
• Supply: 12...24 V DC, 90 mA
• Housing: M30 thread, reinforced thermoplastic polyester (PBT)
• Environment: IP67, -20...+70 °C
• Connection: integral M12 5-pin male

Window limits are taught with the push buttons on the sensor or through the remote teach wire. Objects closer than 150 mm can cause a false response.

Vibration per MIL-STD-202F method 201A, shock per IEC 60947-5-2 (30 g, 11 ms). CE and UKCA.

Q20NLP is a Banner Q20 series polarized retroreflective photo sensor with a visible red 645 nm beam and a 4 m range with a BRT-84 reflector. The polarizing filter lets it detect shiny objects that would reflect an unpolarized beam back to the sensor.

• Sensing range: 4 m with BRT-84 reflector
• Output: NPN, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 850 µs ON/OFF; repeatability 90 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain. Sensitivity is set with a single-turn potentiometer.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

TX707HB-P3CV01 is a 7" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The HB version has a brighter 600 cd/m² screen, bonded with LOCA to reduce reflection, for readability in sunlight, and an all-metal housing with a protective coating on the PCB.

• Display: 7" TFT, 800 x 480 (WVGA), 16:9, 16M colours, 600 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Dual core 800 MHz, 1024 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 0.7 A
• Housing: metal, front 187 x 147 x 47 mm, cut-out 176 x 136 mm, mounting depth 47+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 7" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

The indoor air quality control sensor allows real-time measurement of temperature, humidity, CO2 (carbon dioxide, NDIR sensor) and brightness. It allows you to monitor the level of indoor air pollution, and prevent symptoms related to polluted air. It also participates in the fight against the spread of respiratory viruses, such as covid19, by indicating whether the ventilation of the premises is sufficient. Its color LCD screen allows you to view, on site, the last measured values, as well as the recent history. The sensor generates an audible alarm if the defined CO2 pollution threshold is exceeded. The CO2 sensor also sends, every 5 minutes, the data collected to a central and secure server, and allows access to the information from your smartphone or tablet, via a dedicated mobile application (iOS, Android). This application allows to visualize the last data of temperature, humidity, CO2, luminosity, as well as the history of this data on interactive graphs. It is possible to view the data of several sensors, on the same mobile application. This therefore makes it possible to manage a set of places and establishments in a centralized manner.

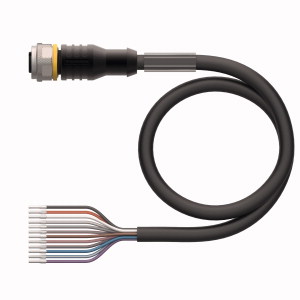

RKC12T-5/TEL is a TURCK connection cable with a straight M12 female connector (12-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 12-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5.9 mm, 12 x 0.14 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG, GY/PK, WH/BU, WH/GY, GY/BN
• Ratings: 1.5 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-7.5/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 7.5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.4T-7/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 7 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

UWT NivoRadar NR 7200 is an 80 GHz FMCW radar level sensor for continuous, non-contact measurement of liquids up to 15 m. The narrow 8° beam avoids reflections from tank walls and internal fittings, and only the PVDF antenna is in contact with the medium.

• Measuring range: 0...15 m, accuracy ±2 mm
• Output: 2-wire 4...20 mA with HART
• Supply: 15...35 V DC, loop-powered
• Housing: PBT, G 1 1/2" thread (DIN ISO 228-1), PVDF wetted parts
• Environment: IP66/IP67, process temperature -40...+80 °C, pressure -1...+3 bar
• Connection: M20x1.5 cable gland
• Setup: display with push buttons under a transparent lid, or UWT LevelApp via Bluetooth

Used for level in storage and process tanks, IBCs and wastewater sumps, including many acids. Measures liquids with a dielectric constant from 1.1 - oils and solvents as well as water-based media.

CE, UKCA and cFMus approved for general-purpose (non-Ex) areas.

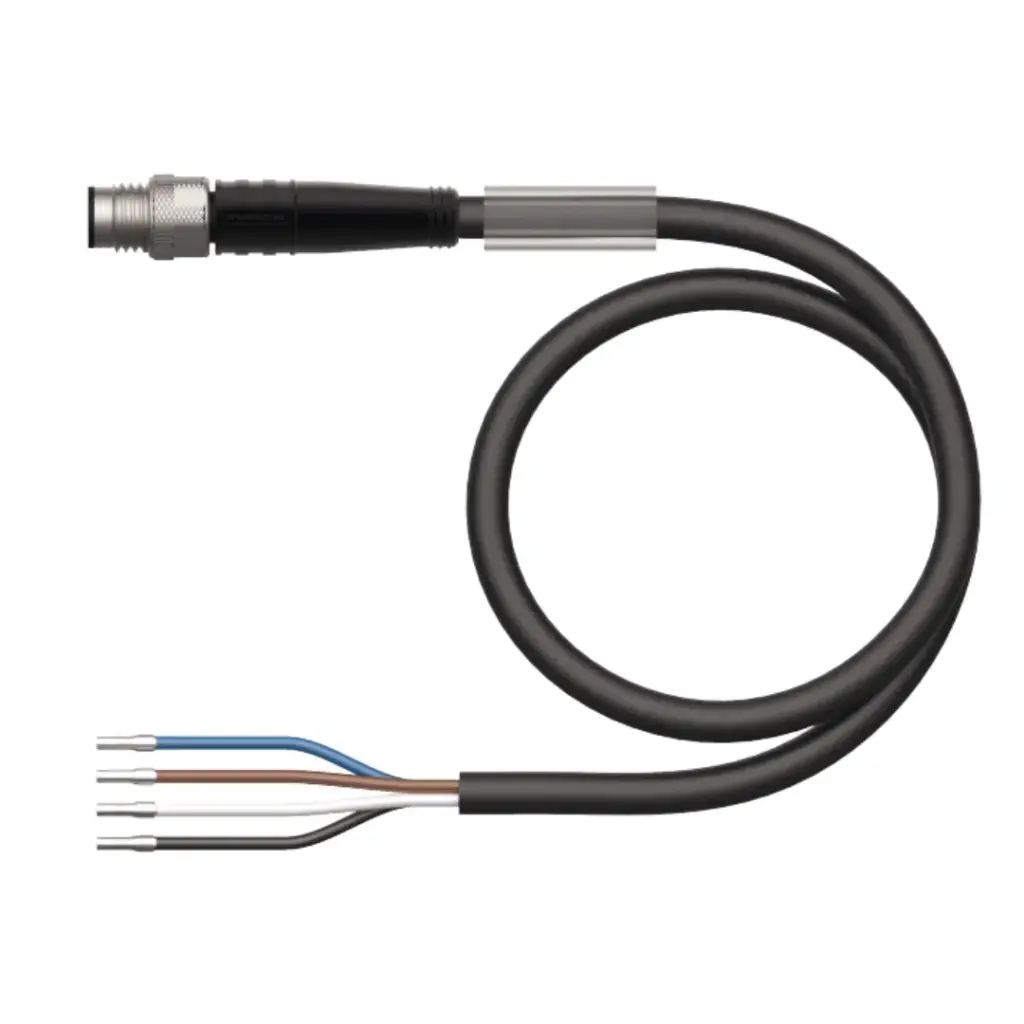

PSG4M-2/TXL is a TURCK sensor and actuator cable with a straight M8 male connector (4-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 4-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², PP core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The black PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

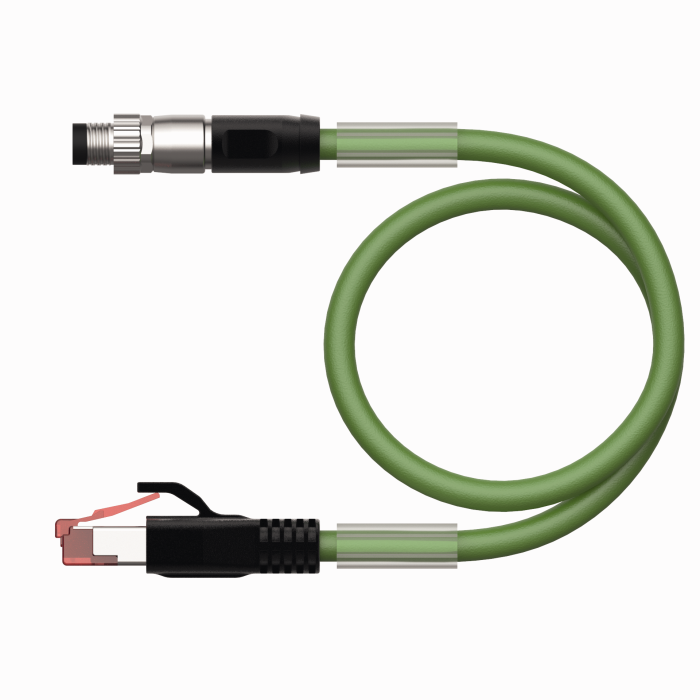

PSGS4M-RJ45S-4414-0.2M is a TURCK Industrial Ethernet cable with a straight M8 male connector on one end and a straight RJ45 male plug on the other (4-pin). The 4-wire CAT 5e cable is built to ISO/IEC 11801, EN 50173 and EIA/TIA 568-A for 100 Mbit/s Ethernet.

• Connectors: M8 male, straight / RJ45 male, straight; 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.2 m, PUR, green, Ø 4.8 mm, 4 x 0.15 mm² (AWG 26), core colours WHOG, WHBU, BU, OG, overall shield of aluminium foil and tinned copper braid
• Ratings: 3 A, 42 V; CAT 5e, impedance 100 Ω, capacitance 51 pF/m
• Housing: black TPU, nickel-plated zinc die-cast (GD-Zn) coupling nut
• Environment: M8 IP67 (only when screwed in), RJ45 IP20; -40...+80°C fixed, -25...+80°C mobile
• Drag chain: at least 5 million bending cycles, bending radius ≥15 x Ø, torsion ±30°/m

The green PUR jacket is UV and oil resistant (IEC 60811-2-1), flame retardant (IEC 60332-1-2), resistant to weld spatter and free from halogen, silicone, PVC and LABS; RoHS compliant. Approval: cULus.

R70SR2MQ is a Banner Sure Cross R70SR serial data radio for the 2.4 GHz ISM band that carries RS-485 Modbus RTU traffic over a wireless link instead of a cable. Operating modes are set with DIP switches, and radios are paired with a binding button under the cover.

• Radio: 2.4 GHz FHSS, 65 mW (100 mW EIRP with the supplied 2 dB antenna), 250 kbps
• Communication: RS-485, Modbus RTU; default 19200 baud, no parity, changed via AT commands
• Network: serial or MultiHop mode; point-to-point, star and tree topologies
• Supply: 10...30 V DC (outside the USA 12...24 V DC ±10 %), 0.02 A at 24 V in client mode
• Housing: black polycarbonate base, translucent gray cover, Ø70 mm, M30x1 mount
• Environment: IP65, -40...+85 °C, up to 95 % RH non-condensing
• Connection: integral 5-pin M12 male connector for supply and RS-485

Serial mode suits cable replacement in point-to-point and small star networks without changing the Modbus addresses of connected devices; MultiHop mode builds a routing table for larger star and tree networks and works with other Sure Cross MultiHop radios. A link needs at least two radios. Never power the radio without an antenna fitted.

CE and UKCA, RED 2014/53/EU. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

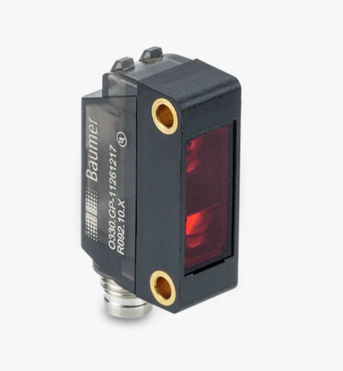

O330.GP-GLZZB.72N/H006 is a miniature photoelectric sensor from the Baumer O330 series with background suppression and a 20...350 mm switching distance. The switching distance is set with qTeach or by an external teach signal over the connection cable, so the sensor can be re-taught from the control system without physical access.

• Switching distance: 20...350 mm, adjustable by qTeach or an external teach signal
• Output: push-pull, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, plastic (ABS, ASA, PMMA), M3 brass threaded sleeves, 11 x 32 x 21 mm
• Environment: IP 67, -30...+55 °C
• Connection: M8 connector, 4 pin

The sensor suits presence checks on conveyors, assembly stations and packaging machines where mounting space is tight and the unit is swapped without rewiring. The M3 threaded sleeves allow the sensor to be fixed directly, without a separate bracket.

Vibration resistance tested to IEC 60068-2-6:2008 (10 g, 10-2000 Hz) and shock resistance to IEC 60068-2-27:2009 (50 g, 11 ms).
