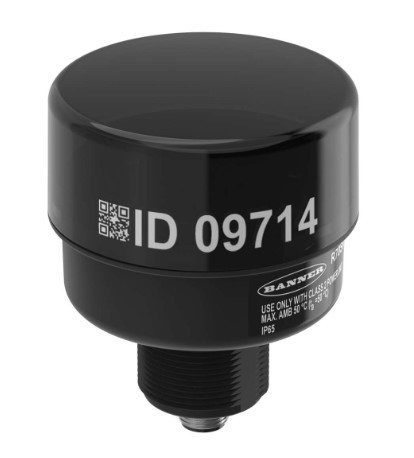

Wireless data radio R70SR2MQ, 2.4 GHz, RS-485 Modbus RTU, 10-30VDC, IP65, M12 5-pin

R70SR2MQ is a Banner Sure Cross R70SR serial data radio for the 2.4 GHz ISM band that carries RS-485 Modbus RTU traffic over a wireless link instead of a cable. Operating modes are set with DIP switches, and radios are paired with a binding button under the cover.

• Radio: 2.4 GHz FHSS, 65 mW (100 mW EIRP with the supplied 2 dB antenna), 250 kbps
• Communication: RS-485, Modbus RTU; default 19200 baud, no parity, changed via AT commands
• Network: serial or MultiHop mode; point-to-point, star and tree topologies
• Supply: 10...30 V DC (outside the USA 12...24 V DC ±10 %), 0.02 A at 24 V in client mode
• Housing: black polycarbonate base, translucent gray cover, Ø70 mm, M30x1 mount
• Environment: IP65, -40...+85 °C, up to 95 % RH non-condensing
• Connection: integral 5-pin M12 male connector for supply and RS-485

Serial mode suits cable replacement in point-to-point and small star networks without changing the Modbus addresses of connected devices; MultiHop mode builds a routing table for larger star and tree networks and works with other Sure Cross MultiHop radios. A link needs at least two radios. Never power the radio without an antenna fitted.

CE and UKCA, RED 2014/53/EU. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
