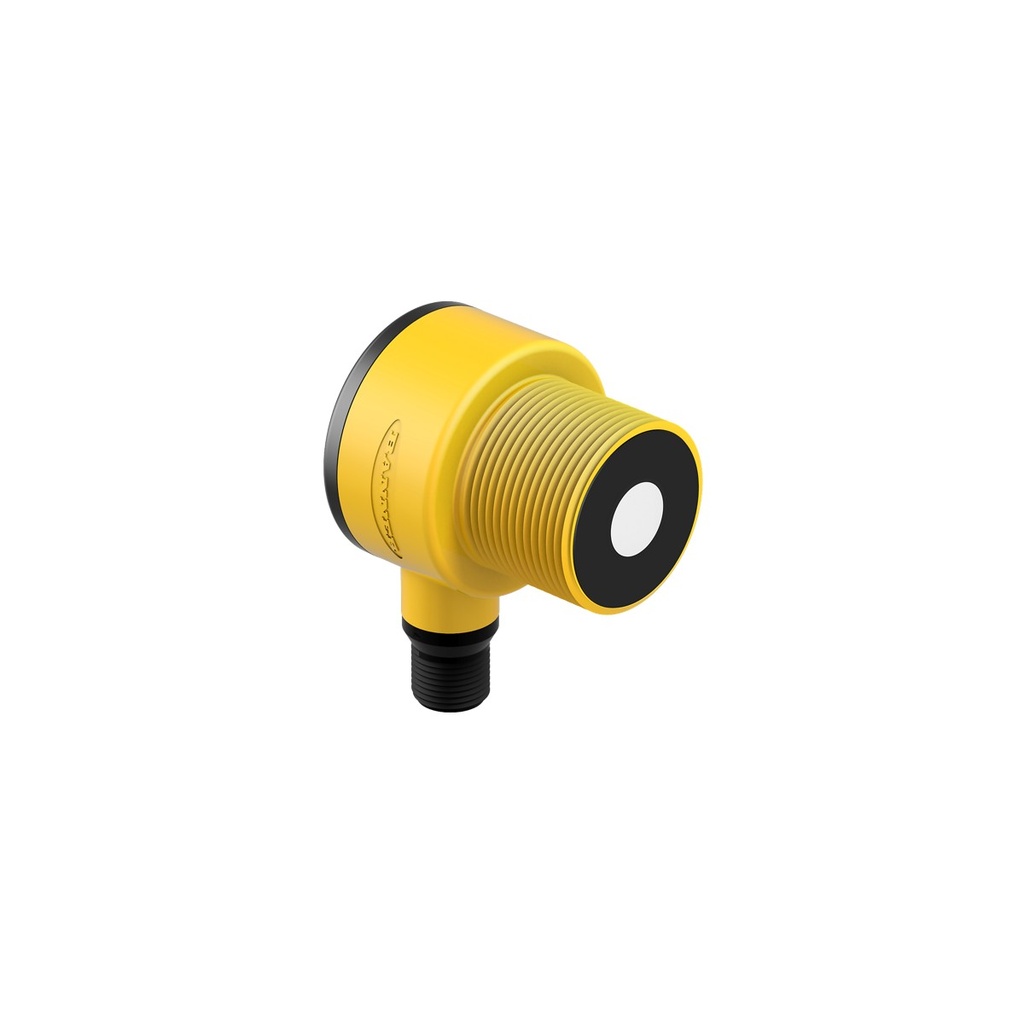

Ultrasonic sensor T30UIPAQ, 0.15...1 m, 4-20mA, PNP, 12-24VDC, M30, M12 5-pin

T30UIPAQ is a Banner T30U series ultrasonic sensor with a 4-20 mA analog output and a PNP discrete output. Both can be taught together or separately, and the analog slope is set by the order in which the limits are taught.

• Accuracy: analog linearity ±0.5 % of full scale; resolution and repeatability ±0.25 % of distance; 10 x 10 cm aluminium target, 25 °C
• Measuring range: 150 mm...1 m, 228 kHz; minimum window 10 mm
• Outputs: analog 4-20 mA; discrete PNP, 100 mA; response 48 ms
• Supply: 12...24 V DC, 90 mA
• Housing: M30 thread, reinforced thermoplastic polyester (PBT)
• Environment: IP67, -20...+70 °C
• Connection: integral M12 5-pin male

Window limits are taught with the push buttons on the sensor or through the remote teach wire. Objects closer than 150 mm can cause a false response.

Vibration per MIL-STD-202F method 201A, shock per IEC 60947-5-2 (30 g, 11 ms). CE and UKCA.
