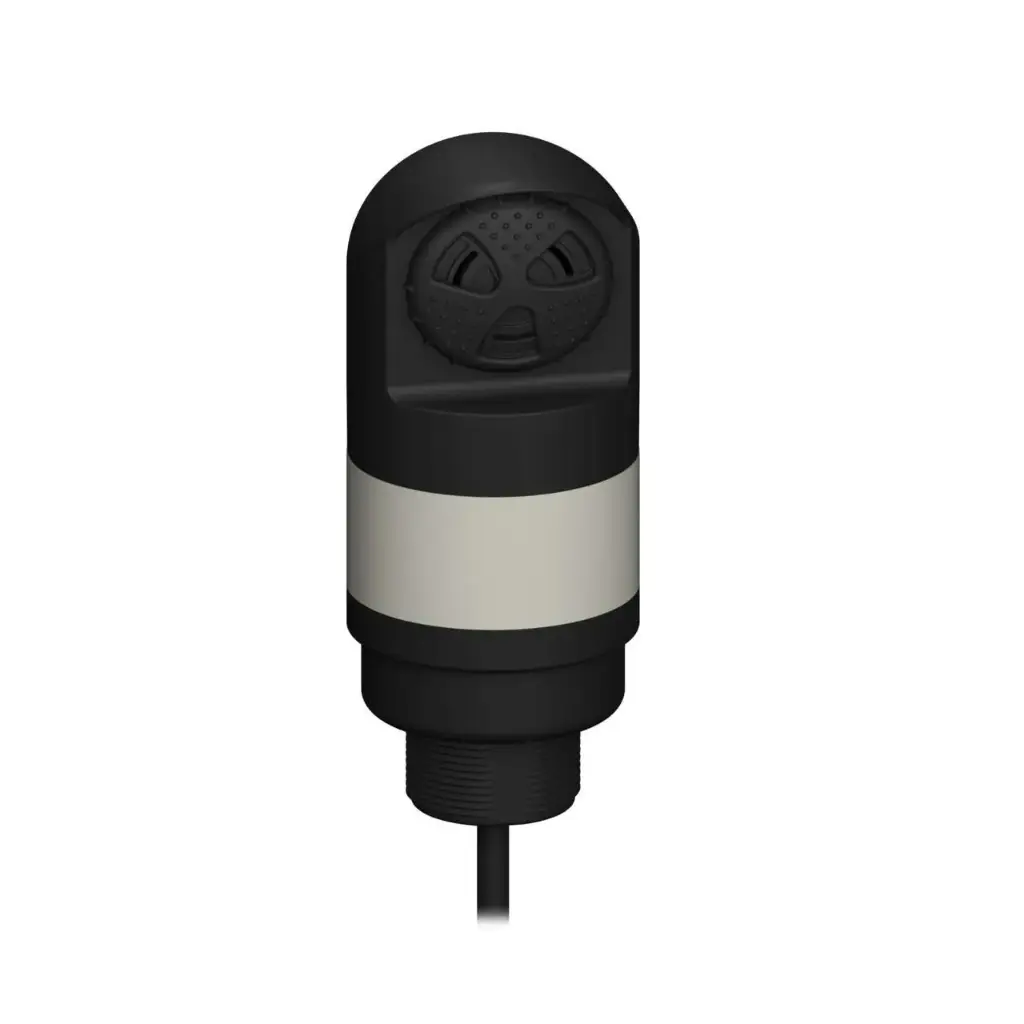

TL50RALS is a Banner TL50 series 50 mm tower light with one red segment and a sealed audible element. The light and the alarm have separate input wires, and the inputs act as PNP or NPN depending on the wiring.

• Color: red, 625 nm
• Audible: sealed, steady tone 2.9 kHz, 94 dB at 1 m, adjustable by about 20 dB by turning the front cover
• Inputs: bimodal PNP/NPN, response time max. 10 ms
• Supply: 18...30 V DC or 24 V AC ±3 V, 50/60 Hz; max. 45 mA light, 35 mA alarm
• Housing: ABS base and cover, polycarbonate segment, Ø50 x 134 mm, M30x1.5 thread
• Environment: IP67, UL 4X (indoor) and 13, -20...+50 °C
• Connection: 2 m PVC cable, 4 wires

CE compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

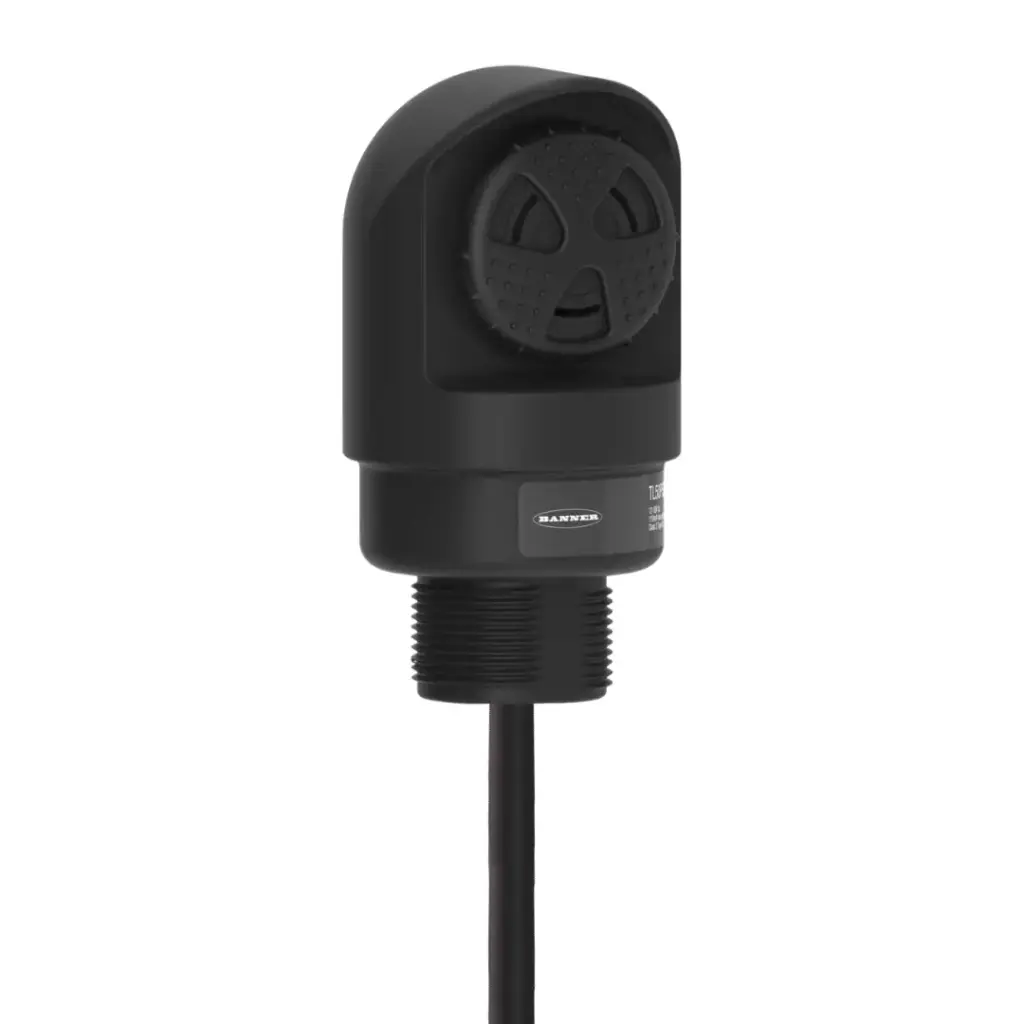

TL50ALS is a Banner TL50 series audible indicator in a 50 mm tower housing with a sealed audible element and no light segments. It runs on DC or 24 V AC and switches with a bimodal PNP or NPN input.

• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, about 20 dB reduction when turned down
• Input: bimodal PNP/NPN, response time 10 ms
• Supply: 12...30 V DC or 24 V AC ±3 V (50...60 Hz), 35 mA
• Housing: black ABS, M30x1.5 thread, Ø50 x 93.4 mm
• Environment: IP67, UL Type 4X Indoor and 13, -20...+50 °C
• Connection: 2 m PVC cable, 4 wires

Volume is set by rotating the front cover.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

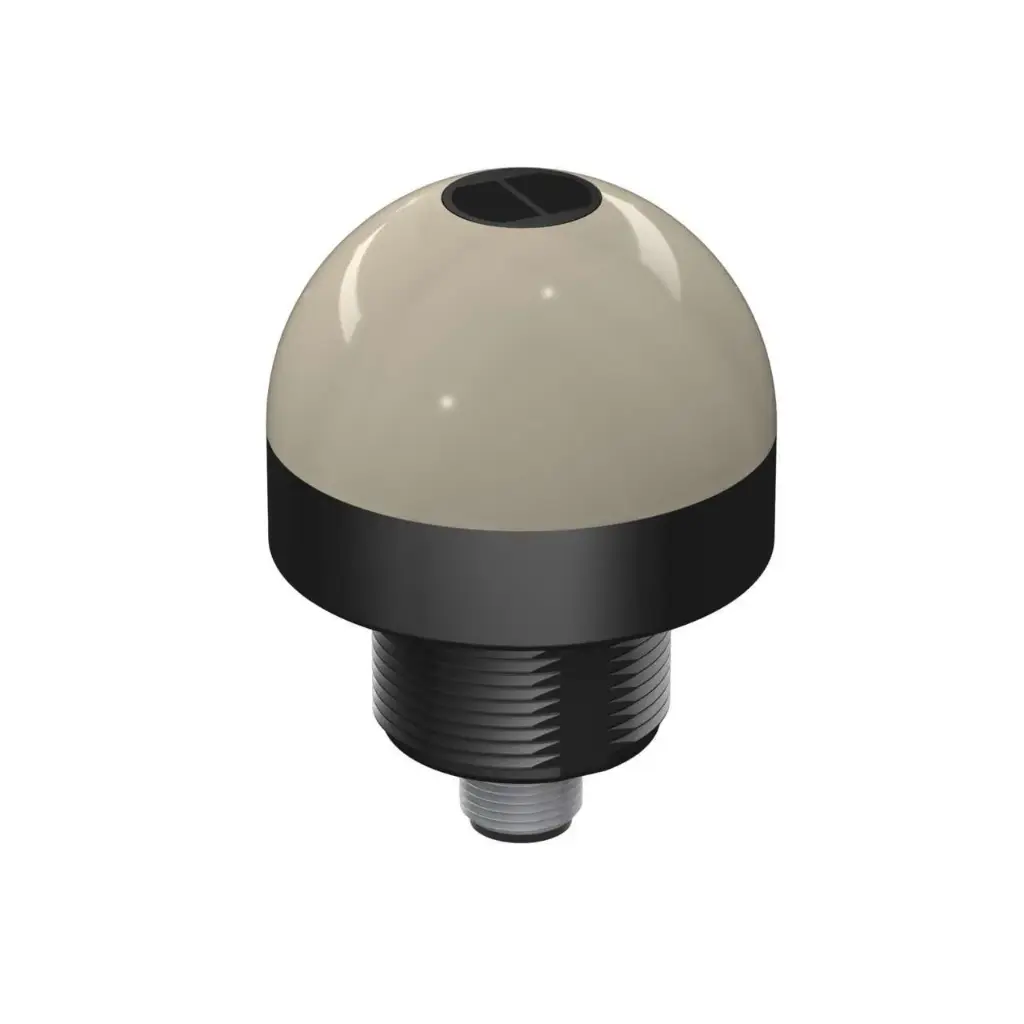

K50APFF100GRCQ is a Banner K50 series pick-to-light device: a 50 mm dome that lights green as a job light and an infrared fixed-field sensor with a 100 mm cutoff. When a hand enters the field the PNP output switches and the dome turns red to confirm the pick.

• Sensing: fixed field, 100 mm cutoff, infrared 880 nm, ambient light up to 5000 lux
• Output: PNP, normally open, max. 150 mA, response 3 ms
• Indicator: green job light (job input), red when a hand is sensed
• Supply: 12...30 V DC, < 75 mA at 12 V; AS-i compatible
• Housing: fully encapsulated, polycarbonate, M30x1.5 thread
• Environment: IP67 (IP69K with IP69K cordset), Type 4X and 13, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Used on picking racks and assembly stations to show which bin to take from and to confirm the pick without a separate sensor.

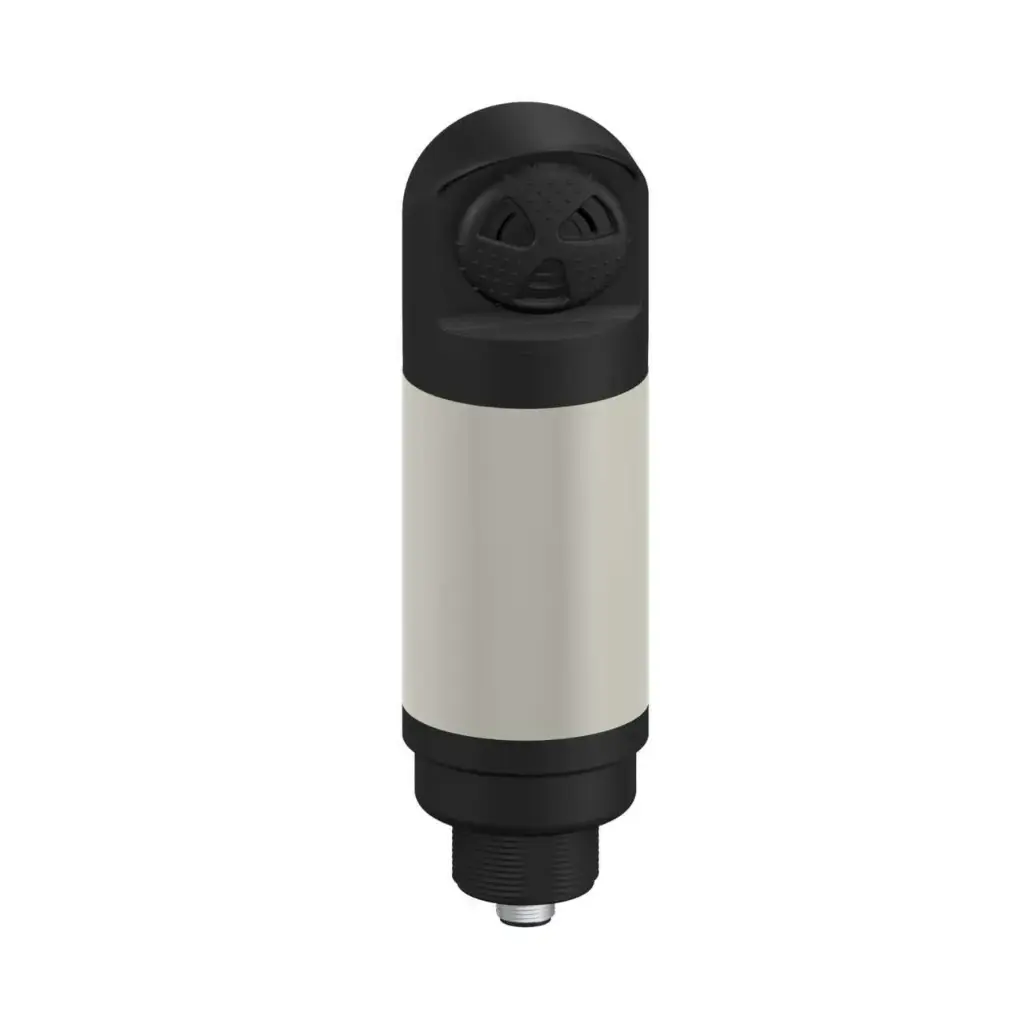

CL50GRYALSPQ is a Banner CL50 series 50 mm column light with three LED segments and a sealed loud audible alarm. Each color and the audible are switched by a separate PNP input.

• Colors: green (72 lm), red (38 lm), yellow (30 lm)
• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, adjustable volume
• Input: PNP, response time 10 ms
• Supply: 18...30 V DC, per color 100 mA at 18 V and 70 mA at 30 V, audible 35 mA
• Housing: ABS base and covers, polycarbonate light segments, M30x1.5 thread, 50 x 168.2 mm
• Environment: IP67, UL 4X and 13, -20...+50 °C
• Connection: integral 5-pin M12 male connector

The column comes factory-assembled, so it mounts in a single M30 hole with no modules to stack. Volume is set by rotating the front cover.

CE and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

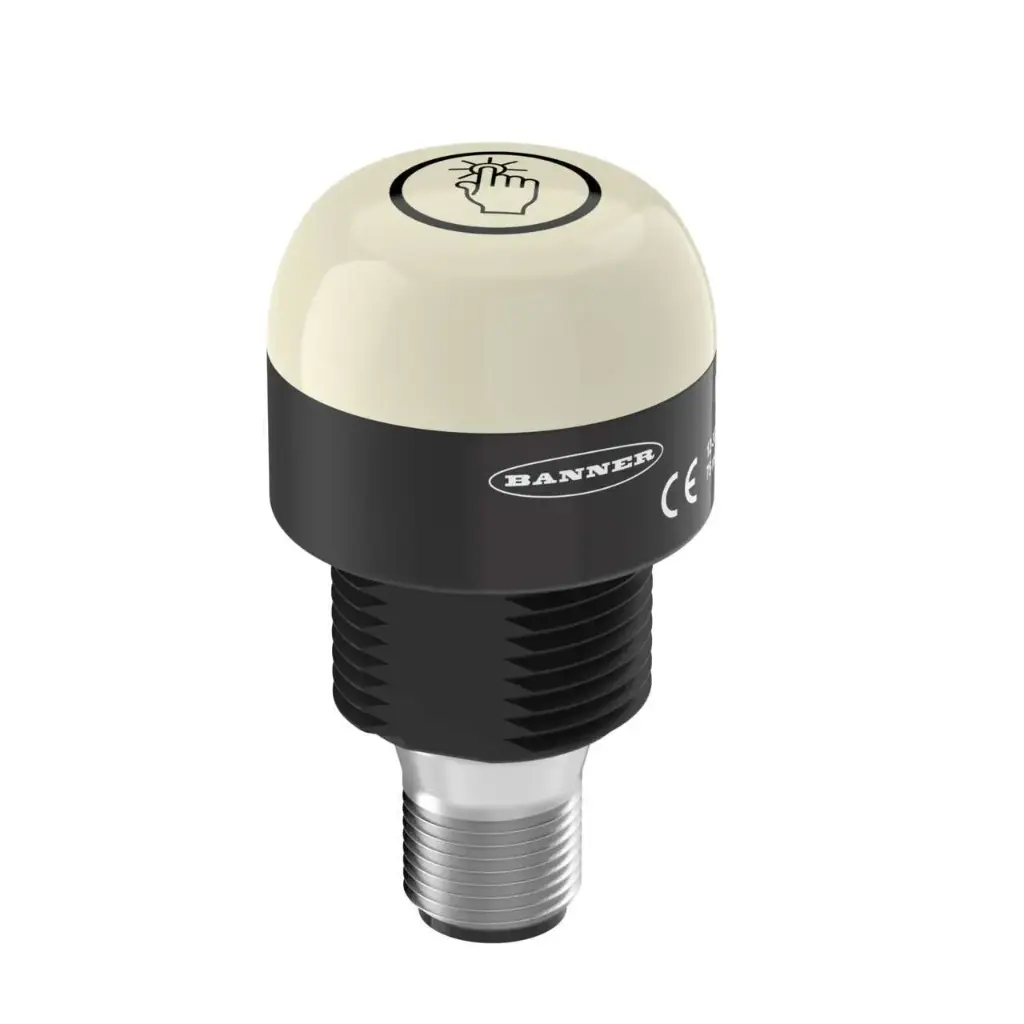

K30ALBTYRHQ is a Banner K30 series 30 mm capacitive touch button with a latching output. It glows yellow when not activated and red when activated, and each touch toggles the state.

• Function: latching, starts up not activated; output response 150 ms
• Output: bipolar (one PNP and one NPN), normally open, max. 150 mA
• Supply: 12...30 V DC, 55 mA, reverse polarity protected
• Housing: polycarbonate base and dome, M22x1.5 thread, Ø30 x 54.5 mm
• Environment: IP67, IP69K, Type 4X and 13, -40...+50 °C
• Connection: integral 5-pin M12 male connector

The button needs no actuation force and works with bare hands or gloves, which suits washdown areas where mechanical push buttons wear out.

Vibration per MIL-STD-202F method 201A, shock per IEC 60947-5-2 (30 G, 11 ms).

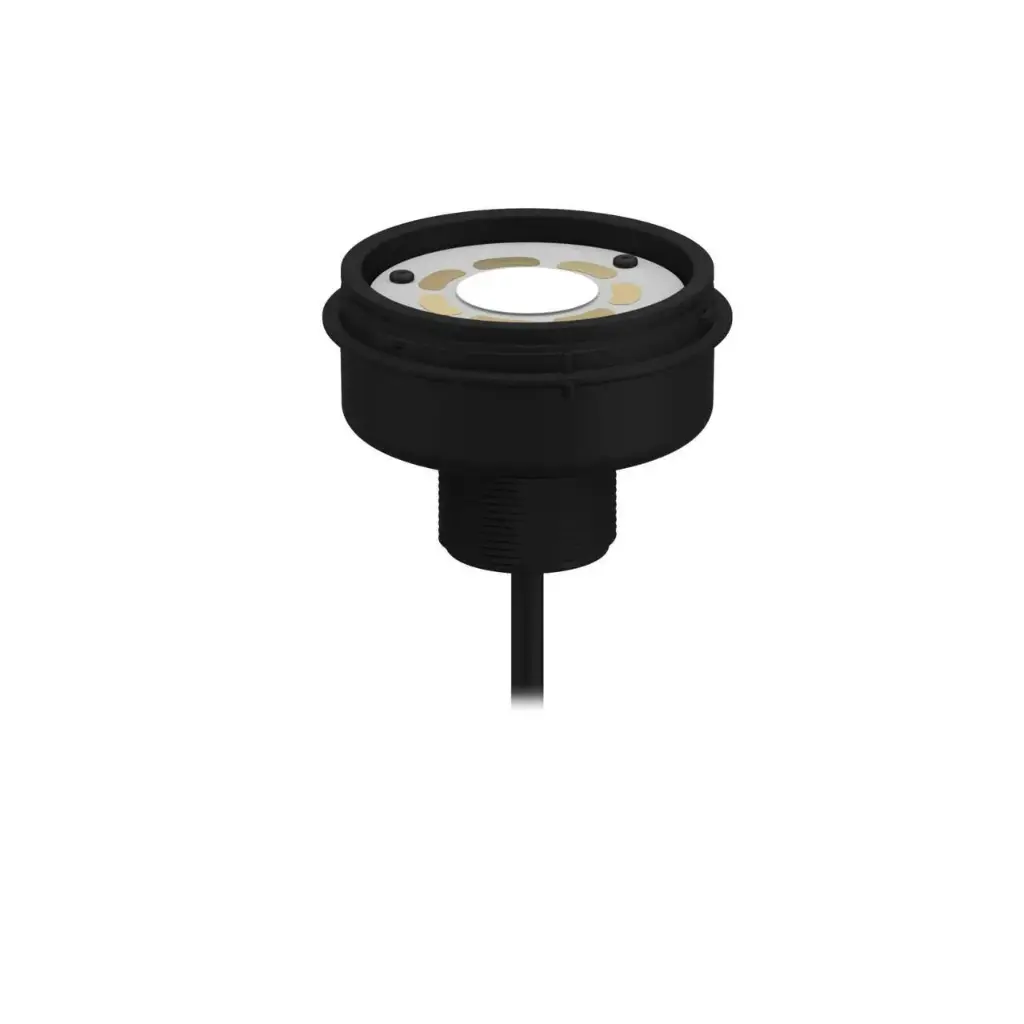

B-TL70-5 is a Banner TL70 series 70 mm modular tower light base that takes up to four SG-TL70 light or audible modules. Each module has its own input, which works with either a PNP or NPN signal.

• Modules: 1...4 SG-TL70 modules, each with a separate input
• Inputs: bimodal PNP/NPN, turn-on time up to 180 ms at 12 V
• Supply: 12...30 V DC
• Housing: polycarbonate, M30x1.5 threaded base, Ø70 x 47.5 mm
• Environment: IP65, -40...+50 °C
• Connection: integral 2 m PVC cable, 5 wires

Each module's position in the tower and its flashing are set with DIP switches in the module, so modules can be rearranged in the field. The base has no light of its own - the tower needs light modules ordered with it.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

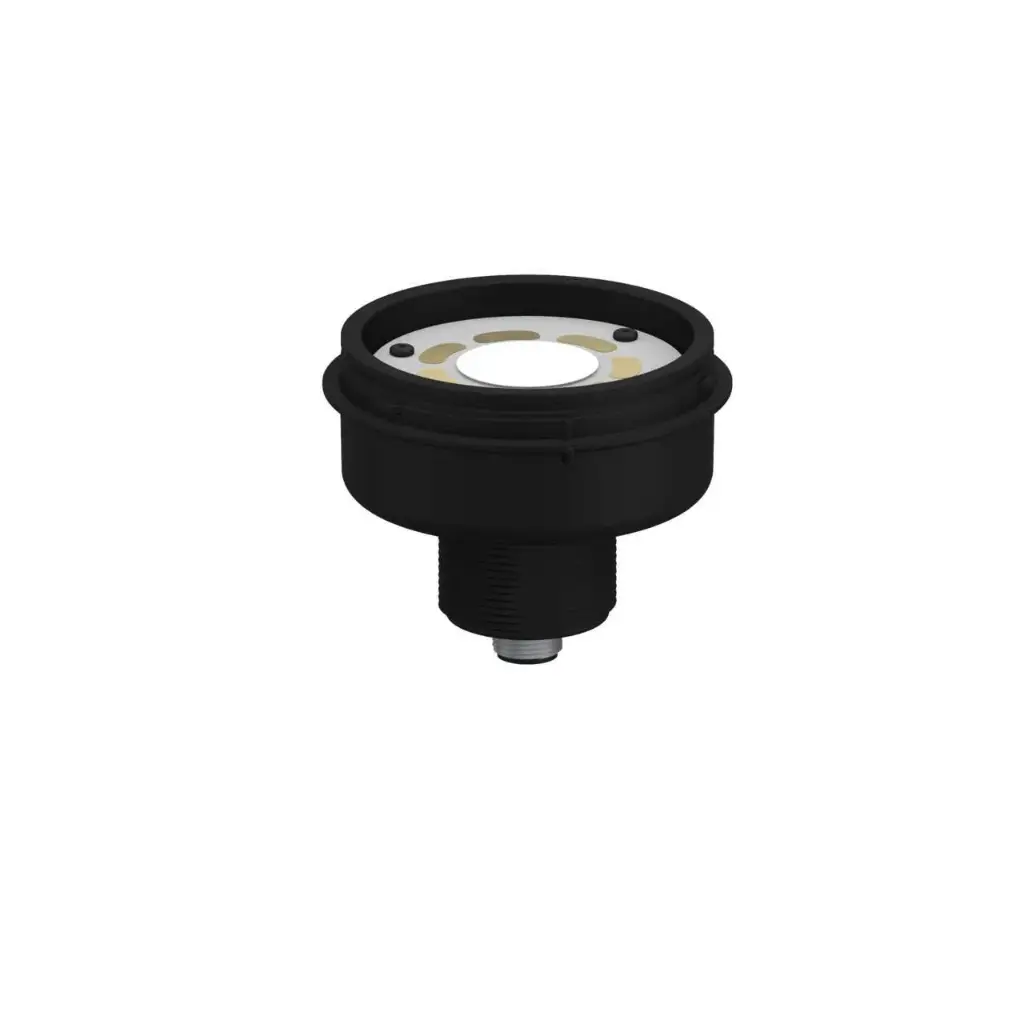

B-TL70-Q5 is a Banner TL70 series 70 mm modular tower light base that takes up to four SG-TL70 light or audible modules. Each module has its own input, which works with either a PNP or NPN signal.

• Modules: 1...4 SG-TL70 modules, each with a separate input
• Inputs: bimodal PNP/NPN, turn-on time up to 180 ms at 12 V
• Supply: 12...30 V DC
• Housing: polycarbonate, M30x1.5 threaded base, Ø70 x 47.5 mm
• Environment: IP65, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Each module's position in the tower and its flashing are set with DIP switches in the module, so modules can be rearranged in the field. The base has no light of its own - the tower needs light modules ordered with it.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70-G is a Banner TL70 series green 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: green, 525 nm, 92 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz, selected with DIP switches
• Supply: 12...30 V DC, 420 mA at 12 V, 200 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, -40...+50 °C

The module twist-locks onto a B-TL70 series base. The DIP switches also set the module's position in the tower (1...6), so it can be moved to another position without rewiring.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

K50APT2GRYF2Q is a Banner K50 Touch Gen 2 series 50 mm illuminated touch button with a momentary PNP output. The dome shows three independently switched colors, with yellow overriding red and red overriding green.

• Colors: green 525 nm (29 lm), red 625 nm (13 lm), yellow 591 nm (24 lm), one PNP input per color
• Output: PNP, normally open, momentary, max. 150 mA, response 50 ms
• Supply: 12...30 V DC, < 75 mA at 12 V
• Housing: polycarbonate base and dome, PBT nut, M30x1.5 thread, Ø50 x 66 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 8-pin M12 male connector

If a touch lasts longer than 60 seconds, the output and color return to the untouched state, so a resting object does not hold the signal.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

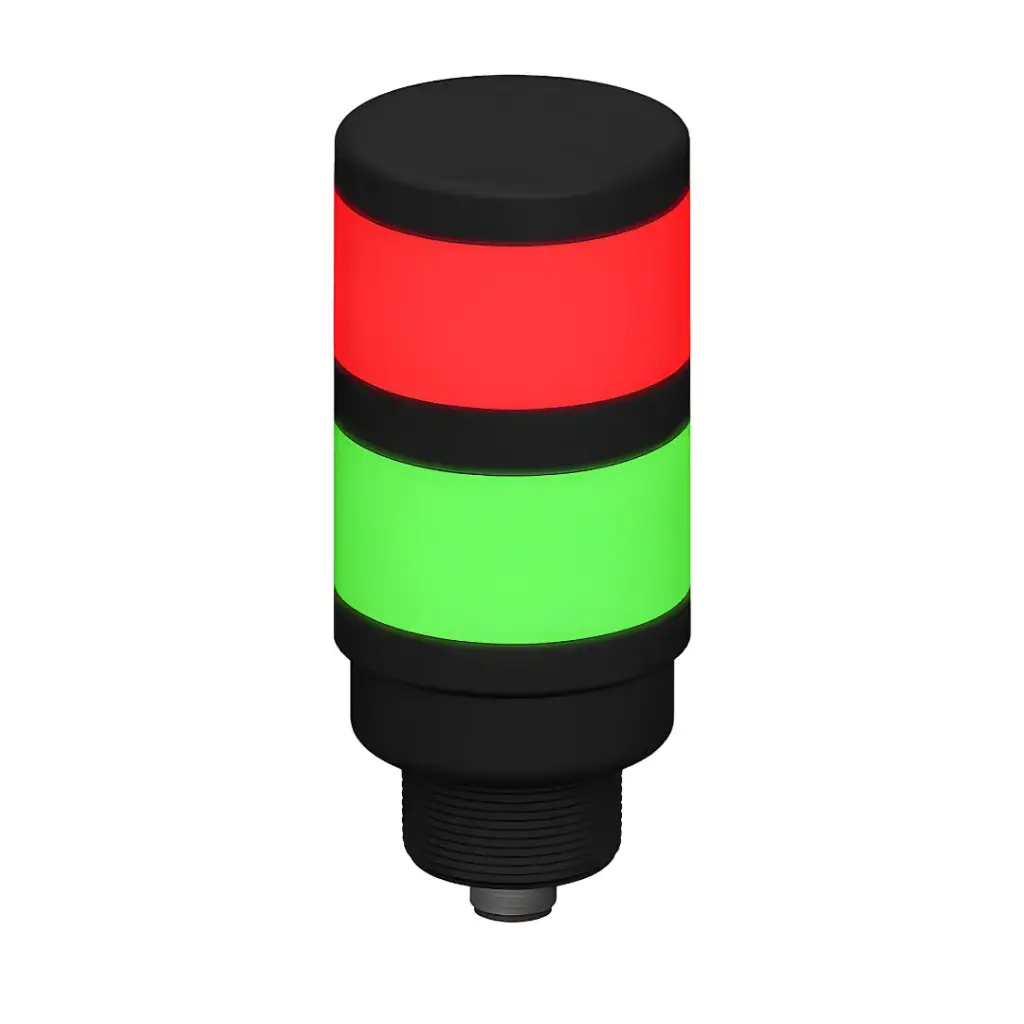

TL50GRQ is a Banner TL50 series 50 mm two-segment tower light with green (bottom) and red (top) segments. It comes assembled and each color is switched by its own bimodal input.

• Colors: green 525 nm (17 lm), red 625 nm (8 lm)
• Input: bimodal PNP/NPN, response 1 ms
• Supply: 18...30 V DC, 26 mA per segment
• Housing: polycarbonate, M30x1.5 thread, Ø50 x 137.4 mm; knurled nut and gasket included
• Environment: IP67, UL Type 4X, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

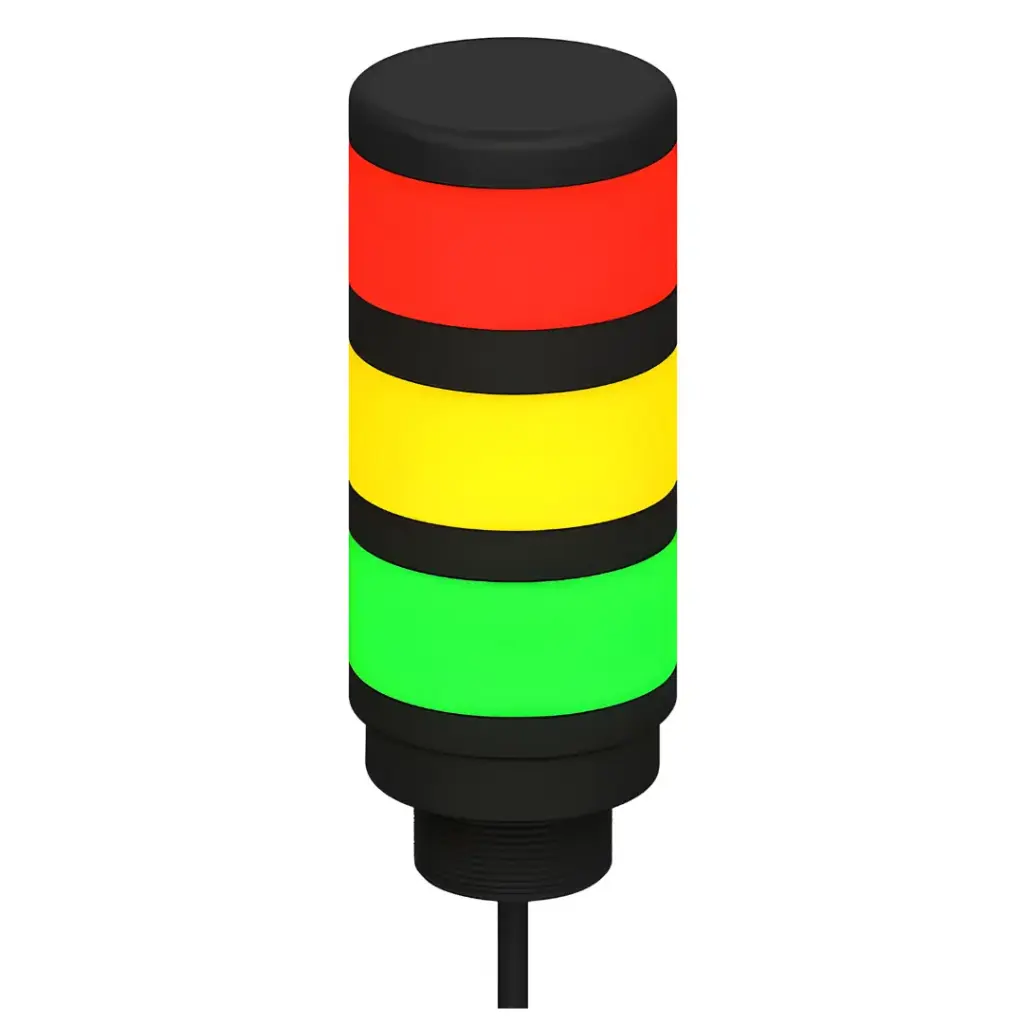

TL50HGYRQP is a Banner TL50H series high-brightness 50 mm tower light with green, yellow and red segments, for areas with strong ambient light. It comes assembled and each color is switched by its own bimodal input.

• Colors (bottom to top): green 525 nm (60 lm), yellow 590 nm (23 lm), red 625 nm (32 lm)
• Input: bimodal PNP/NPN, response 10 ms
• Supply: 18...30 V DC or 24 V AC; per color 100 mA at 18 V, 60 mA at 30 V
• Housing: ABS base and covers, polycarbonate segments, M30x1.5 thread, Ø50 x 161.5 mm
• Environment: IP67, UL Type 4X Indoor and 13, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

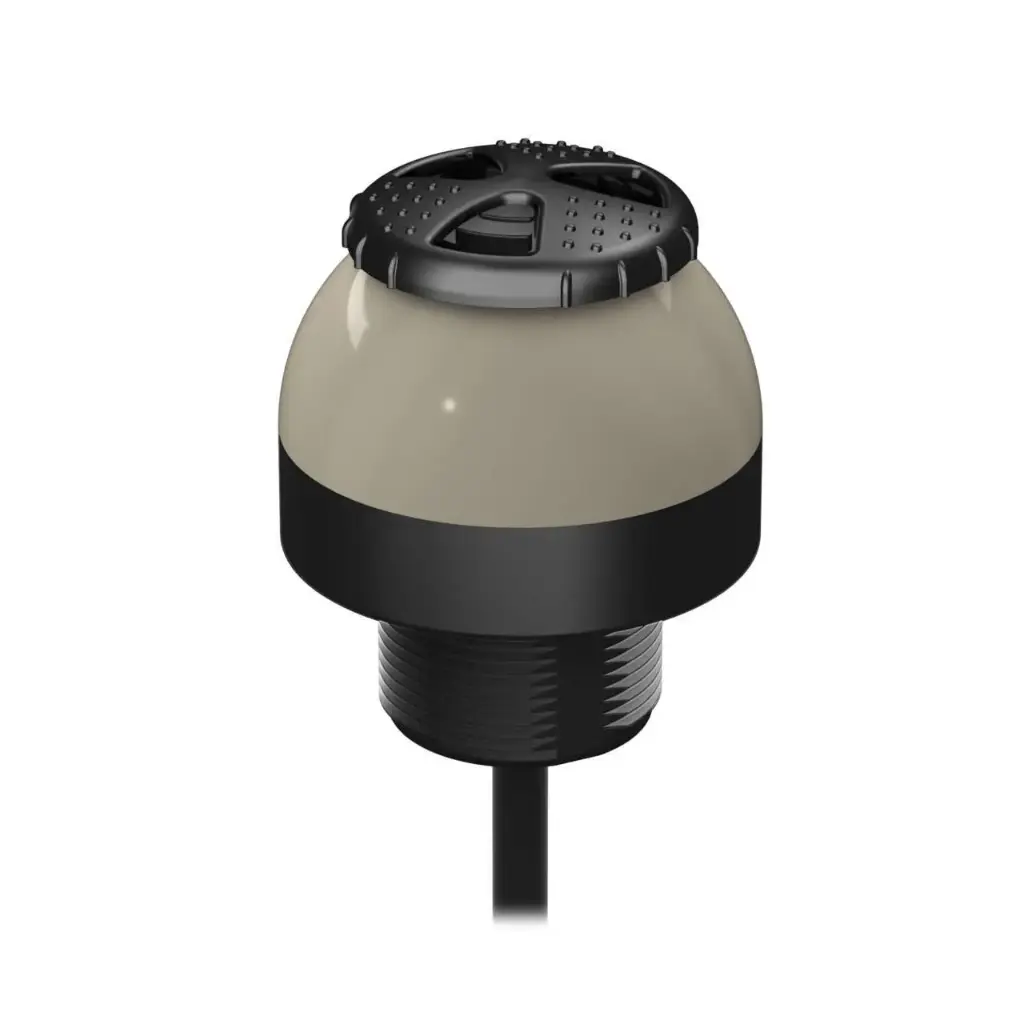

K50LGRALSYPQP is a Banner K50L series sealed 50 mm dome indicator with three LED colors and a loud audible alarm. Each color and the audible have their own PNP input, so they can be switched independently from controller outputs.

• Colors: green, red, yellow; one color on at a time
• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, adjustable volume
• Input: PNP, response time 1 ms (LED) and 10 ms (audible)
• Supply: 12...30 V DC, up to 35 mA per color at 30 V (65 mA at 12 V), audible 35 mA
• Housing: polycarbonate, M30x1.5 threaded base, 50 x 62 mm
• Environment: IP67, NEMA/UL 4X and 13, -20...+50 °C
• Connection: 150 mm PVC cable with 5-pin M12 male connector

Volume is set by rotating the front cover, so one model suits both a quiet room and a noisy machine. The supply circuit is protected against reverse polarity and transient voltages.

CE and UL compliant. Vibration per MIL-STD-202F (Method 201A), shock per IEC 60947-5-2 (30 G, 11 ms).

K50PTAMGRY3Q is a Banner K50 Pro series 50 mm touch button with an RGB indicator and a momentary output. Two inputs select green, yellow or red, and colors, animation, output logic and touch sensitivity can be changed with Pro Editor software.

• Colors (default): green 522 nm (16.5 lm), yellow 576 nm (23.8 lm), red 620 nm (8.3 lm); up to 14 colors via Pro Editor
• Output: bipolar, normally open, momentary, max. 150 mA; input response 40 ms, output 300 ms
• Supply: 12...30 V DC, 93 mA at 24 V
• Housing: polycarbonate base, dome and nut, M30x1.5 thread, Ø50 x 66 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Programming needs the Pro Converter Cable and Pro Editor; one wire can be reassigned from input to output. Works with bare hands or gloves.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

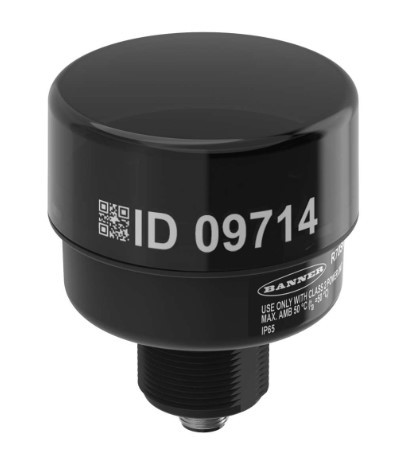

R70SR2MQ is a Banner Sure Cross R70SR serial data radio for the 2.4 GHz ISM band that carries RS-485 Modbus RTU traffic over a wireless link instead of a cable. Operating modes are set with DIP switches, and radios are paired with a binding button under the cover.

• Radio: 2.4 GHz FHSS, 65 mW (100 mW EIRP with the supplied 2 dB antenna), 250 kbps
• Communication: RS-485, Modbus RTU; default 19200 baud, no parity, changed via AT commands
• Network: serial or MultiHop mode; point-to-point, star and tree topologies
• Supply: 10...30 V DC (outside the USA 12...24 V DC ±10 %), 0.02 A at 24 V in client mode
• Housing: black polycarbonate base, translucent gray cover, Ø70 mm, M30x1 mount
• Environment: IP65, -40...+85 °C, up to 95 % RH non-condensing
• Connection: integral 5-pin M12 male connector for supply and RS-485

Serial mode suits cable replacement in point-to-point and small star networks without changing the Modbus addresses of connected devices; MultiHop mode builds a routing table for larger star and tree networks and works with other Sure Cross MultiHop radios. A link needs at least two radios. Never power the radio without an antenna fitted.

CE and UKCA, RED 2014/53/EU. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

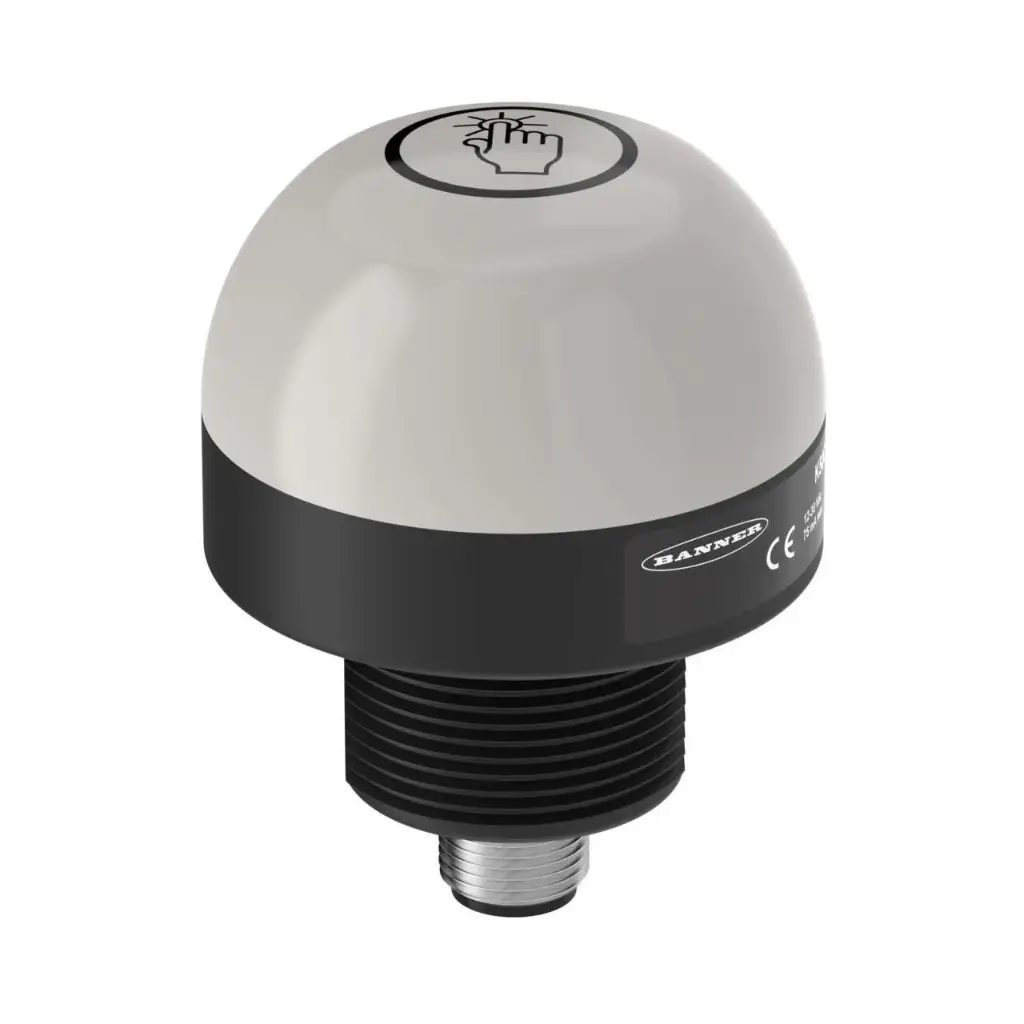

K50PTALGRY3Q is a Banner K50 Pro series 50 mm touch button with an RGB indicator and a latching output. Two inputs select green, yellow or red, and colors, animation, output logic and touch sensitivity can be changed with Pro Editor software.

• Colors (default): green 522 nm (16.5 lm), yellow 576 nm (23.8 lm), red 620 nm (8.3 lm); up to 14 colors via Pro Editor
• Output: bipolar, normally open, latching, max. 150 mA; input response 40 ms, output 300 ms
• Supply: 12...30 V DC, 93 mA at 24 V
• Housing: polycarbonate base, dome and nut, M30x1.5 thread, Ø50 x 66 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Programming needs the Pro Converter Cable and Pro Editor; one wire can be reassigned from input to output. Works with bare hands or gloves.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

- one-sided, width 30 cm - LED colour: red - RS485, Modbus RTU protocol - 24 VDC, IP52 - 2-line text "GAS ALARM LEAVE ROOM"

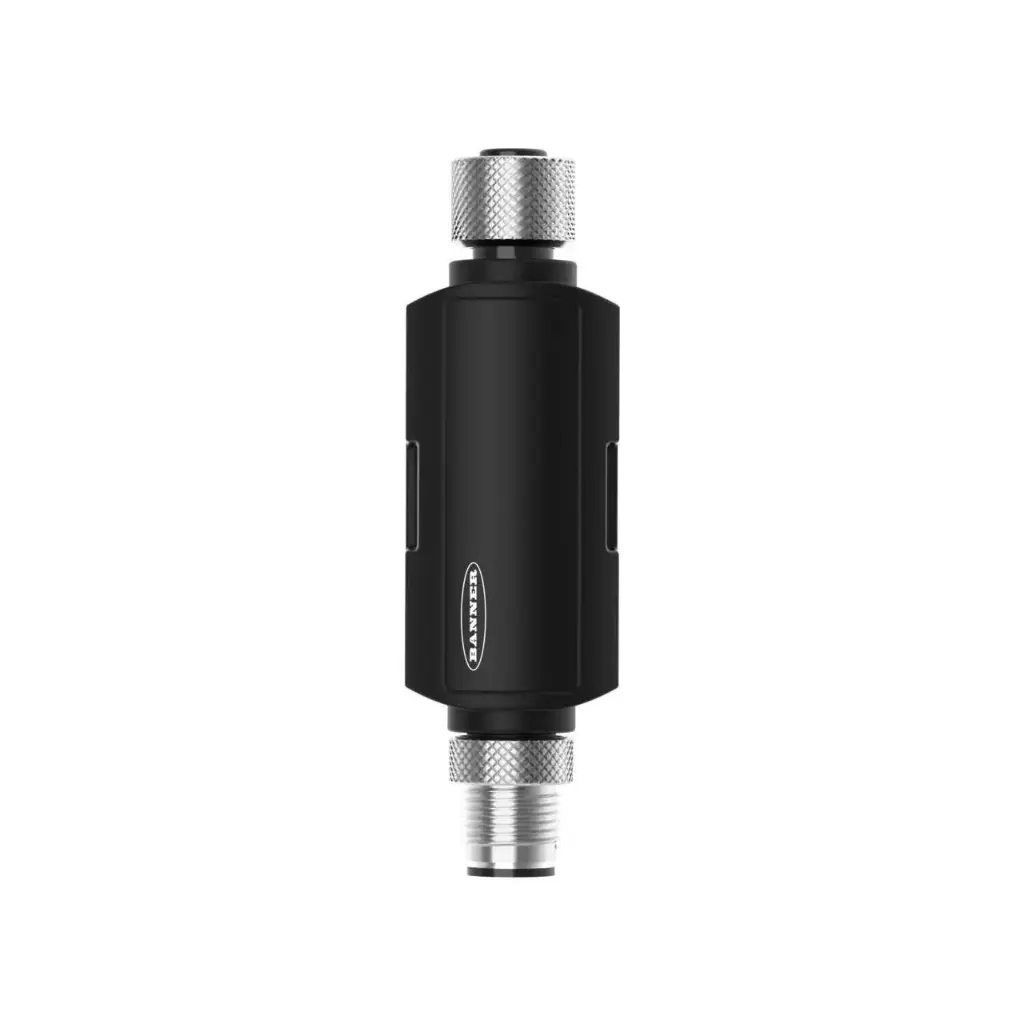

LC25C-WLF12-RGB7Q is a Banner LC25 in-line controller that sits between a PLC and a WLF12 Pro flexible multicolor strip light. It converts discrete, PWM or PFM signals into colors, animations, levels or counters on the strip.

• Inputs: 3 discrete inputs, 12...30 V DC; PWM 0...100 % or PFM 100...10 000 Hz
• Modes: machine status, tower light, timer, counter, distance, gauge - set in Pro Editor
• Supply: 12...30 V DC, max. 30 mA (strip supplied separately)
• Housing: translucent black PVC, nickel-plated brass coupling, 25 x 85 mm
• Environment: IP65, IP67, IP68, -40...+50 °C
• Connection: integral 4-pin M12 male and female connectors

Required for WLF12 Pro: the strip must be no more than 3.05 m from the controller, and 24 V applied directly to the strip destroys it. The strip length is taught once by remote input or in Pro Editor.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70B-R is a Banner TL70B series red 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: red, 625 nm, 24 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz
• Supply: 12...30 V DC, 141 mA at 12 V, 71 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, IP66, -40...+50 °C

The module twist-locks onto a TL70B series base. Unlike the TL70 series, the module has no settings of its own: it is driven by the base input that matches its position in the tower, and flashing is switched on with DIP switches in the base.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70B-G is a Banner TL70B series green 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: green, 525 nm, 67 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz
• Supply: 12...30 V DC, 141 mA at 12 V, 71 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, IP66, -40...+50 °C

The module twist-locks onto a TL70B series base. Unlike the TL70 series, the module has no settings of its own: it is driven by the base input that matches its position in the tower, and flashing is switched on with DIP switches in the base.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70B-B is a Banner TL70B series blue 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: blue, 475 nm, 25 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz
• Supply: 12...30 V DC, 204 mA at 12 V, 102 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, IP66, -40...+50 °C

The module twist-locks onto a TL70B series base. Unlike the TL70 series, the module has no settings of its own: it is driven by the base input that matches its position in the tower, and flashing is switched on with DIP switches in the base.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70B-W is a Banner TL70B series white 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: white, 5000 K, 107 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz
• Supply: 12...30 V DC, 204 mA at 12 V, 102 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, IP66, -40...+50 °C

The module twist-locks onto a TL70B series base. Unlike the TL70 series, the module has no settings of its own: it is driven by the base input that matches its position in the tower, and flashing is switched on with DIP switches in the base.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70B-Y is a Banner TL70B series yellow 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: yellow, 590 nm, 55 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz
• Supply: 12...30 V DC, 141 mA at 12 V, 71 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, IP66, -40...+50 °C

The module twist-locks onto a TL70B series base. Unlike the TL70 series, the module has no settings of its own: it is driven by the base input that matches its position in the tower, and flashing is switched on with DIP switches in the base.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70-AP is a Banner TL70 series 70 mm audible module that plays a user-loaded MP3 or WAV file instead of a fixed tone. It fits on top of a TL70 modular tower light base.

• Audio: MP3 or WAV files, 4 MB flash memory; ships with a 2.5 kHz steady tone
• Trigger: input channel selected with DIP switches; playback repeats while the input is active
• Supply: 12...30 V DC via DC base (330 mA at 12 V), or 100...240 V AC via B-TL70-Z base
• Housing: black polycarbonate, Ø70 x 79.6 mm
• Environment: IP50, -20...+50 °C

Files are loaded over the USB-USBM-1 cable: the module appears on the PC as a USB drive and files are copied onto it. A spoken message or a custom tone can then mark a specific machine state.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

B-TL70PK-QP is the IO-Link base module of the Banner TL70 Pro modular tower light. It carries up to six RGB segments, or five segments plus an audible, and every segment's color, flashing and animation is set over IO-Link.

• Modules: up to 6 SG-TL70P-RGB segments, or 5 segments plus SG-TL70-A, -AL or -AP audible in position 6
• Communication: IO-Link; Basic, Advanced, Run, Level and Gauge modes
• Supply: 18...30 V DC; RGB segment max. 156 mA at 24 V
• Housing: polycarbonate, M30x1.5 thread with nut, 1/2-14 NPT internal, max. 2.25 Nm
• Environment: IP65, UL Type 1, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Light and audible modules are ordered separately and the base needs an IO-Link master port. In Level and Gauge modes the tower shows a process value as a bar of lit segments.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

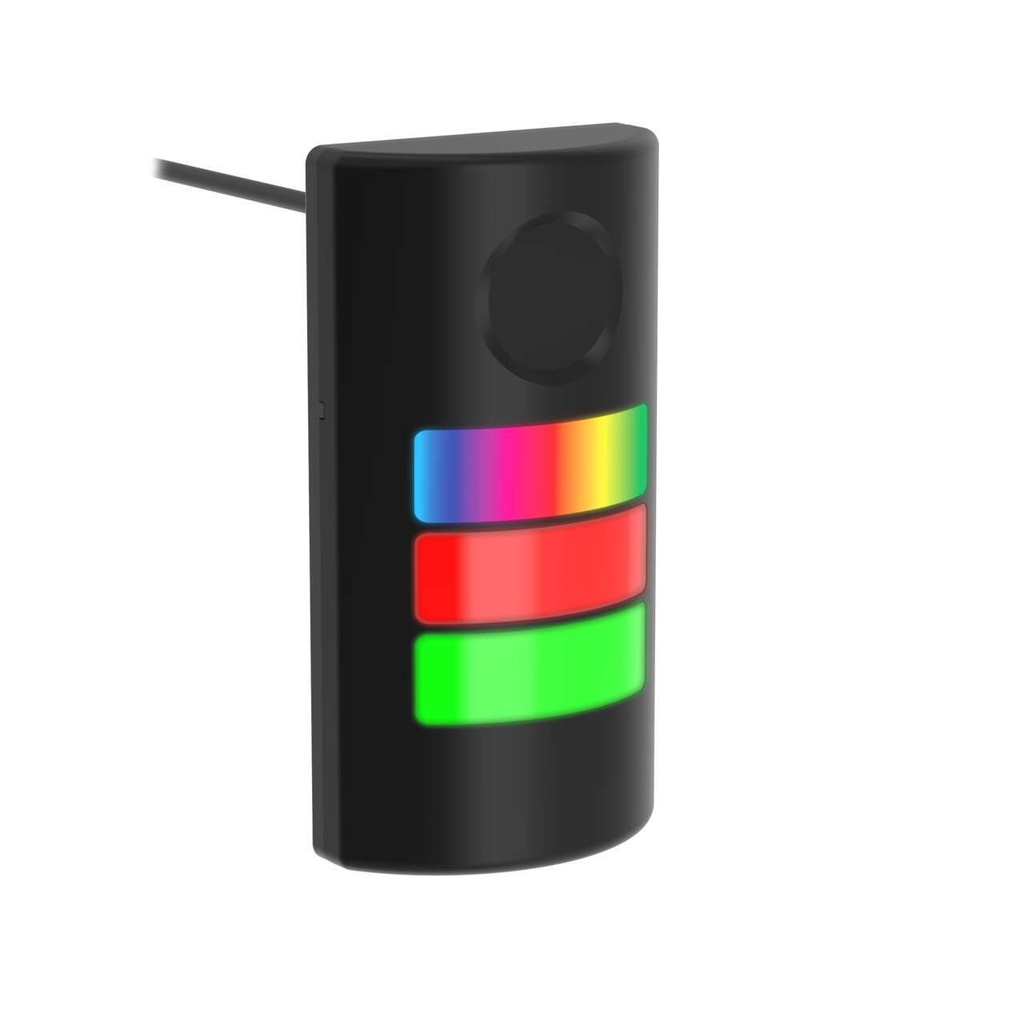

TLF100P3QP is a Banner TLF100 Pro series 100 mm tower light with three RGB segments in a flat housing that mounts flush on a machine surface. Each segment is switched by its own bimodal PNP or NPN input wire.

• Segments: 3, RGB multicolor, default green/yellow/red from the bottom; e.g. green 7.5 lm, yellow 9.8 lm, red 3.7 lm per segment
• Inputs: bimodal PNP/NPN, one wire per segment, response max. 250 ms; advanced mode adds PWM/PFM (100...5000 Hz), counter and timer inputs
• Supply: 12...30 V DC, typ. 59 mA per segment at 24 V
• Housing: black polycarbonate, 100 x 190 x 42.2 mm, flush mounting; supplied screws for surfaces up to 8 mm
• Environment: IP65, IP69K, UL Type 4X, -40...+50 °C
• Connection: 150 mm PVC cable with 5-pin M12 male connector

Colors, flash patterns, animations and the level, counter and timer modes are set with Banner's free Pro Editor software, which needs the Pro Converter Cable. The cable must not be cleaned with a high-pressure jet.

CE, UKCA and UL marked. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

TLF100P3KQP is a Banner TLF100 Pro series 100 mm tower light with three RGB segments in a flat housing that mounts flush on a machine surface. It is controlled entirely over IO-Link: color, flashing, dimming and animations are set from the controller.

• Segments: 3, RGB multicolor, default green/yellow/red from the bottom; e.g. green 7.5 lm, yellow 9.8 lm, red 3.7 lm per segment
• Communication: IO-Link, response max. 20 ms; basic segment, advanced segment, run, level and gauge modes
• Supply: 18...30 V DC, typ. 59 mA per segment at 24 V, device max. 560 mA
• Housing: black polycarbonate, 100 x 190 x 42.2 mm, flush mounting; supplied screws for surfaces up to 8 mm
• Environment: IP65, IP69K, UL Type 4X, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Needs an IO-Link master port; there are no discrete inputs, so the tower cannot be switched directly from a PLC output. The cable must not be cleaned with a high-pressure jet.

CE, UKCA and UL marked. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

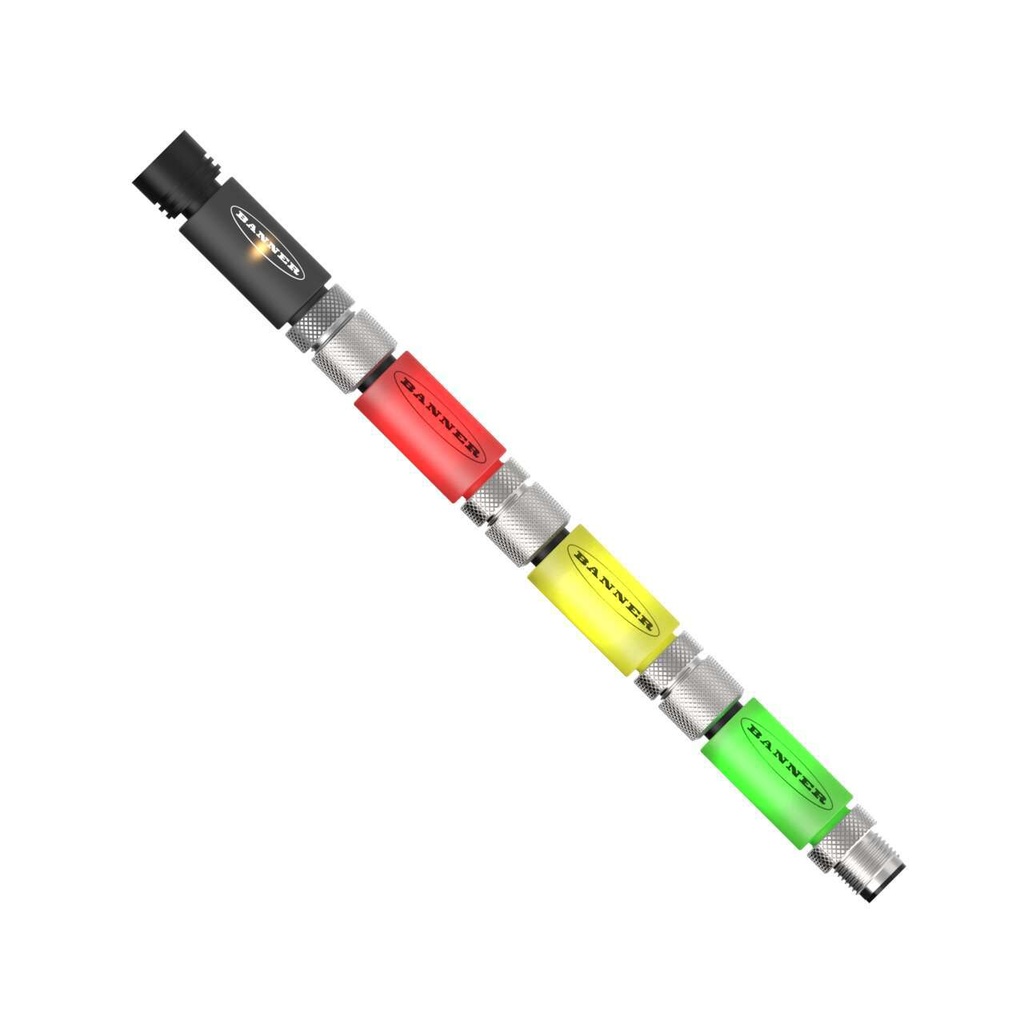

TL15GYRAQ is a Banner TL15 series kit of four 15 mm in-line segments - green, yellow, red and an audible - that screw together on M12 connectors into an ultra-small tower light. Each segment responds to one pin, so a single 5-pin cable drives all four.

• Segments: green 535 nm (18 lm, pin 4), yellow 590 nm (22 lm, pin 1), red 620 nm (10 lm, pin 2), audible (pin 5)
• Audible: 2.9 kHz, 79 dB at 1 m
• Input: lights bimodal PNP/NPN, audible PNP
• Supply: lights 12 V DC (80 mA) or 24 V DC (40 mA) ±10 %; audible 12...30 V DC
• Environment: lights IP65, IP67, IP68; audible IP60; -40...+50 °C
• Connection: 5-pin M12 male/female on light segments, M12 male on audible

The kit can stand alone or be added in-line to a sensor or an existing tower light; the segments are packed separately and assembled on site.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

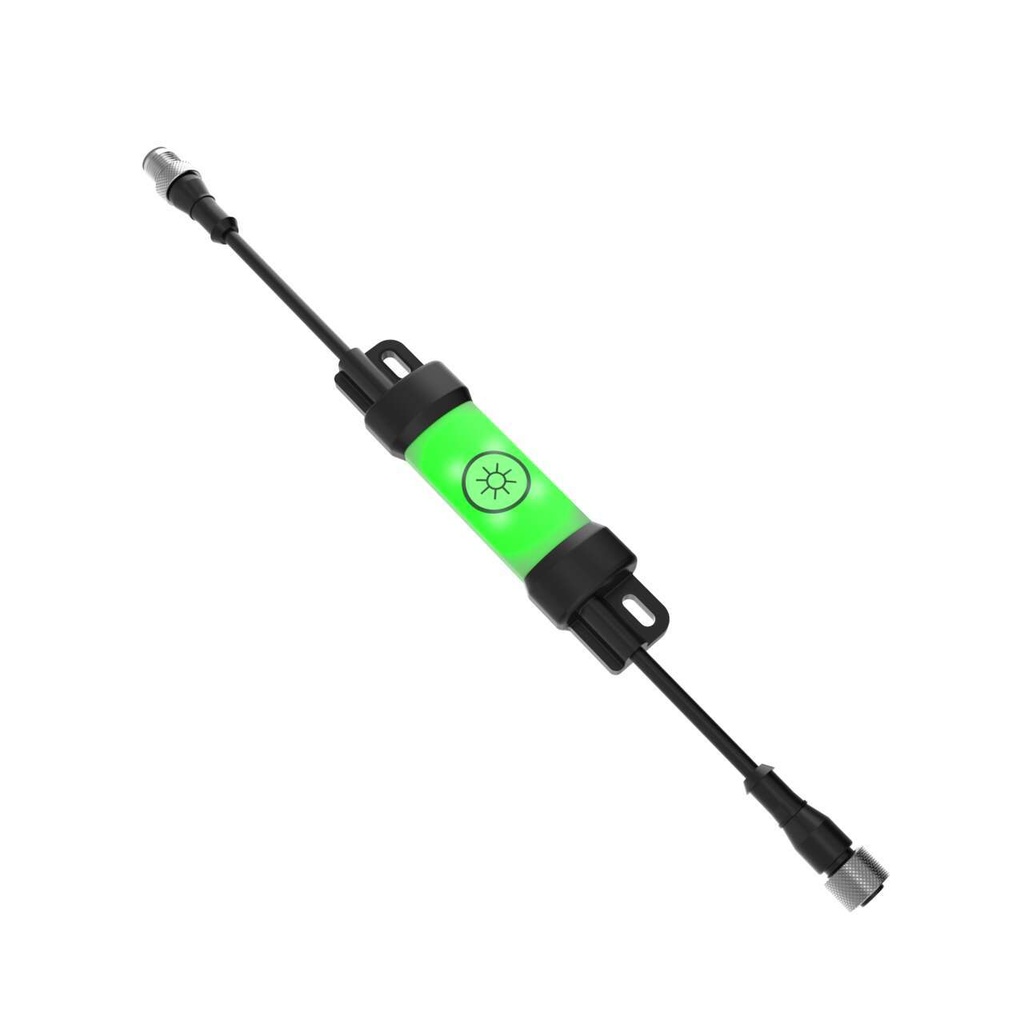

LC15T-127AL2RGQP is a Banner LC15T series capacitive touch switch that sits in an M12 line between the supply and a DC device. A single touch switches the output on (green) or off (red).

• Function: on/off, red = off, green = on
• Pass-through current: max. 4 A
• Supply: 12...30 V DC, 11 mA typical at 24 V
• Housing: polycarbonate, polyamide end caps, Ø15 x 126.9 mm, slots for M4 screws
• Environment: IP66, IP67, IK06, -40...+60 °C
• Connection: 150 mm PVC cables with 4-pin M12 male (input) and female (output)

Switches any DC device that takes constant power on pins 1 and 3, such as a Banner LED work light, without a separate switch box.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

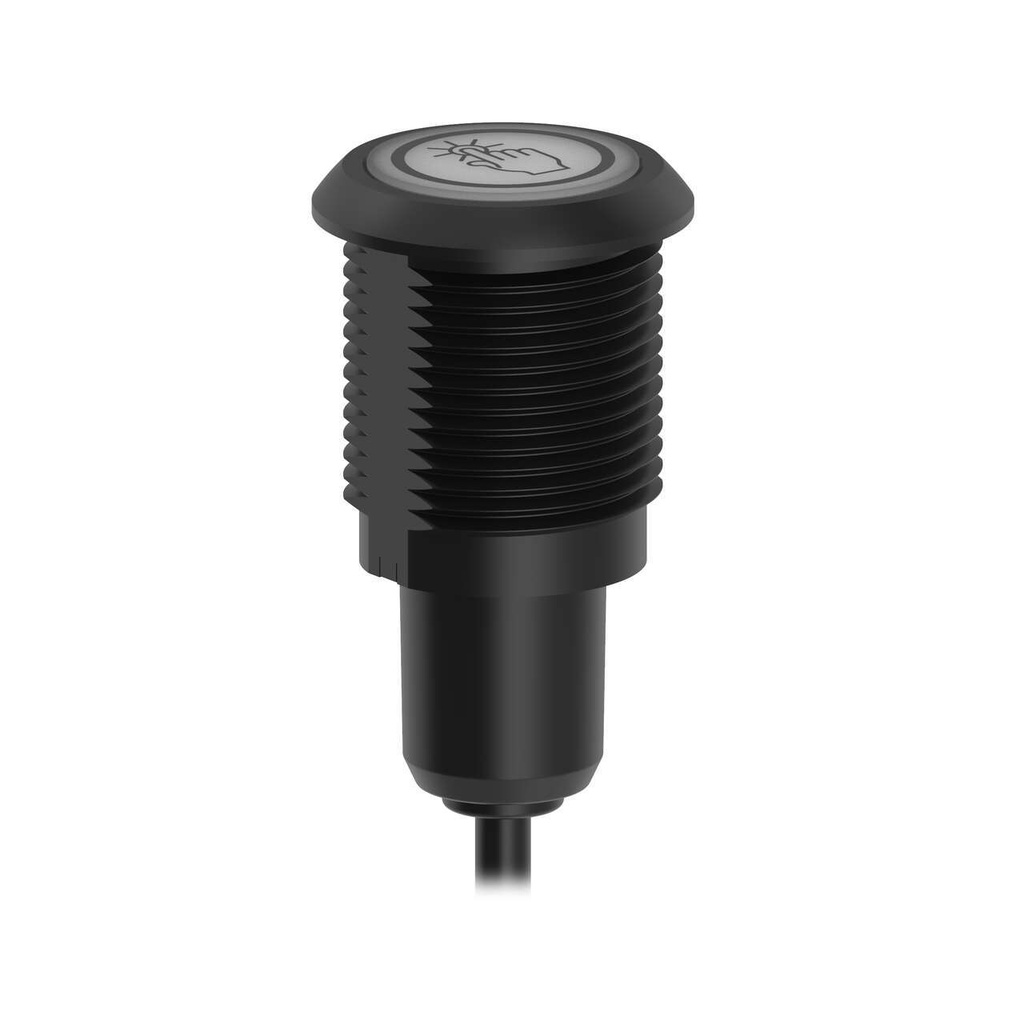

S22AMTSGRHQP is a Banner S22 Pro series 22 mm touch button with a momentary output. With power applied it glows green; a touch switches the output and turns it red.

• Colors: green 527 nm, red 625 nm (touched)
• Output: bipolar, normally open, momentary, max. 150 mA; input response 20 ms, output 300 ms
• Supply: 10...30 V DC, 45 mA at 24 V
• Housing: polycarbonate base, dome and nut, M22x1.5 thread, max. 2.25 Nm
• Environment: IP66, IP67, IP69K, -40...+50 °C
• Connection: 150 mm PVC cable with 5-pin M12 male connector

Fits a standard 22 mm push-button hole in a panel and is configurable with Pro Editor.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

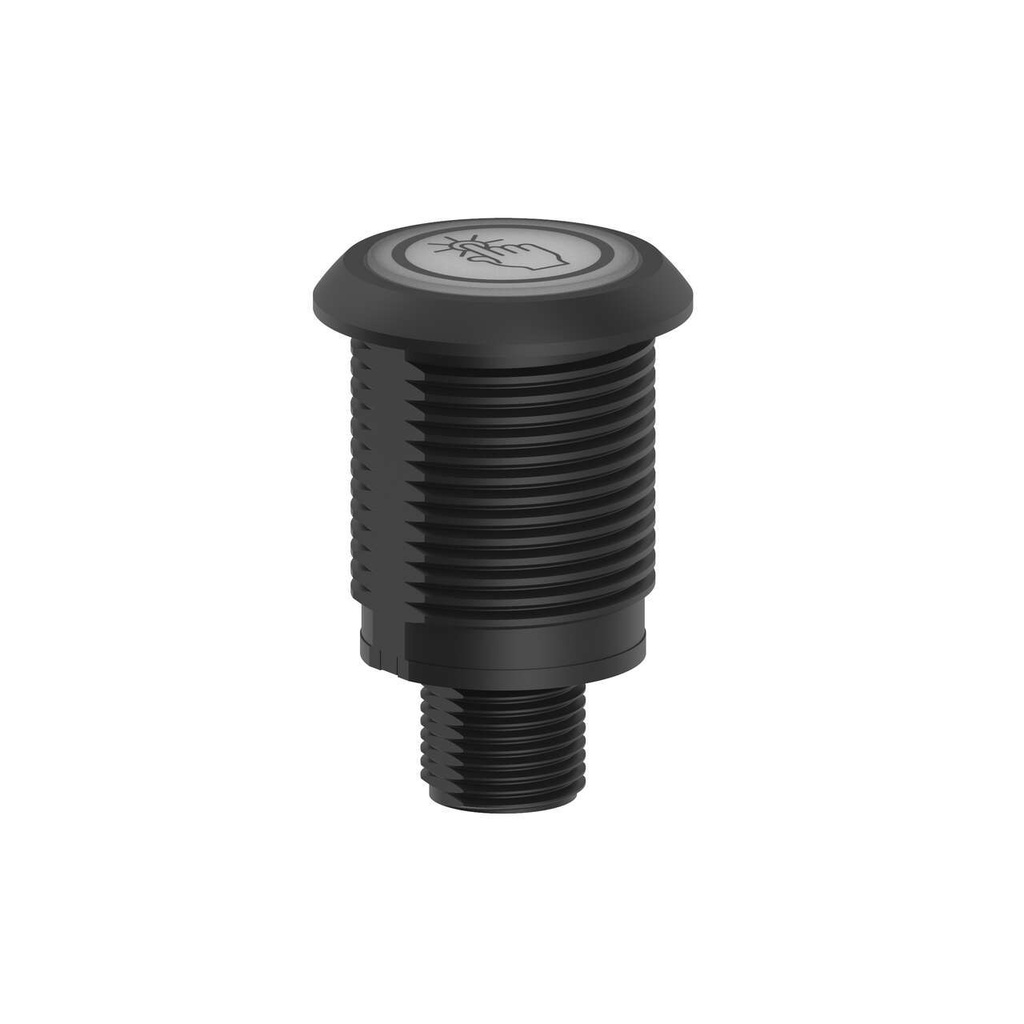

S22ALTSGRHQ is a Banner S22 Pro series 22 mm touch button with a latching output. With power applied it glows green; a touch switches the output and turns it red.

• Colors: green 527 nm, red 625 nm (touched)
• Output: bipolar, normally open, latching, max. 150 mA; input response 20 ms, output 300 ms
• Supply: 10...30 V DC, 45 mA at 24 V
• Housing: polycarbonate base, dome and nut, M22x1.5 thread, max. 2.25 Nm
• Environment: IP66, IP67, IP69K, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Fits a standard 22 mm push-button hole in a panel and is configurable with Pro Editor.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

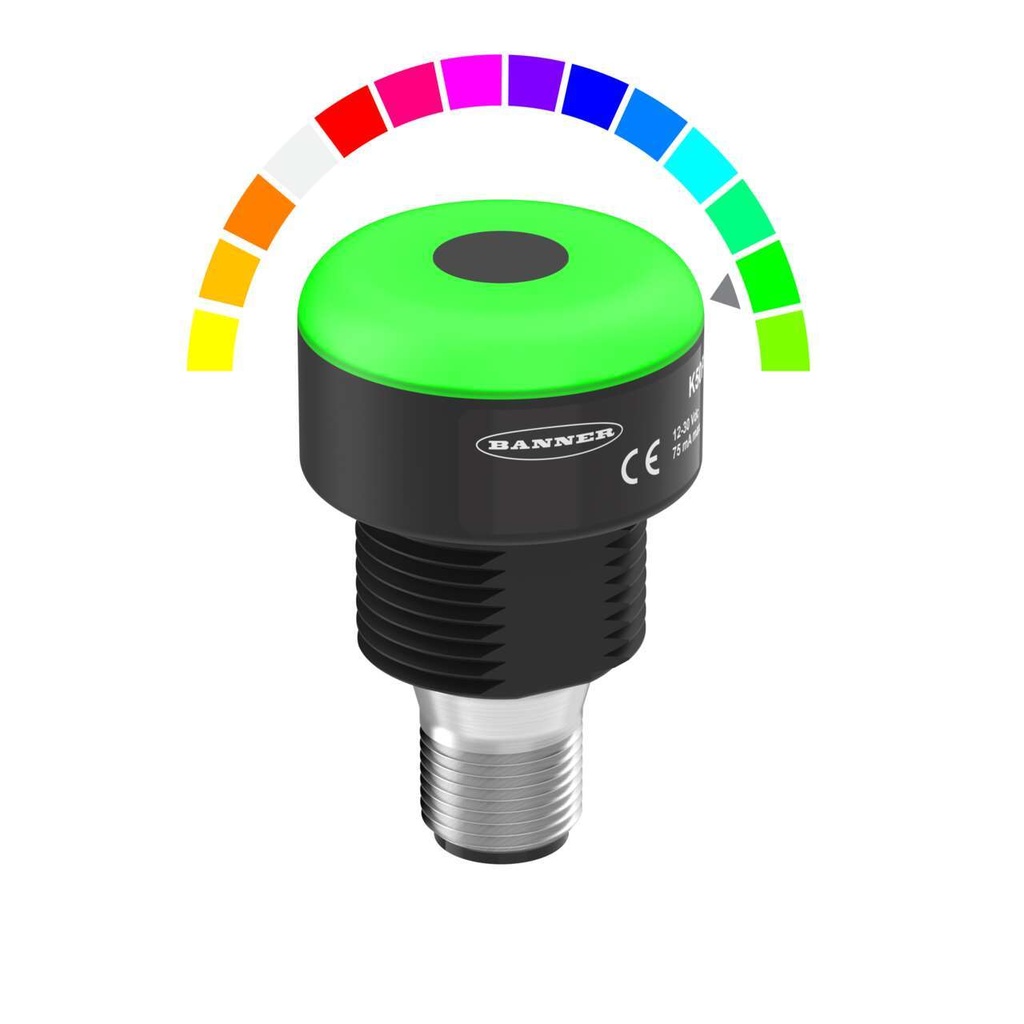

K30PAF100AMGRY3Q is a Banner K30 Pro series 30 mm touchless button: an infrared adjustable-field sensor behind an RGB dome that switches when a hand or object comes within the taught distance, up to 100 mm, and ignores what lies beyond it.

• Sensing: adjustable field up to 100 mm, infrared 940 nm; object, background or window teach
• Output: bipolar, normally open, momentary, max. 150 mA, response 120 ms
• Indicator: green (5.8 lm), yellow (7.9 lm), red (3.2 lm) by default; 14 colors via Pro Editor
• Supply: 10...30 V DC, 30 mA typical at 24 V
• Housing: polycarbonate base, dome and nut, M22x1.5 thread
• Environment: IP65, -20...+50 °C
• Connection: integral 5-pin M12 male connector

The switch point is taught over the remote input wire or the Pro Converter Cable button; the dome shows signal strength in green, yellow or red during teach. Allow 5 minutes warm-up for best repeatability.

Vibration per MIL-STD-202F method 201A, shock per method 213B (75 G operating).

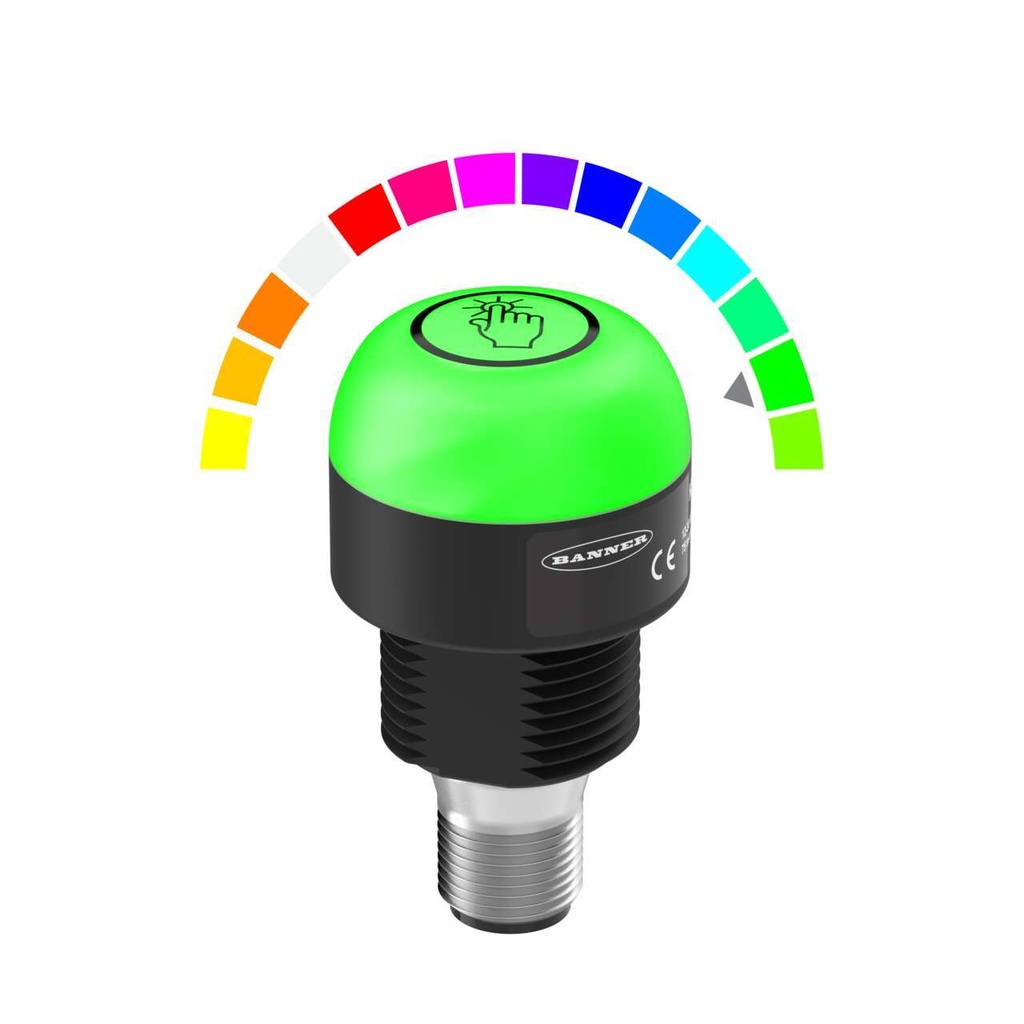

K30PTALGRY3Q is a Banner K30 Pro series 30 mm touch button with an RGB indicator and a latching output. Two inputs select green, yellow or red; colors, animation, output logic and touch sensitivity are changed with Pro Editor software.

• Colors (default): green 522 nm (7.7 lm), yellow 576 nm (7.8 lm), red 620 nm (3.1 lm); up to 14 colors via Pro Editor
• Output: bipolar, normally open, latching, max. 100 mA; input response 40 ms, output 300 ms
• Supply: 12...30 V DC, 80 mA at 12 V, 40 mA at 24 V
• Housing: polycarbonate base, dome and nut, M22x1.5 thread, Ø30 x 54.5 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Programming needs the Pro Converter Cable and Pro Editor. The M22 base fits a standard 22 mm push-button hole.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

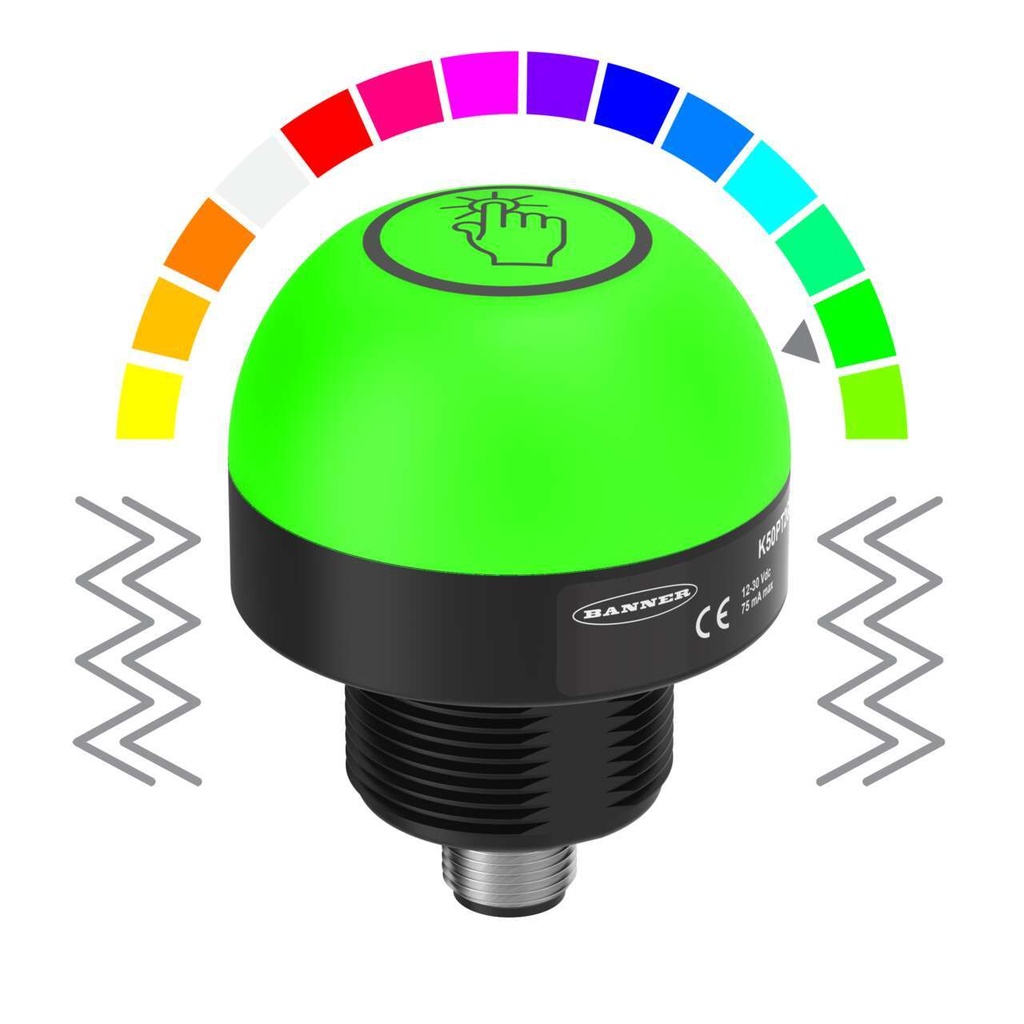

K50PTVKQ is a Banner K50 Pro series 50 mm touch button with an RGB indicator, vibration feedback on touch and IO-Link control. The touch state is reported to the controller, which also sets color, animation and output logic.

• Indicator: 14 default colors plus custom colors
• Vibration feedback: steady or pattern, max. 3 s per touch, 500 000 cycles
• Communication: IO-Link COM2 (38.4 kbps), process data 2 bytes in, 10 bytes out
• Function: NO or NC, momentary or latching, on/off delay 0...60 000 ms
• Supply: 18...30 V DC, 93 mA typical at 24 V
• Housing: polycarbonate, M30x1.5 thread, Ø50 x 66 mm; IP67, IP69K, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Needs an IO-Link master port. The vibration gives the operator a confirmation that can be felt through gloves.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

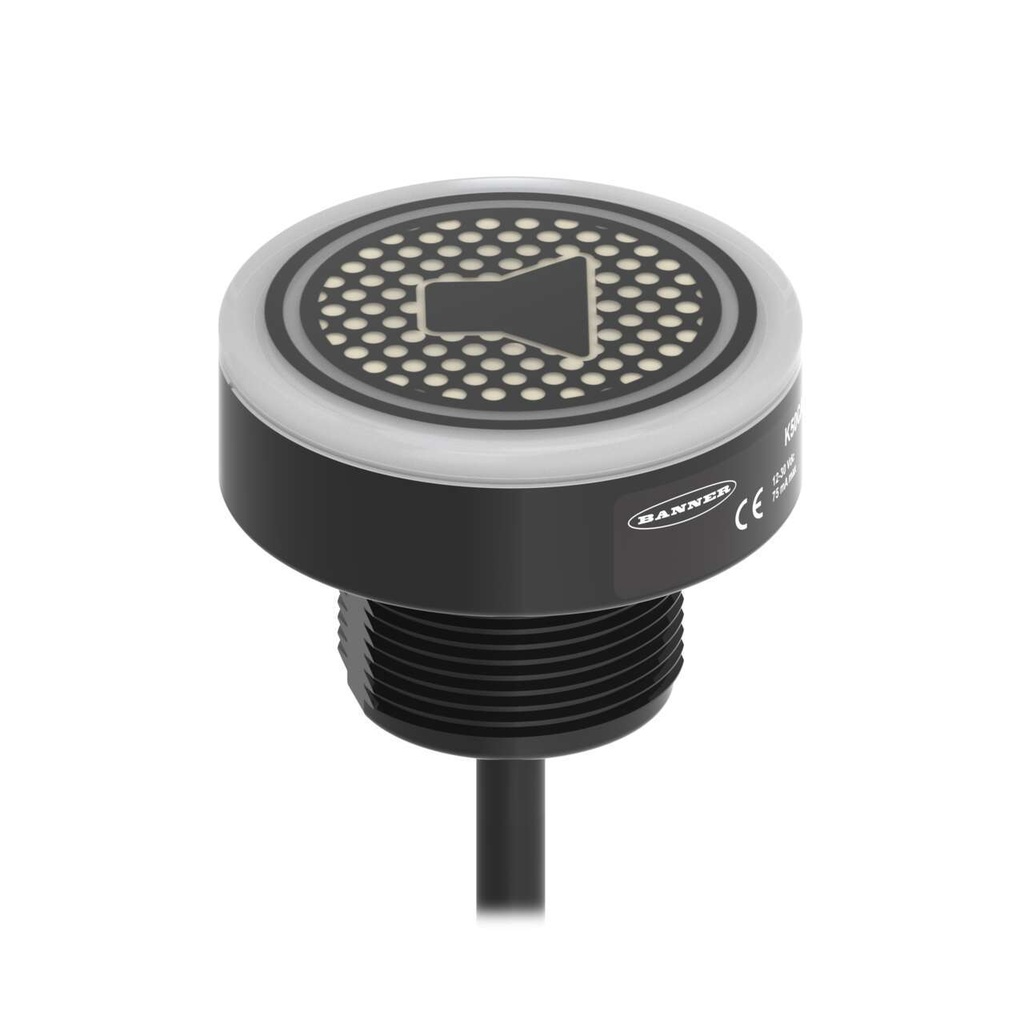

K50PCLRGB7KAQP is a Banner K50 Pro series compact 50 mm RGB indicator with a built-in audible, controlled entirely over IO-Link. Color, flashing, dimming, animation and the audible tone are set from the controller.

• Indicator: RGB multicolor, e.g. green 8.9 lm, yellow 11.6 lm, red 3.9 lm
• Audible: 14 tones, 2.9 kHz continuous tone at 83 / 88 / 92 dB (1 m)
• Communication: IO-Link, input response 250 ms
• Supply: 18...30 V DC, 83 mA at 24 V, max. 145 mA
• Housing: polycarbonate base, dome and nut, M30x1.5 thread, Ø50 x 69.6 mm
• Environment: IP67, IP69K, UL Type 4X, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Needs an IO-Link master port; there are no discrete inputs, so it cannot be driven directly from a PLC output.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

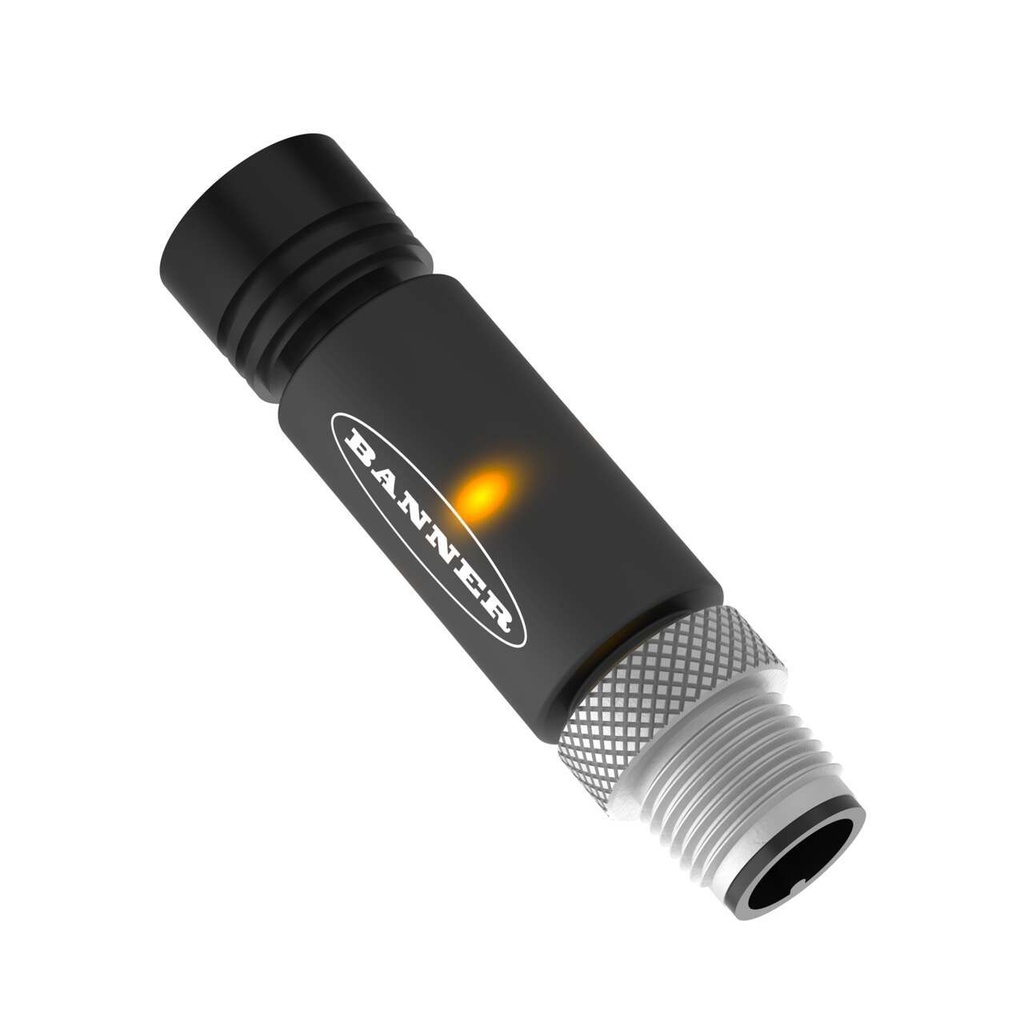

TL15A5Q is a Banner TL15 series 15 mm audible segment that fits in an M12 line or on top of a TL15 in-line tower light. It sounds when pin 5 is driven with a PNP signal.

• Audible: 2.9 kHz, 79 dB at 1 m; small yellow LED lights while sounding
• Input: PNP, active on pin 5
• Supply: 12...30 V DC, 55 mA at 12 V, 30 mA at 24 V
• Housing: nylon, Ø15 x 58 mm, nickel-plated brass coupling
• Environment: IP60, UL Type 1, -40...+50 °C
• Connection: integral 5-pin M12 male connector

The audible segment has only a male connector, so it is always the last element of a TL15 stack.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

TL50BGYRAOSQ is a Banner TL50 series 50 mm LED tower light with 4 colour segments: blue, green, yellow, red, from the bottom up, topped by a sealed omnidirectional audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: blue 470 nm, green 528 nm, yellow 590 nm, red 625 nm
• Audible: continuous tone, 2.1 kHz, up to 99 dB at 1 m
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 45 mA
• Housing: Ø50 x 278.7 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP67, -20...+50 °C
• Connection: integral M12 male connector, 8-pin

The tower connects through a separately ordered 8-pin M12 female cordset. The omnidirectional alarm sounds at a fixed 99 dB with no intensity adjustment.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

SG-TL70B-A is a Banner TL70B series 70 mm audible module that twist-locks on top of a TL70B modular tower light. It sounds when the base input for its position is switched.

• Audible: 2.7 kHz, up to 104 dB at 1 m, 13 dB adjustment with the rotating baffle
• Mode: continuous or pulsed at 1.5 Hz / 3 Hz, set with DIP switches in the base
• Supply: 12...30 V DC, 33 mA at 12 V, 17 mA at 24 V
• Housing: polycarbonate, Ø70 x 72 mm
• Environment: IP65, IP66, -40...+50 °C

Works only with TL70B series bases and always sits at the top of the tower.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

!Without packaging!

K30 Series: 2-Color Touch Sensor; Latching Output

Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K

Output: Bipolar (NO); Colors: Yellow - Not Activated, Red - Activated

5-pin M12 Integral QD

K30APT2FXRF2 is a Banner K30 FDA series 30 mm capacitive touch button in FDA-grade materials for food and washdown areas. It switches when touched with a bare or gloved hand, without mechanical force; the button stays dark with power applied and lights red when its input is active.

• Colour: red when the input is active, off with power only
• Input: PNP, response 300 ms
• Output: PNP, normally open, momentary, 150 mA max, response 150 ms
• Supply: 12-30 V DC, 55 mA max
• Housing: Ø30 x 41 mm, FDA-grade copolyester, grey, M22x1.5 base mount
• Environment: IP67, IP69K, -40...+50 °C
• Connection: 2 m PVC cable, 4 wires

The button is immune to false triggering by water spray, detergents and oils.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms). UL, CE and UKCA approved.

CL50GRYPQ is a Banner CL50 series 50 mm LED column light with green, red and yellow segments. Each colour is switched by its own PNP input, one colour at a time.

• Colours: green 525 nm (72 lm), red 625 nm (38 lm), yellow 590 nm (30 lm)
• Inputs: PNP, one per colour, response 10 ms
• Supply: 18-30 V DC, up to 100 mA per colour
• Housing: Ø50 x 114.2 mm, ABS/polycarbonate, black, M30x1.5 base mount
• Environment: IP67, -40...+50 °C
• Connection: integral M12 male connector, 4-pin

The light connects through a separately ordered 4-pin M12 female cordset. UL and CE approved.

K30APT2FGRYF2QP is a Banner K30 FDA series 30 mm capacitive touch button with a three-colour indicator, in FDA-grade materials for food and washdown areas. It switches when touched with a bare or gloved hand, without mechanical force, and the green, red and yellow light are controlled by separate PNP inputs.

• Colours: green, red, yellow; colour 3 overrides 1 and 2, colour 2 overrides 1
• Inputs: PNP, one per colour, response 300 ms
• Output: PNP, normally open, momentary, 150 mA max, response 150 ms
• Supply: 12-30 V DC, 55 mA max
• Housing: Ø30 x 41 mm, FDA-grade copolyester, grey, M22x1.5 base mount
• Environment: IP67, IP69K, -40...+50 °C
• Connection: 150 mm PVC cable with M12 male connector, 8-pin, stainless steel

The button is immune to false triggering by water spray, detergents and oils, and needs a separately ordered 8-pin M12 female cordset.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms). UL, CE and UKCA approved.

TL50GYRAQ is a Banner TL50 series 50 mm LED tower light with 3 colour segments: green, yellow, red, from the bottom up, topped by a audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: green 528 nm, yellow 590 nm, red 625 nm
• Audible: continuous tone, 2.7 kHz, up to 92 dB at 1 m, adjustable down to 62 dB
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 25 mA
• Housing: Ø50 x 200.8 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP50, -20...+50 °C
• Connection: integral M12 male connector, 5-pin

The tower connects through a separately ordered 5-pin M12 female cordset. Audible intensity is adjusted by unscrewing the top cover by up to 1.5 turns.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

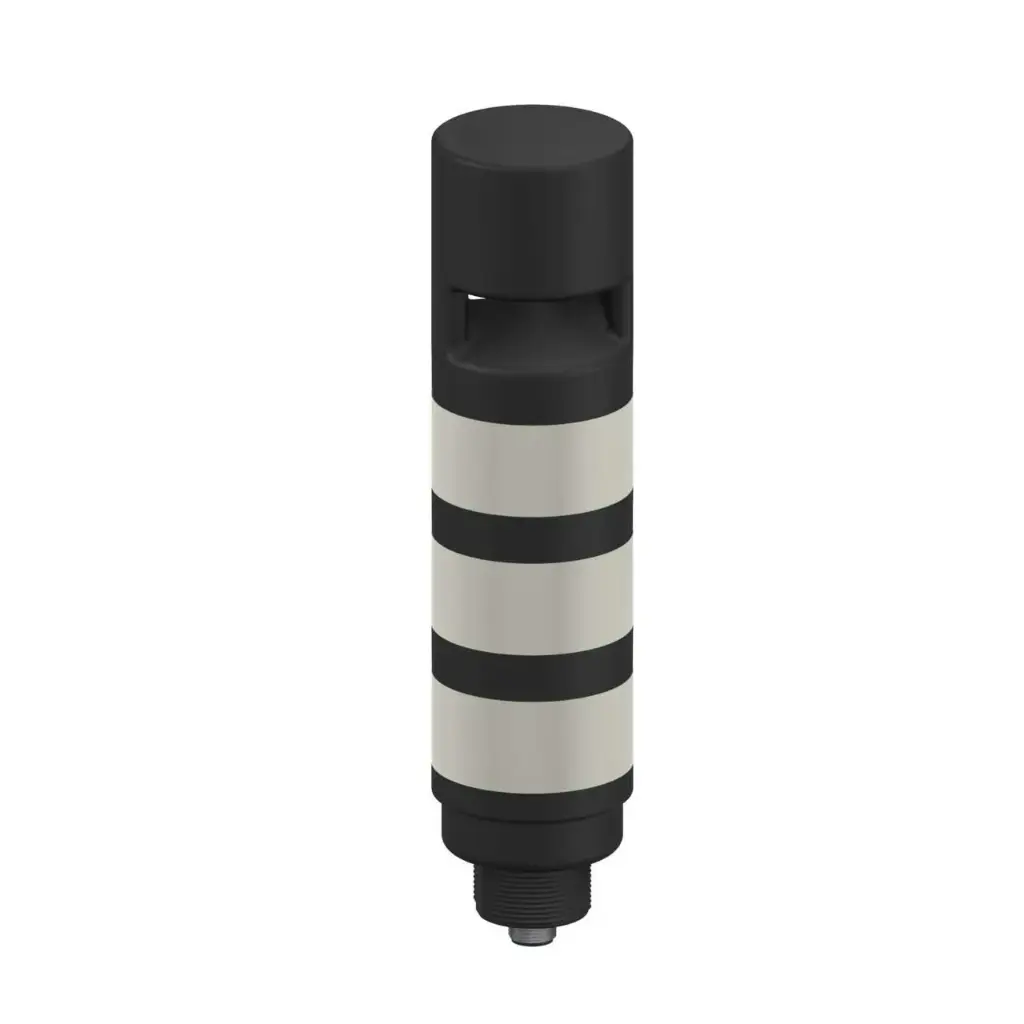

TL50HGYRAOS4Q is a Banner TL50H series high-brightness 50 mm tower light with green, yellow and red segments and an omni-directional sealed audible with a staccato tone. It comes assembled; each color and the audible have their own bimodal input.

• Colors (bottom to top): green 525 nm (60 lm), yellow 590 nm (23 lm), red 625 nm (32 lm)
• Audible: omni-directional sealed, staccato, 2.1 kHz, 99 dB at 1 m, not adjustable
• Input: bimodal PNP/NPN, response 10 ms
• Supply: 18...30 V DC or 24 V AC; per color 100 mA at 18 V, audible 45 mA
• Housing: ABS base and covers, polycarbonate segments, M30x1.5 thread; IP67, UL Type 4X Indoor and 13
• Connection: integral 5-pin M12 male connector

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

TL50BGYRAQ is a Banner TL50 series 50 mm LED tower light with 4 colour segments: blue, green, yellow, red, from the bottom up, topped by a audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: blue 470 nm, green 528 nm, yellow 590 nm, red 625 nm
• Audible: continuous tone, 2.7 kHz, up to 92 dB at 1 m, adjustable down to 62 dB
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 25 mA
• Housing: Ø50 x 241.5 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP50, -20...+50 °C
• Connection: integral M12 male connector, 8-pin

The tower connects through a separately ordered 8-pin M12 female cordset. Audible intensity is adjusted by unscrewing the top cover by up to 1.5 turns.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

TL50GYRALSQ is a Banner TL50 series 50 mm LED tower light with 3 colour segments: green, yellow, red, from the bottom up, topped by a sealed audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: green 528 nm, yellow 590 nm, red 625 nm
• Audible: continuous tone, 2.9 kHz, up to 94 dB at 1 m, adjustable down to 74 dB
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 35 mA
• Housing: Ø50 x 223.9 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP67, -20...+50 °C
• Connection: integral M12 male connector, 5-pin

The tower connects through a separately ordered 5-pin M12 female cordset. Audible intensity is adjusted by rotating the front cover of the alarm.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

K50GRBPQ is a Banner K50 series 50 mm indicator that lights in three colours from one dome: green, red, blue. Each colour has its own PNP input, and a higher colour overrides a lower one, so a single indicator can show three machine states.

• Colours: green (pin 4), red (pin 2), blue (pin 1); colour 3 overrides 1 and 2
• Input: PNP, response 1 ms
• Supply: 24 V DC ±10 %, max. 55 mA per colour
• Housing: Ø 50 mm, polycarbonate base and dome, M30x1.5 thread, nut included
• Environment: IP66, IP67, IP69K, UL Type 4X and 13, -40...+50 °C
• Connection: integral M12 male connector, 4-pin; cordset ordered separately

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 g, 11 ms).

K50GRYPQ is a Banner K50 series 50 mm indicator that lights in three colours from one dome: green, red, yellow. Each colour has its own PNP input, and a higher colour overrides a lower one, so a single indicator can show three machine states.

• Colours: green (pin 4), red (pin 2), yellow (pin 1); colour 3 overrides 1 and 2
• Input: PNP, response 1 ms
• Supply: 24 V DC ±10 %, max. 55 mA per colour
• Housing: Ø 50 mm, polycarbonate base and dome, M30x1.5 thread, nut included
• Environment: IP66, IP67, IP69K, UL Type 4X and 13, -40...+50 °C
• Connection: integral M12 male connector, 4-pin; cordset ordered separately

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 g, 11 ms).

TL50GRALSQ is a Banner TL50 series 50 mm LED tower light with 2 colour segments: green, red, from the bottom up, topped by a sealed audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: green 528 nm, red 625 nm
• Audible: continuous tone, 2.9 kHz, up to 94 dB at 1 m, adjustable down to 74 dB
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 35 mA
• Housing: Ø50 x 183.2 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP67, -20...+50 °C
• Connection: integral M12 male connector, 4-pin

The tower connects through a separately ordered 4-pin M12 female cordset. Audible intensity is adjusted by rotating the front cover of the alarm.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

CL50GRYAPQ is a Banner CL50 series 50 mm LED column light with green, red and yellow segments and an audible alarm. Each colour is switched by its own PNP input, one colour at a time.

• Colours: green 525 nm (72 lm), red 625 nm (38 lm), yellow 590 nm (30 lm)
• Audible: continuous tone, 2.7 kHz, up to 92 dB at 1 m, adjustable down to 62 dB
• Inputs: PNP, one per colour, response 10 ms
• Supply: 18-30 V DC, up to 100 mA per colour, alarm 25 mA
• Housing: Ø50 x 145.3 mm, ABS/polycarbonate, black, M30x1.5 base mount
• Environment: IP50, -20...+50 °C
• Connection: integral M12 male connector, 5-pin

The light connects through a separately ordered 5-pin M12 female cordset. UL and CE approved.

TL50BGYRALSQ is a Banner TL50 series 50 mm LED tower light with 4 colour segments: blue, green, yellow, red, from the bottom up, topped by a sealed audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: blue 470 nm, green 528 nm, yellow 590 nm, red 625 nm
• Audible: continuous tone, 2.9 kHz, up to 94 dB at 1 m, adjustable down to 74 dB
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 35 mA
• Housing: Ø50 x 264.6 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP67, -20...+50 °C
• Connection: integral M12 male connector, 8-pin

The tower connects through a separately ordered 8-pin M12 female cordset. Audible intensity is adjusted by rotating the front cover of the alarm.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

TL50BGYRQ is a Banner TL50 series 50 mm LED tower light with 4 colour segments: blue, green, yellow, red, from the bottom up. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: blue 465 nm, green 525 nm, yellow 590 nm, red 625 nm
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC, up to 26 mA per colour
• Housing: Ø50 x 219.1 mm, polycarbonate housing, black, M30x1.5 base mount
• Environment: IP67, -40...+50 °C
• Connection: integral M12 male connector, 5-pin

The tower connects through a separately ordered 5-pin M12 female cordset.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

TL50RALSQ is a Banner TL50 series 50 mm LED tower light with 1 colour segment: red, from the bottom up, topped by a sealed audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: red 625 nm
• Audible: continuous tone, 2.9 kHz, up to 94 dB at 1 m, adjustable down to 74 dB
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 35 mA
• Housing: Ø50 x 142.5 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP67, -20...+50 °C
• Connection: integral M12 male connector, 4-pin

The tower connects through a separately ordered 4-pin M12 female cordset. Audible intensity is adjusted by rotating the front cover of the alarm.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).

S100PTVD2WAD2Q is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. This version works without an industrial network: the PLC switches states through discrete inputs, while text, colours and animations are loaded into the unit beforehand with Banner Pro Editor.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Control signals: discrete inputs, output max. 150 mA
• Supply: 12-30 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 5-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. The configuration is loaded with Pro Editor before installation, so changing text or colours means disconnecting the unit and connecting it to a PC.

CE marked, compliant with FCC Part 15 Class B and ICES-003(B), housing rated UL Type 4X.

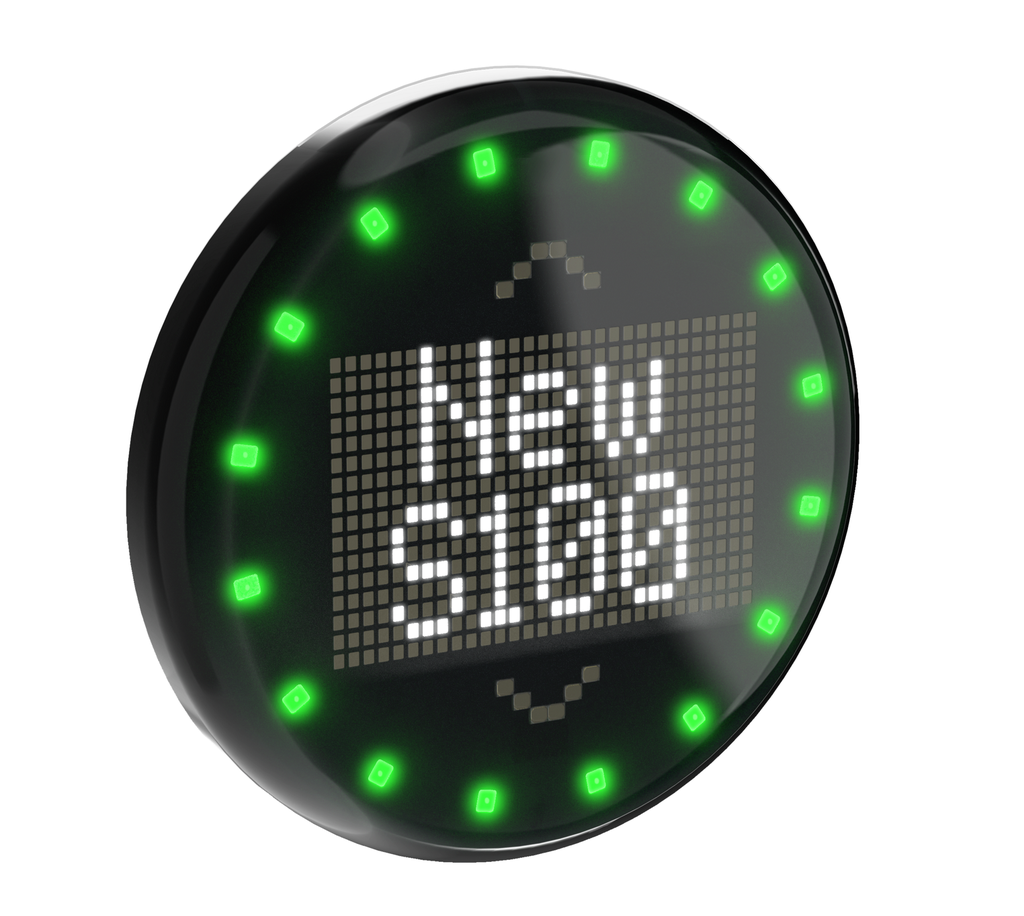

S100PTVD2WAKQ is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. Over IO-Link the controller changes text, colours and the state of each touch zone at runtime, so one unit serves several machine modes without reconfiguration.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Communication: IO-Link
• Supply: 18-30 V DC, 280 mA at 18 V DC, 210 mA at 24 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 4-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. Note that this version starts at 18 V DC, not 12 V DC as the other S100 Pro versions.

CE marked, compliant with FCC Part 15 Class B and ICES-003(B), housing rated UL Type 4X.

S100PTVD2WASQ is a Banner S100 Pro series touch operator display that combines status indication, text and operator input in a single M30 threaded housing. The controller changes text, colours and the meaning of each touch zone at runtime over Modbus RTU, so one unit serves several machine modes without reconfiguration.

• Display: two-row white dot-matrix display, 13 characters per line, 16 RGB LED ring and audible alert
• Control: 5 capacitive touch zones with vibration feedback, response time max. 300 ms
• Communication: Modbus RTU over RS-485, 9600, 19200 and 38400 bit/s
• Supply: 12-30 V DC, 415 mA at 12 V DC, 210 mA at 24 V DC
• Housing: black polycarbonate with tinted window, Ø100 mm, M30x1.5 threaded base, IP66/IP69K, -40...+50°C
• Connection: integral M12 male connector, 4-pin

The display mounts in a Ø30 mm hole at the machine station - pick-to-light positions, takt timer, counter and step confirmation. Prepared modes run without programming, while Modbus registers let the PLC drive each row, colour and the audible alert separately.

CE marked, compliant with FCC Part 15 Class B and ICES-003(B), housing rated UL Type 4X.
