LED indication tower TL50GRQ, green/red, PNP/NPN, 18-30VDC, IP67, M12 4-pin

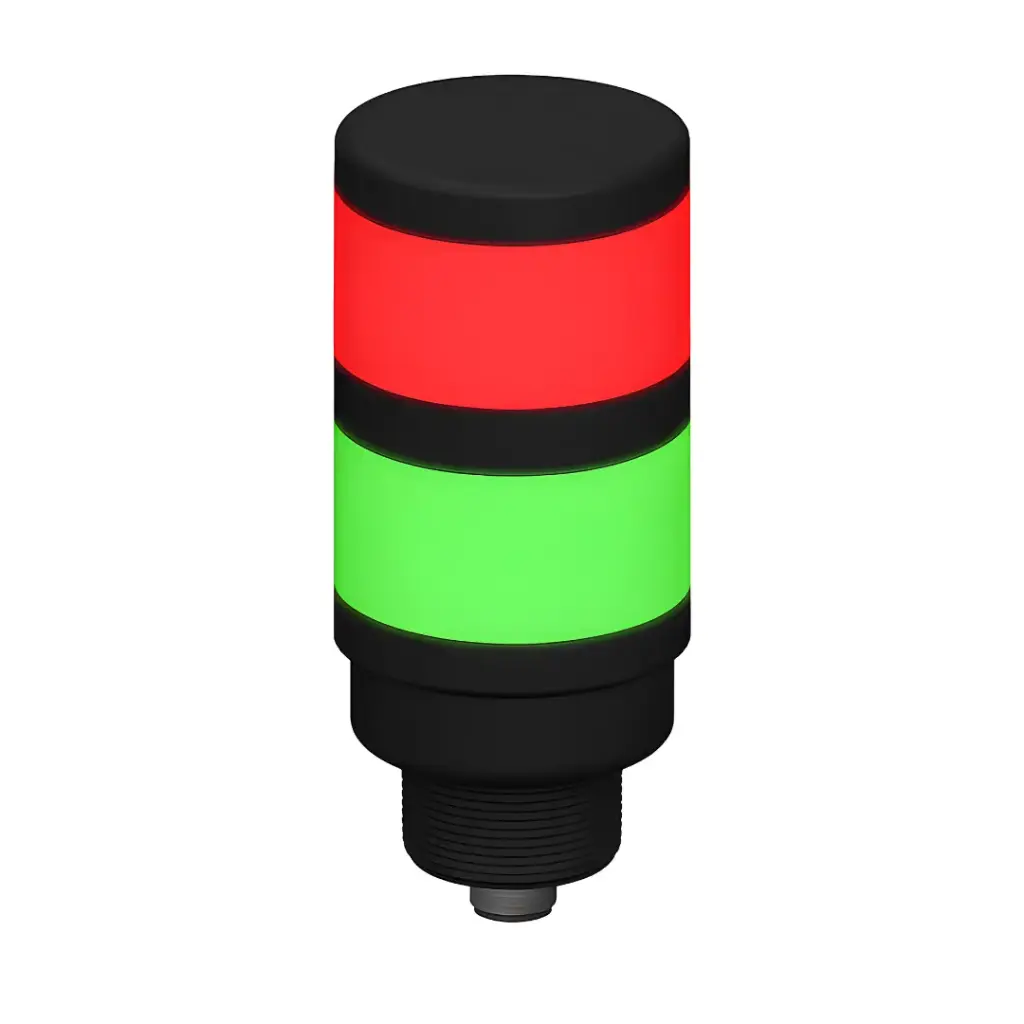

TL50GRQ is a Banner TL50 series 50 mm two-segment tower light with green (bottom) and red (top) segments. It comes assembled and each color is switched by its own bimodal input.

• Colors: green 525 nm (17 lm), red 625 nm (8 lm)
• Input: bimodal PNP/NPN, response 1 ms
• Supply: 18...30 V DC, 26 mA per segment
• Housing: polycarbonate, M30x1.5 thread, Ø50 x 137.4 mm; knurled nut and gasket included
• Environment: IP67, UL Type 4X, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
