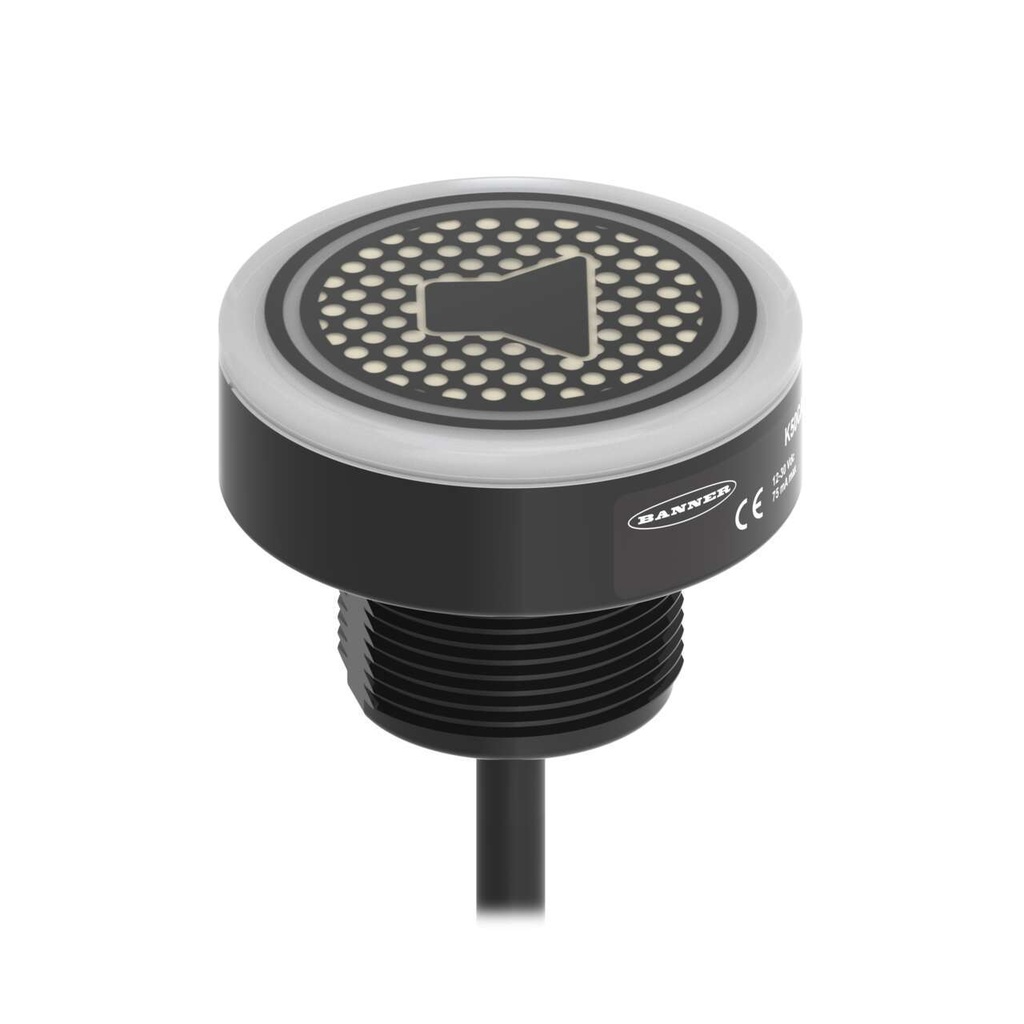

LED indicator K50PCLRGB7KAQP, RGB, audible 92 dB, IO-Link, 18-30VDC, IP69K, M30, 150 mm cable with M12

K50PCLRGB7KAQP is a Banner K50 Pro series compact 50 mm RGB indicator with a built-in audible, controlled entirely over IO-Link. Color, flashing, dimming, animation and the audible tone are set from the controller.

• Indicator: RGB multicolor, e.g. green 8.9 lm, yellow 11.6 lm, red 3.9 lm
• Audible: 14 tones, 2.9 kHz continuous tone at 83 / 88 / 92 dB (1 m)
• Communication: IO-Link, input response 250 ms
• Supply: 18...30 V DC, 83 mA at 24 V, max. 145 mA
• Housing: polycarbonate base, dome and nut, M30x1.5 thread, Ø50 x 69.6 mm
• Environment: IP67, IP69K, UL Type 4X, -40...+50 °C
• Connection: 150 mm PVC cable with 4-pin M12 male connector

Needs an IO-Link master port; there are no discrete inputs, so it cannot be driven directly from a PLC output.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
