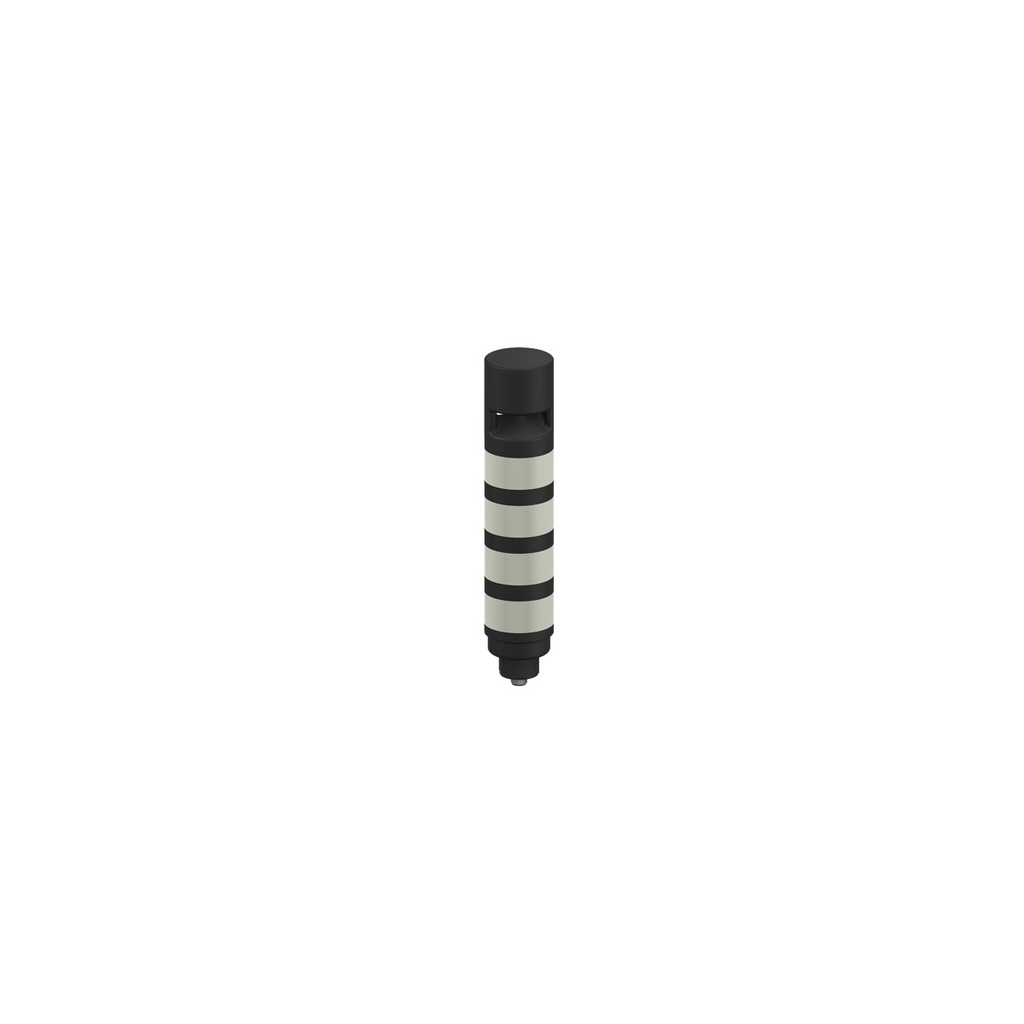

LED indication tower TL50BGYRAOSQ, blue/green/yellow/red, audible 99 dB, 18-30VDC/24VAC, M12 8-pin

TL50BGYRAOSQ is a Banner TL50 series 50 mm LED tower light with 4 colour segments: blue, green, yellow, red, from the bottom up, topped by a sealed omnidirectional audible alarm. Each colour has its own input wire and the inputs are bimodal, so the tower can be driven from either PNP or NPN controller outputs.

• Colours: blue 470 nm, green 528 nm, yellow 590 nm, red 625 nm
• Audible: continuous tone, 2.1 kHz, up to 99 dB at 1 m
• Inputs: bimodal (PNP or NPN), one per colour, response 10 ms
• Supply: 18-30 V DC or 24 V AC 50/60 Hz, up to 45 mA per colour, alarm 45 mA
• Housing: Ø50 x 278.7 mm, ABS base and covers, polycarbonate light segments, black, M30x1.5 base mount
• Environment: IP67, -20...+50 °C
• Connection: integral M12 male connector, 8-pin

The tower connects through a separately ordered 8-pin M12 female cordset. The omnidirectional alarm sounds at a fixed 99 dB with no intensity adjustment.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms).
