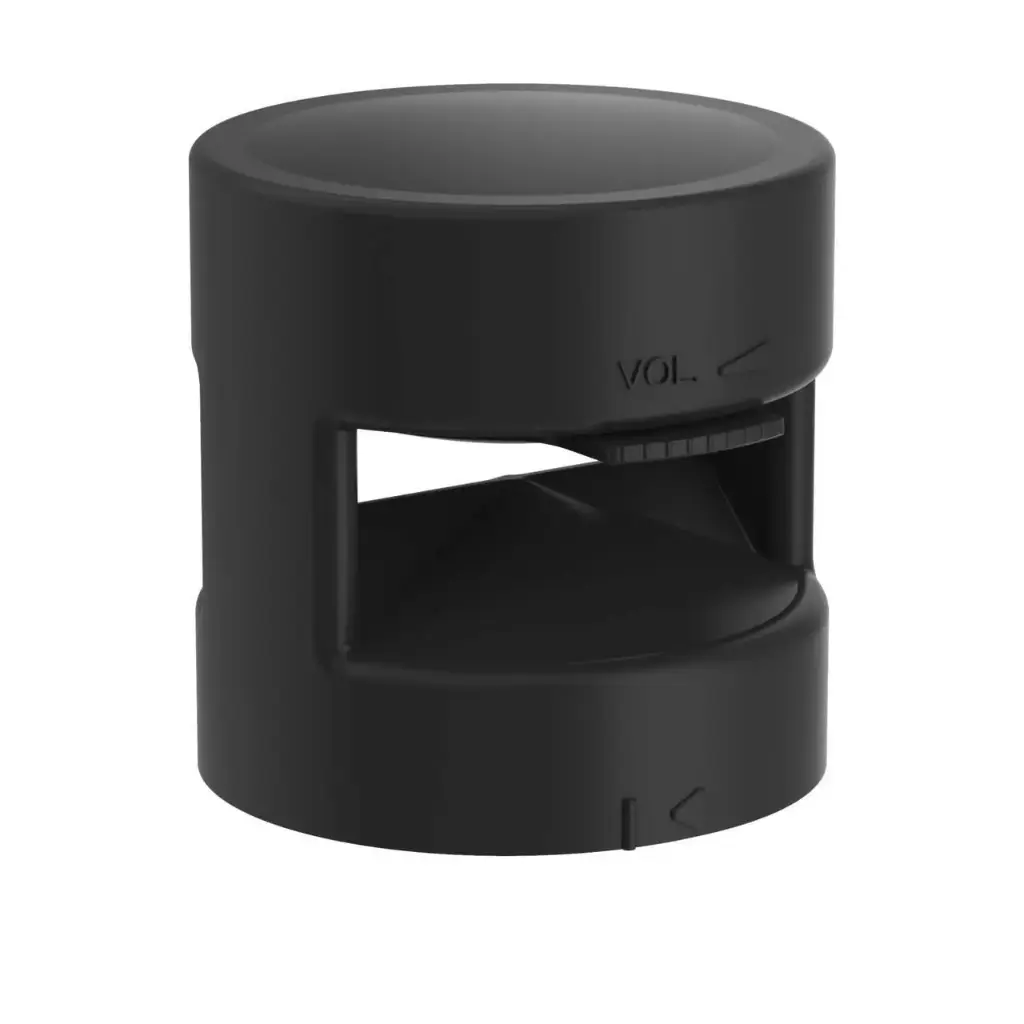

Indication tower audible module SG-TL70B-A, 104 dB, continuous/pulsed, 12-30VDC, IP65/IP66

SG-TL70B-A is a Banner TL70B series 70 mm audible module that twist-locks on top of a TL70B modular tower light. It sounds when the base input for its position is switched.

• Audible: 2.7 kHz, up to 104 dB at 1 m, 13 dB adjustment with the rotating baffle
• Mode: continuous or pulsed at 1.5 Hz / 3 Hz, set with DIP switches in the base
• Supply: 12...30 V DC, 33 mA at 12 V, 17 mA at 24 V
• Housing: polycarbonate, Ø70 x 72 mm
• Environment: IP65, IP66, -40...+50 °C

Works only with TL70B series bases and always sits at the top of the tower.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
