TL50RALS is a Banner TL50 series 50 mm tower light with one red segment and a sealed audible element. The light and the alarm have separate input wires, and the inputs act as PNP or NPN depending on the wiring.

• Color: red, 625 nm
• Audible: sealed, steady tone 2.9 kHz, 94 dB at 1 m, adjustable by about 20 dB by turning the front cover
• Inputs: bimodal PNP/NPN, response time max. 10 ms
• Supply: 18...30 V DC or 24 V AC ±3 V, 50/60 Hz; max. 45 mA light, 35 mA alarm
• Housing: ABS base and cover, polycarbonate segment, Ø50 x 134 mm, M30x1.5 thread
• Environment: IP67, UL 4X (indoor) and 13, -20...+50 °C
• Connection: 2 m PVC cable, 4 wires

CE compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

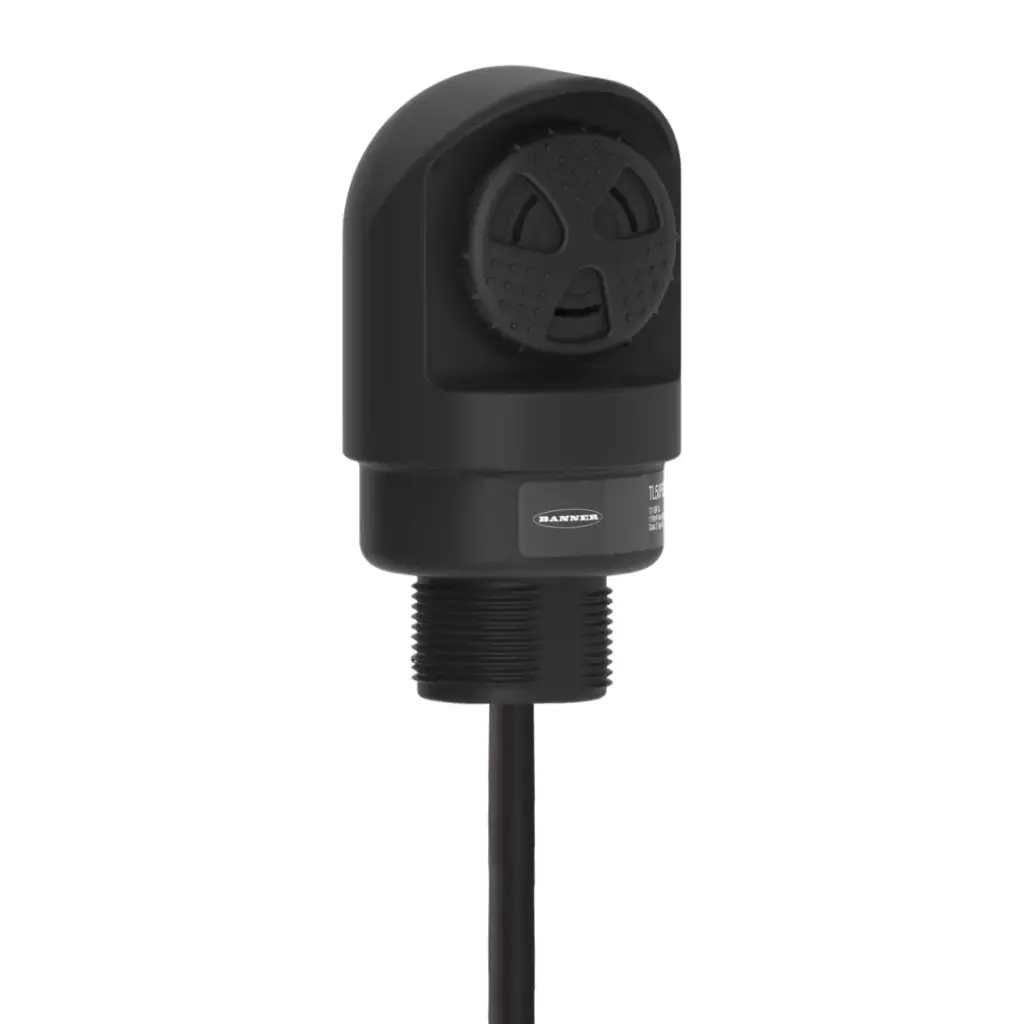

TL50ALS is a Banner TL50 series audible indicator in a 50 mm tower housing with a sealed audible element and no light segments. It runs on DC or 24 V AC and switches with a bimodal PNP or NPN input.

• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, about 20 dB reduction when turned down
• Input: bimodal PNP/NPN, response time 10 ms
• Supply: 12...30 V DC or 24 V AC ±3 V (50...60 Hz), 35 mA
• Housing: black ABS, M30x1.5 thread, Ø50 x 93.4 mm
• Environment: IP67, UL Type 4X Indoor and 13, -20...+50 °C
• Connection: 2 m PVC cable, 4 wires

Volume is set by rotating the front cover.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

LMB30RA is a Banner LMB series sealed right-angle bracket for indicators and sensors with a 30 mm threaded base. Gaskets and O-rings between the mounting surface, the base and the adapter give an IP67 installation, and the cable can be routed through the mounting surface.

• Included: base, 30 mm adapter, set screw, fasteners, O-rings and gaskets
• Device thread: M30 × 1.5
• Material: black polycarbonate
• Mounting: 3 × M5 screws (5.5 mm holes), 12.7 mm cable hole
• Protection rating: IP67 (assembled bracket)

The device is turned to the required orientation relative to the base and locked with the 8-32 set screw, tightened to 0.17 Nm max.

SMB30A is a Banner right-angle bracket for sensors with a 30 mm housing. The curved slot lets the sensor be turned before the screws are tightened.

• Sensor hole: Ø30.5 mm
• Mounting: M6 (¼") hardware, 40 mm hole centre spacing
• Material: 12-gauge stainless steel

K30LGRYPQ is a Banner K30L series 30 mm dome indicator with three LED colors driven by three separate PNP inputs. The electronics are fully encapsulated.

• Colors: green, red, yellow; one color on at a time
• Input: PNP, response time 1 ms
• Supply: 10...30 V DC, up to 25 mA per color
• Housing: polycarbonate, M22x1.5 threaded base, 30 x 57 mm
• Environment: IP67, IP69K, UL 4X and 13, -40...+50 °C
• Connection: integral 4-pin M12 male connector

The M22 base fits the standard 22 mm panel cut-out used for pushbuttons and pilot lights. IP69K lets the indicator stay in place during high-pressure washdown.

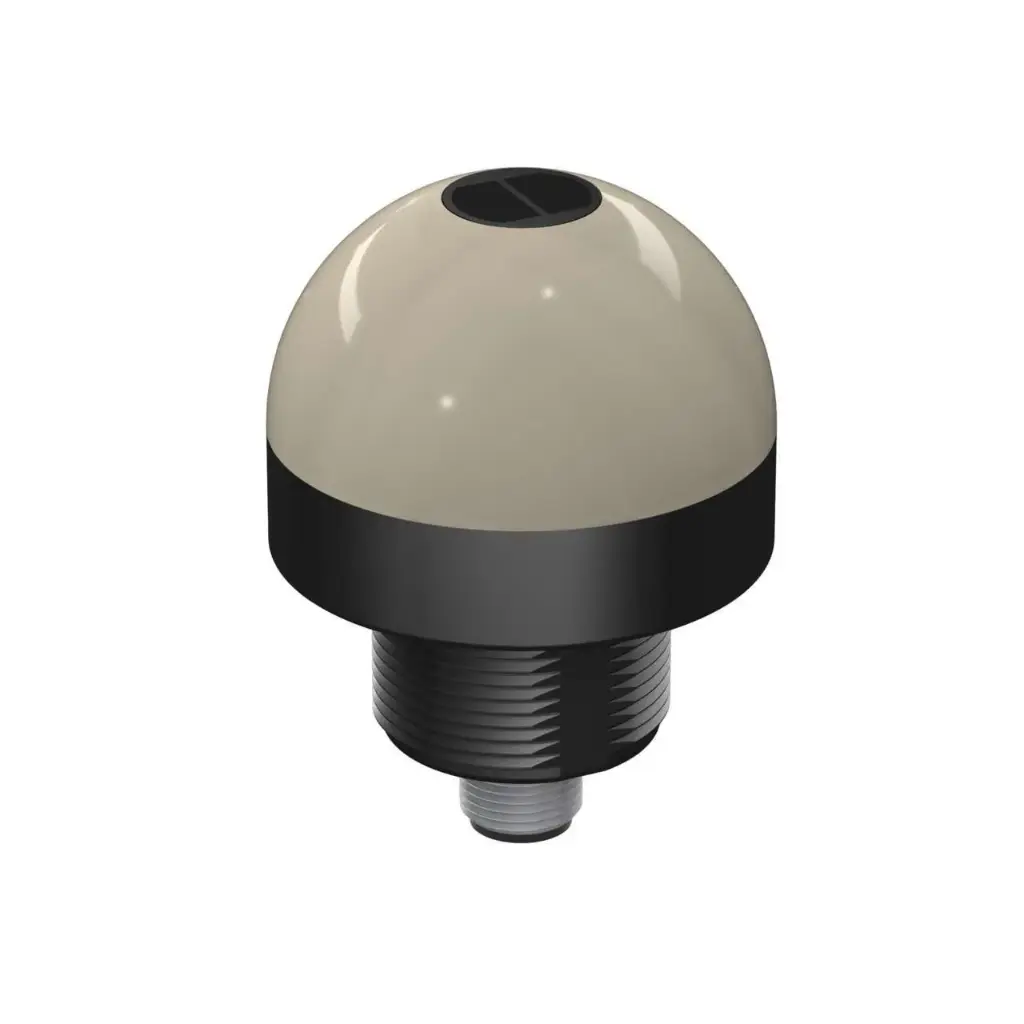

K50APFF100GRCQ is a Banner K50 series pick-to-light device: a 50 mm dome that lights green as a job light and an infrared fixed-field sensor with a 100 mm cutoff. When a hand enters the field the PNP output switches and the dome turns red to confirm the pick.

• Sensing: fixed field, 100 mm cutoff, infrared 880 nm, ambient light up to 5000 lux
• Output: PNP, normally open, max. 150 mA, response 3 ms
• Indicator: green job light (job input), red when a hand is sensed
• Supply: 12...30 V DC, < 75 mA at 12 V; AS-i compatible
• Housing: fully encapsulated, polycarbonate, M30x1.5 thread
• Environment: IP67 (IP69K with IP69K cordset), Type 4X and 13, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Used on picking racks and assembly stations to show which bin to take from and to confirm the pick without a separate sensor.

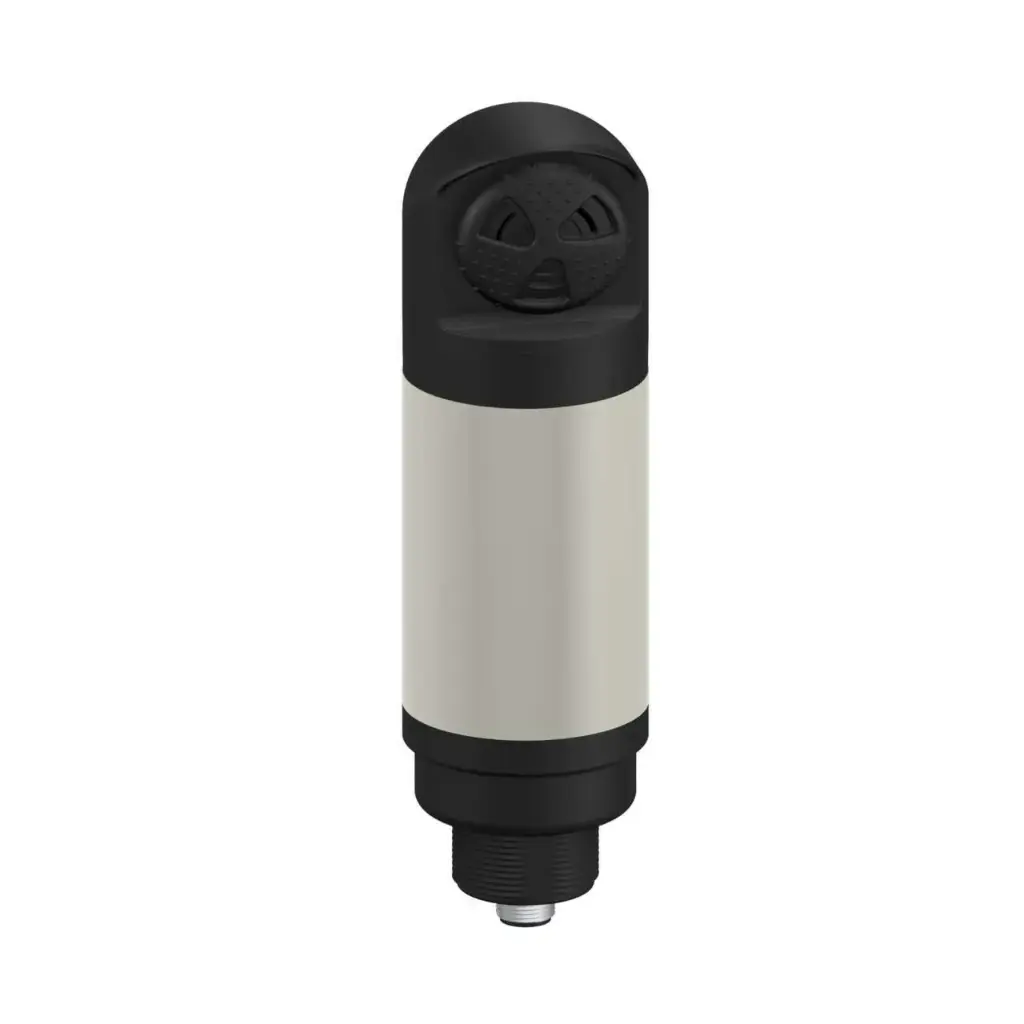

CL50GRYALSPQ is a Banner CL50 series 50 mm column light with three LED segments and a sealed loud audible alarm. Each color and the audible are switched by a separate PNP input.

• Colors: green (72 lm), red (38 lm), yellow (30 lm)
• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, adjustable volume
• Input: PNP, response time 10 ms
• Supply: 18...30 V DC, per color 100 mA at 18 V and 70 mA at 30 V, audible 35 mA
• Housing: ABS base and covers, polycarbonate light segments, M30x1.5 thread, 50 x 168.2 mm
• Environment: IP67, UL 4X and 13, -20...+50 °C
• Connection: integral 5-pin M12 male connector

The column comes factory-assembled, so it mounts in a single M30 hole with no modules to stack. Volume is set by rotating the front cover.

CE and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

K50LGRAL1YPQ is a Banner K50 series 50 mm three-color dome indicator with a loud steady audible alarm. Green, red, yellow and the alarm each have their own input wire, so they are switched independently by four PLC outputs.

• Colors: green, red, yellow
• Audible: steady tone 2.7 kHz, 95 dB at 1 m
• Inputs: PNP, response time max. 10 ms
• Supply: 18...30 V DC, max. 40 mA per color and alarm
• Housing: polycarbonate, M30x1.5 threaded base, Ø50 x 68 mm
• Environment: IP50, UL 4X and 13, -20...+50 °C
• Connection: integral 5-pin M12 male connector

The audible opening limits the rating to IP50, so the indicator is meant for locations without water spray. The base is fixed with the included M30 nut, max. torque 4.5 N·m.

CE compliant.

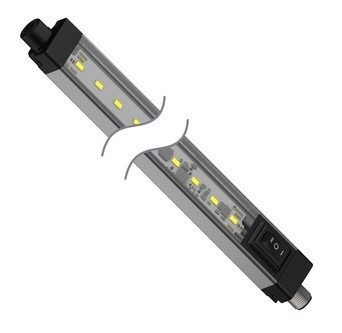

WLS28-2CW145XPBQ is a Banner WLS28-2 series 145 mm cool white work light with a High/Low/Off switch on the housing. It is a cascade model: further lights connect to it with double-ended cordsets, and the switch controls them too.

• Light: cool white 6500 K, 400 lm, CRI 85
• Switch: II - 100 %, I - 50 %, 0 - off
• Supply: 12...30 V DC, typical 0.15 A at 24 V
• Housing: anodized aluminum, clear polycarbonate window, 224 x 28 x 25 mm, two swivel brackets included
• Environment: IP50, -40...+70 °C, light output decreases above +50 °C
• Connection: integral 4-pin M12 male connector

In a cascade at 100 % intensity the total light length must not exceed 1.4 m at 12 V DC and 3.0 m at 24 V DC; at 50 % intensity the lengths double. LED lifetime L70 - 75,000 hours.

CE compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

Supplied without original packaging.

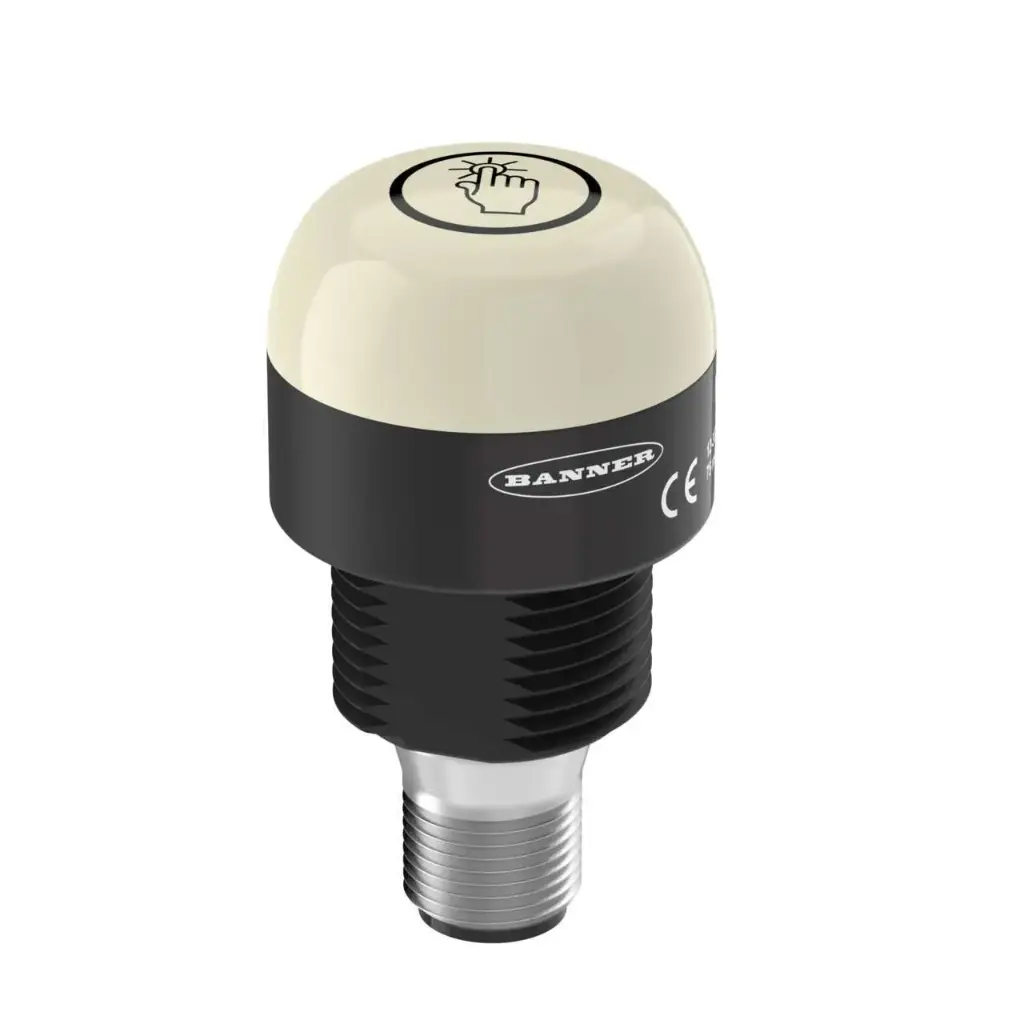

K30ALBTYRHQ is a Banner K30 series 30 mm capacitive touch button with a latching output. It glows yellow when not activated and red when activated, and each touch toggles the state.

• Function: latching, starts up not activated; output response 150 ms
• Output: bipolar (one PNP and one NPN), normally open, max. 150 mA
• Supply: 12...30 V DC, 55 mA, reverse polarity protected
• Housing: polycarbonate base and dome, M22x1.5 thread, Ø30 x 54.5 mm
• Environment: IP67, IP69K, Type 4X and 13, -40...+50 °C
• Connection: integral 5-pin M12 male connector

The button needs no actuation force and works with bare hands or gloves, which suits washdown areas where mechanical push buttons wear out.

Vibration per MIL-STD-202F method 201A, shock per IEC 60947-5-2 (30 G, 11 ms).

K50LGRA1YP is a Banner K50L series 50 mm dome indicator with three LED colors and an audible alarm. Each color and the audible have their own PNP input.

• Colors: green, red, yellow; one color on at a time
• Audible: continuous tone 3 kHz, 75 dB at 1 m
• Input: PNP, response time 10 ms
• Supply: 18...30 V DC, up to 40 mA per color or audible
• Housing: polycarbonate, M30x1.5 threaded base, 50 x 57 mm
• Environment: IP50, NEMA/UL 4X and 13, -20...+50 °C
• Connection: integral 2 m PVC cable, 5 wires

The housing is rated IP50, so the indicator is meant for dry rooms and control panels rather than washdown machinery.

K50LGRALSYPQ is a Banner K50L series sealed 50 mm dome indicator with three LED colors and a loud audible alarm. Each color and the audible have their own PNP input, so they can be switched independently from controller outputs.

• Colors: green, red, yellow; one color on at a time
• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, adjustable volume
• Input: PNP, response time 1 ms (LED) and 10 ms (audible)
• Supply: 12...30 V DC, up to 35 mA per color at 30 V (65 mA at 12 V), audible 35 mA
• Housing: polycarbonate, M30x1.5 threaded base, 50 x 73 mm
• Environment: IP67, NEMA/UL 4X and 13, -20...+50 °C
• Connection: integral 5-pin M12 male connector

Volume is set by rotating the front cover, so one model suits both a quiet room and a noisy machine. The supply circuit is protected against reverse polarity and transient voltages.

CE and UL compliant. Vibration per MIL-STD-202F (Method 201A), shock per IEC 60947-5-2 (30 G, 11 ms).

B-TL70-5 is a Banner TL70 series 70 mm modular tower light base that takes up to four SG-TL70 light or audible modules. Each module has its own input, which works with either a PNP or NPN signal.

• Modules: 1...4 SG-TL70 modules, each with a separate input
• Inputs: bimodal PNP/NPN, turn-on time up to 180 ms at 12 V
• Supply: 12...30 V DC
• Housing: polycarbonate, M30x1.5 threaded base, Ø70 x 47.5 mm
• Environment: IP65, -40...+50 °C
• Connection: integral 2 m PVC cable, 5 wires

Each module's position in the tower and its flashing are set with DIP switches in the module, so modules can be rearranged in the field. The base has no light of its own - the tower needs light modules ordered with it.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
