PKW3M-2/TEL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.4T-5/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKSV8T-10/TEL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 6.4 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.

RKC4.441T-10/TEB is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable has a blue PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, blue, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PT400R-2004-I2-DA91/X is a TURCK PT-2000 series relative pressure transmitter with a fully welded metal measuring cell and a 4...20 mA current output in 2-wire technology. It has no display: the measured value goes straight to the analogue input of a PLC or controller.

• Accuracy: ±0.3 % FS typical, max. 0.5 % FS (linearity, hysteresis, repeatability); temperature coefficient ±0.2 % FS/10 K; long-term stability 0.25 % FS per IEC EN 60770-1; reference conditions 15...25°C, 24 VDC
• Measuring range: 0...400 bar relative (0...40 MPa); overpressure ≤ 1200 bar, burst pressure ≥ 2400 bar; resolution ±0.1 % FS
• Output: analogue 4...20 mA, 2-wire, load ≤ (UB - 7)/20 kΩ; response time < 2 ms, typ. 1 ms
• Supply: 7...33 VDC, consumption ≤ 23 mA; protected against short circuit, wire break and reverse polarity
• Housing: stainless steel 1.4404 (AISI 316L) and polyarylamide 50 % GF (UL 94 V-0), stainless steel 1.4435 (AISI 316L) cell; G 1/4" male thread, back sealing per DIN EN ISO 1179-2 with FPM profile seal; wrench size 24, nut torque max. 20 Nm
• Environment: IP65, ambient -30...+85°C, medium -40...+135°C
• Connection: connector per DIN EN 175301-803, form A

A pressure peak orifice is built into the process connection. One FKM profile seal is included in the delivery.

Approval: cULus (UL E302799). Shock 100 g (11 ms) per IEC 68-2-27, vibration 20 g (15...2000 Hz) per IEC 68-2-6. MTTF 1189 years per SN 29500 (40°C).

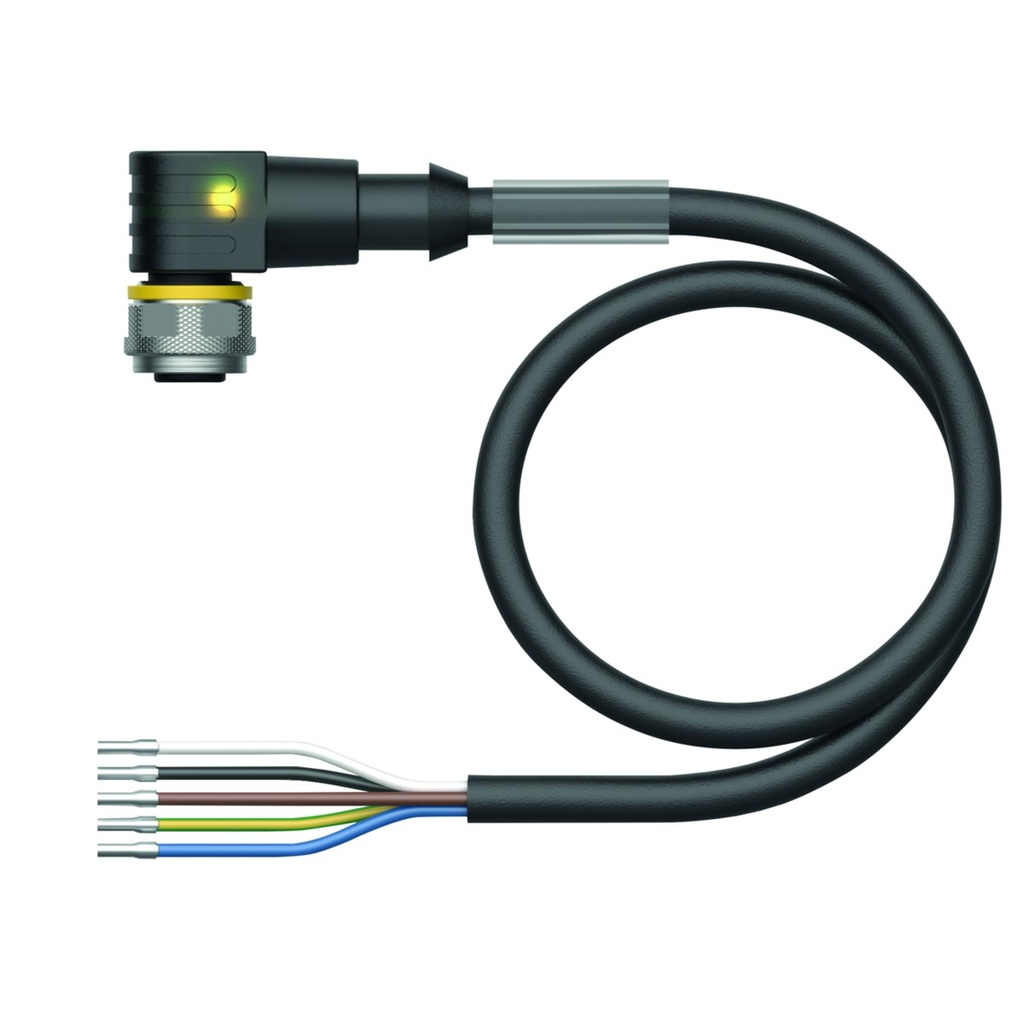

WKC5T-P7X3.1-15/TXL is a TURCK connection cable with an angled M12 female connector (4-pin + PE) on one end and open cores on the other. Pin 5 is the protective earth (PE). The connector has three built-in LED indicators: green shows the supply, yellow and red the state of the PNP signals.

• Connector: M12 x 1, female, angled, A-coded, 4-pin + PE, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GNYE
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-10/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.
