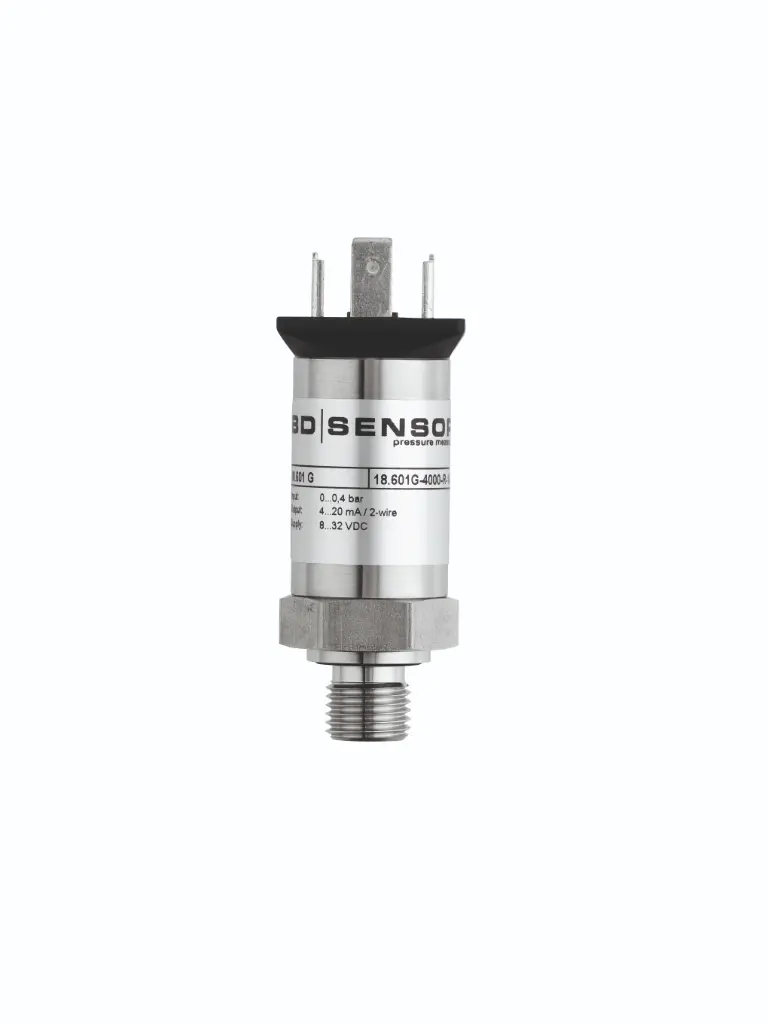

Pressure sensor 18.601G, -1...0 bar, 0-10 V, G 1/2" EN 837
The 18.601G OEM Pressure Transmitter is a low-pressure sensor designed for general industrial applications. It features a stainless steel measuring cell combined with a Viton (FKM) seal, ensuring good chemical resistance and reliable performance. Its compact, robust design makes it well suited for integration into OEM equipment and machinery.
Internal Reference |
18.601G-X102-R-3-5-100-200-1-000 |
| Brand | BD Sensors |
| Pressure range (bar) | -1...0 bar |
| Pressure range_old | ≤ 0.1 bar |
| Process sensor output | Analog 0-10 V |
| Process connection | G 1/2" |
| Supply | 12 VDC, 24 VDC |
| Electrical connection | DIN Connector |
| Wiring | 3-wire |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
