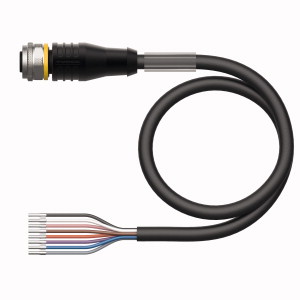

Connection cable RKSV8T-10/TEL, M12, female, straight, 8-pin, 10m PVC, shielded

RKSV8T-10/TEL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 6.4 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, 0...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

Approval: cULus.
