K50LGRALSYPQ is a Banner K50L series sealed 50 mm dome indicator with three LED colors and a loud audible alarm. Each color and the audible have their own PNP input, so they can be switched independently from controller outputs.

• Colors: green, red, yellow; one color on at a time
• Audible: continuous tone 2.9 kHz, up to 94 dB at 1 m, adjustable volume
• Input: PNP, response time 1 ms (LED) and 10 ms (audible)
• Supply: 12...30 V DC, up to 35 mA per color at 30 V (65 mA at 12 V), audible 35 mA
• Housing: polycarbonate, M30x1.5 threaded base, 50 x 73 mm
• Environment: IP67, NEMA/UL 4X and 13, -20...+50 °C
• Connection: integral 5-pin M12 male connector

Volume is set by rotating the front cover, so one model suits both a quiet room and a noisy machine. The supply circuit is protected against reverse polarity and transient voltages.

CE and UL compliant. Vibration per MIL-STD-202F (Method 201A), shock per IEC 60947-5-2 (30 G, 11 ms).

B-TL70-5 is a Banner TL70 series 70 mm modular tower light base that takes up to four SG-TL70 light or audible modules. Each module has its own input, which works with either a PNP or NPN signal.

• Modules: 1...4 SG-TL70 modules, each with a separate input
• Inputs: bimodal PNP/NPN, turn-on time up to 180 ms at 12 V
• Supply: 12...30 V DC
• Housing: polycarbonate, M30x1.5 threaded base, Ø70 x 47.5 mm
• Environment: IP65, -40...+50 °C
• Connection: integral 2 m PVC cable, 5 wires

Each module's position in the tower and its flashing are set with DIP switches in the module, so modules can be rearranged in the field. The base has no light of its own - the tower needs light modules ordered with it.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

B-TL70-Q5 is a Banner TL70 series 70 mm modular tower light base that takes up to four SG-TL70 light or audible modules. Each module has its own input, which works with either a PNP or NPN signal.

• Modules: 1...4 SG-TL70 modules, each with a separate input
• Inputs: bimodal PNP/NPN, turn-on time up to 180 ms at 12 V
• Supply: 12...30 V DC
• Housing: polycarbonate, M30x1.5 threaded base, Ø70 x 47.5 mm
• Environment: IP65, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Each module's position in the tower and its flashing are set with DIP switches in the module, so modules can be rearranged in the field. The base has no light of its own - the tower needs light modules ordered with it.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70-Y is a Banner TL70 series yellow 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: yellow, 590 nm, 22 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz, selected with DIP switches
• Supply: 12...30 V DC, 285 mA at 12 V, 145 mA at 24 V
• Housing: black polycarbonate, Ø70 x 50 mm
• Environment: IP65, -40...+50 °C

The module twist-locks onto a B-TL70 series base, which carries the electrical connection. The DIP switches set the module's position in the tower (1...6), so it can be moved to another position without rewiring.

CE and UKCA compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70-R is a Banner TL70 series red 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: red, 625 nm, 40 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz, selected with DIP switches
• Supply: 12...30 V DC, 285 mA at 12 V, 145 mA at 24 V
• Housing: black polycarbonate, Ø70 x 50 mm
• Environment: IP65, -40...+50 °C

The module twist-locks onto a B-TL70 series base, which carries the electrical connection. The DIP switches set the module's position in the tower (1...6), so it can be moved to another position without rewiring.

CE and UKCA compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70-A is a Banner TL70 series standard audible module for a modular tower light. One module offers four alarm patterns, and the volume is set by turning the cover.

• Sound: 2.6 kHz, up to 98 dB at 1 m (typical), adjustment range about 8 dB
• Pattern: continuous, pulsed 1.5 Hz, chirp or siren, selected with DIP switches
• Supply: 12...30 V DC, 30 mA
• Housing: black polycarbonate, Ø70 x 72 mm
• Environment: IP65, -40...+50 °C

The module twist-locks onto a B-TL70 series base, which carries the electrical connection. DIP switches set the module's position in the tower (1...6) and the alarm pattern.

CE and UKCA compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SG-TL70-G is a Banner TL70 series green 70 mm light module for a modular tower light. When off the segment looks gray, so ambient light does not make it appear lit.

• Color: green, 525 nm, 92 lm
• Mode: steady or flashing 1.5 Hz / 3 Hz, selected with DIP switches
• Supply: 12...30 V DC, 420 mA at 12 V, 200 mA at 24 V
• Housing: polycarbonate, Ø70 x 50 mm
• Environment: IP65, -40...+50 °C

The module twist-locks onto a B-TL70 series base. The DIP switches also set the module's position in the tower (1...6), so it can be moved to another position without rewiring.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

SMBQ4XFAM12 is a Banner bracket kit that clamps onto a 12 mm rod and carries a Q4X, QS18 or QS30 sensor on its flat plate. The rod clamp turns the sensor around the rod axis before it is locked.

• Fits: Banner Q4X, QS18 and QS30 sensors
• Rod: Ø 12 mm (1/2 in) rod bracket systems
• Material: zinc die-cast (Zamak)
• Size: plate 43.5 x 41.3 mm, sensor fixed with M3 screws
• Included: 1 bracket with hardware pack; the socket head cap screw for the rod clamp is not included

K50APT2GRYF2Q is a Banner K50 Touch Gen 2 series 50 mm illuminated touch button with a momentary PNP output. The dome shows three independently switched colors, with yellow overriding red and red overriding green.

• Colors: green 525 nm (29 lm), red 625 nm (13 lm), yellow 591 nm (24 lm), one PNP input per color
• Output: PNP, normally open, momentary, max. 150 mA, response 50 ms
• Supply: 12...30 V DC, < 75 mA at 12 V
• Housing: polycarbonate base and dome, PBT nut, M30x1.5 thread, Ø50 x 66 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 8-pin M12 male connector

If a touch lasts longer than 60 seconds, the output and color return to the untouched state, so a resting object does not hold the signal.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).

TL50GRQ is a Banner TL50 series 50 mm two-segment tower light with green (bottom) and red (top) segments. It comes assembled and each color is switched by its own bimodal input.

• Colors: green 525 nm (17 lm), red 625 nm (8 lm)
• Input: bimodal PNP/NPN, response 1 ms
• Supply: 18...30 V DC, 26 mA per segment
• Housing: polycarbonate, M30x1.5 thread, Ø50 x 137.4 mm; knurled nut and gasket included
• Environment: IP67, UL Type 4X, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).

AR715/S1/P/P/WA is an APAR panel meter that is set up as a flow meter with totaliser, pulse counter, encoder counter, batch dispenser or frequency meter. Two pulse inputs take NPN or PNP open-collector or contact (reed) signals, and the built-in 24 V supply powers the flow meter or encoder directly.

• Measurement: flow and total, pulse count, speed and position from an incremental encoder, dosing, frequency
• Input frequency: up to 10 kHz for flow and speed, 30 kHz counting with PNP, 100 kHz counting with NPN
• Outputs: 2 relays 8 A/250 VAC, analogue 0/4-20 mA for alarm or retransmission
• Display: 5-digit LED, 14 mm, four programmable colours
• Supply: 230 VAC (85-260 VAC), 24 VDC/50 mA sensor supply
• Housing: 96x48x79 mm, cut-out 92x46 mm, IP65 front, IP20 terminals

Extra inputs S (count enable), R (reset) and B (programmable) let a PLC or push-button start, stop and zero a batch without the keypad. The totaliser holds 10 digits with sign. This version has no RS485; parameters are set from the keypad or through the PRG port with an APAR programmer.

PT100R-2004-I2-DA91/X is a TURCK PT-2000 series relative pressure transmitter with a fully welded metal measuring cell and a 4...20 mA current output in 2-wire technology. It has no display: the measured value goes straight to the analogue input of a PLC or controller.

• Accuracy: ±0.3 % FS typical, max. 0.5 % FS (linearity, hysteresis, repeatability); temperature coefficient ±0.2 % FS/10 K; long-term stability 0.25 % FS per IEC EN 60770-1; reference conditions 15...25°C, 24 VDC
• Measuring range: 0...100 bar relative (0...10 MPa); overpressure ≤ 300 bar, burst pressure ≥ 600 bar; resolution ±0.1 % FS
• Output: analogue 4...20 mA, 2-wire, load ≤ (UB - 7)/20 kΩ; response time < 2 ms, typ. 1 ms
• Supply: 7...33 VDC, consumption ≤ 23 mA; protected against short circuit, wire break and reverse polarity
• Housing: stainless steel 1.4404 (AISI 316L) and polyarylamide 50 % GF (UL 94 V-0), stainless steel 1.4435 (AISI 316L) cell; G 1/4" male thread, back sealing per DIN EN ISO 1179-2 with FPM profile seal; wrench size 24, nut torque max. 20 Nm
• Environment: IP65, ambient -30...+85°C, medium -40...+135°C
• Connection: connector per DIN EN 175301-803, form A

A pressure peak orifice is built into the process connection. One FKM profile seal is included in the delivery.

Approval: cULus (UL E302799). Shock 100 g (11 ms) per IEC 68-2-27, vibration 20 g (15...2000 Hz) per IEC 68-2-6. MTTF 1189 years per SN 29500 (40°C).

PT16R-2008-I2-DA91/X is a TURCK PT-2000 series relative pressure transmitter with a fully welded metal measuring cell and a 4...20 mA current output in 2-wire technology. It has no display: the measured value goes straight to the analogue input of a PLC or controller.

• Accuracy: ±0.3 % FS typical, max. 0.5 % FS (linearity, hysteresis, repeatability); temperature coefficient ±0.2 % FS/10 K; long-term stability 0.25 % FS per IEC EN 60770-1; reference conditions 15...25°C, 24 VDC
• Measuring range: 0...16 bar relative (0...1.6 MPa); overpressure ≤ 48 bar, burst pressure ≥ 96 bar; resolution ±0.1 % FS
• Output: analogue 4...20 mA, 2-wire, load ≤ (UB - 7)/20 kΩ; response time < 2 ms, typ. 1 ms
• Supply: 7...33 VDC, consumption ≤ 23 mA; protected against short circuit, wire break and reverse polarity
• Housing: stainless steel 1.4404 (AISI 316L) and polyarylamide 50 % GF (UL 94 V-0), stainless steel 1.4016 (AISI 430) cell; G 1/2" male thread, combined back sealing and manometer connection; wrench size 27, nut torque max. 30 Nm
• Environment: IP65, ambient -30...+85°C, medium -40...+135°C
• Connection: connector per DIN EN 175301-803, form A

A pressure peak orifice is built into the process connection. One FKM profile seal is included in the delivery.

Approval: cULus (UL E302799). Shock 100 g (11 ms) per IEC 68-2-27, vibration 20 g (15...2000 Hz) per IEC 68-2-6. MTTF 1189 years per SN 29500 (40°C).

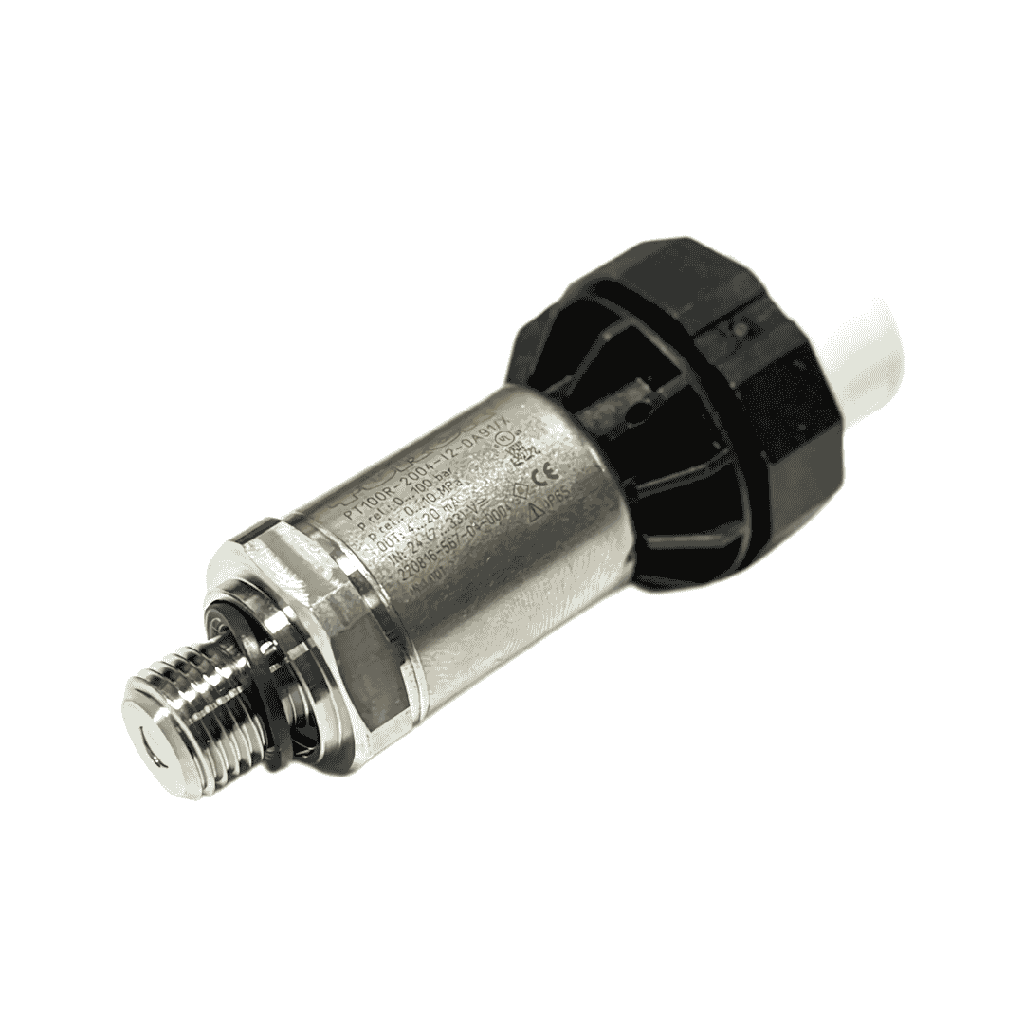

PT6R-1008-I2-DA91 is a TURCK PT-1000 series relative pressure transmitter with a ceramic Al₂O₃ measuring cell and a 4...20 mA current output in 2-wire technology. It has no display: the measured value goes straight to the analogue input of a PLC or controller.

• Accuracy: ±0.3 % FS typical, max. 0.5 % FS (linearity, hysteresis, repeatability); temperature coefficient ±0.2 % FS/10 K; long-term stability 0.25 % FS per IEC EN 60770-1; reference conditions 15...25°C, 24 VDC
• Measuring range: 0...6 bar relative (0...0.6 MPa); overpressure ≤ 18 bar, burst pressure ≥ 18 bar; resolution ±0.1 % FS
• Output: analogue 4...20 mA, 2-wire, load ≤ (UB - 7)/20 kΩ; response time < 2 ms, typ. 1 ms
• Supply: 7...33 VDC, consumption ≤ 23 mA; protected against short circuit, wire break and reverse polarity
• Housing: stainless steel 1.4404 (AISI 316L) and polyarylamide 50 % GF (UL 94 V-0), ceramic Al₂O₃ cell, FPM seal; G 1/2" male thread, combined back sealing and manometer connection; wrench size 27, nut torque max. 30 Nm
• Environment: IP65, ambient -30...+85°C, medium -40...+125°C
• Connection: connector per DIN EN 175301-803, form A

One FKM profile seal is included in the delivery.

Approval: cULus (UL E302799). Shock 100 g (11 ms) per IEC 68-2-27, vibration 20 g (15...2000 Hz) per IEC 68-2-6. MTTF 1189 years per SN 29500 (40°C).

SMBQ20LV is a Banner right-angle stainless steel bracket for mounting a Q20 sensor vertically from the back. The sensor can be tipped ±10° to align the beam after the bracket is fixed.

• Fits: Banner Q20 sensors
• Type: right-angle, vertical back mount, ±10° tilt
• Material: stainless steel
• Included: 1 bracket, no mounting hardware
