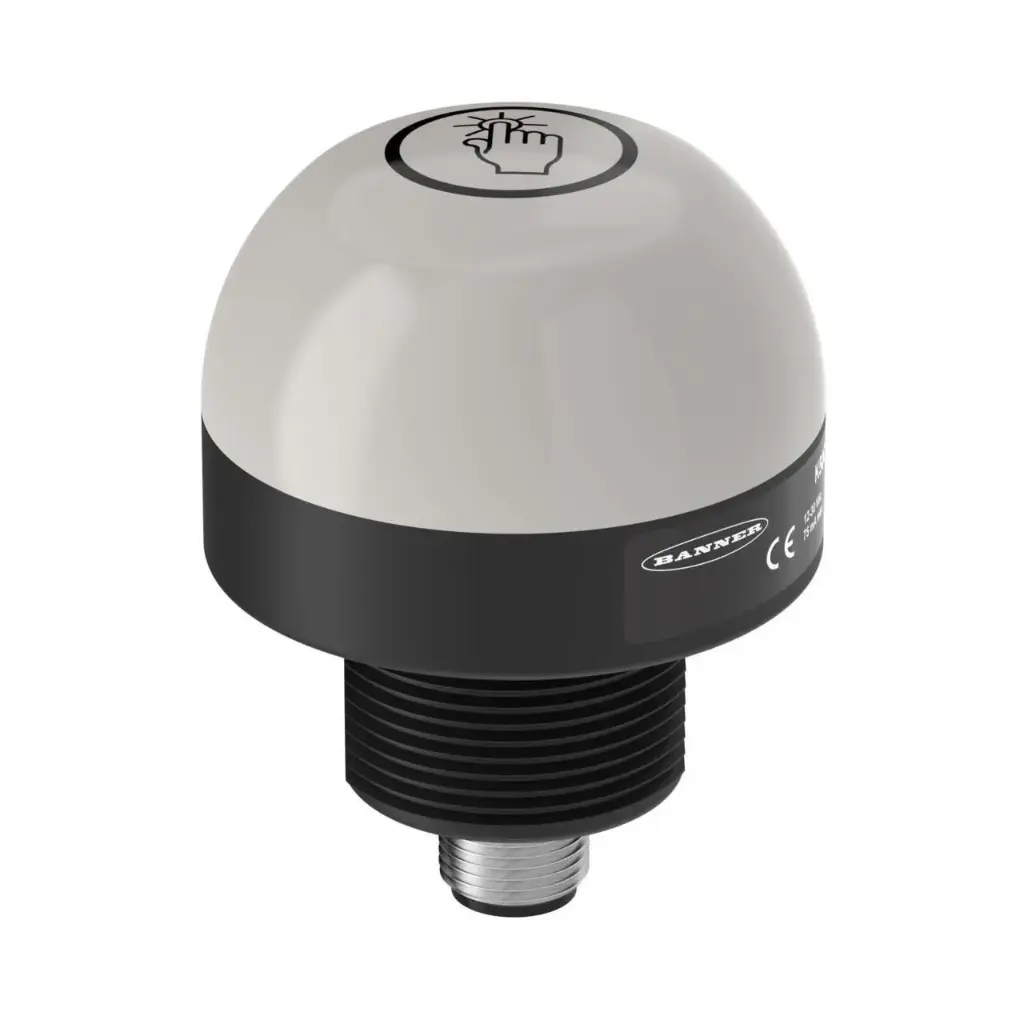

Touch button K50APT2GRYF2Q, green/red/yellow, momentary, PNP NO, 12-30VDC, IP69K, M30, M12 8-pin

K50APT2GRYF2Q is a Banner K50 Touch Gen 2 series 50 mm illuminated touch button with a momentary PNP output. The dome shows three independently switched colors, with yellow overriding red and red overriding green.

• Colors: green 525 nm (29 lm), red 625 nm (13 lm), yellow 591 nm (24 lm), one PNP input per color
• Output: PNP, normally open, momentary, max. 150 mA, response 50 ms
• Supply: 12...30 V DC, < 75 mA at 12 V
• Housing: polycarbonate base and dome, PBT nut, M30x1.5 thread, Ø50 x 66 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 8-pin M12 male connector

If a touch lasts longer than 60 seconds, the output and color return to the untouched state, so a resting object does not hold the signal.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
