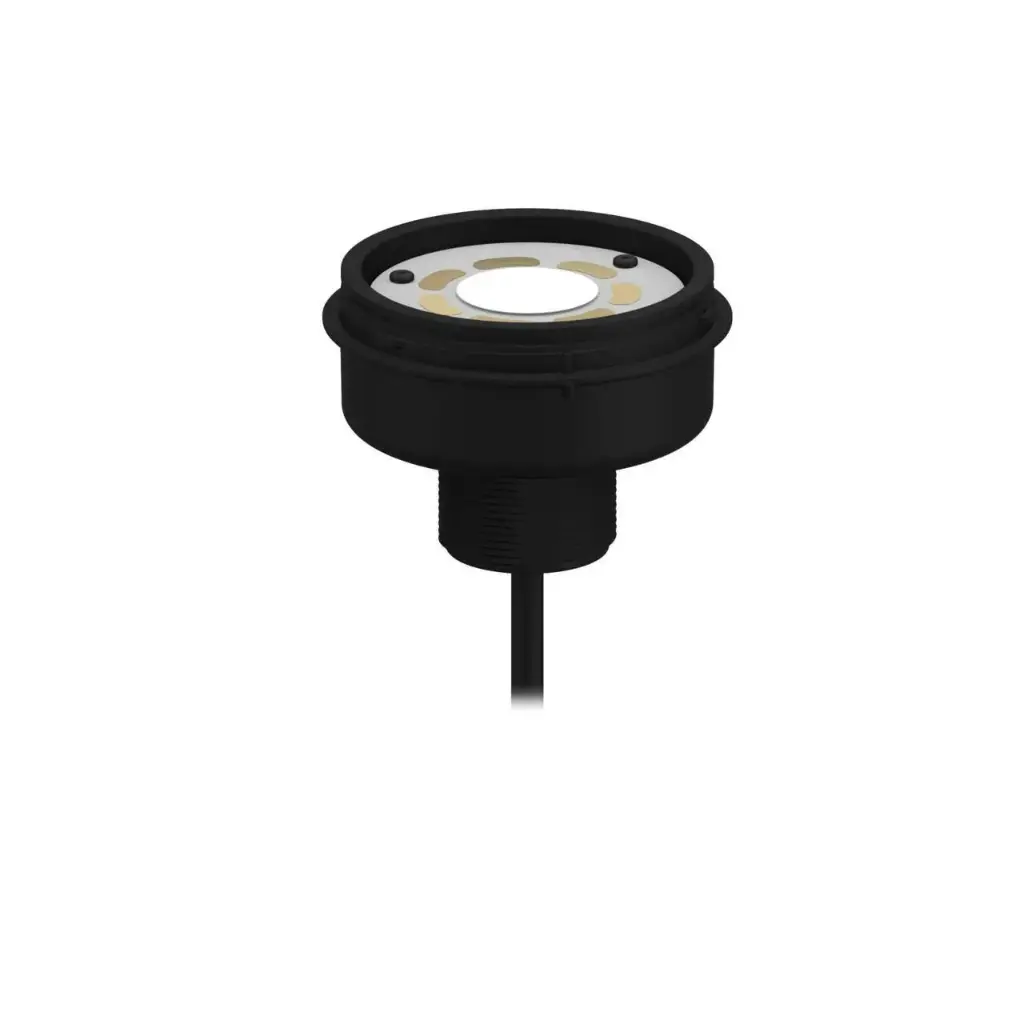

LED indication tower base B-TL70-5, 12-30VDC, up to 4 modules, 2 m cable

B-TL70-5 is a Banner TL70 series 70 mm modular tower light base that takes up to four SG-TL70 light or audible modules. Each module has its own input, which works with either a PNP or NPN signal.

• Modules: 1...4 SG-TL70 modules, each with a separate input
• Inputs: bimodal PNP/NPN, turn-on time up to 180 ms at 12 V
• Supply: 12...30 V DC
• Housing: polycarbonate, M30x1.5 threaded base, Ø70 x 47.5 mm
• Environment: IP65, -40...+50 °C
• Connection: integral 2 m PVC cable, 5 wires

Each module's position in the tower and its flashing are set with DIP switches in the module, so modules can be rearranged in the field. The base has no light of its own - the tower needs light modules ordered with it.

CE, UKCA and UL compliant. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
