! Without packaging!

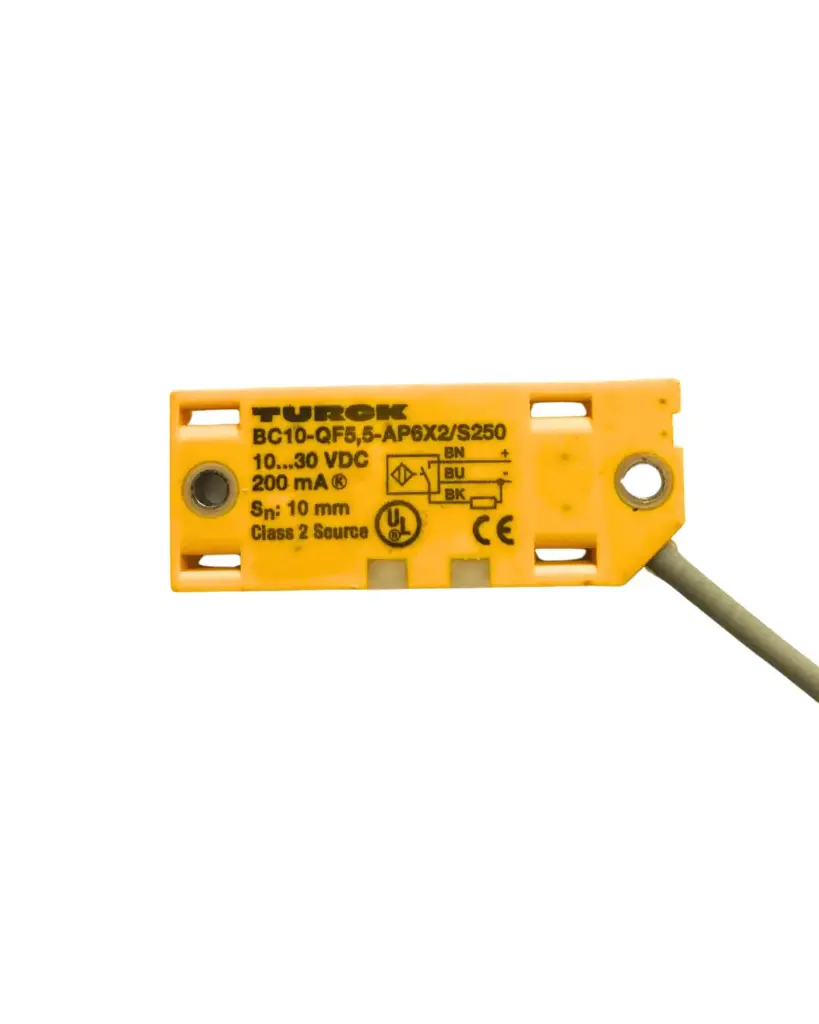

Capacitive Sensor

Rated switching distance 10 mm

Flush; Cable length 2 m; Rectangular, height 5.5 mm; Large active face, marked for correct installation; Plastic, PP; Fixed settings; DC 3-wire, 10…30 VDC; NO contact, NPN output; Cable connection

Without packaging

!Without packaging!

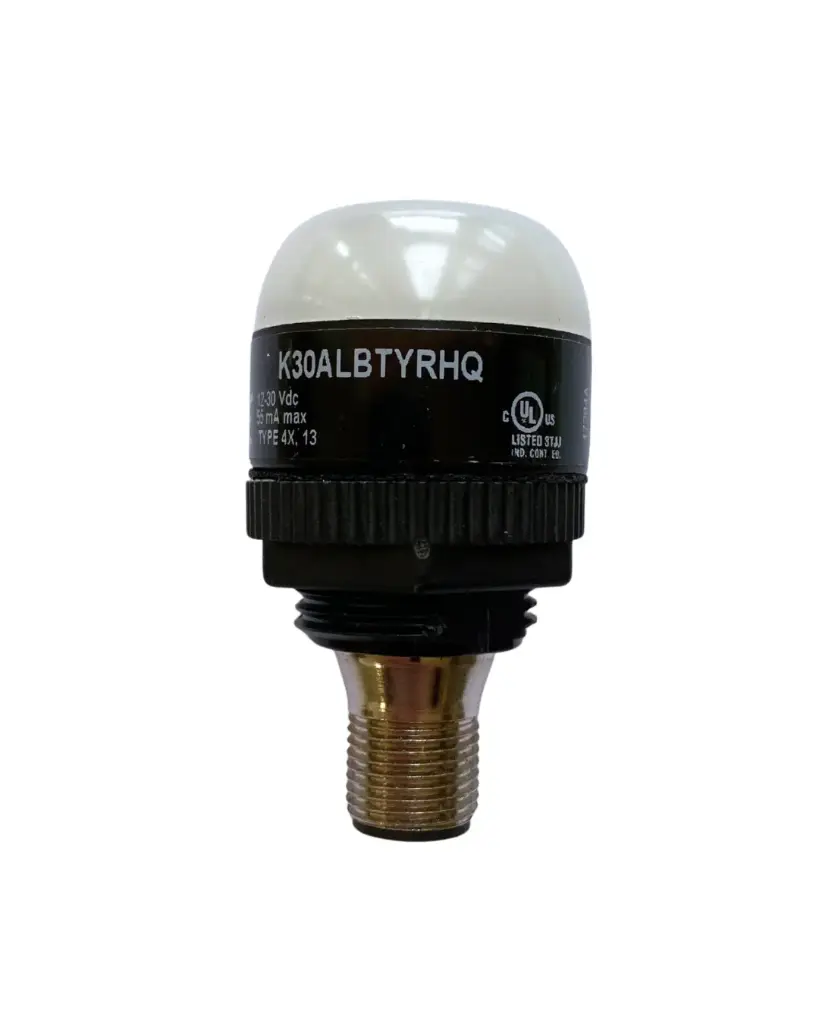

K30 Series: 2-Color Touch Sensor; Latching Output

Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K

Output: Bipolar (NO); Colors: Yellow - Not Activated, Red - Activated

5-pin M12 Integral QD

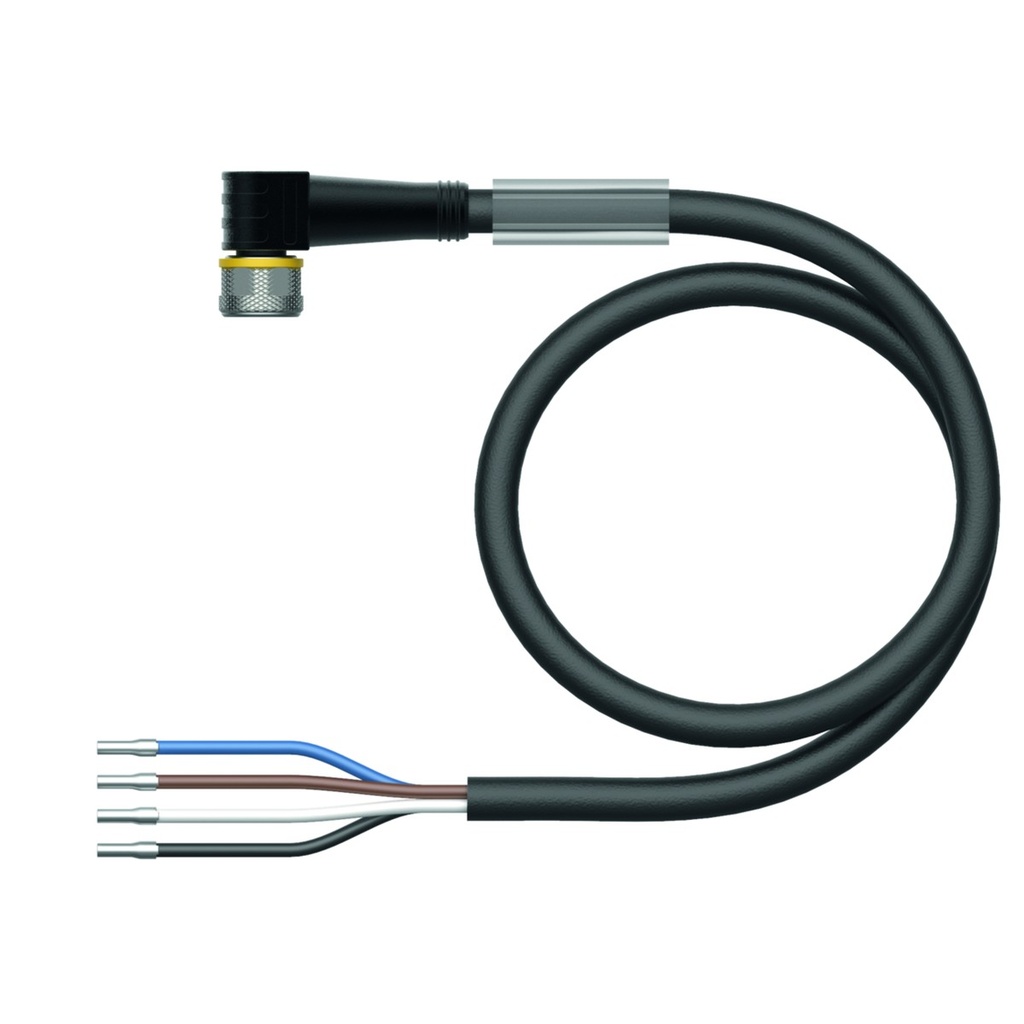

PKW4M-5/TEL is a TURCK connection cable with an angled M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, angled, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKS4.4T-0.3-PSGS4M/TXL is a TURCK shielded connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (4-pin). The cable shield is connected to the M12 coupling nut.

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

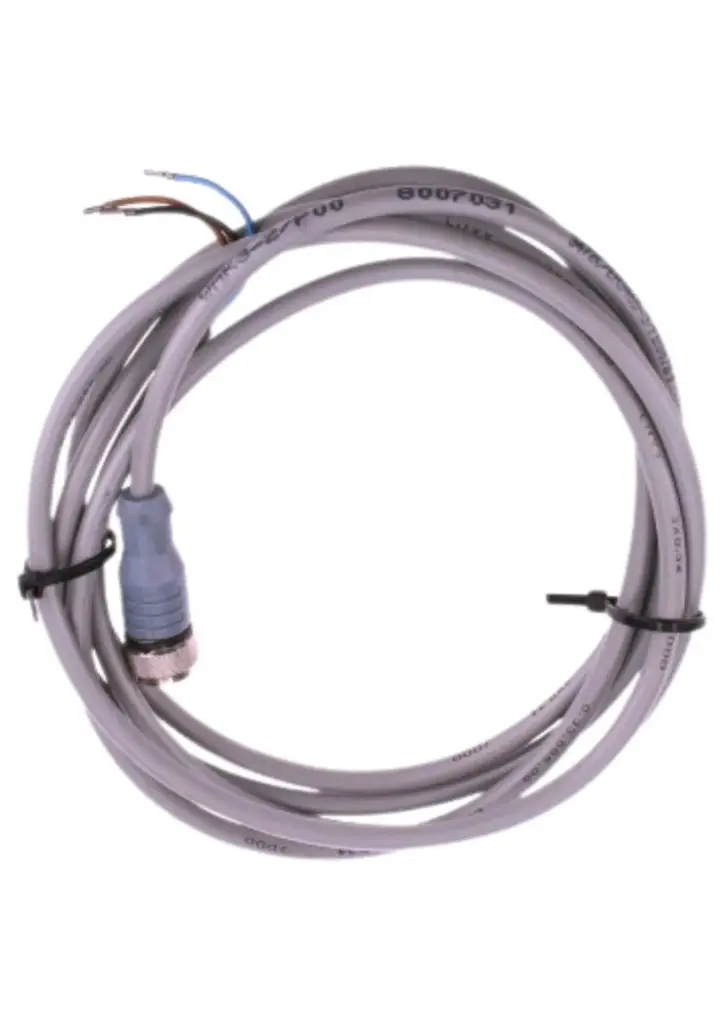

M12, female, straight, 3 poles, sensor-/actuator cable

RKH4.5-5/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, grey (RAL 7040), Ø 4.9 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.

RKH4.5-10/TFE is a TURCK hygienic-design connection cable for food and beverage production, with a straight M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, grey (RAL 7040), Ø 4.9 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: grey PP, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP65, IP67, IP68, IP69 (only when screwed in); -25...+80°C fixed, 0...+80°C mobile

The jacket resists acids, alkalis, oils and chemicals and is flame retardant per DIN EN 60332-1-2 and DIN EN 60332-2-2. RoHS and REACH compliant, approvals: Ecolab, GOST.

RKC4T-0.3-PSG3M/TXL is a TURCK connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (3-pin).

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

TX715FB-P3CV01 is a 7" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The FB version for the food industry has a stainless steel AISI 316L frame, a food-grade seal and an IP69 front that withstands high-pressure water up to 80 °C, acids and chemicals.

• Display: 7" TFT, 1366 x 768 (HD), 16:9, 16M colours, 400 cd/m², capacitive glass front with polyester coating, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Quad core 800 MHz, 2048 MB RAM, 8 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 1.2 A
• Housing: die-cast aluminium, stainless steel AISI 316L frame, polyester front foil, mounting depth 56+8 mm
• Environment: IP69 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Intended for operator stations in food and beverage production. Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 7" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

WKC4.4T-P7X2-5-RSC4.4T/TXL is a TURCK extension cable with an angled M12 female connector on one end and a straight M12 male connector on the other (4-pin). The female connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connectors: M12 x 1 female, angled / M12 x 1 male, straight; A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: female translucent TPU, male black TPU; nickel-plated brass coupling nuts, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

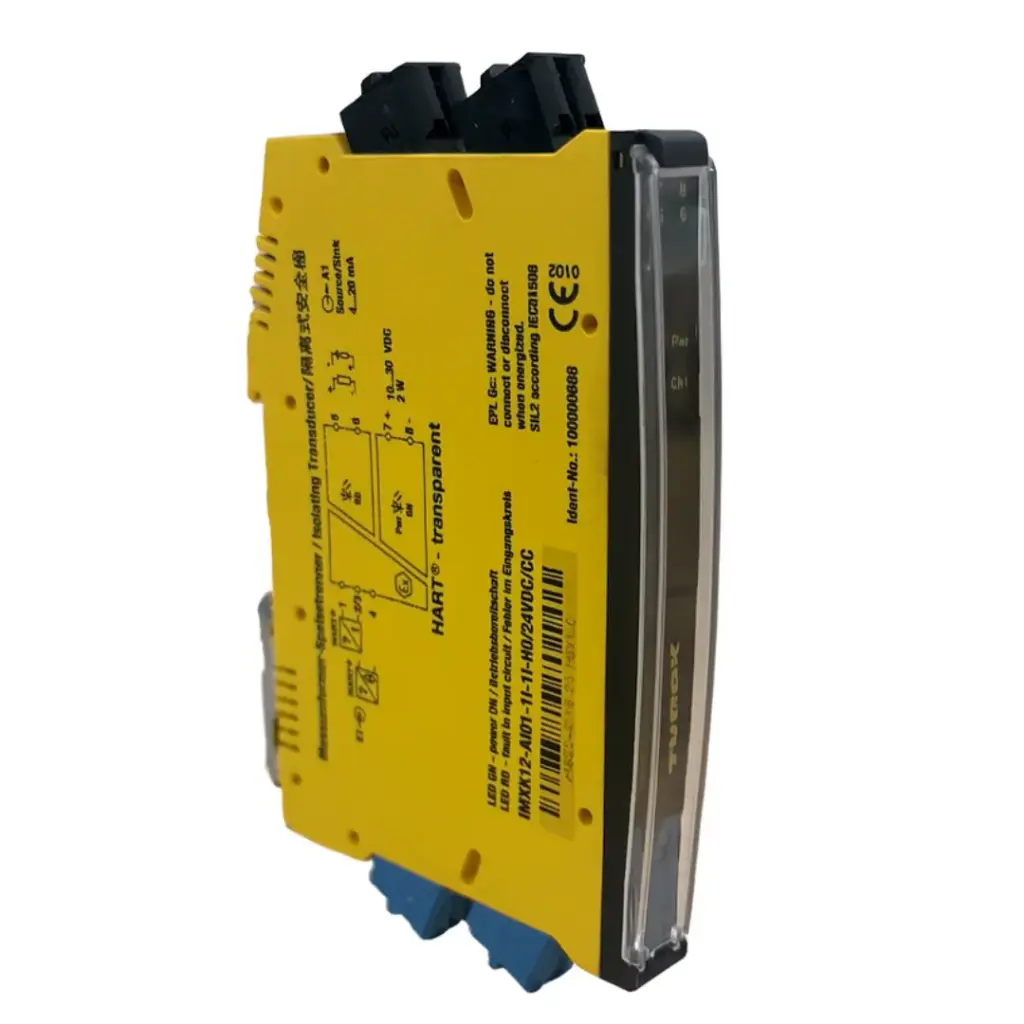

1-channel

• • Input circuits monitored for wire break and short circuit
  • Complete galvanic isolation
  • HART transparent
  • Removable cage clamp terminals
  • ATEX, IECEx, cULus
  • Use in zone 2
  • SIL 2

S4BR30-300-S is the receiver of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 30 mm resolution (hand detection). When any beam is interrupted, both OSSD safety outputs switch off; the lighted end cap shows clear, weak beam, blocked beam or fault from a distance.

• Defined area: 300 mm; resolution 30 mm; response time 7.5 ms
• Operating range: 0.1...12 m
• Outputs: two redundant PNP OSSD safety outputs, 24 V DC, max 0.5 A each; configurable pin for weak beam output or IO-Link (COM2)
• Supply: +24 V DC ±15 %, 96 mA typical without load
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; 5-pin or 8-pin RD cordset with M12 ordered separately

With the 8-pin RD cordset the receiver monitors the contactors itself (EDM) and needs no external safety module; with the 5-pin cordset it is wired to a safety relay, safety controller or safety PLC. Reduced resolution can be switched on to ignore one blocked beam, and up to four pairs can be cascaded.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

S4BE30-300-S is the emitter of a Banner EZ-SCREEN S4B Type 4 safety light curtain with a 300 mm defined area and 30 mm resolution (hand detection). It projects a row of synchronised, modulated infrared beams (860 nm) from end to end of the housing, so there is no dead zone at either end.

• Defined area: 300 mm; resolution 30 mm; system response time 7.5 ms
• Operating range: 0.1...12 m
• Indicators: bi-colour status indicator, two tri-colour scan code indicators
• Supply: +24 V DC ±15 %, 33 mA typical
• Housing: anodised aluminium, 38 x 40 mm, glass-filled polycarbonate end caps
• Environment: IP65, -20...+55 °C, indoor use
• Connection: RD (removable disconnect) socket; RD cordset with M12 ordered separately

The emitter works only as a pair with an S4B receiver of the same length and resolution. The scan code (1 or 2) is set with switches in the RD cordset, so that two pairs mounted close to each other do not interfere.

Type 4 per IEC 61496-1 and -2, Category 4 PL e per EN ISO 13849-1, SIL3 per IEC 61508. MTTFd 287 years, PFHd 3.08 × 10⁻⁹ (single pair).

S4BA-MBK-11 is an end mount bracket kit for Banner EZ-SCREEN S4B safety light curtains: two L-brackets with a glass-filled polycarbonate adapter that lets the sensor rotate ±15°.

• Fits: S4B emitters and receivers with FID 3 or older
• Included: 2 brackets and mounting hardware
• Material: 8-gauge cold-rolled steel, black zinc finish; glass-filled polycarbonate adapter
• Adjustment: ±15° rotation

Not for FID 4 and later S4B units (the models with the lighted end cap). Light curtains longer than 900 mm also need a side mount bracket.

DES4-M51-D is the RD (removable disconnect) cordset that plugs directly into an S4B safety light curtain housing and brings the connection out to a 5-pin M12 male connector. It fits S4B units with FID 2 or later; the scan code switches sit in its housing-side connector.

• Connector: S4B RD female, straight / M12x1 male, straight, A-coded, 5-pin
• Cable: 0.4 m, black PVC, Ø 5.46 mm, 22 AWG
• Rating: 2 A, 60 V AC / 75 V DC
• Body: black PUR overmould, nickel-plated brass coupling nut
• Environment: IP65, -40...+70 °C

With the 5-pin cordset the S4B receiver is wired to a safety relay, safety controller or safety PLC.

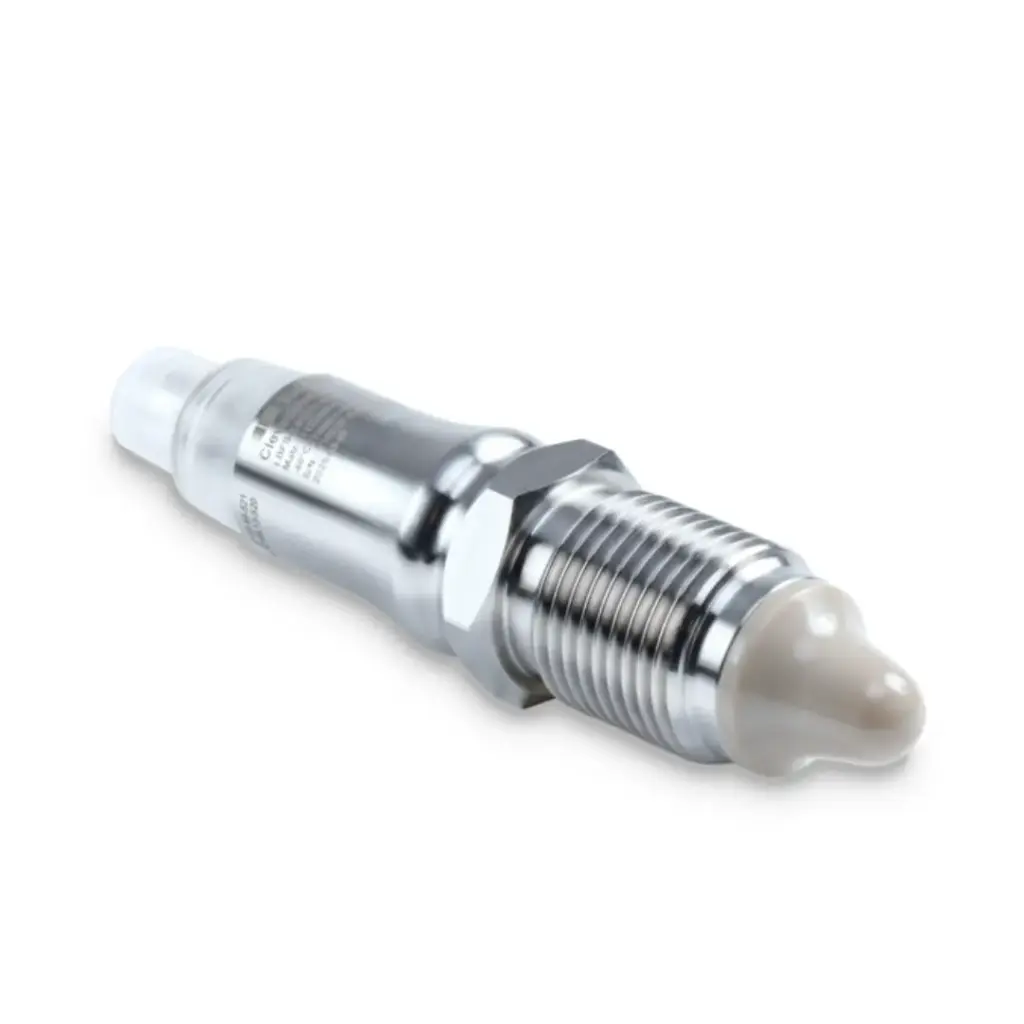

LBFS-2.01111.0 is a capacitive point level switch from the Baumer CleverLevel series with a G 1/2" A ISO 228-1 BSC process thread. The Frequency Sweep measuring principle sets the switching point from the dielectric constant of the medium (DC > 1.5), and the device carries two independent outputs, SW1 and SW2, each set separately to High-Active or Low-Active logic.

• Switching: point level detection, Single Point, Two Point and Window trigger modes, hysteresis < ±1 mm, repeatability < ±1 mm
• Output: two PNP outputs (SW1, SW2), each separately High-Active or Low-Active, 50 mA, step response T90 0.1 s, adjustable damping 0...60 s
• Supply: 8.5...35 V DC, current consumption < 8 mA (typ.)
• Housing: stainless steel; wetted parts PEEK Natura and AISI 304 (1.4301), Ra ≤ 0.8 µm
• Environment: process temperature -40...115 °C (135 °C temporarily), process pressure -1...100 bar (-1...80 bar temporarily), IP67 and IP69K with a matching mating connector
• Connection: M12-A, 4-pin, polycarbonate connector with status LED indicators

The switch is intended for tanks and pipework in industrial plant with a G 1/2" internal thread and pressures up to 100 bar. Mounting position is free - top, bottom or side. Damping of up to 60 s is set so that surface movement or splashing does not cause false switching.

The PEEK material complies with USP Class VI. cULus listed, E365692. Marine approvals: DNV, Lloyd's Register and CCS. EMC compliance to EN 61326-1 and EN 50121-3-2.

LBFS-2.01421.0 is a capacitive point level switch from the Baumer CleverLevel series with a G 1/2" A hygienic process connection. The Frequency Sweep measuring principle sets the switching point from the dielectric constant of the medium (DC > 1.5), and the device carries two independent outputs, SW1 and SW2, each set separately to High-Active or Low-Active logic.

• Switching: point level detection, Single Point, Two Point and Window trigger modes, hysteresis < ±1 mm, repeatability < ±1 mm
• Output: two PNP outputs (SW1, SW2), each separately High-Active or Low-Active, 50 mA, step response T90 0.1 s, adjustable damping 0...60 s
• Supply: 8.5...35 V DC, current consumption < 8 mA (typ.)
• Housing: stainless steel; wetted parts PEEK Natura and AISI 316L (1.4404), Ra ≤ 0.8 µm
• Environment: process temperature -40...115 °C (135 °C temporarily), process pressure -1...10 bar, IP67 and IP69K with a matching mating connector
• Connection: M12-A, 4-pin, polycarbonate connector with status LED indicators

The switch is intended for tanks and pipework in food, beverage and pharmaceutical plant, where the Ra ≤ 0.8 µm surface finish and the hygienic connection allow CIP cleaning without removing the sensor. The hygienic connection limits process pressure to 10 bar. Mounting position is free - top, bottom or side.

Complies with EN 1935/2004, EN 10/2011 and EN 2023/2006, FDA, 3-A (74-07) and EHEDG EL Class I. The PEEK material complies with USP Class VI. cULus listed, E365692. Marine approvals: DNV, Lloyd's Register and CCS.
