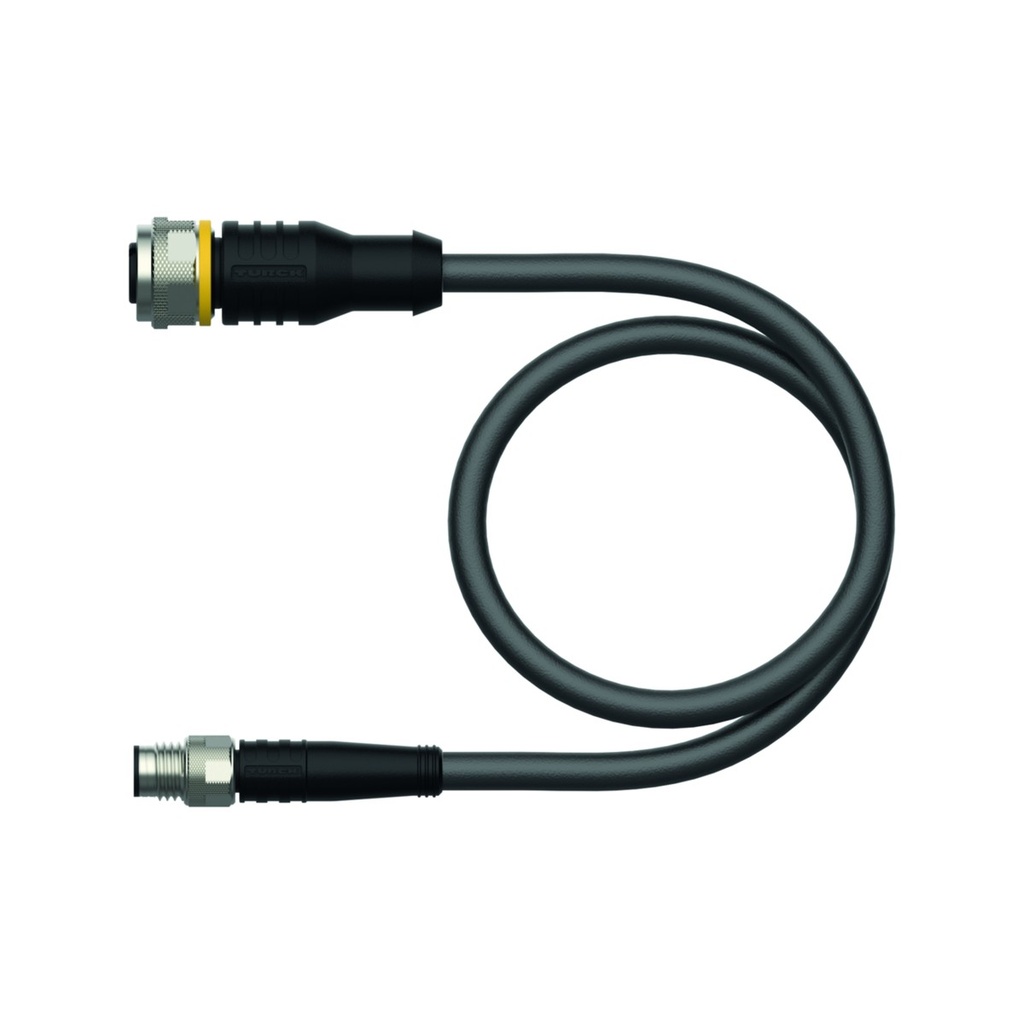

Connection cable RKS4.4T-0.3-PSGS4M/TXL, M12 female / M8 male, straight, 4-pin, 0.3m PUR, shielded

RKS4.4T-0.3-PSGS4M/TXL is a TURCK shielded connection cable with a straight M12 female connector on one end and a straight M8 male connector on the other (4-pin). The cable shield is connected to the M12 coupling nut.

• Connectors: M12 x 1 female, A-coded / M8 x 1 male, both straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 0.3 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 50 VAC/60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.
