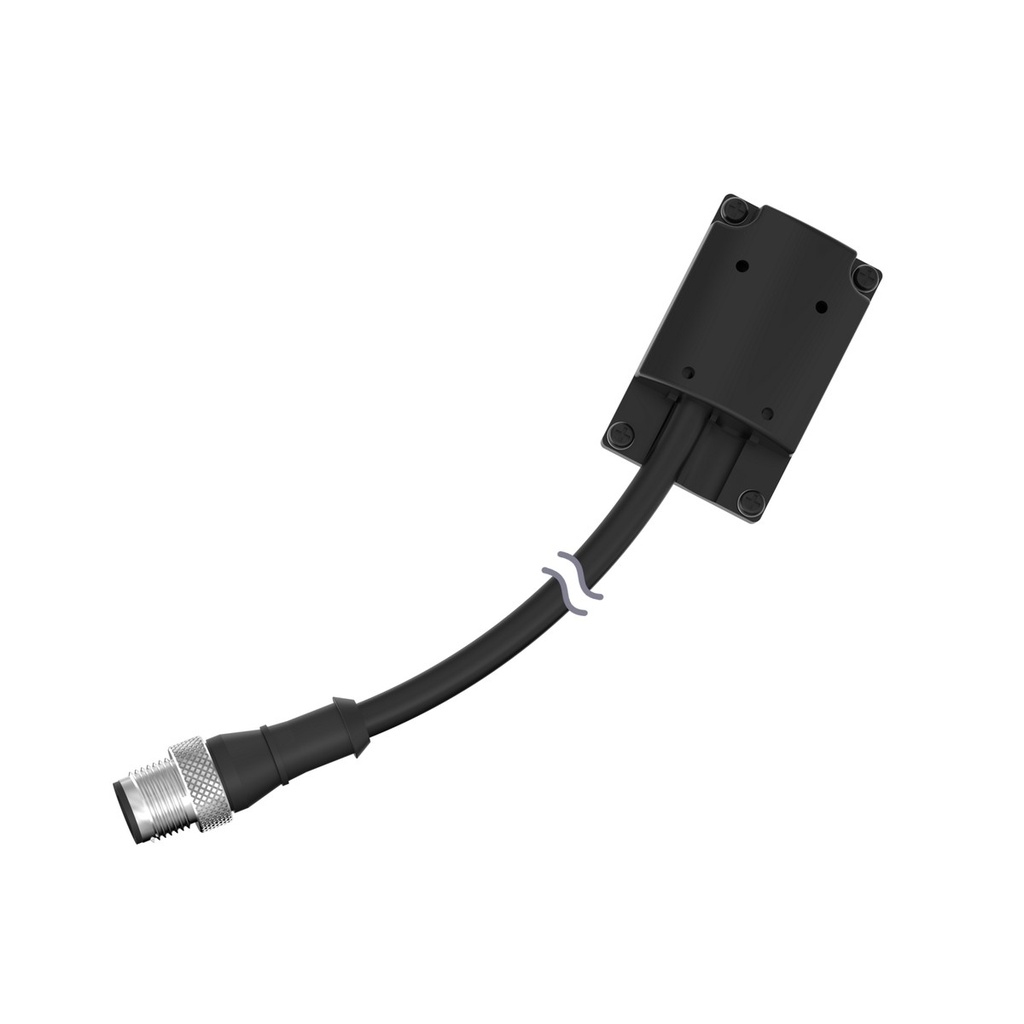

Connection cable DES4-M51-D, S4B RD to M12 male 5-pin, 0.4 m, PVC

DES4-M51-D is the RD (removable disconnect) cordset that plugs directly into an S4B safety light curtain housing and brings the connection out to a 5-pin M12 male connector. It fits S4B units with FID 2 or later; the scan code switches sit in its housing-side connector.

• Connector: S4B RD female, straight / M12x1 male, straight, A-coded, 5-pin
• Cable: 0.4 m, black PVC, Ø 5.46 mm, 22 AWG
• Rating: 2 A, 60 V AC / 75 V DC
• Body: black PUR overmould, nickel-plated brass coupling nut
• Environment: IP65, -40...+70 °C

With the 5-pin cordset the S4B receiver is wired to a safety relay, safety controller or safety PLC.
