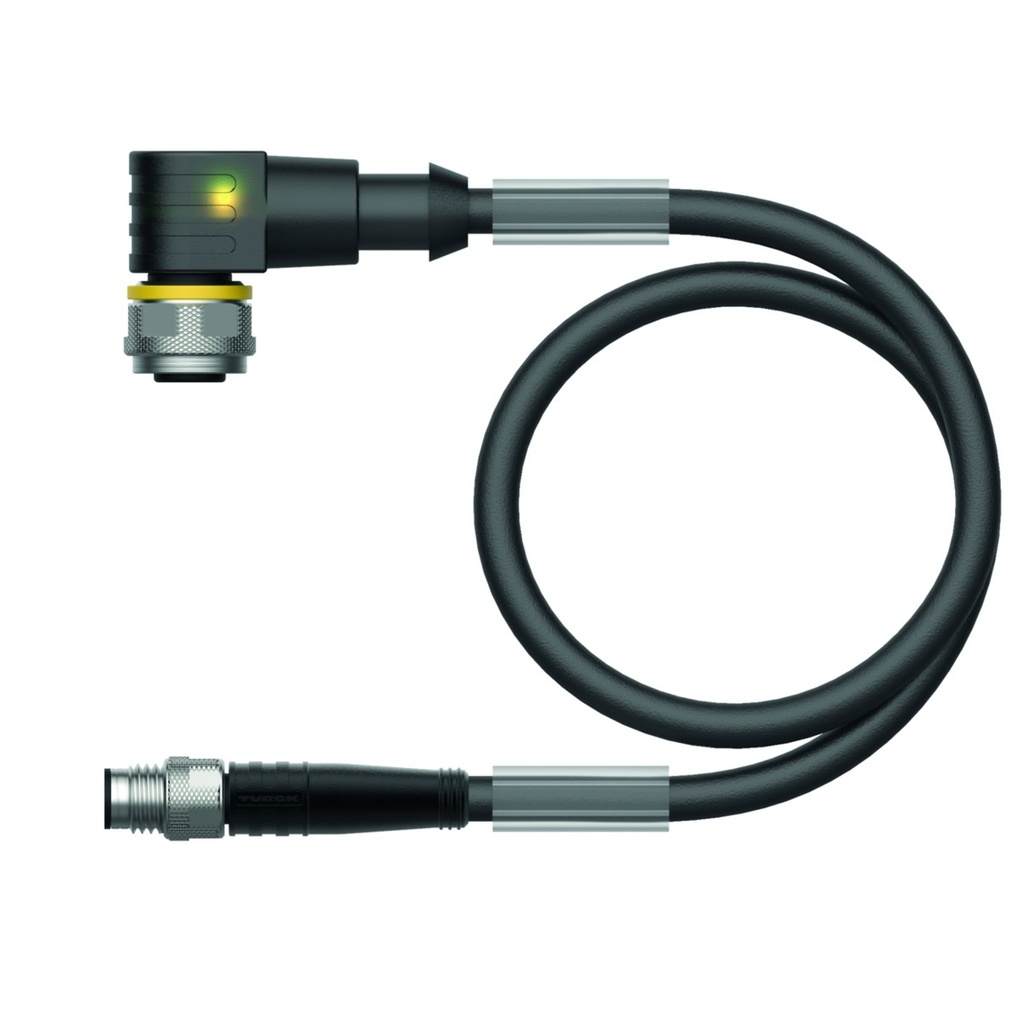

Connection cable WKC4T-P7X2-5-PSG3M/TXL, M12 female angled / M8 male straight, 3-pin, 5m PUR, LED

WKC4T-P7X2-5-PSG3M/TXL is a TURCK adapter cable with an angled M12 female connector on one end and a straight M8 male connector on the other, both 3-pin. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connectors: M12 x 1 female, angled, A-coded / M8 x 1 male, straight; both 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.1 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: M12 translucent TPU, M8 black TPU; nickel-plated brass coupling nuts, FPM/FKM seal; M8 tightening torque 0.5...0.6 Nm
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.
