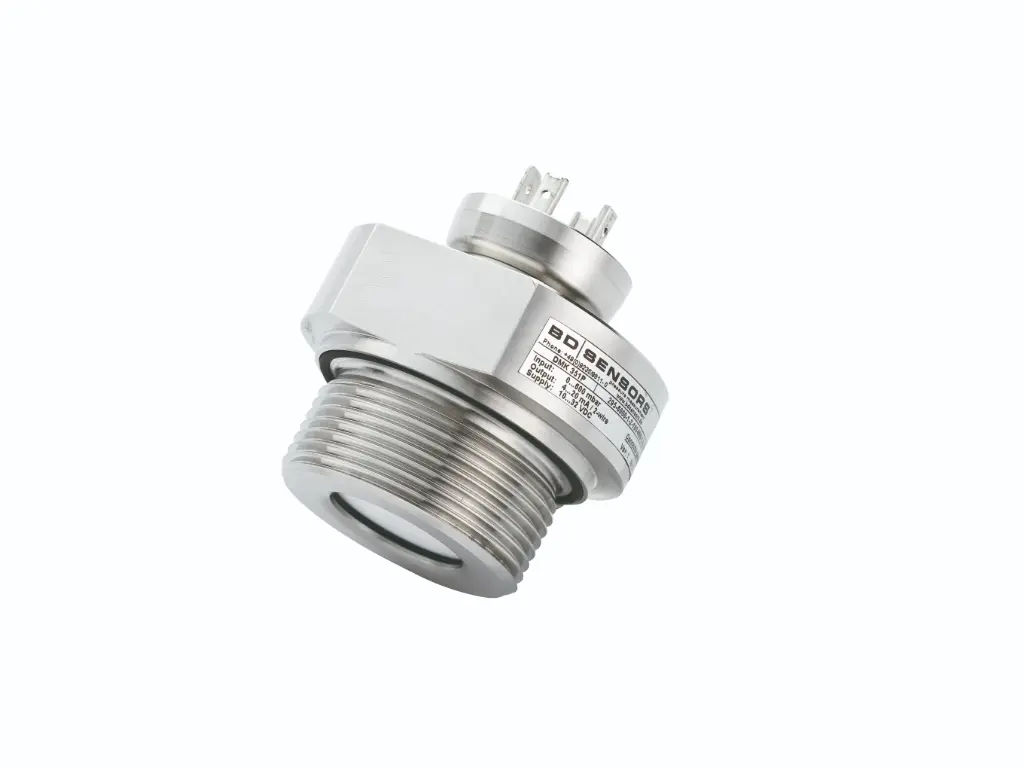

Pressure sensor DMK 351P, -1...1 bar, 4-20 mA, G 1 1/2" DIN flush (DIN 3852)
DMK 351P is a flush-mounted ceramic pressure transmitter for hygienic applications in the food and chemical industries. It uses an in-house developed capacitive ceramic sensor that offers high overpressure capability and excellent resistance to aggressive media. A wide choice of process and electrical connections, as well as an intrinsically safe version, allows flexible integration into different systems.
Internal Reference |
295-S102-1-8-100-M00-1-1-2-000 |
| Brand | BD Sensors |
| Pressure range_old | 1 bar |
| Pressure range (bar) | -1...1 bar |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1 1/2" |
| Electrical connection | DIN Connector |
| Supply | 12 VDC, 24 VDC |
| Wiring | 2-wire |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
DMK351P.pdf
Download
