Q20PRQ7 is the receiver of a Banner Q20 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate Q20 emitter up to 12 m away.

• Sensing range: 12 m with a Q20E emitter, effective beam 10 mm
• Output: PNP, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 1 ms ON, 600 µs OFF; repeatability 140 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

Works with a Q20E or Q20EQ7 emitter, ordered separately. A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20NR is the receiver of a Banner Q20 series opposed-mode photo sensor pair. It switches when an object breaks the beam from a separate Q20 emitter up to 12 m away.

• Sensing range: 12 m with a Q20E emitter, effective beam 10 mm
• Output: NPN, complementary Light Operate and Dark Operate outputs, 100 mA
• Response: 1 ms ON, 600 µs OFF; repeatability 140 µs
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

Works with a Q20E or Q20EQ7 emitter, ordered separately. A green LED indicator shows power; the amber one shows the output state and flashes at marginal excess gain.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20E is the emitter of a Banner Q20 series opposed-mode photo sensor pair. It sends a visible red 624 nm beam to a separate Q20 receiver up to 12 m away; an object is detected when it breaks the beam.

• Sensing range: 12 m with a Q20 receiver, effective beam 10 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

The emitter has no output and works only with a Q20PR or Q20NR receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

Q20EQ7 is the emitter of a Banner Q20 series opposed-mode photo sensor pair. It sends a visible red 624 nm beam to a separate Q20 receiver up to 12 m away; an object is detected when it breaks the beam.

• Sensing range: 12 m with a Q20 receiver, effective beam 10 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 18 mA
• Housing: ABS, PMMA lenses
• Environment: IP67, -20...+60 °C
• Connection: integral M8 4-pin male connector

The emitter has no output and works only with a Q20PR or Q20NR receiver, ordered separately.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.

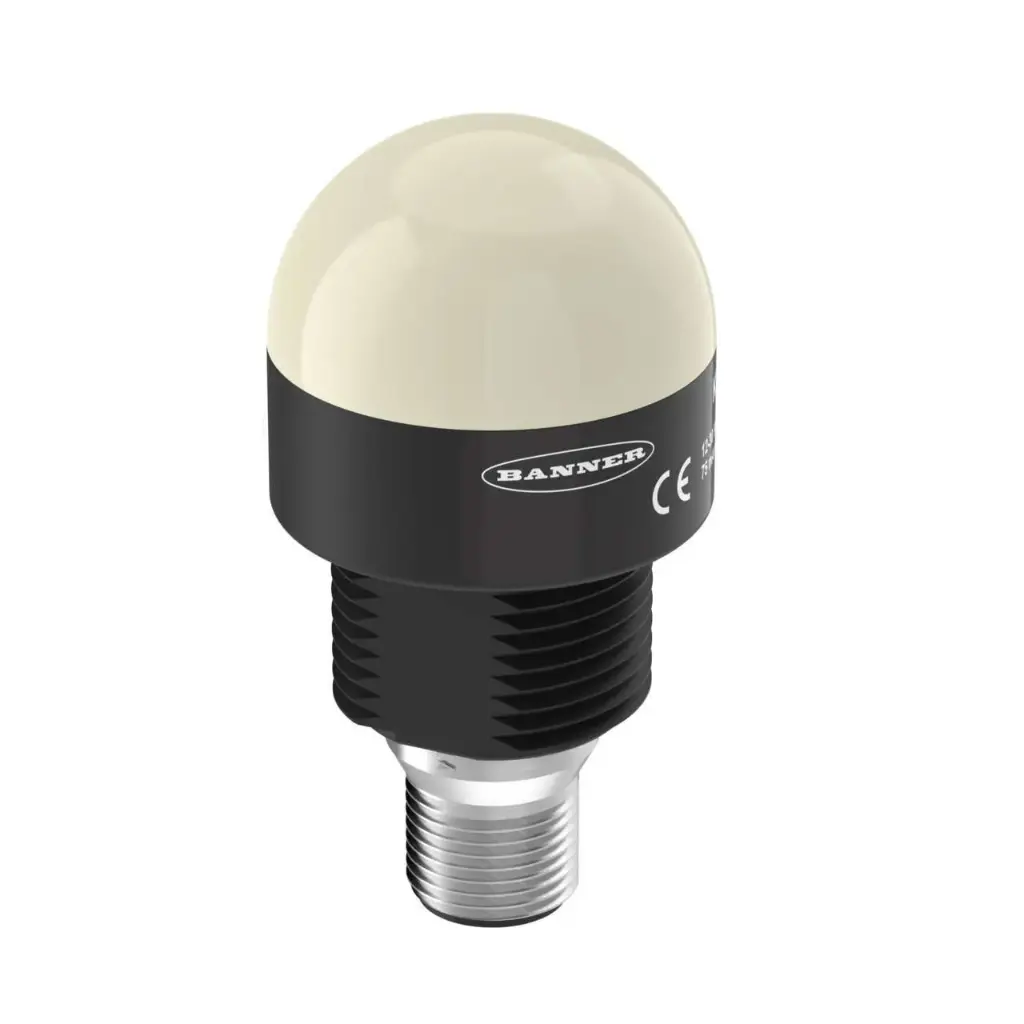

K30LGRYPQ is a Banner K30L series 30 mm dome indicator with three LED colors driven by three separate PNP inputs. The electronics are fully encapsulated.

• Colors: green, red, yellow; one color on at a time
• Input: PNP, response time 1 ms
• Supply: 10...30 V DC, up to 25 mA per color
• Housing: polycarbonate, M22x1.5 threaded base, 30 x 57 mm
• Environment: IP67, IP69K, UL 4X and 13, -40...+50 °C
• Connection: integral 4-pin M12 male connector

The M22 base fits the standard 22 mm panel cut-out used for pushbuttons and pilot lights. IP69K lets the indicator stay in place during high-pressure washdown.

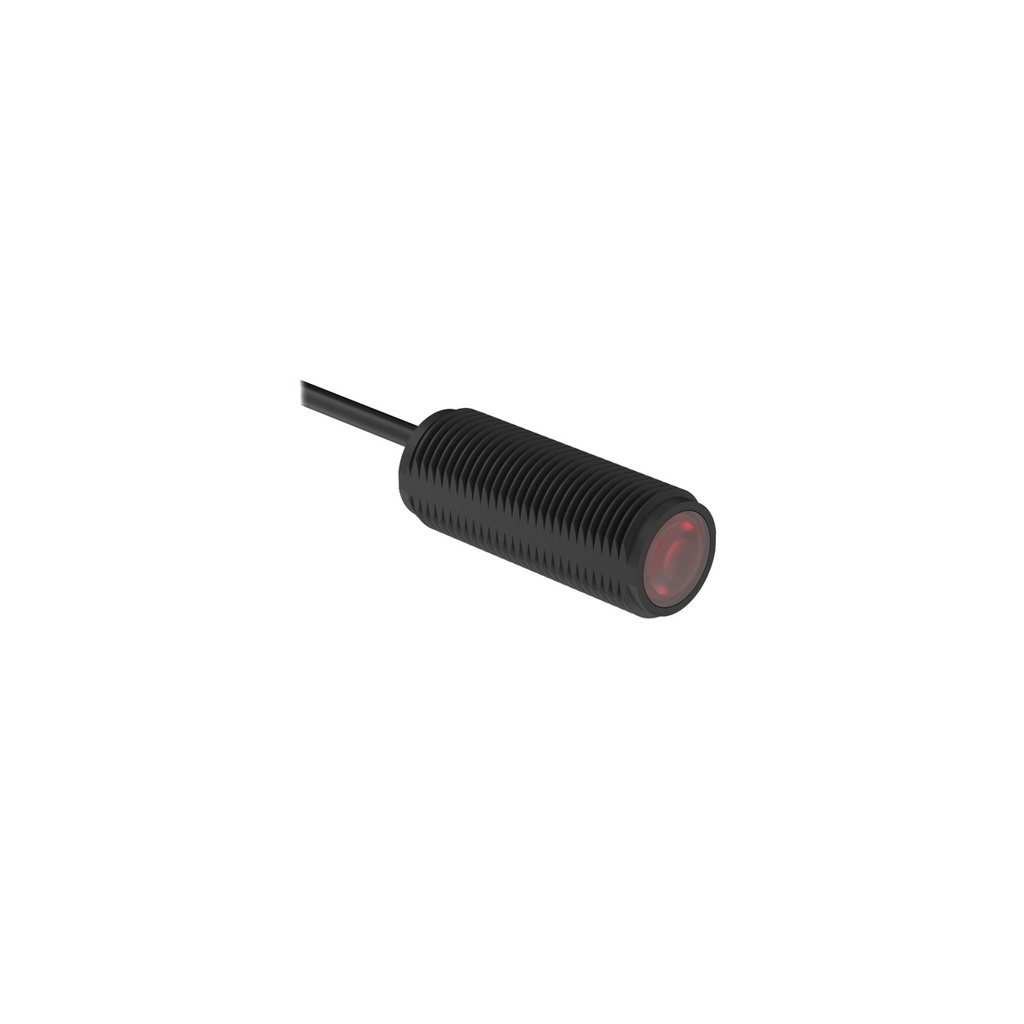

S12-2NAEL-2M is the long-range emitter of a Banner S12-2 series opposed-mode photo sensor pair, in a 12 mm plastic barrel. Its infrared 880 nm beam reaches an S12-2 receiver up to 20 m away; the emitter itself has no output.

• Sensing range: 20 m with an S12-2 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: M12 threaded barrel, thermoplastic, polycarbonate lens, encapsulated
• Environment: IP67, NEMA 4X, -25...+50 °C
• Connection: 2 m PVC cable, 2 wires

Needs an S12-2 receiver, ordered separately. Banner lists this model as obsolete; it is sold while stock lasts. UL and CE approved.

S12-2RPRL-2M is the receiver of a Banner S12-2 series opposed-mode pair in a 12 mm threaded barrel. It switches when an object breaks the infrared 880 nm beam from a separate S12-2 emitter up to 20 m away.

• Sensing range: 20 m with an S12-2 emitter
• Output: one PNP, Dark Operate (on when the beam is blocked), 100 mA
• Response: 11 ms ON, 7 ms OFF; repeatability 1.5 ms
• Supply: 10-30 V DC, < 15 mA
• Housing: polycarbonate, epoxy-encapsulated electronics, M12x1 thread, nuts included
• Environment: IP67, -25...+50 °C
• Connection: 2 m PVC cable, 3 wires

Works with an S12-2NAEL or S12-2NAEJ emitter, ordered separately; the beam inhibit version lets the receiver be checked before the machine starts. A green LED shows power and flashes on output short circuit; a red LED shows light sensed and flashes at marginal excess gain.

Q3XTBLD-Q8 is a Banner Q3X laser diffuse contrast sensor for parts that differ only slightly from their background. It switches at up to 2000 events per second and has no background suppression - it reads contrast over the full 0...300 mm range.

• Sensing range: 0...300 mm contrast sensing
• Output: bipolar, 1 PNP and 1 NPN, 100 mA; light/dark operate; response 250 µs, 1 ms or 5 ms
• Repeatability: 60 µs
• Supply: 10...30 V DC, < 28 mA at 24 V DC
• Housing: nickel-plated zinc die-cast with M18 nose mount, three-digit display, Class 2 red laser 655 nm
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 5-pin connector

The housing withstands cutting fluids and oils, and the angled display shows the signal and switch point during setup with the two buttons or the remote teach wire.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE.

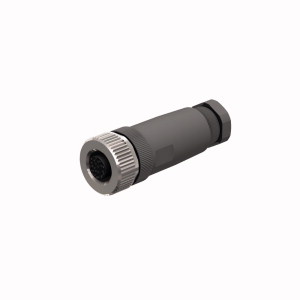

B81121-0/PG9 is a TURCK field-wireable M12 female connector, straight, 12-pin, A-coded, for 6...8 mm cable.

• Connector: M12, female, straight, A-coded, 12-pin, gold-plated CuZn contacts, more than 100 mating cycles
• Ratings: 2 A, 30 V
• Connection: conductors up to 0.25 mm², cable diameter 6...8 mm, PG9 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seals
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

RKC4.4T-2/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-5/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-10/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

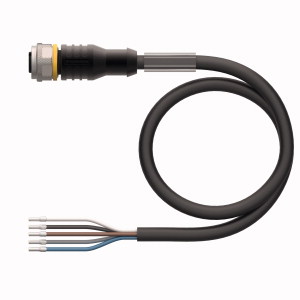

RKC4.5T-2/TEL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.5T-5/TEL is a TURCK connection cable with a straight M12 female connector (5-pin) on one end and open cores on the other. The cable has a black PVC jacket.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

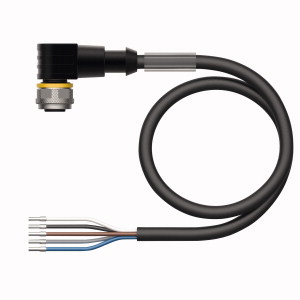

WKC4.5T-2/TEL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

WKC4.5T-5/TEL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 5 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RSC4.4T-2/TEL is a TURCK connection cable with a straight M12 male connector (A-coded, 4-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. Approval: cULus.

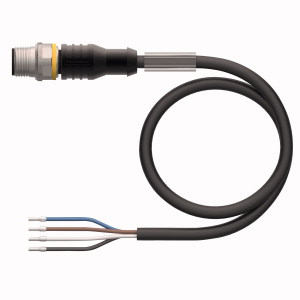

RSC4.4T-5/TEL is a TURCK connection cable with a straight M12 male connector (A-coded, 4-pin) on one end and open cores on the other.

• Connector: M12 x 1, male, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, test voltage 2000 V, more than 100 mating cycles
• Housing: black TPU, nickel-plated brass coupling nut
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free. Approval: cULus.

PKG3M-5/TEL is a TURCK connection cable with a straight M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

PKG4M-2/TEL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

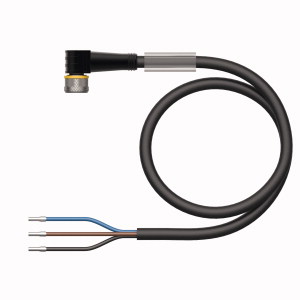

PKW3M-5/TEL is a TURCK connection cable with an angled M8 female connector (3-pin) on one end and open cores on the other.

• Connector: M8 x 1, female, angled, 3-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.3 mm, 3 x 0.34 mm², core colours BN, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

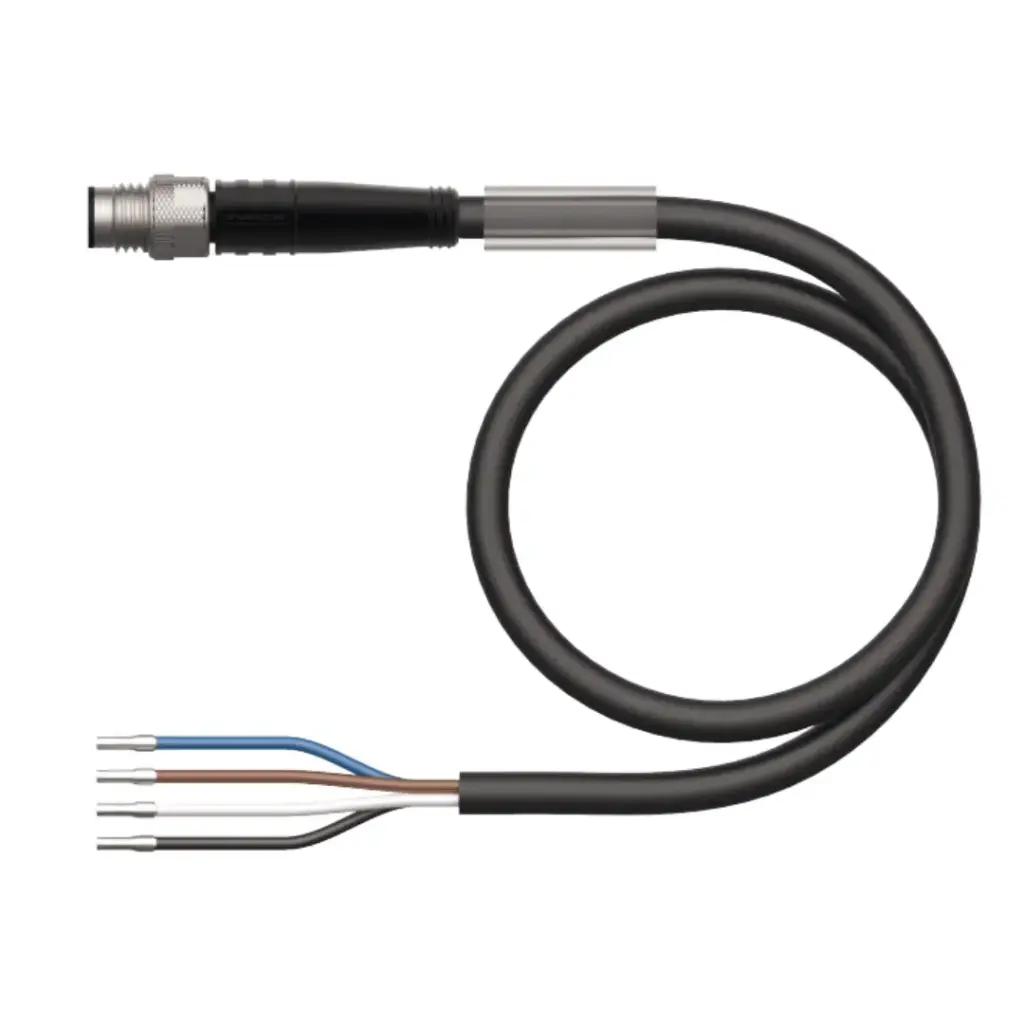

PSG4M-2/TEL is a TURCK sensor and actuator cable with a straight M8 male connector (4-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 4-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², PVC core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The black PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free.

Approval: cULus.

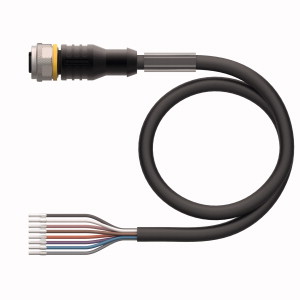

RKC8T-5/TXL is a TURCK connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

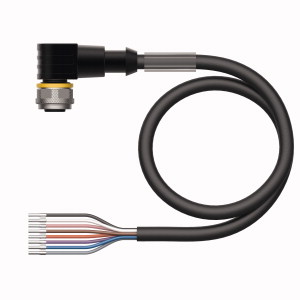

WKC8T-5/TXL is a TURCK connection cable with an angled M12 female connector (8-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 5.8 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC4.4T-5/TXL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.4T-2/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.4T-10/TXL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.5T-2/TXL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.5T-5/TXL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

WKC4.5T-10/TXL is a TURCK connection cable with an angled M12 female connector (5-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, angled, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 10 m, PUR, black, Ø 4.8 mm, 5 x 0.34 mm², core colours BN, WH, BU, BK, GY
• Ratings: 4 A, 60 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The PUR jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

PKG4M-5/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

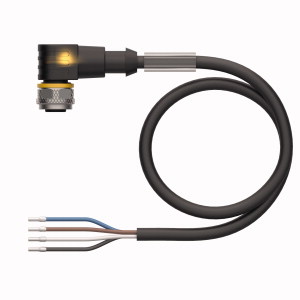

WKC4.4T-P7X2-2/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

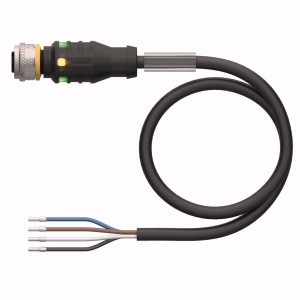

RKC4.4T-P7X2-5/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. A two-colour LED is built into the connector.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Indication: two-colour LED (PNP), visible all round – green shows supply, yellow shows switching state
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 VDC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.

WKC4.4T-P7X2-5/TEL is a TURCK connection cable with an angled M12 female connector (4-pin) on one end and open cores on the other. The connector has two built-in LED indicators: green shows the supply, yellow the PNP signal on pin 4.

• Connector: M12 x 1, female, angled, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 V DC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

RKC4.4T-15/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS. Approval: cULus.

The BL20-S6T-SBCSBC is a TURCK BL20 series passive base module with tension-spring terminals for connecting field devices. A BL20 electronic module mounts onto the base, and mechanical coding prevents plugging in the wrong module.

• Connection: tension-spring terminals, supports 2-, 3- and 4-wire wiring
• Design: disc-style construction with access to the C rail
• Dimensions: 12.6 x 154.5 x 49.9 mm (W x L x H)
• Environment: IP20

The base is a passive element with no electronics of its own — a compatible BL20 electronic module must be mounted on it, for example the BL20-4AI-U/I. The electronics can be replaced without disconnecting the field wiring, since the connections stay on the base.

Complies with CE and cULus requirements, and with Zone 2 and Class I Div. 2 classification.

The BL20-4AI-U/I is a TURCK BL20 series electronic module with 4 analogue inputs, each channel individually selectable for its signal type. The module mounts on a separate BL20 base, and the field signal is galvanically isolated from the module bus via an optocoupler.

• Inputs: 4 analogue inputs, each channel selectable for 0/4...20 mA or 0/10...+10 VDC
• Power: 24 VDC, field supply current ≤20 mA, module bus current ≤50 mA
• Connection: BL20-S6T-SBCSBC (tension-spring) or BL20-S6S-SBCSBC (screw) base
• Environment: IP20, 0...+55°C

The module requires a separately ordered base — it cannot be used without one, and the electronics can be replaced without disconnecting the field wiring, since the connections stay on the base.

Complies with cULus, FM ATEX and IECEx requirements, as well as FM Class I Div. 2 (US and Canada).

The BL20-E-16DI-24VDC-P is a TURCK BL20-E series economy module with 16 digital PNP inputs. Electronics and connection technology are combined in one housing, so no separate base module is needed.

• Inputs: 16 digital inputs, PNP switching, delay <0.3 ms
• Signal: low level -30...+5 V, high level 11...30 V
• Power: 24 VDC (18...30 VDC), field supply current ≈3 mA, module bus current ≤32 mA
• Connection: push-in terminals
• Environment: IP20, 0...+55°C

The module operates as part of a BL20-E station together with a BL20-E-GW gateway and other BL20-E modules, and is suited for wiring switches, buttons and digital sensors in a control cabinet.

Complies with cULus requirements.

The BL20-E-GW-EN-IP is a TURCK BL20-E series gateway that connects a BL20 I/O station to an EtherNet/IP network. The node address is set with a DIP switch, and the gateway works as the station's head module with an integrated power supply.

• Communication: EtherNet/IP, integrated 10/100 Mbps switch, 2x RJ45
• Power: 24 VDC (18...30 VDC), module bus current ≤200 mA, field supply current up to 8 A, system supply current up to 0.4 A
• Addressing: node address set via DIP switch
• Indication: LEDs for supply, group and bus error status
• Housing: DIN-rail mounting, includes 2 end brackets and 1 end plate
• Environment: IP20, 0...+55°C

The gateway forms the head of a BL20 station in a control cabinet, collecting distributed I/O signals and passing them to a PLC over an EtherNet/IP network. The station additionally requires matching BL20-E series I/O modules, ordered separately.

Complies with FM ATEX, IECEx and FM Class I Div. 2 (US and Canada) requirements, and carries an EU Declaration of Conformity.

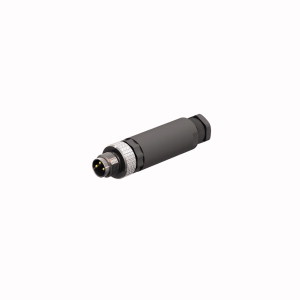

BS5133-0 is a TURCK field-wireable M8 male connector, straight, 3-pin, for 3.5...5 mm cable with screw-clamp terminals.

• Connector: M8, male, straight, 3-pin, gold-plated brass (CuZn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V, contact resistance ≤3 mΩ
• Connection: screw-clamp terminals, conductors up to 0.5 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PBT body, PA 66 contact carrier, nickel-plated die-cast zinc (GD-Zn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

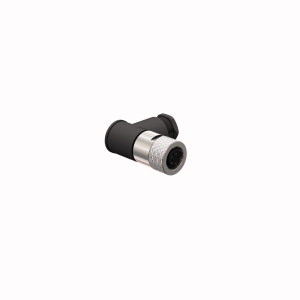

B5231-0 is a TURCK field-wireable M8 female connector, angled, 3-pin, for 3.5...5 mm cable with solder contacts.

• Connector: M8, female, angled, 3-pin, gold-plated bronze (CuSn) contacts, more than 100 mating cycles
• Ratings: 4 A, 60 V
• Connection: solder contacts, conductors up to 0.25 mm², cable diameter 3.5...5 mm, M11 x 0.75 screw-in thread
• Housing: black PA body, nickel-plated die-cast zinc (GD-Zn) coupling nut, neoprene seal
• Environment: IP67 (screwed together); -40...+85°C fixed

Approval: cULus recognized.

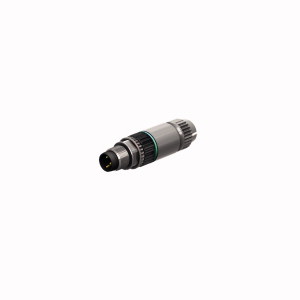

HAS5141-0 is a TURCK field-wireable M8 male connector, straight, 4-pin, for 2.5...5.1 mm cable with IDC terminals.

• Connector: M8, male, straight, 4-pin, gold-plated CuZn contacts
• Ratings: 4 A, 32 V, contact resistance ≤5 mΩ
• Connection: IDC terminals, conductors up to 0.34 mm², cable diameter 2.5...5.1 mm
• Housing: black PA body and contact carrier, brass (CuZn) coupling nut, FPM/FKM seal
• Environment: IP67 (screwed together); -5...+50°C fixed
