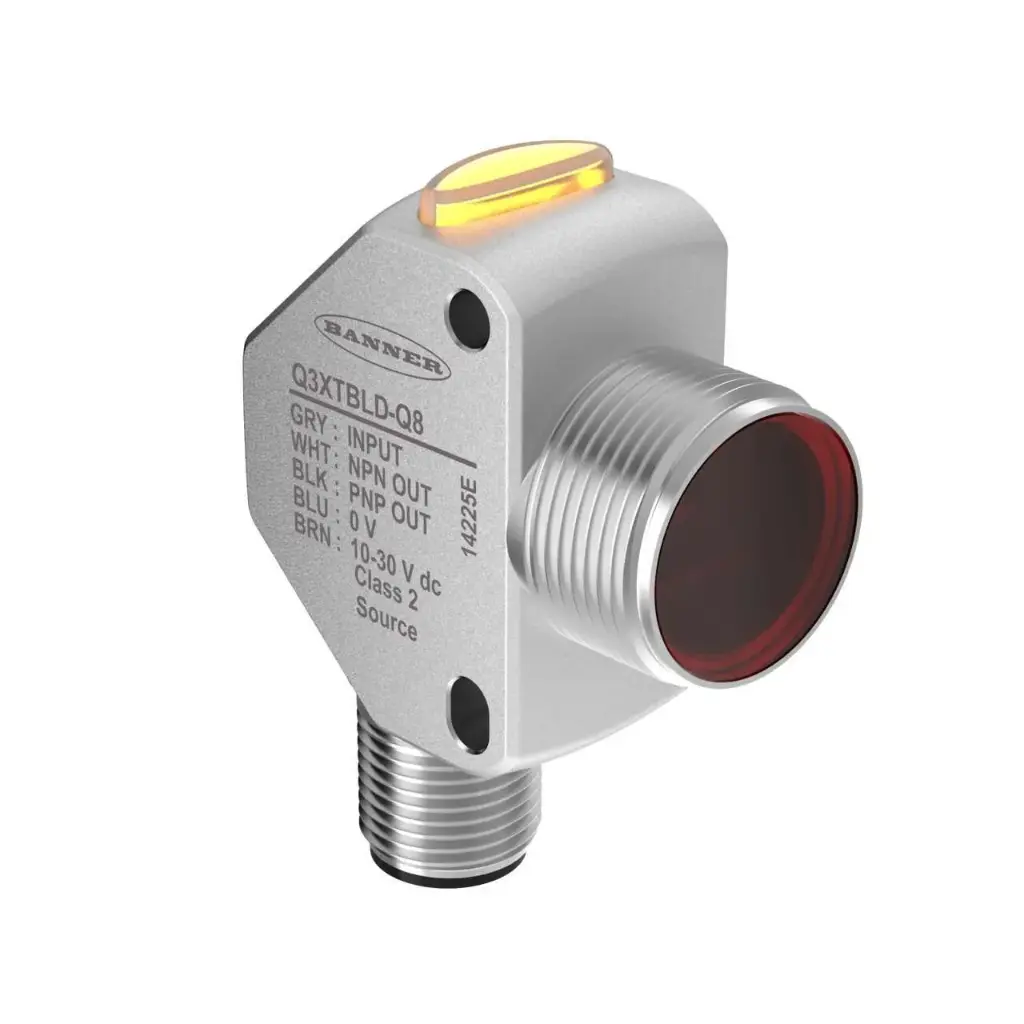

Laser contrast sensor Q3XTBLD-Q8, 0...300mm, PNP + NPN, M18 mount, M12 5-pin

Q3XTBLD-Q8 is a Banner Q3X laser diffuse contrast sensor for parts that differ only slightly from their background. It switches at up to 2000 events per second and has no background suppression - it reads contrast over the full 0...300 mm range.

• Sensing range: 0...300 mm contrast sensing
• Output: bipolar, 1 PNP and 1 NPN, 100 mA; light/dark operate; response 250 µs, 1 ms or 5 ms
• Repeatability: 60 µs
• Supply: 10...30 V DC, < 28 mA at 24 V DC
• Housing: nickel-plated zinc die-cast with M18 nose mount, three-digit display, Class 2 red laser 655 nm
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 5-pin connector

The housing withstands cutting fluids and oils, and the angled display shows the signal and switch point during setup with the two buttons or the remote teach wire.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE.
