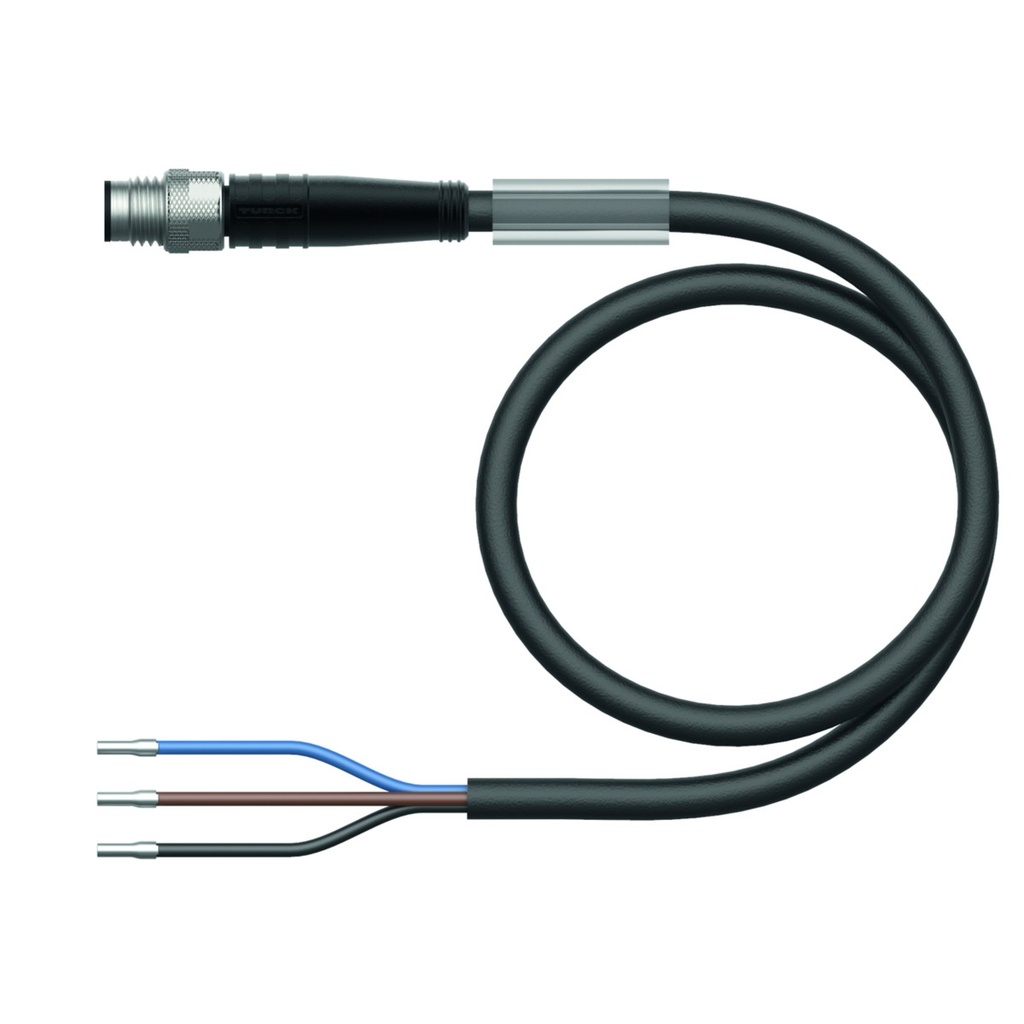

Connection cable PSG4M-2/TEL, M8, male, straight, 4-pin, 2m PVC

PSG4M-2/TEL is a TURCK sensor and actuator cable with a straight M8 male connector (4-pin) on one end and open cores on the other, for connecting sensors and actuators with an M8 female socket to a terminal box or controller.

• Connector: M8 x 1 male, straight, 4-pin, gold-plated brass (CuZn) contacts, black TPU body, nickel-plated brass coupling nut
• Cable: 2 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², PVC core insulation, core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, test voltage 2000 V, more than 100 mating cycles
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The black PVC jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and LABS free.

Approval: cULus.
