Connection cable RKC4.4T-P7X2-5/TEL, M12, female, straight, 4-pin, 5m PVC, LED

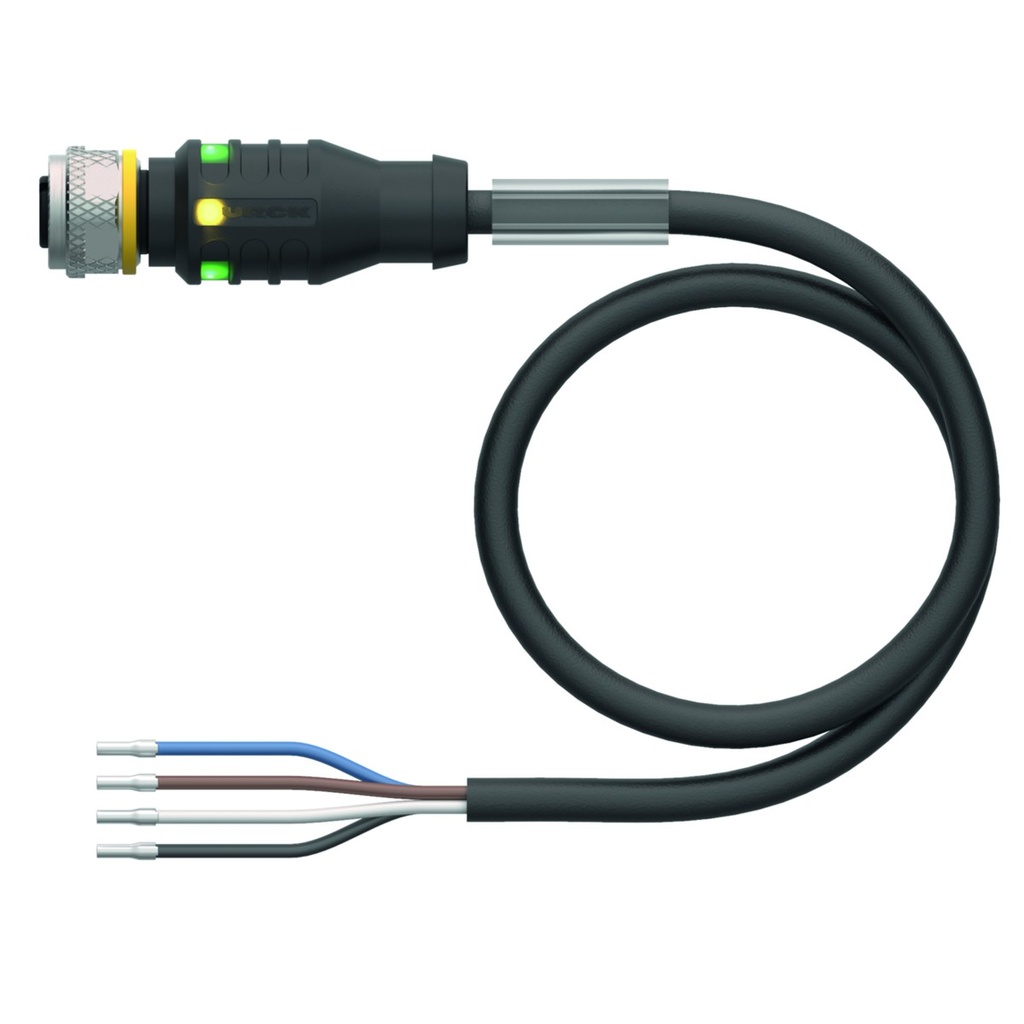

RKC4.4T-P7X2-5/TEL is a TURCK connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. A two-colour LED is built into the connector.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Indication: two-colour LED (PNP), visible all round – green shows supply, yellow shows switching state
• Cable: 5 m, PVC, black, Ø 4.6 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 30 VDC, more than 100 mating cycles
• Housing: translucent TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+105°C fixed, -5...+80°C mobile

The jacket resists chemicals, oils, acids, alkaline solutions, microbes and hydrolysis, is flame retardant and free from LABS.
