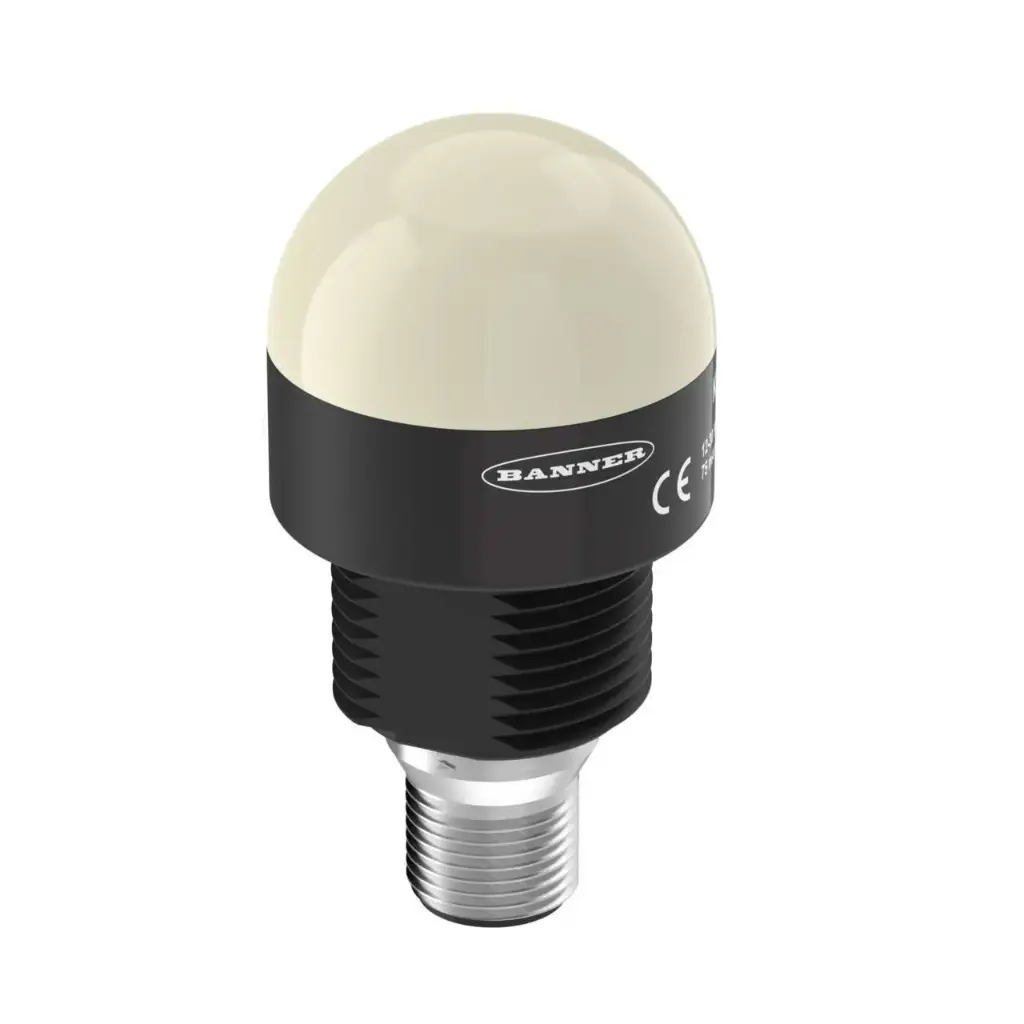

LED indicator K30LGRYPQ, green/red/yellow, PNP, IP69K, M12 4-pin

K30LGRYPQ is a Banner K30L series 30 mm dome indicator with three LED colors driven by three separate PNP inputs. The electronics are fully encapsulated.

• Colors: green, red, yellow; one color on at a time
• Input: PNP, response time 1 ms
• Supply: 10...30 V DC, up to 25 mA per color
• Housing: polycarbonate, M22x1.5 threaded base, 30 x 57 mm
• Environment: IP67, IP69K, UL 4X and 13, -40...+50 °C
• Connection: integral 4-pin M12 male connector

The M22 base fits the standard 22 mm panel cut-out used for pushbuttons and pilot lights. IP69K lets the indicator stay in place during high-pressure washdown.
