OR18.GP-PV1T.7BO is a Baumer M18 diffuse photo sensor with background suppression, detecting objects at 20...200 mm and ignoring anything beyond the set distance. The switching distance is taught with qTeach instead of a potentiometer, so the setting is repeatable and cannot drift from vibration. A small PinPoint LED light spot allows detection of small parts.

• Sensing range: 20...200 mm, adjustable 45...200 mm; red PinPoint LED 630 nm
• Output: PNP complementary (NO and NC at the same time), max. 100 mA; response time < 0.49 ms
• Supply: 10...30 V DC, max. 45 mA
• Housing: M18 x 1 threaded, 65 mm long, nickel-plated brass, PA lens
• Environment: IP67; -25...+60 °C
• Connection: M12 4-pin connector

Used for presence detection on conveyors and in assembly stations where a machine frame or wall sits close behind the object. Both outputs are available on one connector (black and white wires), so one sensor gives the controller the light and dark operate signal. A green LED shows power, a yellow LED shows the output state.

OR18W.TI-ZZZP.9VO is the emitter half of the Baumer OR18W through-beam pair, in a washdown stainless steel 1.4404 (V4A) housing rated IP 67/69K. It carries no switching output - it only sends the infrared beam, and the matching OR18W receiver does the detecting.

• Housing: stainless steel 1.4404 (V4A), M18 x 1 thread, 67.2 mm long, PMMA lens
• Environment: IP 67/69K; -25...+55 °C
• Operating range: 13 m actual (nominal 20 m), pulsed infrared diode 880 nm
• Emission power: adjustable, 270° potentiometer
• Supply: 12...30 V DC, max. 40 mA
• Connection: M12 4-pin connector

Pins 2 and 4 (white and black) are the ON/OFF inputs, so the beam can be switched off from the controller without cutting the supply - useful when two pairs face each other and have to be run alternately. A green LED shows that the emitter is powered. The receiver is ordered separately.

OR18W.EI-PW1P.9VO is the receiver half of the Baumer OR18W through-beam pair, in a washdown stainless steel 1.4404 (V4A) housing rated IP 67/69K. It switches when the beam from the matching OR18W emitter is interrupted, so the emitter has to be ordered with it.

• Housing: stainless steel 1.4404 (V4A), M18 x 1 thread, 67.2 mm long, PMMA lens
• Environment: IP 67/69K; -25...+55 °C
• Operating range: 13 m actual (nominal 20 m)
• Output: PNP, < 100 mA, light/dark operate; response time < 2 ms
• Supply: 12...30 V DC, max. 40 mA
• Connection: M12 4-pin connector

A through-beam pair holds its range on wet, dark or poorly reflecting objects, which is what makes it the choice on washdown lines where a reflector would be fouled by the cleaning water. Sensitivity is set on the receiver with a 270° potentiometer and pin 2 (white) is a control input. A green LED shows beam alignment and lens soiling, a yellow LED the output state.

CTX-3.3.3.B22.0 is a Baumer CTX series relative pressure sensor with a 0...10 bar measuring range and a 4...20 mA two-wire output. Pressure is sensed by a ceramic membrane (96 % Al2O3). Long-term stability is ≤ 0.3 % FSR per year.

• Measuring range: 0...10 bar, relative pressure
• Output: 4...20 mA, 2-wire
• Accuracy: ±0.5 % FSR (BFSL); max. measuring error ±2.5 % FSR
• Supply: 11...30 V DC
• Housing: AISI 304 (1.4301); process connection G 1/2" B EN 837-1, AISI 316L; NBR gasket
• Environment: IP 65 (EN 60529); process temperature -40...+100 °C; ambient temperature -40...+85 °C
• Connection: DIN EN 175301-803 A (DIN 43650 A) connector, 4-pin

The sensor is intended for pressure measurement in compressed air, technical gas and hydraulic systems - compressor stations, pneumatic lines and pump units. The output rise time (10...90 %) is ≤ 5 ms, which follows rapid pressure changes such as valve switching.

Complies with EN 61000-6-2, EN 61000-6-3 and EN 61326-1. Vibration and shock resistance tested to EN 60068-2-6, EN 60068-2-27 and EN 61373 (category 1, class B).

CTX-3.3.3.B24.0 is a Baumer CTX series relative pressure sensor with a 0...16 bar measuring range and a 4...20 mA two-wire output. Pressure is sensed by a ceramic membrane (96 % Al2O3). Long-term stability is ≤ 0.3 % FSR per year.

• Measuring range: 0...16 bar, relative pressure
• Output: 4...20 mA, 2-wire
• Accuracy: ±0.5 % FSR (BFSL); max. measuring error ±2.5 % FSR
• Supply: 11...30 V DC
• Housing: AISI 304 (1.4301); process connection G 1/2" B EN 837-1, AISI 316L; NBR gasket
• Environment: IP 65 (EN 60529); process temperature -40...+100 °C; ambient temperature -40...+85 °C
• Connection: DIN EN 175301-803 A (DIN 43650 A) connector, 4-pin

The sensor is intended for pressure measurement in compressed air, technical gas and hydraulic systems - compressor stations, pneumatic lines and pump units. The output rise time (10...90 %) is ≤ 5 ms, which follows rapid pressure changes such as valve switching.

Complies with EN 61000-6-2, EN 61000-6-3 and EN 61326-1. Vibration and shock resistance tested to EN 60068-2-6, EN 60068-2-27 and EN 61373 (category 1, class B).

OT500.GL-PLPVB.72F is a background suppression photo sensor from the Baumer OT500 series, measuring by time of flight over a 150...2500 mm switching range. A red laser diode (680 nm, laser class 1) forms a point beam focused at 1500 mm, and switching follows the measured distance rather than the amount of reflected light.

• Switching range: 150...2500 mm (Tw), set by qTeach or an external teach wire
• Output: PNP, complementary (Light operate), output current 50 mA
• Repeat accuracy: ≤ 1200...4300 µm, linearity error ± 10 mm
• Supply: 12...30 V DC, consumption max. 60 mA
• Housing: plastic (ASA, PMMA), 18 x 45 x 32 mm, PMMA optics window
• Environment: IP 67, -20...+50 °C
• Connection: M12 connector, 5 pin

The complementary output gives an NO and an NC signal at the same time, so the operating mode need not be chosen before installation. Teaching is done either with qTeach on the housing or through an external wire, which allows the switching distance to be re-taught from the control cabinet. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

UR18.EB0.2-GP2J.9SF is the receiver of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The manufacturer recommends it for double sheet detection.

• Accuracy: repeatability 3 mm; hysteresis typ. 5 % Sde; temperature drift < 2 % Sde; minimum object size > 4 cm² at 50 mm
• Operating range: 0...2000 mm; response time < 9 ms; sonic frequency 200 kHz
• Outputs: push-pull (works as PNP or NPN), up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 3 ms, port type Class A, also transmits excess gain
• Supply: 12...30 V DC, consumption up to 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Works only as a pair with the UR18.TB0.2-ZZZZ.9SF emitter, which is ordered separately. The switching threshold is set by qTeach, Line-Teach or over IO-Link, which also configures output logic, time filters and the counter.

UR18.TB0.2-ZZZZ.9SF is the emitter of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The emitter has no switching output.

• Operating range: 0...2000 mm; sonic frequency 200 kHz
• Supply: 12...30 V DC, typical consumption 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin; green LED shows power

Works only as a pair with the UR18.EB0.2-GP2J.9SF receiver, which is ordered separately; all settings and the output are on the receiver.

OT300.GL-GLZZJ.72N is a background suppression photo sensor from the Baumer OT300 series in a miniature housing, measuring by time of flight over a 100...1800 mm switching range. A red laser diode (680 nm, laser class 1) focused at 700 mm forms a narrow point beam, and the measured distance value is available over IO-Link.

• Switching range: 100...1800 mm (Tw), set by teach-in or IO-Link
• Output: push-pull (PNP/NPN) and IO-Link V1.1.3, Class A, Light operate, switchable
• Repeat accuracy: ≤ 1400...5500 µm, linearity error ± 10 mm
• Supply: 12...30 V DC, consumption max. 60 mA
• Housing: plastic (ASA, PMMA), 12.9 x 32.3 x 23 mm
• Environment: IP 67, -20...+50 °C
• Connection: M8 connector, 4 pin

Response time is selected over IO-Link: < 4 ms in High Speed, < 8 ms in Standard and < 50 ms in Long Range mode, so the same sensor suits both a fast sorting line and a longer distance with weak remission. Operating hours, operating cycles, supply voltage and device temperature are also readable over IO-Link.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

O200.SL.T-GW1J.72NV/F160_H006 is a Baumer O200 miniature SmartReflect light barrier tuned for transparent objects. It forms the barrier between itself and a fixed machine surface, so no reflector is mounted opposite, and an object is detected by the 5% signal attenuation that even a clear bottle or film produces.

• Background position Sde: 15...180 mm, teachable; scanning range 90%...85% Sde
• Detection: minimum signal attenuation 5%, focus at 160 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC; response time < 0.25 ms in High Speed mode
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; laser class 1, 680 nm
• Environment: IP 67, -20...+50 °C; connection M8 4-pin flylead connector, 200 mm

It is used on filling and labelling lines for PET bottles, glass containers, clear film and blister packs, and wherever there is no room or no mounting point for a reflector on the far side. Background tracking compensates for lens contamination and slow changes in the reference surface, so the threshold stays usable between cleaning intervals; the compensation and the switching point are also readable and settable over IO-Link.

O200.GL-GW1J.72NV/F040_H006 is a Baumer O200 miniature background suppression sensor with a focused laser beam converging at 40 mm, where it resolves objects down to 0.05 mm. Switching point, hysteresis, time filters and counter are set by qTeach, line teach or over IO-Link V1.1, and the same interface returns a 16-bit distance measurement, excess gain, quality and alarm bits.

• Sensing distance Tw: 20...120 mm, teachable; sensing range Tb 3...132 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 10 mA at 24 VDC
• Response time: ≤ 0.25 ms in High Speed mode, jitter ≤ 0.06 ms
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; laser class 1, 680 nm
• Environment: IP 67, -20...+50 °C; connection M8 4-pin flylead connector, 200 mm

The focused beam suits small targets and narrow gaps - wire ends, thin edges, holes in a moving strip, or the boundary between stacked sheets. The distance value returned over IO-Link lets a controller follow signal drift long before the switching output starts to fail.

O200.GR.F-PV1Z.72NV/H006_BX15 is a Baumer O200 miniature background suppression sensor with a fixed 15 mm switching distance and V-optics, in which the emitted and received beams cross on the object itself. That geometry gives a repeatable switching point on shiny and transparent surfaces, where coaxial optics read the specular reflection instead of the object.

• Sensing distance Tw: 15 mm, fixed, no adjustment; sensing range Tb 3...15 mm
• Detection: smallest object typ. 0.05 mm at 10 mm
• Output: PNP complementary, light/dark operate, 50 mA
• Supply: 10...30 VDC, typ. 16 mA at 24 VDC; response time < 1 ms
• Housing: rectangular 8 x 25.1 x 14.1 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; red LED 644 nm
• Environment: IP 67, -30...+50 °C
• Connection: M8 4-pin flylead connector, 200 mm

The fixed preset means commissioning is mounting and wiring only - there is nothing to teach and nothing that can be turned later. It is used at short fixed distances against glass, film, foil and polished metal: edge detection on packaging film, presence of a vial or ampoule, label and blister checks.

O200.GP-GW1J.72NV/E022_H006 is a Baumer O200 miniature background suppression sensor whose PinPoint LED light is shaped into a line beam. The line covers the full width of an irregular or perforated object, so a part with holes, slots or a ragged edge gives one switching signal instead of a burst of short pulses.

• Sensing distance Tw: 20...120 mm, teachable; sensing range Tb 3...132 mm
• Detection: line beam, smallest object typ. 8 mm at 60 mm
• Output: push-pull, light/dark operate, 50 mA
• Communication: IO-Link V1.1, port class A, 230.4 kBaud, cycle ≥ 0.6 ms
• Supply: 10...30 VDC, typ. 16 mA at 24 VDC; response time < 0.25 ms in High Speed mode
• Housing: rectangular 8 x 25.1 x 15.8 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves; 644 nm
• Environment: IP 67, -30...+50 °C; connection M8 4-pin flylead connector, 200 mm

Typical positions are perforated trays, mesh baskets, crates with gaps and bottle cases on a conveyor, where a point beam would drop out each time it passes an opening. Teach-in is by qTeach or line teach and every parameter is also reachable over IO-Link, so a format change can be loaded from the controller instead of being set by hand at the machine.

U500.PA0.2-GP1J.72F is a Baumer U500 series ultrasonic proximity sensor with a 20...1000 mm operating range, a push-pull switching output and an IO-Link interface. A multiplex version lets several sensors run side by side without mutual interference.

• Accuracy: repeatability 0.5 mm; hysteresis typ. 4 % Sde; temperature drift < 2 % Sde; power-up drift compensated after 15 min
• Sensing distance: 20...1000 mm; response time < 40 ms; sonic frequency 200 kHz
• Outputs: push-pull (works as PNP or NPN), up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 12 ms, port type Class A, also transmits distance
• Supply: 12...30 V DC, typical consumption 35 mA; short-circuit and reverse-polarity protected
• Housing: rectangular, ASA/PMMA plastic, PEEK-coated sensor face, 18 x 45 x 32 mm
• Environment: IP67, operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Suited to presence and level detection up to 1 m regardless of colour and transparency. The switching point is set by qTeach, Line-Teach or over IO-Link, which also configures output logic, time filters, beam forming and the function of pin 5.

CAM12.A5-11235915 is a Baumer M12 male-to-female cable with an unshielded PUR jacket rated for drag chains and for robot use with torsion up to ±180°/m.

• Connectors: M12 male and M12 female, straight, A-coded, 5-pin, nickel-plated zinc knurled nut
• Cable: PUR, black, Ø 4.5 mm, 5 × 0.34 mm² (AWG 22), unshielded, 1 m
• Rating: max. 4 A per contact, max. 125 V AC/DC (UL: 30 V AC/DC)
• Flexing: approx. 10 million C-track bending cycles, min. bending radius 10 × Ø when moving
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

The cable is halogen-free and silicone-free, flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2, and oil-resistant to DIN EN 60811-404.

CAM12.A4-11230429 is a Baumer adapter cable from an M12 male to an M8 female connector, both A-coded and 4-pin, for connecting an M8 sensor to an M12 port. The unshielded PUR jacket is rated for drag chains and torsion up to ±180°/m.

• Connectors: M12 male (AF13, 0.6 Nm) and M8 female (AF9, 0.4 Nm), straight, A-coded, 4-pin
• Cable: PUR, black, Ø 4.5 mm, 4 × 0.25 mm² (AWG 24), unshielded, 1 m
• Rating: max. 4 A per contact, max. 50 V AC / 60 V DC
• Flexing: approx. 10 million C-track bending cycles, min. bending radius 10 × Ø when moving
• Protection: IP65, IP66K, IP67
• Temperature: -25...+80 °C moving, -40...+80 °C fixed

Wire colours BN, WH, BU, BK on pins 1-4 at both ends. The cable is halogen-free and flame-retardant to UL 1581 §1090 (H), CSA FT2 and IEC 60332-2-2.

O300.RP-PV1T.72CU is a miniature photoelectric sensor from the Baumer O300 series working against a reflector over a 5 m range. A polarisation filter lets the sensor respond only to the light returned by the reflector, so shiny metal or film in the object's place is not read as a reflector.

• Range: 5 m actual, 6 m nominal, with polarisation filter
• Output: PNP complementary, NO and NC at the same time, light / dark operate, < 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, plastic (ASA, PMMA), PMMA optics, 12.9 x 32.3 x 23 mm
• Environment: IP 67, -25...+60 °C
• Connection: 2 m cable, 4 cores

The sensor suits counting and presence checks on conveyors and packaging lines where the sensor and the reflector can face each other. Sensitivity is set with qTeach by holding a ferromagnetic tool against the housing, and mutual interference between sensors mounted side by side is suppressed.

O330.GP-GLZZB.72N/H006 is a miniature photoelectric sensor from the Baumer O330 series with background suppression and a 20...350 mm switching distance. The switching distance is set with qTeach or by an external teach signal over the connection cable, so the sensor can be re-taught from the control system without physical access.

• Switching distance: 20...350 mm, adjustable by qTeach or an external teach signal
• Output: push-pull, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, plastic (ABS, ASA, PMMA), M3 brass threaded sleeves, 11 x 32 x 21 mm
• Environment: IP 67, -30...+55 °C
• Connection: M8 connector, 4 pin

The sensor suits presence checks on conveyors, assembly stations and packaging machines where mounting space is tight and the unit is swapped without rewiring. The M3 threaded sleeves allow the sensor to be fixed directly, without a separate bracket.

Vibration resistance tested to IEC 60068-2-6:2008 (10 g, 10-2000 Hz) and shock resistance to IEC 60068-2-27:2009 (50 g, 11 ms).

IGYX 30P17B3/S14L is a Baumer inductive proximity sensor in an M30 barrel with a 15 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the nickel-plated brass housing is 60 mm long.

• Sensing distance: 15 mm (Sn), assured 12 mm (Sa)
• Output: PNP, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M30 thread, nickel-plated brass, PBT sensing face, 60 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M12 connector

The 15 mm sensing distance keeps the sensor clear of the moving part - end-position monitoring on hydraulic and pneumatic cylinders, gates and pallets. Switching frequency is 400 Hz, so this model is not suited to counting the teeth of a fast rotating gear. Tightening torque on the M30 thread must not exceed 60 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 15 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

AFI5-A813.4002.0300 is a Baumer CombiLyz inductive conductivity sensor with separate electronics: the probe with its G 1 A connection sits in the pipe, and the housing with display is wall-mounted up to 10 m away. It passes conductivity and temperature on as two separate 4...20 mA signals, and both solid-state relays in the display can be set as limit contacts.

• Measuring range: 14 selectable ranges, 0...500 µS/cm to 0...1000 mS/cm; temperature -20...150 °C
• Output: 2 x 4...20 mA (conductivity, temperature), 2 solid-state relays
• Supply: 15...35 V DC
• Housing: FlexHousing Ø80 mm, AISI 304, wall mounting, G 1 A hygienic connection, PEEK Natura probe L=60 mm
• Environment: IP67 / IP69K; process -20...140 °C (up to 150 °C for less than 1 h), up to 25 bar
• Connection: 2 x M16x1.5 cable glands, plastic; 10 m PUR sensor cable

Used for concentration control of CIP solutions and for phase separation between product, water and cleaning solution in dairy, brewery and beverage lines. The minimum measurable conductivity is 50 µS/cm, so the sensor does not suit demineralised or purified water. The split design keeps the electronics away from hot or hard-to-reach pipe sections.

cULus listed (E491206); wetted parts in PEEK Natura comply with FDA 21 CFR 177.2415.

FHDK 14P5101/S35A is a Baumer standard-size photo sensor with background suppression. It compares where the reflected beam lands on its internal detector, so an object is detected regardless of its colour or surface reflectivity while everything beyond the set distance is ignored.

• Switching distance: 20...350 mm, adjustable by a 10-turn mechanical potentiometer
• Output: PNP, Light/Dark Operate, < 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, 14.8 x 43 x 31 mm, plastic (ASA, MABS), PMMA optics
• Environment: IP 67, -25...+65 °C
• Connection: M8 connector, 4-pin

The sensor suits presence and position control in packaging, assembly and sorting machines where the background sits close to the object and dark or glossy surfaces give a standard diffuse sensor a false reading. A flashing light indicator shows insufficient signal margin or a soiled lens, so alignment and maintenance need no instruments. Reciprocal influence is suppressed, so several sensors can be mounted side by side.

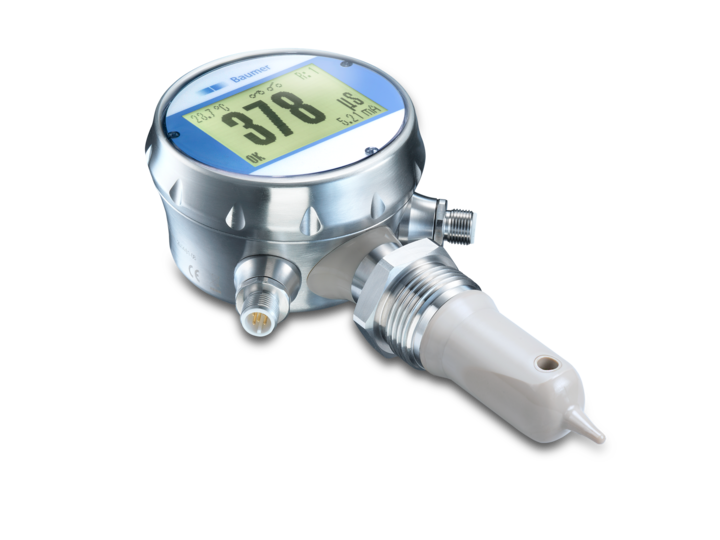

AFI4-5830.4002.0200 is a Baumer CombiLyz inductive conductivity sensor with display and bottom process connection. It passes conductivity and temperature on as two separate 4...20 mA signals, and both solid-state relays in the display can be set as limit contacts.

• Measuring range: 14 selectable ranges, 0...500 µS/cm to 0...1000 mS/cm; temperature -20...150 °C
• Output: 2 x 4...20 mA (conductivity, temperature), 2 solid-state relays
• Supply: 15...35 V DC
• Housing: FlexHousing Ø80 mm, AISI 304, G 1 A hygienic connection, PEEK Natura probe L=83 mm
• Environment: IP67 / IP69K; process -20...140 °C (up to 150 °C for less than 1 h), up to 25 bar
• Connection: 2 x M16x1.5 cable glands, stainless steel AISI 304

Used for concentration control of CIP solutions and for phase separation between product, water and cleaning solution in dairy, brewery and beverage lines. The minimum measurable conductivity is 50 µS/cm, so the sensor does not suit demineralised or purified water.

cULus listed (E491206); wetted parts in PEEK Natura comply with FDA 21 CFR 177.2415.

O330.GP-NLNVT.72ZV/T003 is a miniature photoelectric sensor from the Baumer O330 series with background suppression and a 20...350 mm switching distance. The PinPoint LED produces a small, even light spot with sharp edges, so the sensor also detects small objects and objects close to their edge.

• Switching distance: 20...350 mm, adjustable by qTeach or 1-Step teach-in
• Output: NPN complementary, NO and NC at the same time, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 25 mA
• Housing: rectangular, plastic (ABS, ASA, PMMA), brass sleeves in the mounting holes, 11 x 32 x 21 mm
• Environment: IP 67, -25...+55 °C
• Connection: 2 m PVC cable, 4 x 0.14 mm²

The sensor suits presence checks on conveyors, assembly stations and packaging machines where mounting space is tight. The brass sleeves in the mounting holes let the screws be tightened without crushing the plastic housing.

Vibration resistance tested to IEC 60068-2-6:2008 (10 g, 10-2000 Hz) and shock resistance to IEC 60068-2-27:2009 (50 g, 11 ms).

IGYX 12P17B3/S14L is a Baumer inductive proximity sensor in an M12 barrel with a 4 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the nickel-plated brass housing is 50 mm long.

• Sensing distance: 4 mm (Sn), assured 3.2 mm (Sa)
• Output: PNP, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M12 thread, nickel-plated brass, PBT sensing face, 50 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M12 connector

The sensor is intended for presence and end-position monitoring of metal parts on conveyors, pneumatic cylinders and indexing mechanisms. Switching frequency is 1.5 kHz. Tightening torque on the M12 thread must not exceed 10 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 4 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

IGYX 08P17B3/S35L is a Baumer inductive proximity sensor in an M8 barrel with a 2 mm nominal sensing distance and a PNP normally open (NO) output. The sensing face is flush mountable and the stainless steel housing is 36 mm long.

• Sensing distance: 2 mm (Sn), assured 1.6 mm (Sa)
• Output: PNP, normally open (NO), 200 mA, with short-circuit and reverse-polarity protection
• Supply: 10...30 V DC, current consumption up to 15 mA with no load
• Housing: M8 thread, stainless steel, PBT sensing face, 36 mm long, flush mountable
• Environment: IP 67, operating temperature -25...+75 °C
• Connection: M8 connector

The Ø 8 mm body and 36 mm length fit the sensor into grippers, indexing tables and other positions where an M12 barrel does not fit. A 3 kHz switching frequency is enough for presence monitoring of fast moving metal parts. Tightening torque on the M8 thread must not exceed 5 Nm, and the switching point drifts by up to ±10 % of Sr across the temperature range, which matters when the target sits close to the 2 mm limit.

Complies with the EMC requirements of EN 60947-5-2:2007.

O300.GR-GW1T.72N is a miniature photoelectric sensor from the Baumer O300 series with background suppression and a 30...300 mm switching distance. The sensor detects an object from the angle of the reflected light, so the object's colour and surface gloss do not move the switching point, while everything beyond the taught distance is ignored.

• Switching distance: 30...300 mm, adjustable by qTeach
• Output: push-pull, light / dark operate, 100 mA
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: rectangular, plastic (ASA, PMMA), PMMA optics, 12.9 x 32.3 x 23 mm
• Environment: IP 67, -30...+60 °C
• Connection: M8 connector, 4 pin

The sensor suits presence and position checks on conveyors, packaging machines and assembly stations where mounting space is tight and the background sits close behind the object. Sensitivity is set with qTeach by holding a ferromagnetic tool against the housing, so there are no buttons and no mechanical adjusters on the body.

OR18.RR-PW1Z.71OV/0010 is a Baumer M18 retro-reflective photo sensor with a polarisation filter and a 3.5 m operating range. The polarisation filter lets the sensor tell the reflector from shiny objects, so glossy packaging or metal parts do not hold the output switched. It has no sensitivity adjustment, so the setting cannot be changed on the machine.

• Operating range: 3.5 m (nominal 4.5 m), red LED 660 nm, fixed sensitivity
• Output: PNP, max. 100 mA, light/dark operate; response time < 1 ms
• Supply: 12...30 V DC, max. 40 mA
• Housing: M18 x 1 threaded, 44.8 mm long, ABS plastic, PMMA lens
• Environment: IP67; -25...+55 °C
• Connection: M12 4-pin connector on a 100 mm flying lead

The short 44.8 mm body with a 100 mm lead fits where there is no room behind the mounting plate for a rear connector and cordset. Pin 2 (white) is a control input. A green LED shows alignment and lens soiling, a yellow LED shows the output state.

UNDK 30U6103/S14 is a Baumer ultrasonic distance sensor in a rectangular housing with a 100...1000 mm measuring range and a 0...10 V analog output. The start and end of the range are taught with the teach-in button on the housing.

• Accuracy: repeatability < 0.5 mm; resolution < 0.3 mm; temperature drift < 2 % of distance to target
• Measuring range: 100...1000 mm, start and end point adjustable; response time < 80 ms; sonic frequency 240 kHz
• Output: analog 0...10 V / 10...0 V, up to 20 mA
• Supply: 15...30 V DC, consumption up to 35 mA; short-circuit and reverse-polarity protected
• Housing: polyester / die-cast zinc, 30 x 65 x 31 mm
• Environment: IP67, operating temperature -10...+60 °C
• Connection: M12 connector

Suited to level and distance measurement up to 1 m where a plain analog signal to a controller without a digital interface is needed. Yellow and red LEDs show the status, and the display flashes when a target is inside the range, which helps with alignment.

O500H.SP-GW1J.PVCK is a Baumer O500 series SmartReflect light barrier in a hygienic 1.4404 (V4A) stainless steel housing. Instead of a reflector the sensor uses the background - the machine surface behind the object - and treats every interruption of the beam between itself and the taught background at 60...600 mm as an object, so no reflector and no receiver has to be mounted on the opposite side.

• Background position Sde: 60...600 mm, set by teach-in and over IO-Link
• Output: push-pull, light / dark operate, 100 mA
• Communication: IO-Link V1.1, filter functions, qTeach lock
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: stainless steel 1.4404 (V4A), PMMA optics, 20.2 x 47.7 x 36.4 mm
• Environment: IP 68/69K and proTect+, -25...+60 °C
• Connection: 2 m cable, 4 cores

The sensor suits presence checks in food and beverage production, where the machine is washed with hot pressurised water and where there is no room for a reflector or a receiver opposite the sensor. The background position is set by magnetic teach or over IO-Link, so there are no adjusters on the housing.

The housing carries Ecolab approval and the hygienic design follows the EHEDG guidelines.

Baumer 11071189 is a 0.2 m shielded lead with an 8-pin K21BG8 coupling with socket contacts on one end and wires fitted with 61.171.80 crimp contacts on the other, rated up to +120 °C.

• Connector: K21BG8 coupling, 8-pin, socket contacts
• Wire ends: 61.171.80 crimp contacts
• Cable: 8 × 0.14 mm² stranded, shielded, Ø approx. 6.8 mm, 0.2 m
• Wire colours, pins 1-8: RD, BU, GN, BN, GY, BK, PK, WH
• Temperature: -30...+120 °C

The crimped wire ends are inserted into the mating connector housing by the customer. The datasheet lists it for the ITD21H00 HT high-temperature encoder.

UNAM 12P8910/S14OD is a Baumer high-speed ultrasonic proximity sensor in an M12 threaded housing with a 0...40 mm operating range. Response and release time are below 1.3 ms, and the switching frequency reaches 225 Hz.

• Accuracy: repeatability < 0.5 mm; hysteresis typ. 4 % Sde; temperature drift < 0.18 % Sde/K
• Sensing distance: 0...40 mm, set by external teach-in (white wire); sonic frequency 380 kHz
• Output: PNP, NO/NC programmable, up to 200 mA; voltage drop < 2 V DC
• Supply: 12...30 V DC, consumption up to 35 mA; short-circuit and reverse-polarity protected
• Housing: M12 x 1 nickel-plated brass cylinder, 100 mm long
• Environment: IP67, operating temperature -10...+60 °C
• Connection: M12 connector

The short operating range and fast response suit detection of small objects in fast cycled motion, where an optical sensor fails on transparent or glossy surfaces. The switching point is taught by connecting the teach-in wire; the green LED flashes when a target is inside the range, which helps with alignment.

O300.RP.T-GW1J.72N is a Baumer O300 series retro-reflective photoelectric sensor for detecting transparent objects - glass and PET bottles, film and clear packaging - at up to 3.5 m. Switching is triggered by the attenuation of the returned signal, and the threshold can be set to 10, 20 or 30 %, so the sensor also responds to an object that weakens the signal only partly.

• Range: 3.5 m actual, 4 m nominal, with polarisation filter
• Signal attenuation threshold: 10 %, 20 % or 30 %
• Output: push-pull, light / dark operate, 100 mA
• Communication: IO-Link V1.1, filter functions, qTeach lock
• Supply: 10...30 V DC, typical consumption 30 mA
• Environment: IP 67, -30...+60 °C
• Connection: M8 connector, 4 pin

The sensor suits checks on empty glass and PET bottles, film and clear packaging on filling and packaging lines. The attenuation threshold and the filter functions can be changed over IO-Link from the control system, while qTeach can be locked so that the settings cannot be overwritten by accident.

OR18.SP-GW1B.7BO is a Baumer M18 SmartReflect light barrier that works against a fixed background at 55...300 mm instead of a separate reflector. The sensor is taught to the background position and switches when an object interrupts the beam in front of it, at up to 85-90 % of the background distance. Teaching is done with qTeach on the housing or through the external teach input.

• Background position: 55...300 mm; detection range 85-90 % of the background distance; red PinPoint LED 630 nm
• Output: push-pull, max. 100 mA, light/dark operate; response time < 0.49 ms
• Supply: 10...30 V DC, max. 45 mA
• Housing: M18 x 1 threaded, 65 mm long, nickel-plated brass, PA lens
• Environment: IP67; -25...+60 °C
• Connection: M12 4-pin connector

Suited to positions where a machine part, guide or conveyor belt sits behind the object and no reflector can be mounted. The push-pull output works with both PNP and NPN controller inputs. Pin 2 (white) is the teach input, so the sensor can be re-taught from the controller after a changeover.

O300W.GP-GW1J.PVN is a Baumer O300W series photoelectric sensor with background suppression and a 30...200 mm switching distance in a 1.4404 (V4A) stainless steel housing. The housing meets IP 68/69K and proTect+ and carries Ecolab approval, so the sensor does not have to be removed for washdown cycles.

• Switching distance: 30...200 mm, adjustable by teach-in and over IO-Link
• Output: push-pull, light / dark operate, < 100 mA
• Communication: IO-Link V1.1, filter functions, qTeach lock
• Supply: 10...30 V DC, typical consumption 30 mA
• Housing: stainless steel 1.4404 (V4A), PMMA optics, 16.5 x 34.7 x 28.2 mm
• Environment: IP 68/69K and proTect+, Ecolab, -25...+60 °C
• Connection: M8 connector, 4 pin

The sensor suits checks on bottles, cans and packaging in food and beverage production, where machines are washed regularly with hot pressurised water, foam and disinfectants. The switching distance is set with qTeach or over IO-Link, so there are no adjusters on the housing for dirt to collect in.

AFI4-6830.4006.1313 is a Baumer CombiLyz inductive conductivity sensor with display and rear process connection. It passes conductivity and temperature on as two separate 4...20 mA signals, and over IO-Link 1.1 the same readings and the sensor settings are also available digitally.

• Measuring range: 14 selectable ranges, 0...500 µS/cm to 0...1000 mS/cm; temperature -20...150 °C
• Output: 2 x 4...20 mA (conductivity, temperature), 2 solid-state relays, IO-Link 1.1
• Supply: 15...35 V DC (18...30 V DC with IO-Link)
• Housing: FlexHousing Ø80 mm, AISI 304, G 1 A hygienic connection, PEEK Natura probe L=60 mm
• Environment: IP67 / IP69K; process -20...140 °C (up to 150 °C for less than 1 h), up to 25 bar
• Connection: 2 x M16x1.5 cable glands, stainless steel AISI 304

Used for concentration control of CIP solutions and for phase separation between product, water and cleaning solution in dairy, brewery and beverage lines. The minimum measurable conductivity is 50 µS/cm, so the sensor does not suit demineralised or purified water.

cULus listed (E491206); wetted parts in PEEK Natura comply with FDA 21 CFR 177.2415. 3-A (74-07) and EHEDG EL Class I approved version, supplied with conductivity (5-point) and temperature (3-point) calibration certificates.
