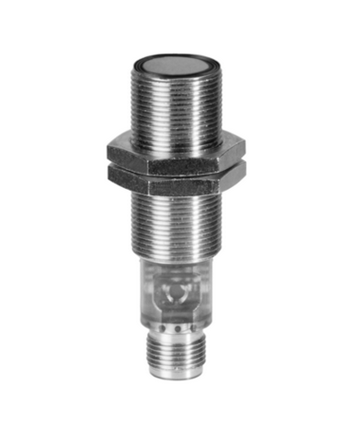

UR18.EB0.2-GP2J.9SF is the receiver of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The manufacturer recommends it for double sheet detection.

• Accuracy: repeatability 3 mm; hysteresis typ. 5 % Sde; temperature drift < 2 % Sde; minimum object size > 4 cm² at 50 mm
• Operating range: 0...2000 mm; response time < 9 ms; sonic frequency 200 kHz
• Outputs: push-pull (works as PNP or NPN), up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 3 ms, port type Class A, also transmits excess gain
• Supply: 12...30 V DC, consumption up to 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Works only as a pair with the UR18.TB0.2-ZZZZ.9SF emitter, which is ordered separately. The switching threshold is set by qTeach, Line-Teach or over IO-Link, which also configures output logic, time filters and the counter.

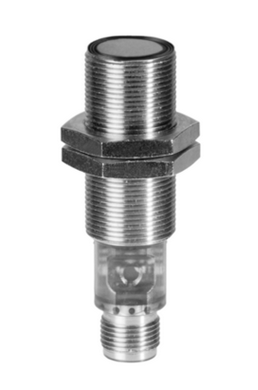

UR18.TB0.2-ZZZZ.9SF is the emitter of a Baumer UR18 series ultrasonic through-beam sensor, in an M18 stainless steel housing with an operating range up to 2000 mm. The emitter has no switching output.

• Operating range: 0...2000 mm; sonic frequency 200 kHz
• Supply: 12...30 V DC, typical consumption 25 mA; short-circuit and reverse-polarity protected
• Housing: M18 threaded cylinder, stainless steel (V2A) / TR90, PEEK-coated sensor face, 64 mm long
• Environment: IP69 (housing), IP67 (connection), operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin; green LED shows power

Works only as a pair with the UR18.EB0.2-GP2J.9SF receiver, which is ordered separately; all settings and the output are on the receiver.

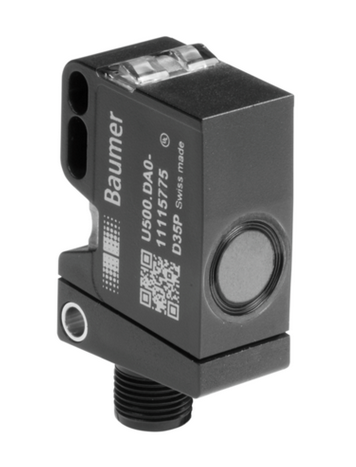

U500.PA0.2-GP1J.72F is a Baumer U500 series ultrasonic proximity sensor with a 20...1000 mm operating range, a push-pull switching output and an IO-Link interface. A multiplex version lets several sensors run side by side without mutual interference.

• Accuracy: repeatability 0.5 mm; hysteresis typ. 4 % Sde; temperature drift < 2 % Sde; power-up drift compensated after 15 min
• Sensing distance: 20...1000 mm; response time < 40 ms; sonic frequency 200 kHz
• Outputs: push-pull (works as PNP or NPN), up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 12 ms, port type Class A, also transmits distance
• Supply: 12...30 V DC, typical consumption 35 mA; short-circuit and reverse-polarity protected
• Housing: rectangular, ASA/PMMA plastic, PEEK-coated sensor face, 18 x 45 x 32 mm
• Environment: IP67, operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Suited to presence and level detection up to 1 m regardless of colour and transparency. The switching point is set by qTeach, Line-Teach or over IO-Link, which also configures output logic, time filters, beam forming and the function of pin 5.

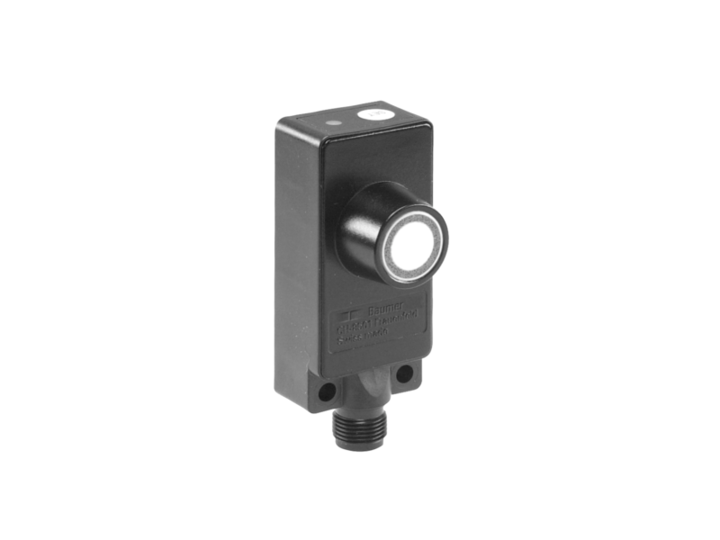

UNDK 30U6103/S14 is a Baumer ultrasonic distance sensor in a rectangular housing with a 100...1000 mm measuring range and a 0...10 V analog output. The start and end of the range are taught with the teach-in button on the housing.

• Accuracy: repeatability < 0.5 mm; resolution < 0.3 mm; temperature drift < 2 % of distance to target
• Measuring range: 100...1000 mm, start and end point adjustable; response time < 80 ms; sonic frequency 240 kHz
• Output: analog 0...10 V / 10...0 V, up to 20 mA
• Supply: 15...30 V DC, consumption up to 35 mA; short-circuit and reverse-polarity protected
• Housing: polyester / die-cast zinc, 30 x 65 x 31 mm
• Environment: IP67, operating temperature -10...+60 °C
• Connection: M12 connector

Suited to level and distance measurement up to 1 m where a plain analog signal to a controller without a digital interface is needed. Yellow and red LEDs show the status, and the display flashes when a target is inside the range, which helps with alignment.

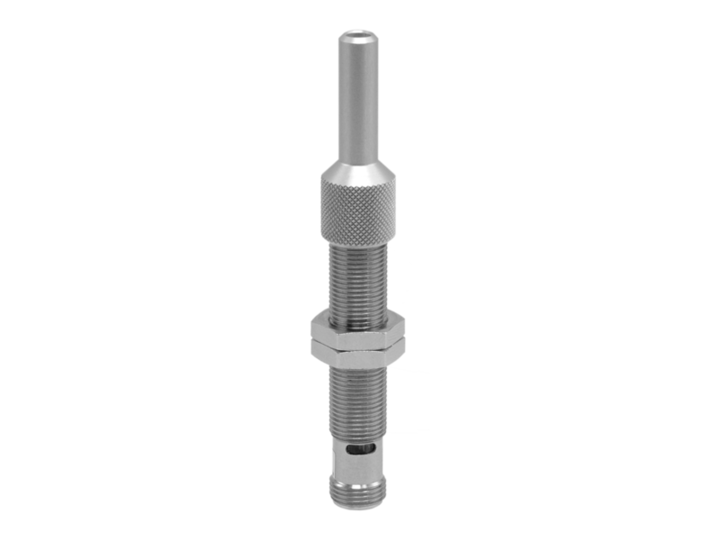

UNAM 12P8910/S14OD is a Baumer high-speed ultrasonic proximity sensor in an M12 threaded housing with a 0...40 mm operating range. Response and release time are below 1.3 ms, and the switching frequency reaches 225 Hz.

• Accuracy: repeatability < 0.5 mm; hysteresis typ. 4 % Sde; temperature drift < 0.18 % Sde/K
• Sensing distance: 0...40 mm, set by external teach-in (white wire); sonic frequency 380 kHz
• Output: PNP, NO/NC programmable, up to 200 mA; voltage drop < 2 V DC
• Supply: 12...30 V DC, consumption up to 35 mA; short-circuit and reverse-polarity protected
• Housing: M12 x 1 nickel-plated brass cylinder, 100 mm long
• Environment: IP67, operating temperature -10...+60 °C
• Connection: M12 connector

The short operating range and fast response suit detection of small objects in fast cycled motion, where an optical sensor fails on transparent or glossy surfaces. The switching point is taught by connecting the teach-in wire; the green LED flashes when a target is inside the range, which helps with alignment.

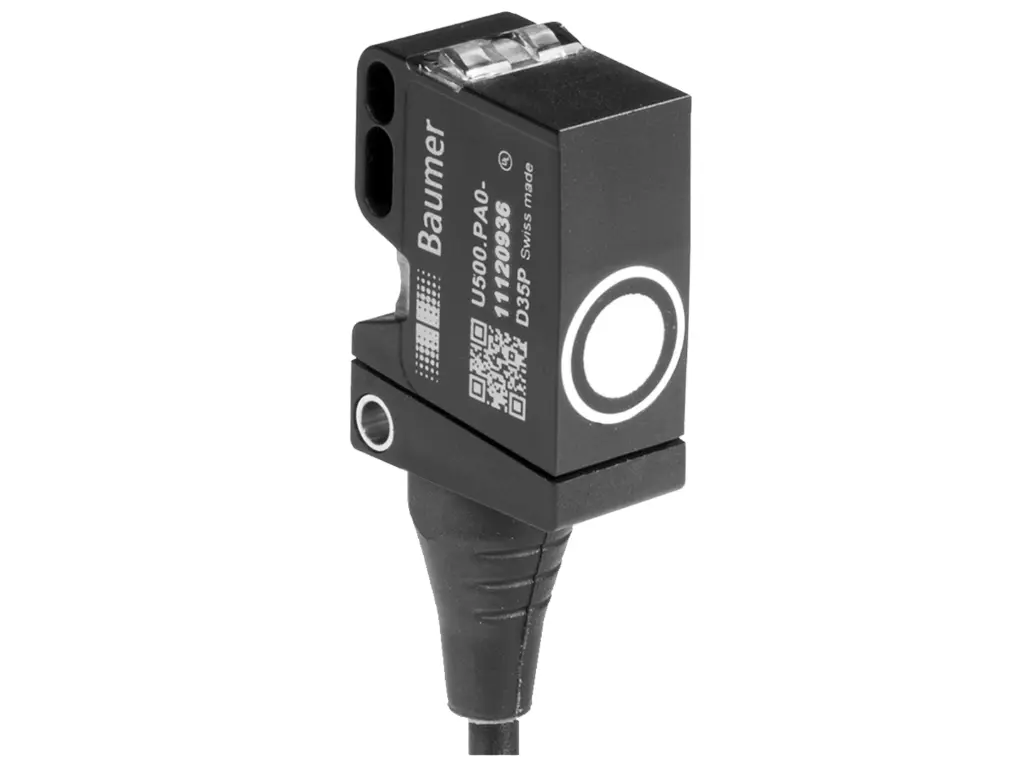

U500.DA5.2-UAMJ.72F is a Baumer U500 series ultrasonic distance sensor with a 20...1500 mm measuring range, a 0...10 V analog output and an IO-Link interface. It has two IO-Link channels (dual channel) and a multiplex version, so several sensors can run side by side without mutual interference.

• Accuracy: repeatability 0.5 mm; resolution < 0.3 mm; temperature drift < 2 % of object distance (> 50 mm); power-up drift compensated after 15 min
• Measuring range: 20...1500 mm, start and end point adjustable; response time < 70 ms; sonic frequency 200 kHz
• Outputs: analog 0...10 V / 10...0 V, up to 100 mA; IO-Link V1.1, COM 2 (38.4 kBaud), cycle time ≥ 12 ms, port type Class A, 48-bit process data (distance, 2 switching channels, quality, alarm, counter)
• Supply: 12...30 V DC, average consumption 35 mA; short-circuit and reverse-polarity protected
• Housing: rectangular, ASA/PMMA plastic, PEEK-coated sensor face, 18 x 45 x 32 mm
• Environment: IP67, operating temperature -25...+65 °C
• Connection: M12 connector, 5-pin

Suited to level measurement in tanks and distance measurement up to 1.5 m, where object colour, transparency or dust disturbs an optical measurement. The range is set by qTeach, Line-Teach or over IO-Link, which also configures filtering, the output characteristic, the sonic beam width and the function of pin 5.
