RKSV4.4T-15/TXL is a TURCK shielded connection cable with a straight M12 female connector (4-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 5.3 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Shield: aluminium foil and tinned copper wire
• Ratings: 4 A, 250 V, more than 100 mating cycles
• Housing: TPU, stainless steel (V4A) coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

TX715-P3CV01 is a 15.6" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The PLC program and the screens are built in CODESYS V3 and loaded into the device over Ethernet.

• Display: 15.6" TFT, 1366 x 768 (HD), 16:9, 16M colours, 400 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Quad core 800 MHz, 2048 MB RAM, 8 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 1.2 A
• Housing: metal, front 422 x 267 x 56 mm, cut-out 411 x 256 mm, mounting depth 56+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 15.6" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.

7” Display - CODESYS V3 PLC with TARGET and WEB VISU

High-Quality Metal Housing with a Resistive Touch Screen

• • 7" TFT wide screen color display
  • LED backlight
  • 800 x 480 pixel resolution
  • 64 K colors
  • Resistive touch screen
  • 2 RJ45 Ethernet ports with integrated switch
  • 1 serial interface (RS232, RS485, RS422)
  • 2 USB host ports
  • 1 SD card slot

• Relay is designed to control the level of conductive liquids in wells, tanks, pools, tankers, reservoirs,... (replacement HRH-1).
• Galvanically isolated supply and guard circuits.
• Within one device, the following confi gurations can be selected:
  - 2x one-level monitoring (in separate tanks)
  - 1x two-level monitoring (in one tank) - pumping from one tank to another.
• DIP switch selection on the front panel (8 functions).
• Adjustable probe sensitivity (for each probe separately).
• Adjustable relay switching delay (for each probe separately).
• 10 Hz watch frequency prevents polarization of the liquid and increases resistance to interference by network frequency

PKG4M-15/TXL is a TURCK connection cable with a straight M8 female connector (4-pin) on one end and open cores on the other. The PUR jacket is rated for moving installation, including drag chains.

• Connector: M8 x 1, female, straight, 4-pin, gold-plated brass (CuZn) contacts
• Cable: 15 m, PUR, black, Ø 4.5 mm, 4 x 0.34 mm², core colours BN, WH, BU, BK
• Ratings: 4 A, 50 VAC / 60 VDC, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain
• Drag chain: at least 5 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø, torsion ±180°/m

The jacket resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS. Approval: cULus.

RKC5701-5M is a TURCK shielded CAN bus cable (DeviceNet, CANopen) with a straight M12 female connector (5-pin, A-coded) on one end and open cores on the other. The cable carries a separate power pair and a data pair with 120 Ω impedance.

• Connector: M12 x 1, female, straight, A-coded, 5-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, anthracite, Ø 6.7 mm, shielded; power pair AWG 22 (RD, BK), data pair AWG 24 (WH, BU)
• Electrical: 4 A, 60 V, impedance 120 Ω (1 MHz), capacitance 37 pF/m, loop resistance 82 Ω/km
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -40...+80°C fixed, -25...+60°C mobile

The cable is rated for drag chains (at least 5 million bending cycles, up to 3 m/s, bending radius ≥10 x Ø). It is oil resistant per VDE 0472-803, flame retardant per VDE 0472-804/B, UV resistant and free from halogen and LABS.

Approval: UL.

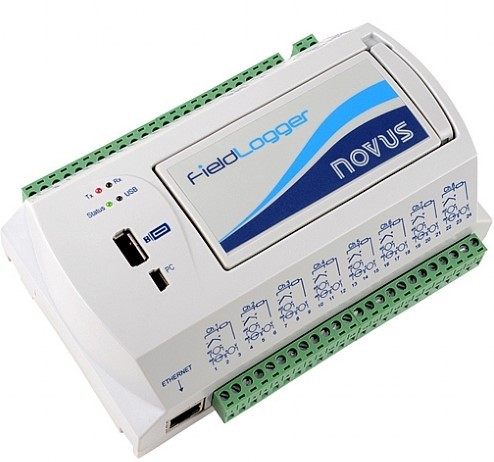

• 8 Universal Analog Input Channels: Supports multiple sensor types, including thermocouples, Pt100, Pt1000, voltage signals (V, mV), and current (mA). With reading and recording rates of up to 1000 readings per second and 24-bit A/D conversion resolution, it guarantees precise and detailed monitoring.
 • 8 Configurable Digital I/Os and 2 Relay Outputs: The digital I/Os can be individually configured as inputs or outputs, and the relay outputs (NO, NC, common) allow local control of devices or alarms.
 • High-Performance Storage and Logging: The FieldLogger has memory to store up to 512k of data, with the possibility of expansion via an SD card, allowing the logging of up to 100 channels at configurable rates. Data can be downloaded through software or via a USB-host interface using a flash drive.

The N321R is a temperature controller dedicated to applications in refrigeration. The defrost cycle is accomplished by turning off the compressor at time intervals chosen by the user. Pt100 and thermistor sensors inputs available. Adjust for ON and OFF durations. Auto defrost at programmable intervals. Manual Defrost key in the front pannel.

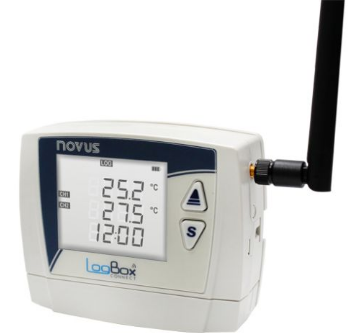

3G/2G Multi Channel Data Logger

LogBox 3G is an IoT device with integrated data logger and 3G / 2G connectivity which allows remote telemetry or mobile monitoring solution. Data can be accessed remotely and centralized via NXperience software for Windows or via NOVUS Cloud IoT platform. Moreover, NOVUS may provide access to LogBox 3G for SCADA system or proprietary application through specific communication driver, upon request. Secure, real-time information accessed quickly and easily.

The device has two universal analog inputs that accept a wide range of sensors. It also has internal sensors for measuring temperature, battery voltage and external sources. In addition, LogBox 3G has SMS commands and alarm alerts.

3G/2G Multi Channel Data Logger

LogBox 3G is an IoT device with integrated data logger and 3G / 2G connectivity which allows remote telemetry or mobile monitoring solution. Data can be accessed remotely and centralized via NXperience software for Windows or via NOVUS Cloud IoT platform. Moreover, NOVUS may provide access to LogBox 3G for SCADA system or proprietary application through specific communication driver, upon request. Secure, real-time information accessed quickly and easily.

The device has two universal analog inputs that accept a wide range of sensors. It also has internal sensors for measuring temperature, battery voltage and external sources. In addition, LogBox 3G has SMS commands and alarm alerts.

RKS8T-5/TXL is a TURCK shielded connection cable with a straight M12 female connector (8-pin) on one end and open cores on the other. The cable shield is connected to the coupling nut.

• Connector: M12 x 1, female, straight, A-coded, 8-pin, gold-plated brass (CuZn) contacts
• Cable: 5 m, PUR, black, Ø 6.3 mm, 8 x 0.25 mm², core colours BN, WH, BU, BK, GY, PK, VT, OG
• Shield: aluminium foil and tinned copper wire
• Ratings: 2 A, 30 V, more than 100 mating cycles
• Housing: TPU, nickel-plated brass coupling nut, FPM/FKM seal
• Environment: IP67, IP69K (only when screwed in); -50...+80°C fixed, -25...+80°C mobile, -25...+60°C in a drag chain

The PUR jacket is rated for drag chains: at least 2 million bending cycles, up to 3.3 m/s and 5 m/s², bending radius ≥10 x Ø. It resists chemicals, UV radiation, oils, welding sparks and abrasion, is flame retardant (FT2 per UL 1581, IEC 60332-2-2) and free from halogen, silicone, PVC and LABS.

Approval: cULus.

• Range 0 ...+100 °C Operating temp. up to 80 °C
• Range 0...100 % RH Accuracy H.: ±3 % RH / 30…80 % RH
• Accuracy T.: ±0,8 K
• With analogue output 4 ... 20 mA
