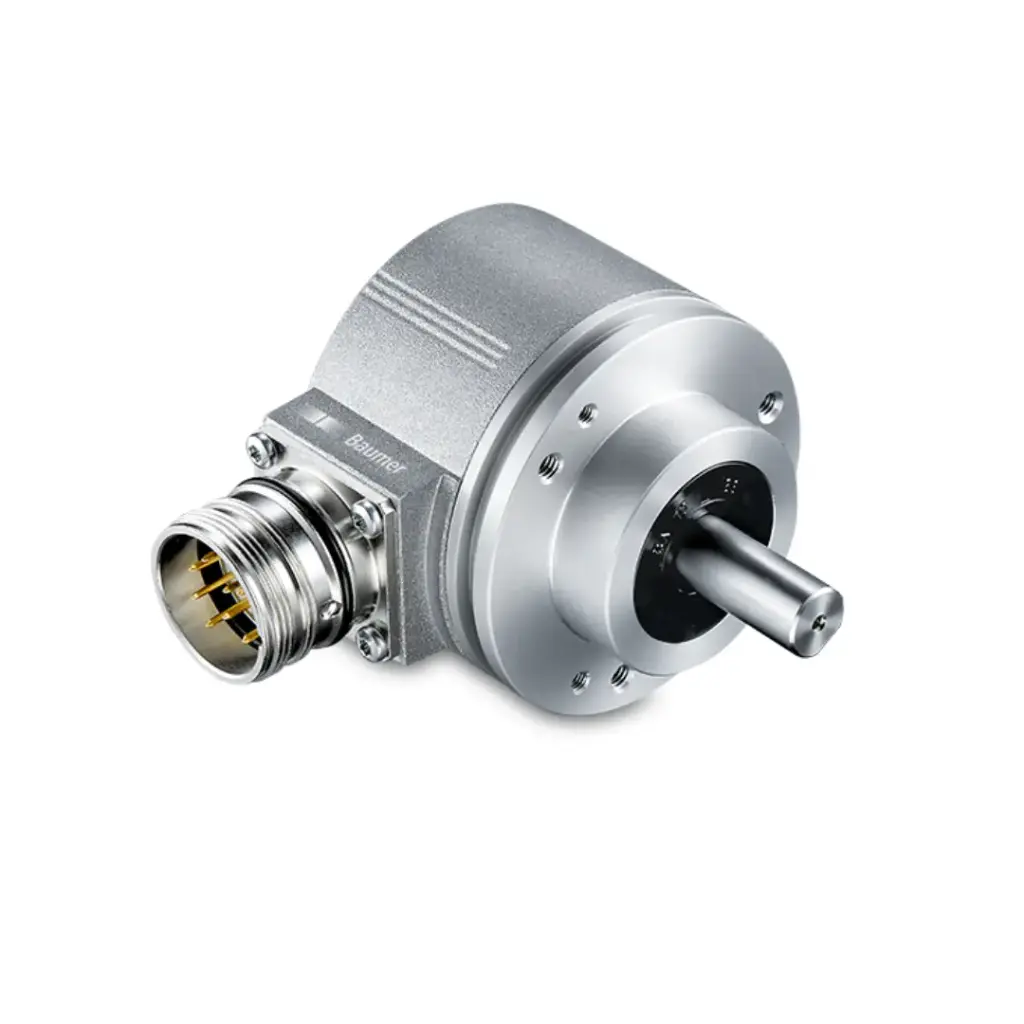

Encoder EIL580-SC10.5FH.01024.A, 1024 PPR, TTL/RS422, 8-30VDC, Ø10 mm shaft, M23 12-pin

EIL580-SC10.5FH.01024.A is a Baumer optoPulse incremental encoder with optical sensing and 1024 pulses per revolution. It runs on an 8-30 V DC supply while the output stays at 5 V TTL/RS422 level, so it connects to an RS422 input on a machine that only has 24 V available.

• Resolution: 1024 pulses per revolution, zero pulse
• Output: TTL/RS422, 6 channels (A+, B+, R+, A-, B-, R-), up to 300 kHz
• Supply: 8-30 V DC, no-load consumption ≤70 mA
• Housing: Ø58 mm, clamping flange with Ø36 mm centring collar, Ø10 x 20 mm shaft with flat
• Environment: IP65, -40...+85 °C, up to 12000 rpm
• Connection: M23 12-pin radial connector

Used for motor speed and position feedback where the controller or frequency converter has an RS422 input. Permitted shaft load is 40 N axial and 80 N radial, so the shaft needs a flexible coupling.

UL 508 / CSA 22.2 approved. EMC to EN 61000-6-2 and EN 61000-6-3; vibration (30 g, 10-2000 Hz) and shock (300 g, 6 ms) resistance to EN 60068-2-6 and EN 60068-2-27.
