LIKA EPFL121-5.0-1032081 is a 5 m shielded encoder cable with an M23 12-pin connector for LIKA IQ58 and IP58 series encoders. It carries the incremental signals A, B and 0 with their inverted pairs, the supply and two setting inputs; the shield is connected to the connector case.

• Connector: M23, 12-pin
• Cable: 5 m, 10 x 0.34 mm², shielded
• Supply: +5...+30 V DC
• Inputs: index pulse setting, counting direction
• Core colours: A violet, /A yellow, B grey, /B pink, 0 green, /0 brown, +V red, 0 V black, index setting white, counting direction blue

LIKA EPFL121-10.0-1032081 is a 10 m shielded encoder cable with an M23 12-pin connector for LIKA IQ58 and IP58 series encoders. It carries the incremental signals A, B and 0 with their inverted pairs, the supply and two setting inputs; the shield is connected to the connector case.

• Connector: M23, 12-pin
• Cable: 10 m, 10 x 0.34 mm², shielded
• Supply: +5...+30 V DC
• Inputs: index pulse setting, counting direction
• Core colours: A violet, /A yellow, B grey, /B pink, 0 green, /0 brown, +V red, 0 V black, index setting white, counting direction blue

EIL580P-SC10.7BF.01024.B is a Baumer optoPulse programmable incremental encoder with optical sensing. Pulse count from 1 to 65536, TTL or HTL output level, zero pulse width and position and signal sequence are set on site, so one encoder replaces several fixed-resolution models.

• Resolution: 1...65536 pulses per revolution, factory setting 1024
• Output: TTL/RS422 (factory setting) or HTL/push-pull, 6 channels, up to 300 kHz (TTL)
• Supply: 4.75-30 V DC, no-load consumption ≤70 mA
• Housing: Ø58 mm, clamping flange, Ø10 x 20 mm shaft with flat
• Environment: IP67 (with shaft seal), -40...+100 °C, up to 6000 rpm
• Connection: M12 8-pin radial connector

Parameters are set with the Baumer Z-PA-EI-H or Z-PA-EI-P programming tool and an M12/D-SUB connection cable. Unprogrammed, the encoder runs at 1024 pulses with a 5 V TTL output.

UL 508 / CSA 22.2 approved. EMC to EN 61000-6-2 and EN 61000-6-3; vibration (30 g, 10-2000 Hz) and shock (300 g, 6 ms) resistance to EN 60068-2-6 and EN 60068-2-27.

EIL580-S1B1.7FE.01024.A is a Baumer optoPulse incremental encoder with optical sensing, 1024 pulses per revolution and a EURO flange B10. The flange, with a Ø85 mm centring collar and six Ø6.6 mm holes on a Ø100 mm pitch circle, matches EURO B10 motor and gearbox mounting.

• Resolution: 1024 pulses per revolution, zero pulse
• Output: TTL/RS422, 6 channels (A+, B+, R+, A-, B-, R-), up to 300 kHz
• Supply: 5 V DC ±5 %, no-load consumption ≤70 mA
• Housing: EURO flange B10 (Ø115 mm), Ø11 x 30 mm shaft with Woodruff key
• Environment: IP67 (with shaft seal), -40...+85 °C, up to 6000 rpm
• Connection: M23 12-pin radial connector

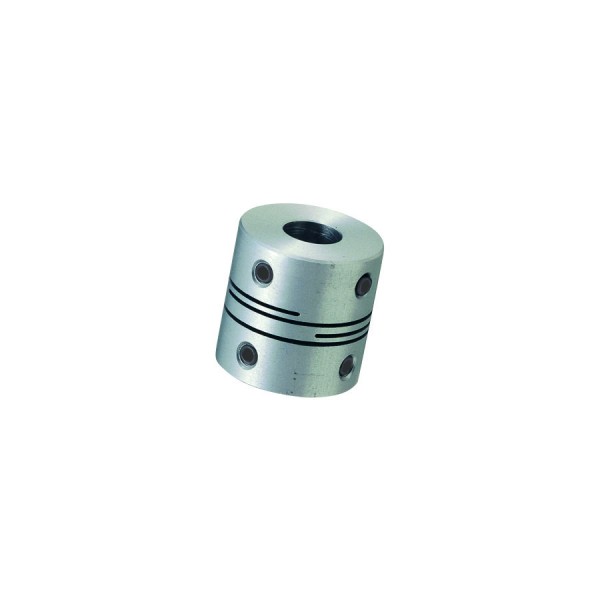

The encoder needs a regulated 5 V supply and cannot be connected directly to a 24 V circuit. The shaft needs a flexible coupling, as permitted load is 40 N axial and 80 N radial.

UL 508 / CSA 22.2 approved. EMC to EN 61000-6-2 and EN 61000-6-3; vibration (30 g, 10-2000 Hz) and shock (300 g, 6 ms) resistance to EN 60068-2-6 and EN 60068-2-27.

EIL580-SY06.5EQ.01000.A is a Baumer optoPulse incremental encoder with optical sensing, 1000 pulses per revolution and synchro flange mounting. The HTL output level follows the supply (Vout = Vin), so on a 24 V system the signal is at 24 V and goes straight to a PLC high-speed counter input.

• Resolution: 1000 pulses per revolution, zero pulse
• Output: HTL/push-pull, 6 channels (A+, B+, R+, A-, B-, R-), up to 160 kHz
• Supply: 4.75-30 V DC, no-load consumption ≤70 mA
• Housing: Ø58 mm, synchro flange with Ø50 mm centring collar, Ø6 x 10 mm shaft with flat
• Environment: IP65, -40...+85 °C, up to 12000 rpm

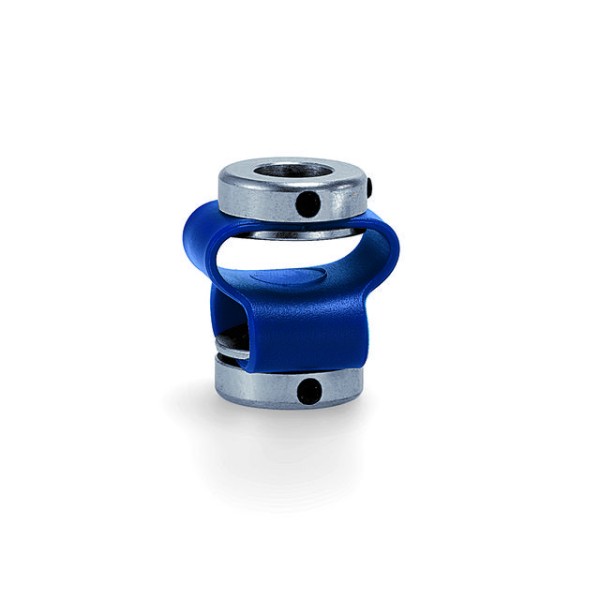

The synchro flange lets the encoder be held with clamps and rotated around its shaft before tightening. The shaft needs a flexible coupling.

UL 508 / CSA 22.2 approved. EMC to EN 61000-6-2 and EN 61000-6-3; vibration (30 g, 10-2000 Hz) and shock (300 g, 6 ms) resistance to EN 60068-2-6 and EN 60068-2-27.
